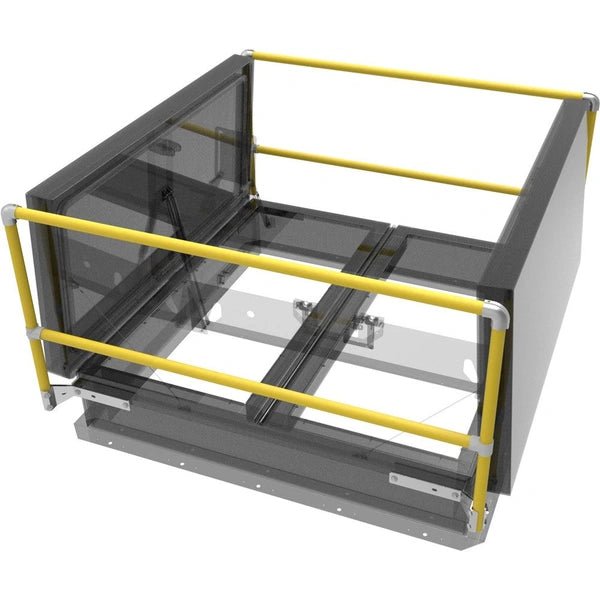

Two-Sided Smoke Vent Safety Railing
SKU:
The Babcock-Davis OSHA compliant Safety Railing is ideal for new and retrofit applications. The safety railing mounts to the existing smoke vent curb counterflash without penetrating the membrane.
Features
- OSHA Compliant Fall Protection
- Optional Four-Sided Rails
- Easy Field Installation
Specifications
| Model | BSRVAY |
| Material | Rails and Posts, aluminum, 1-1/4 inch ID (1.66 inch OD) Schedule 40 pipe A53 Grade B |
| Finish | Safety Yellow Powder Coat |
| Fittings | Cast aluminum alloy with set screw hold |
| Mounting Brackets | 3/16 inch steel, zinc plated with a patented nut backing plate |
| Hardware | Hex head bolts 3/8 inch - 16 x 3/4 inch zinc plated steel |
| Compliance | OSHA 29 CFR 1910.28 and 1910.29 requirements for fall protection; supports 200lbs force |
| Warranty | Five (5) years |
| Sizes | Industry standard and custom sizes available |
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
| BASE | WIDTH | X | LENGTH | EXIT |
|---|---|---|---|---|
BSRVAY |
X | NN | TN | |
| Standard Sizes (in.) 36 x 30 36 x 36 48 x 48 48 x 96 60 x 96 60 x 120 60 x 144 72 x 144 |
||||
Additional sizes and options available, call for more information.
| Description | Model | Shop Drawing | CAD | Revit/BIM | Data Sheet | 3-Part Specs | LEED | Installation | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| 36" | BSRVAY36XNN | DWG | LINK | WORD | |||||
| 48" | BSRVAY48XNN | DWG | LINK | WORD |
