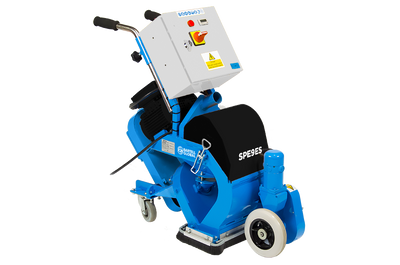

SPE 9ES Shot Blaster perfect for preparation of concrete floors and steel surfaces

The SPE 9E Super machine is mainly used for the preparation of concrete floors but is equally effective on steel surfaces. A small, compact machine suitable for the smaller contractor and the rental industry. Self propelled and infinitely variable in all operations. Electrically powered. Recognized in the industry as the modern, fast, versatile, environmental, dust-free means to dry abrasive cleaning and texturing of horizontal or slightly inclined surfaces. This eliminates mess normally associated with hand blasting and leaves an ideal surface for coatings and overlays to be applied. Available in 110v, 220v, 400v, 50/60hz

This Shot Blaster is also available as the SPE 9G Shot Blaster

  • 230mm (9") working width
  • Electrically driven
  • Ideal for smaller projects
  • Optional seal system to vary blast width

Features

  • Blast unit constructed of manganese steel
  • Handle fully adjustable in height
  • Front drive and rear support wheels fully adjustable in height
  • Forward and reverse travel as standard
  • Fully machined blast wheel support bearing assembly (Eliminates bearing problems and automatically self aligns blast wheel components)
  • Grill fitted into lower separator hopper unit assembly to eliminate foreign objects being allowed into the blast wheel and causing damage
  • Optional magnetic/steel seal system available

Bartell Global makes the SPE Shot Blasters in the following models: SPE 9ES, SPE 9G, SPE 12ES, SPE 16ES, and the SPE 20ES.

Technical Specs

SPE 9ES-2

Type

230v 1Ø


Power Output (Blast Motor) (hp/kw)

3 / 2.2


Cleaning Width (mm)

230


Length (mm/in)

800 / 31.5


Width (mm/in)

340 / 13.4


Height (mm/in)

840 / 33.1


Weight (kg/lb)

89 / 195.8
