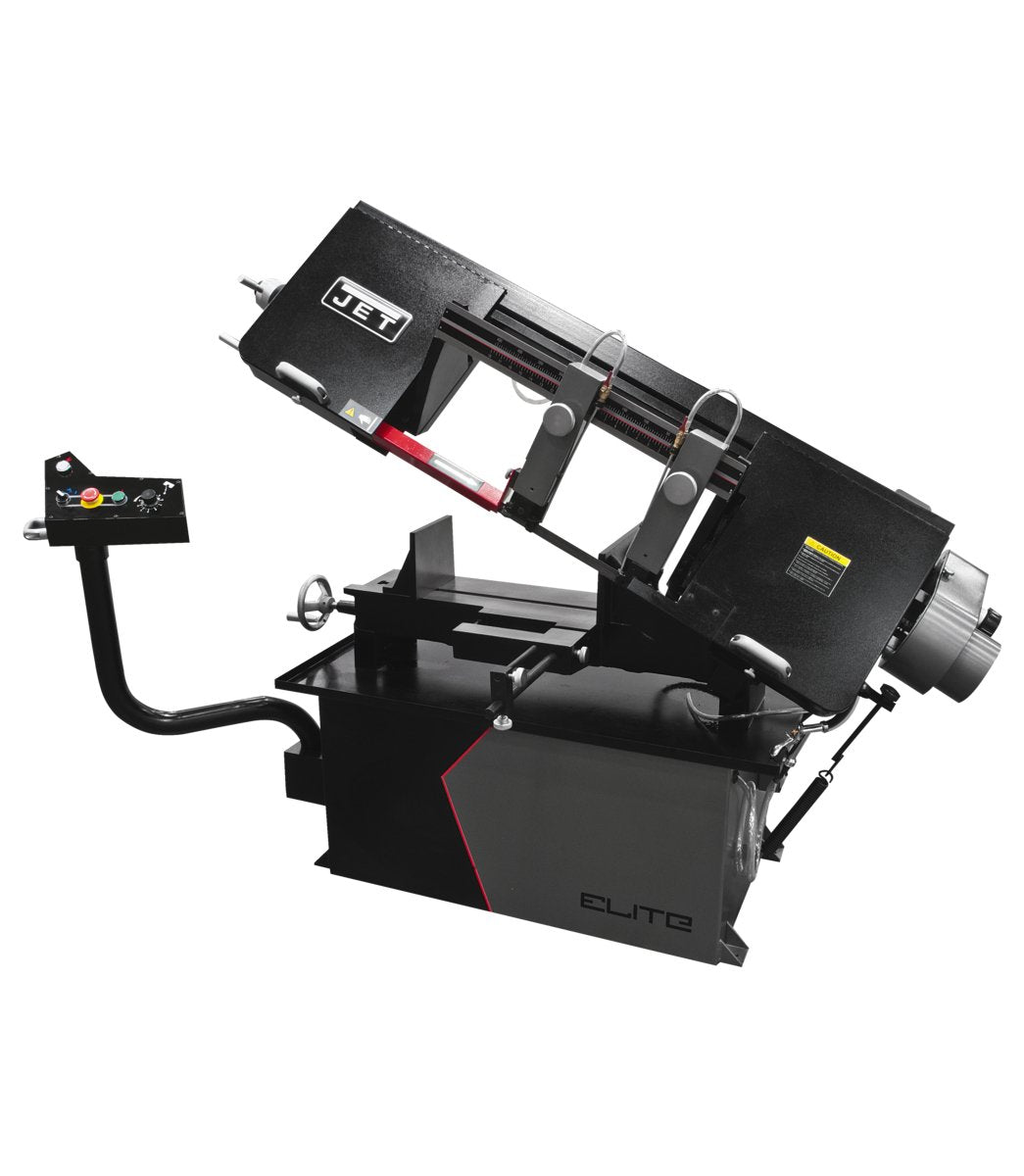

10 x 18 Variable Speed Bandsaw | EHB-1018V
SKU: JT9-891060
A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time.
Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
Features
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides

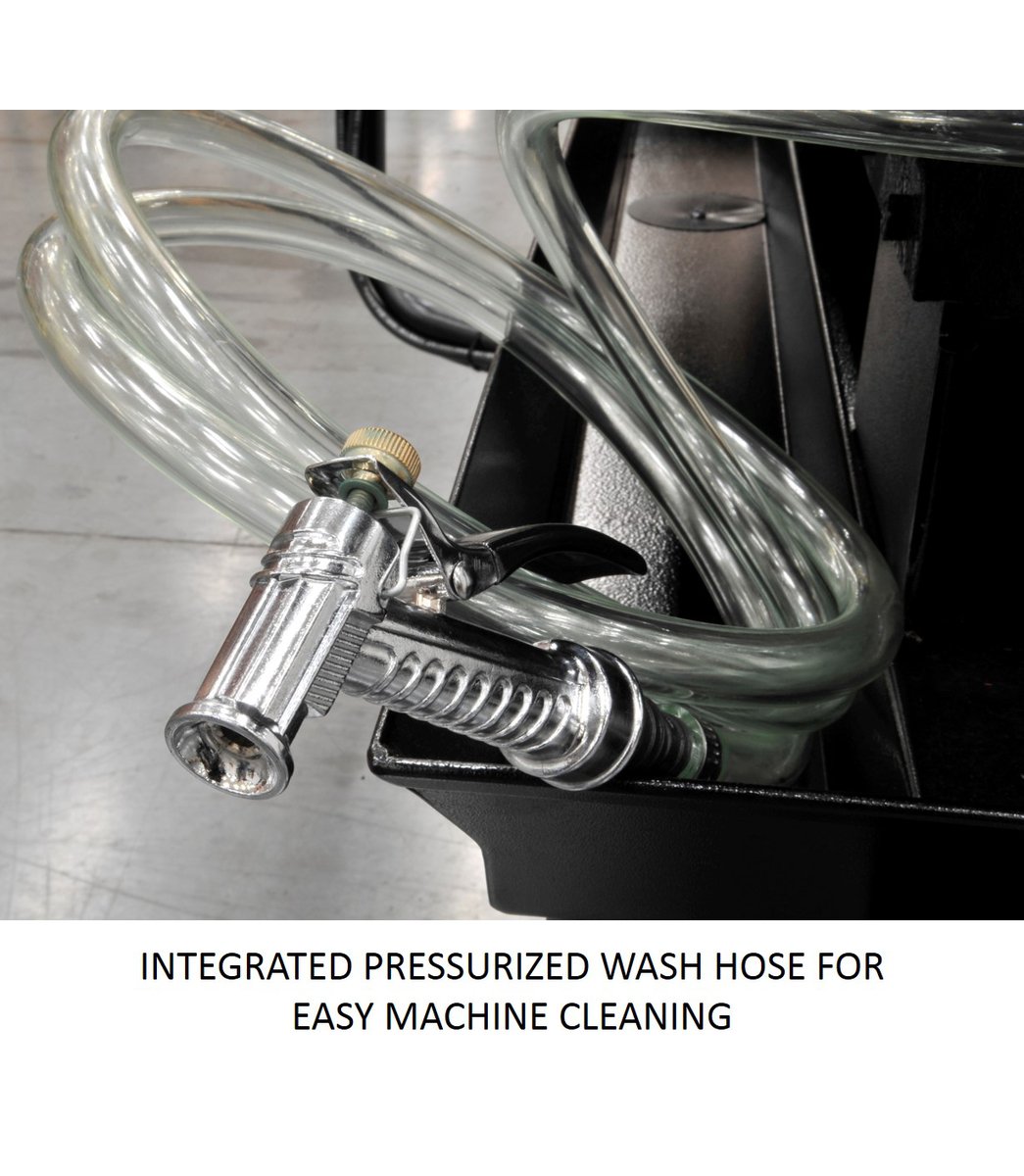

- Integrated pressurized wash hose for easy machine cleaning

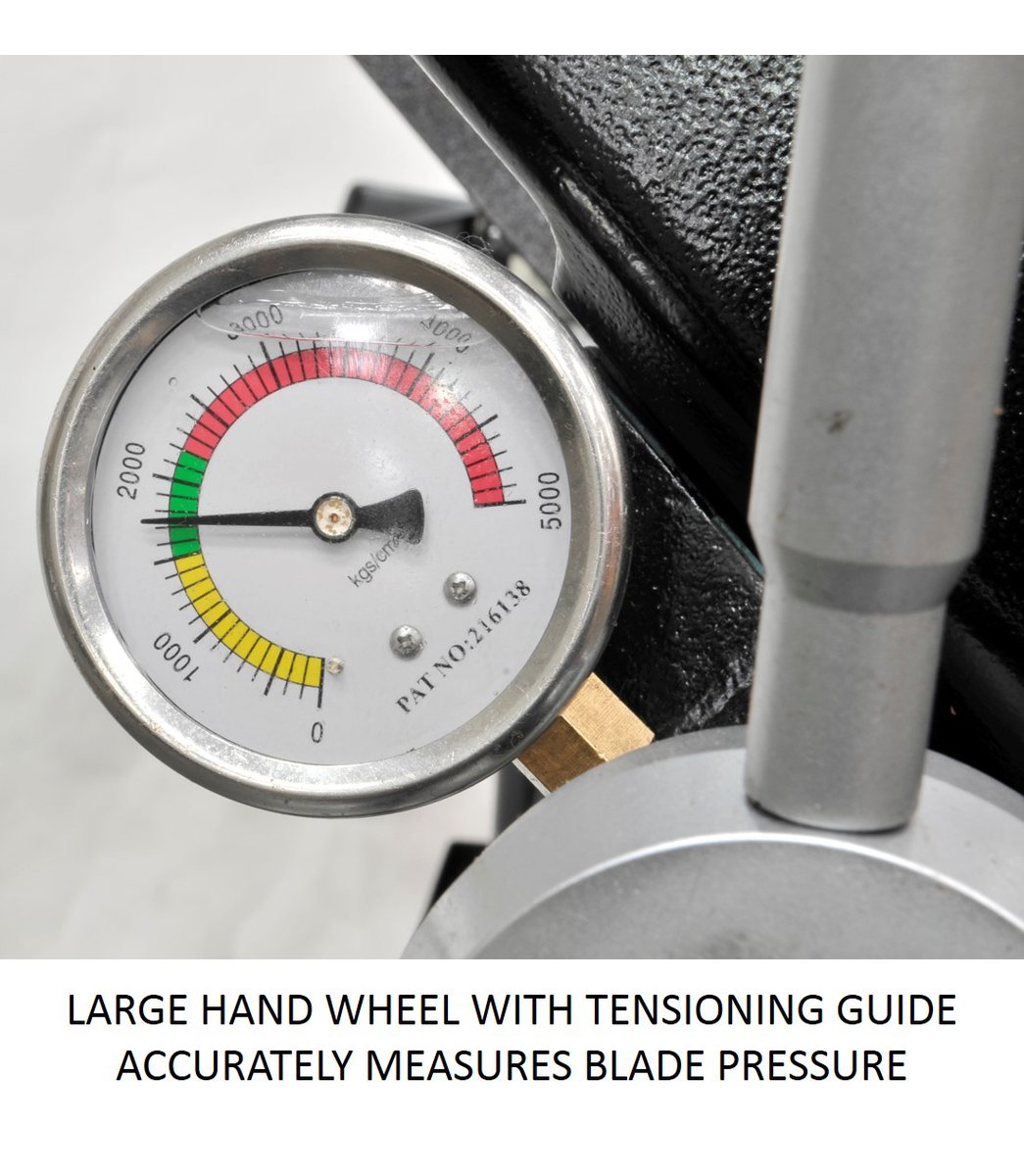

- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Quick positioning vise for clamping of materials
- The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
- To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.

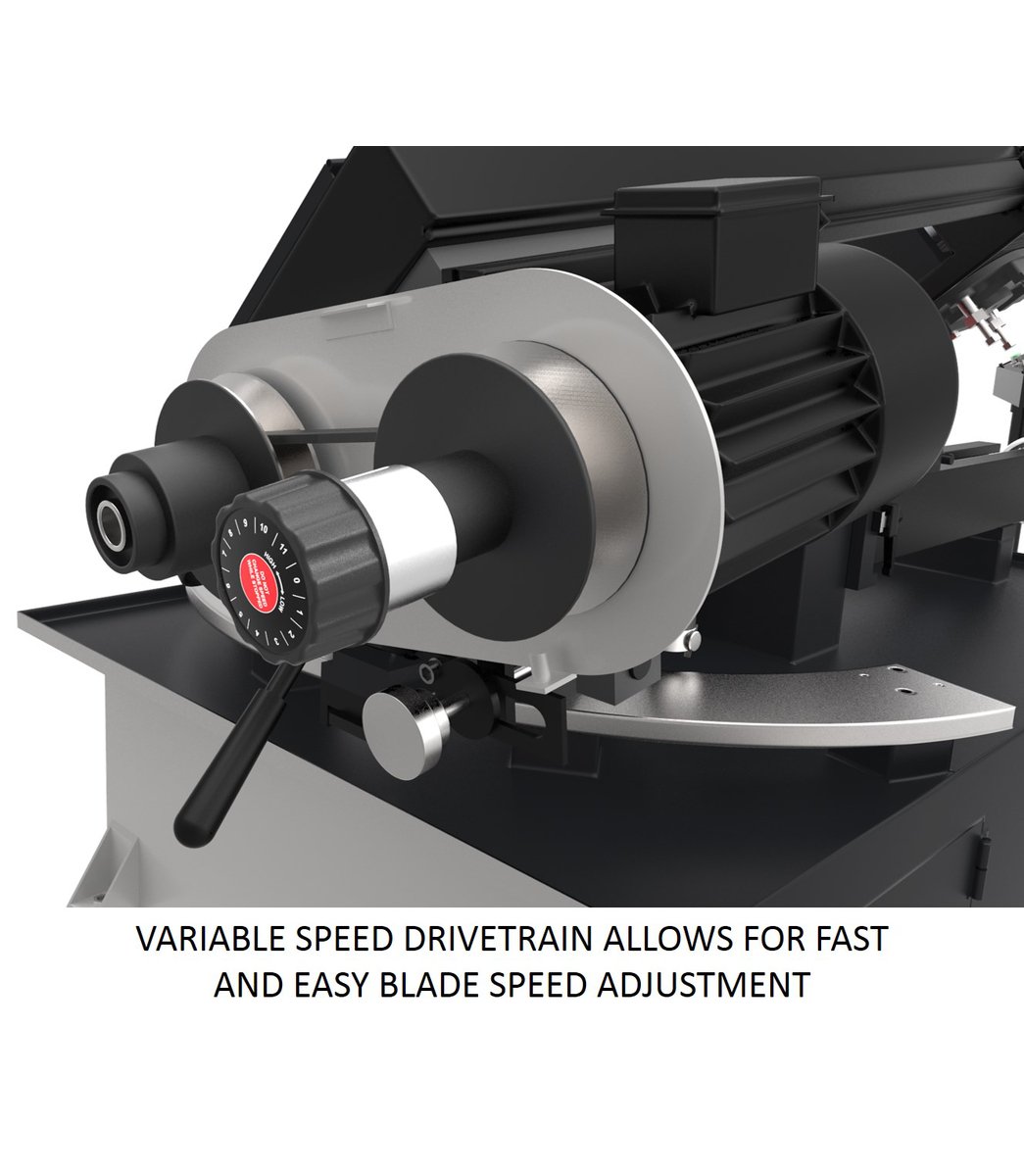

- Variable speed drive train allows operator to fine tune the blade speed fast and easily
Specs
| Stock Number | 891060 |
|---|---|
| Bed Height (In.) | 27 |
| Blade Length (In.) | 132-1/2 |
| Blade Speed (SFPM) | 53-257 |
| Blade Speeds (SFPM) | 53 - 275 |
| Blade Wheel Diameter (In.) | 14 |
| Cutting Capacity (W x D) (In.) | 10 x 18 |
| Drive | Variable Speed |
| Electrics | 2HP, 230V, 1Ph |
| Gross Weight (Lbs) | 814 |
| Head Movement (Deg.) | 0 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Net Weight (Lbs.) | 704 |
| Overall Dimensions (L x W x H) (In.) | 74 x 30 x 44 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 8-1/2 x 9 |
| Rectangle at 90 Degrees (In.) | 18 x 3-1/2 |
| Round at 45 Degrees (In.) | 9 |
| Round at 90 Degrees (In.) | 10 |
| Shipping Dimensions (L x W x H) (In.) | 74 x 30 x 44 |
| Square at 45 Degrees (In.) | 8-1/2 x 8-1/2 |
| Square at 90 Degrees (In.) | 10 x 10 |
| Vise Swivels (Deg.) | 45 |
| Weight (Lbs.) | 814 |
| Blade Size (In.) | 1 x .035 x 132-1/2 |
