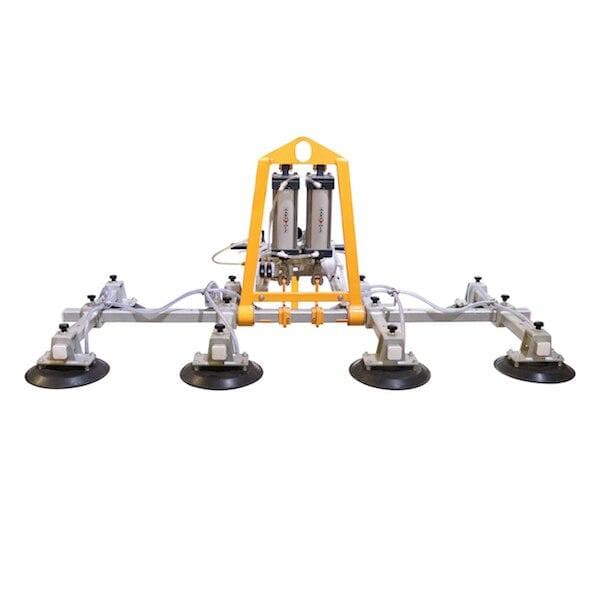

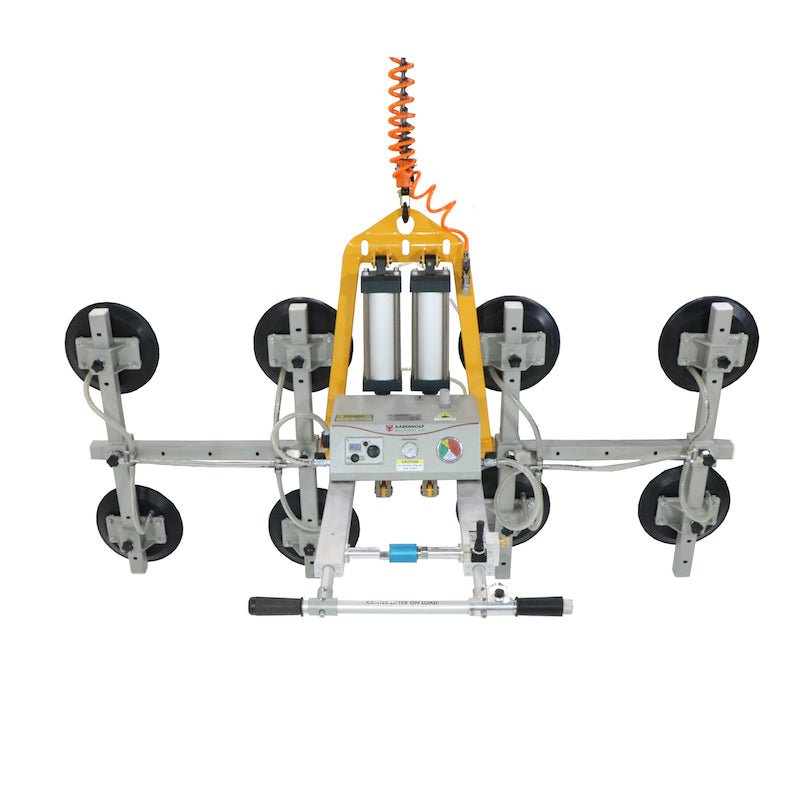

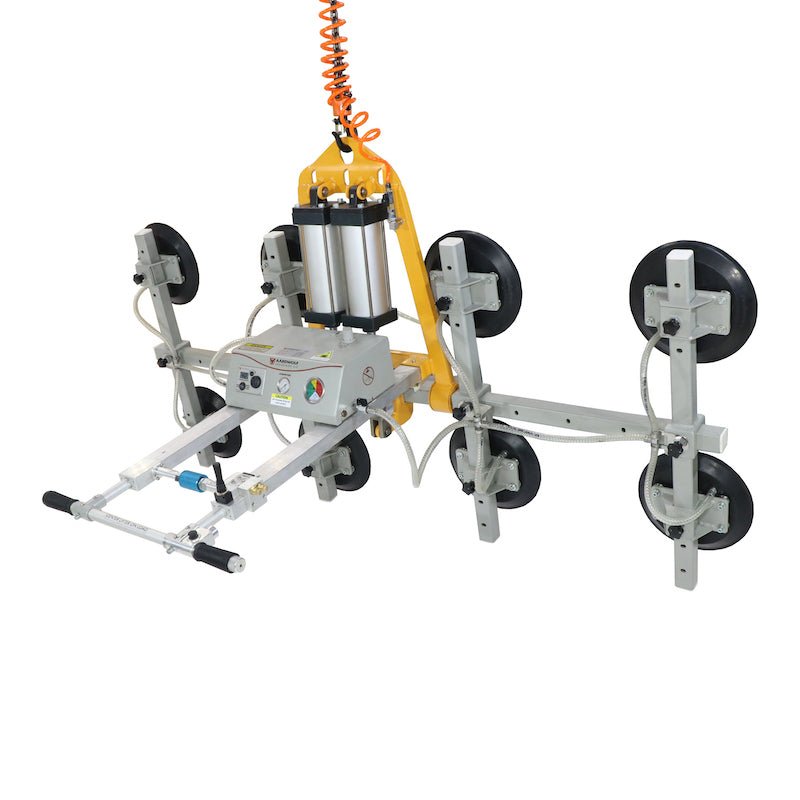

Aardwolf Vacuum Glass Lifter 800kg

Vacuum Glass Lifter suitable for lifting sheets of glass that weight up to 1,764 pounds!

General

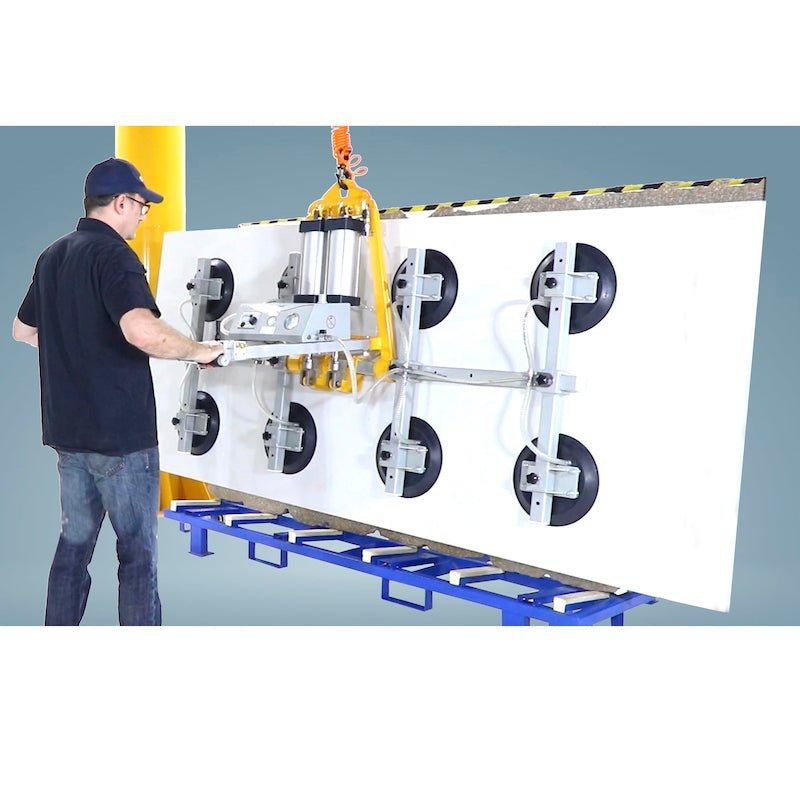

This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90°.
• Automatic vacuum pumping if vacuum loss occurs.
• Acoustic and visual alarm system.
• Attach/release material with an ON/OFF slide valve.

Specifications

	Metric	Imperial
Number of pads	8	-
Pad diameter	seal to seal:300 mm	11.8"
Working load limit	Vertical: 400 kg Horizontal: 800 kg	882 lb 1764 lb
Net weight	108 kg	238 lb
Gross weight	135 kg	298 lb
Packaging dimensions	L.2050xW.430xH.960 mm	80.7"x17"x37.8"

• Battery information for the device

Code battery	GBA 12V 2.0Ah Bosch
Type battery	Lithium-ION
Voltage	12V
Current	2.0Ah
Quantity	1
Continuous operation time with mode-saving pressure	2 hours
Working time with mode saving pressure	6 hours
Continuous operation time with mode audio alarm only	120 hours
Working time with mode audio alarm only	360 hours

• Battery charger

Code battery	GAL 12V-40 Bosch
Input supply voltage	220-240VAC
Output voltage	12V
Output current	4.0Ah
Quantity	1
Full charger time	0.5 hour
Weight	460 gram

• Compressed air requirement

Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)
