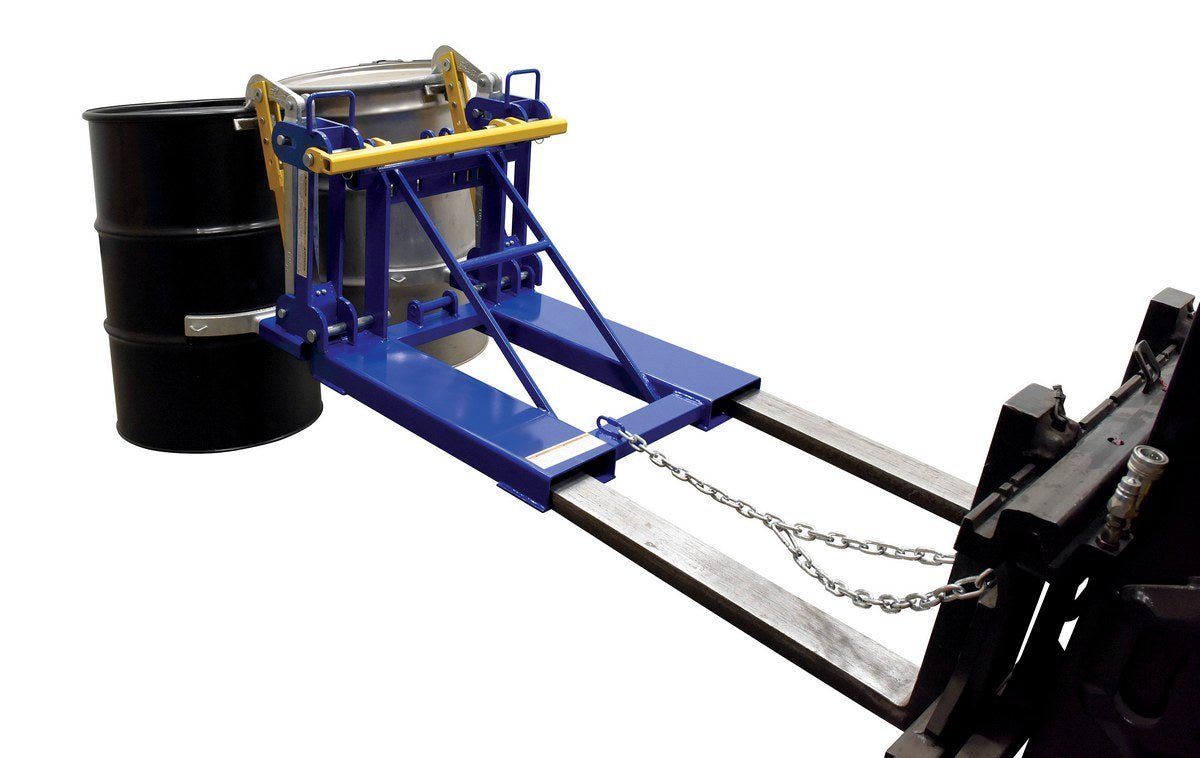

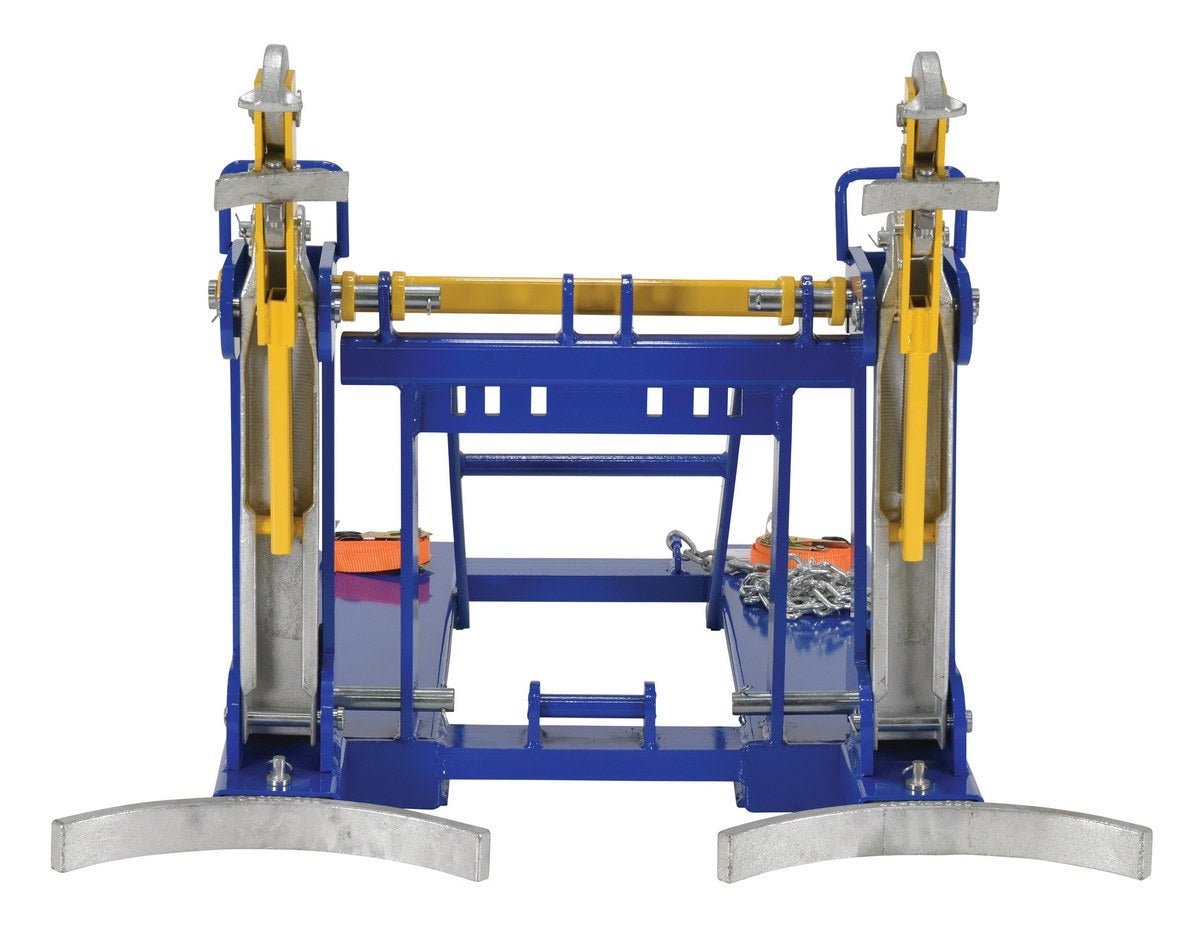

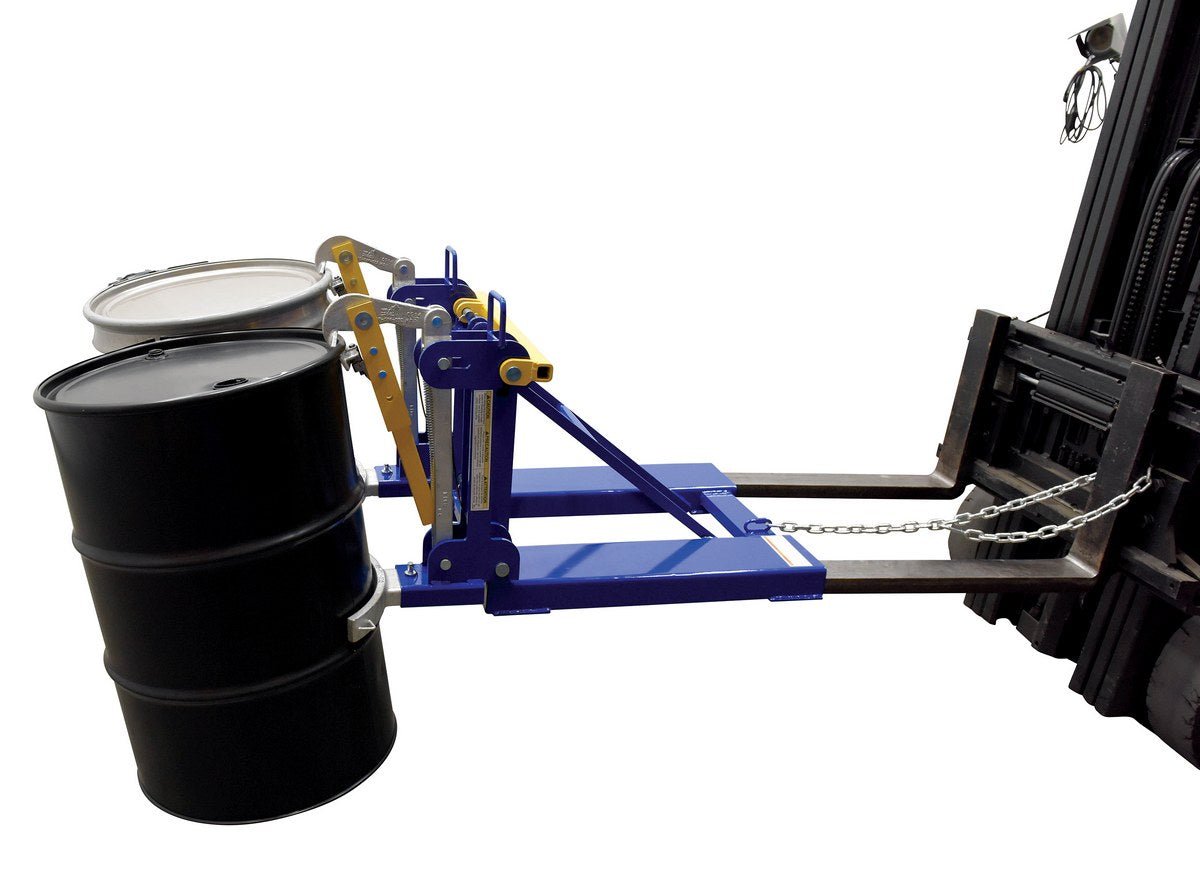

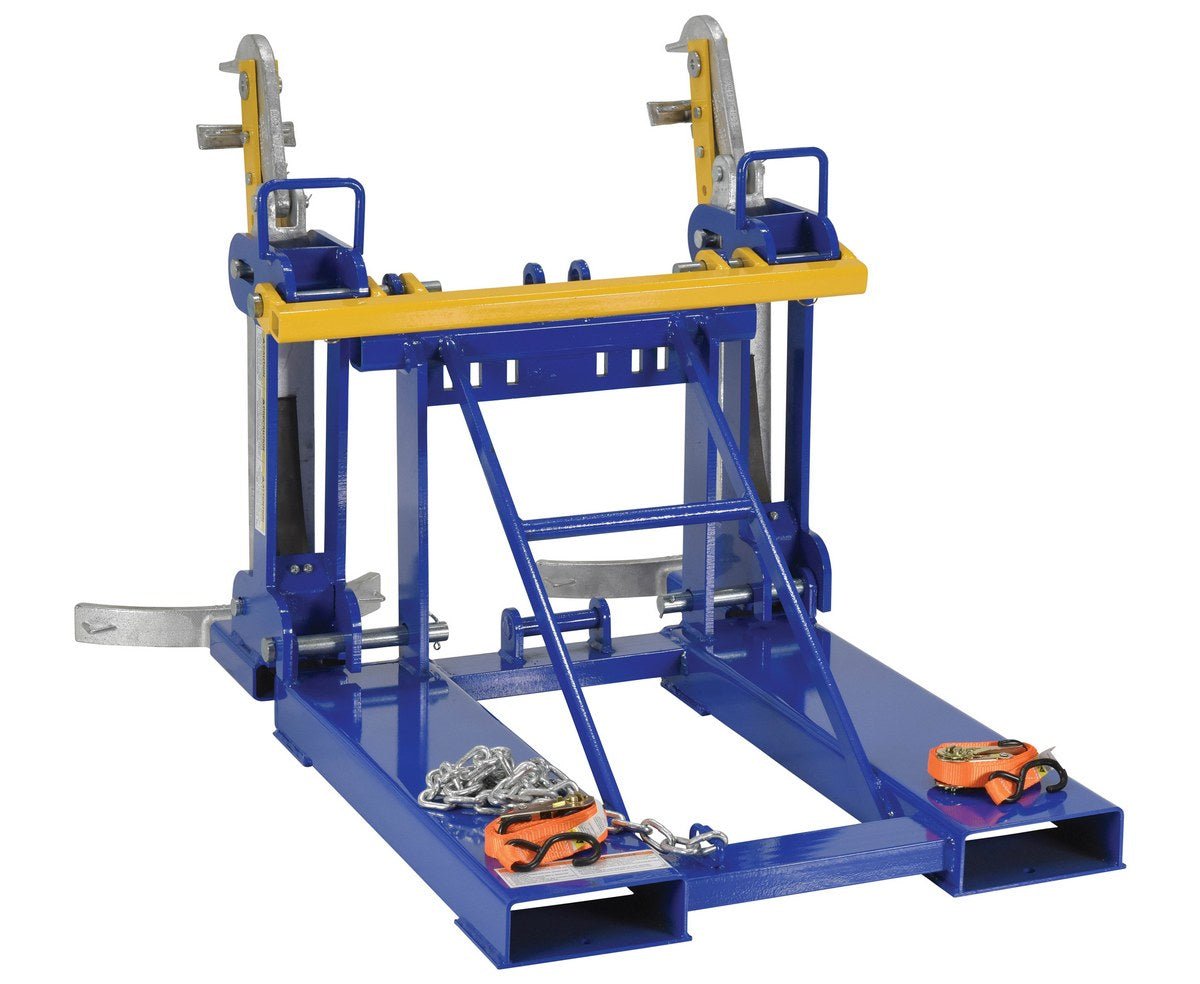

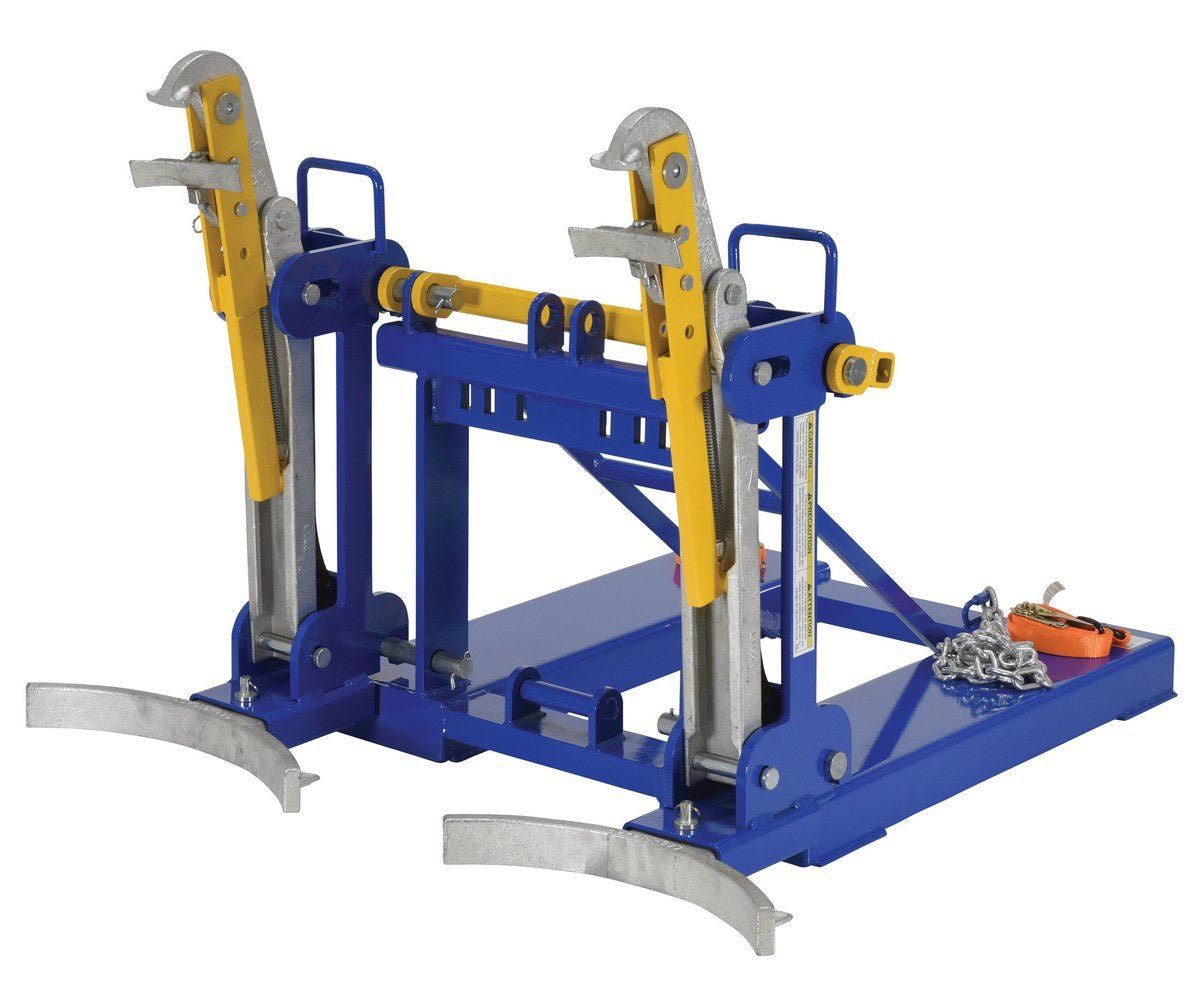

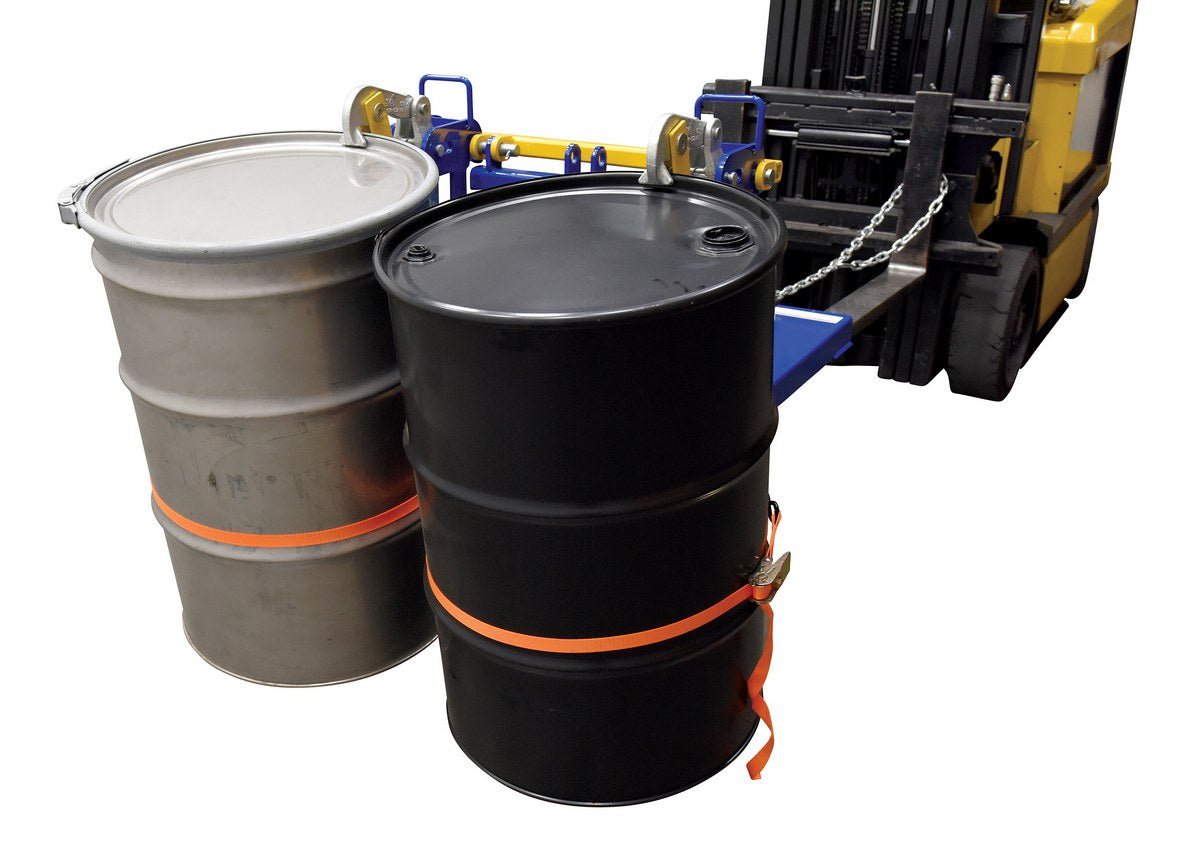

Automatic Eagle Beak Drum Lifters

This time tested and proven design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck.

For use with open (lid installed and secured) and closed head 30 and 55-gallon plastic, steel and fiber drums with a top lip strong enough to support the weight of the drum. Choose single-drum or double-drum configuration. Includes safety restraint to secure unit to the fork truck. Welded steel construction. Powder coat finish for baked in powder-coated toughness. Fork pockets measure 7-1/2" wide x 2-1/2" high usable on 20-1/2" centers. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Additonal or replacement ratchet straps available, contact factory. Meets OSHA 1910-178 requirements.

* Simple & Easy Operation

* Low Maintenance Design

* Completely Automatic Operation

* Belt and Roller units provide a softer lifting surface, minimizing scratches

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Automatic Eagle Beak Drum Lifters
Model	Number of Drums	Capacity (lbs)	Overall Size (WxLxH)	Wt. (lbs)
FMDL-1	1	1,000	28-1/2"x42-5/8"x31-1/4"	227
FMDL-2	2	2,000	41-1/4"x42-5/8"x31-1/4"	311
With Rollers
FMDL-1-LDS-R3	1	1,000	28-1/2"x46-1/2"x31-1/4"	227
FMDL-2-LDS-R3	2	2,000	46-1/4"x46-1/2"x31-1/4"	311
With Belt
FMDL-1-LDS-B1	1	1,000	28-1/2"x44-5/8"x31-1/4"	227
FMDL-2-LDS-B1	2	2,000	45-5/16"x44-5/8"x31-1/4"	311
