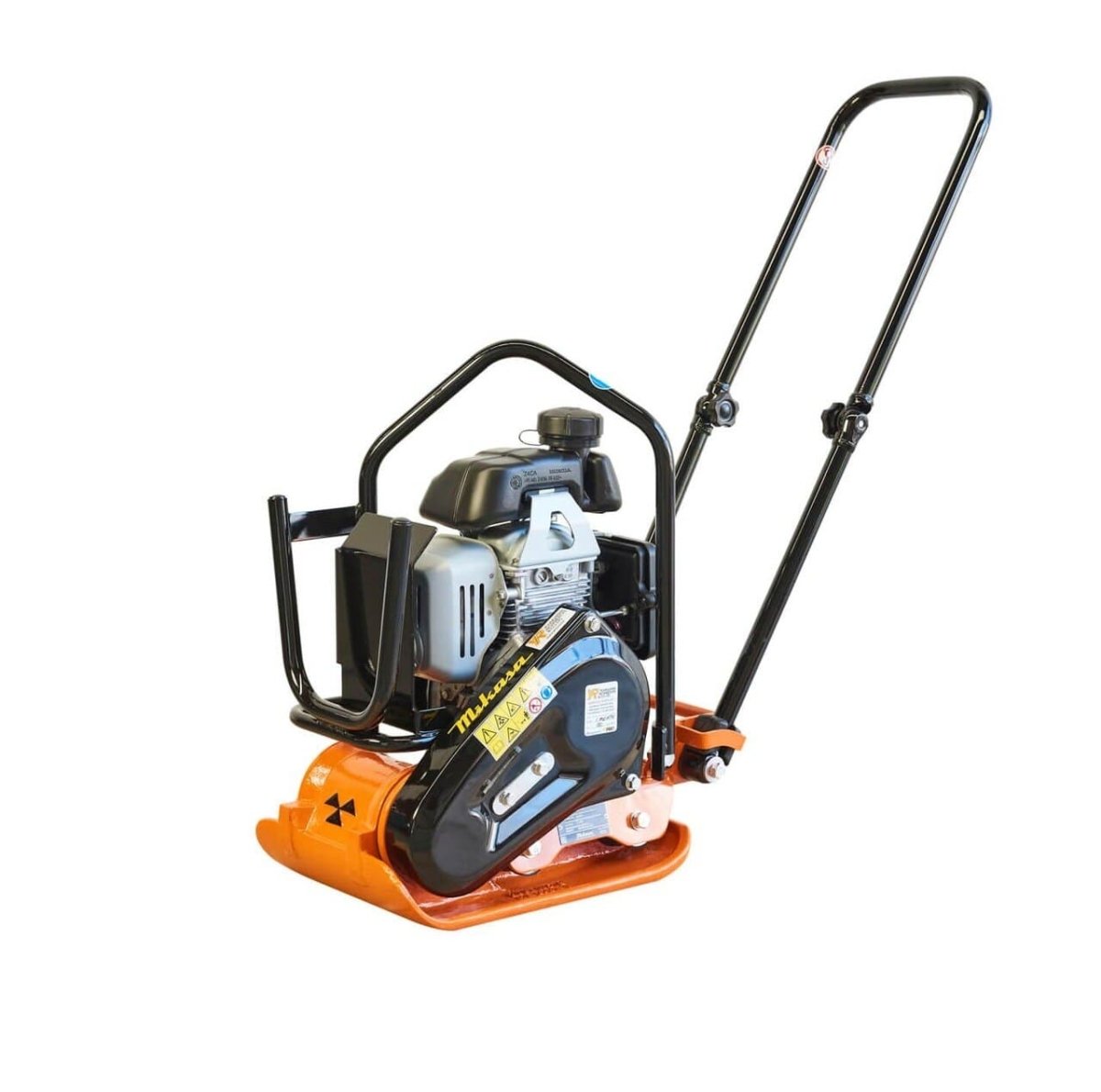

MVC40H Plate Compactor designed to be small, lightweight, and maneuverable

1,619cf, Honda GX100, 11.7in. plate

Small, lightweight and highly maneuverable makes it ideal for small jobs and confined areas.

  • Economical plate now features a stowable handle system for easy transportation
  • Extra-thick plate in back provides longer wear time
  • Solid, high-strength steel base plate with curved edges provides top performance
  • Great for narrow areas
Unit Specifications
Centrifugal Force 1619 lbf 7.2 kN
Exciter Speed 6,200 VPM
Plate Size 16.53x11.61 in
420x295 mm
Max Forward Speed
Per Min.
82 ft 25 m
Dimensions and Weights
Overall Length 36.5 in 910 mm
Overall Width 11.7 in 295 mm
Overall Height 36.5 in 920 mm
Operating Weight 110 lb 50 kg

Notice: Features and equipment specifications are subject to change without notice.
