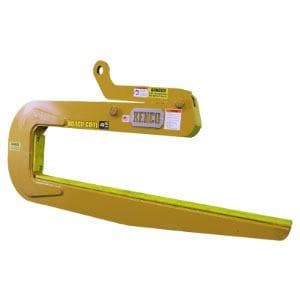

PH3500SB Self Balancing Pipe Hook

  • 3,500 pound capacity
  • Fits I.D 10.00 to 36 inch pipe of any shape
  • Weighs 450 pounds

DESCRIPTION

PH3500 SELF BALANCING PIPE LIFT

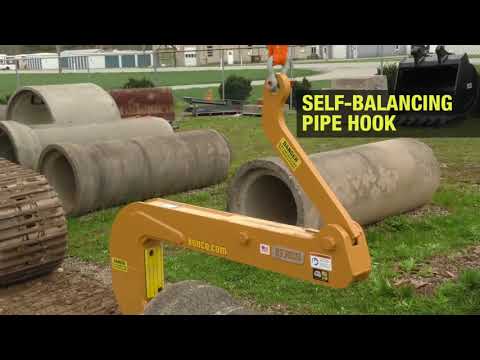

The PH3500SB self balancing pipe lifting hook is a self leveling version that provides a safe and efficient way to place, move and set 8 foot sections of pipe.

This particular model of the Pipe Hook has a built-in cylinder that automatically adjusts the weight of the pipe to achieve the proper balance point. It has a capacity rating of 3,500 pounds. This is the smallest version of our PH3500SB self balancing pipe lifting hook and will handle any shape or type of pipe from 10 inches ID up to 36 inches ID. This pipe handling hook can hook up to any machine capable of lifting the required capacity with a shackle/sling assembly like the Kenco RigMax.

Kenco pipe hooks will handle any shape or type of 8 foot pipe sections and are also available in a mechanical version to handle up to 60,000 pound capacities.

SELF LEVELING PIPE HOOK TECHNICAL SPECIFICATIONS

MODEL CAPACITY MINIMUM PIPE OPENING MAXIMUM PIPE OPENING UNIT WEIGHT PAD SIZE/QTY
PH3500SB 3,500 pound capacity 10 inches 36 inches 450 lbs (2) 4" x 36"

(1) 4" x 10" back pad

PH9000SB 9,000 pound capacity 12 inches 48 inches 550 lbs (2) 4" x 36"

(1) 4" x 10" back pad
