Water Wall Wet Dust Collector Booths
Filter Project 13 Ft Wet Dust Collection Booth Water Wall Dust collector is made to trap 90% of Dust from Granite, Marble, Engineered Stone, Quartz, Quartzite, and other airborne particles

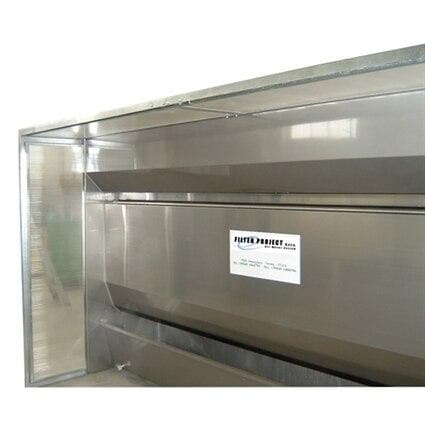

Filter Project Wet Dust Collection Water Wall is an all aluminum, heavy duty, wet dust collector made to eliminate 90% of dust particles.
With the additional requirements initiated by OSHA for Silica in the granite and engineered stone, the Filter Project Clean Air Water Collection Booth will be a major advantage in removing silica dust from the air.
The operation of the Water Wall Dust Collector is extremely simple. Simply push the button and work in front of it. The dust will be vacuumed horizontally into the water wall without the fabricator breathing any of the dust.
How does the Water Dust Collection Booth Work?

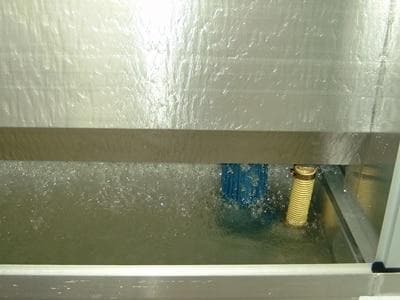

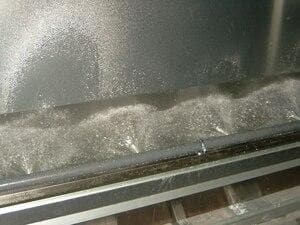

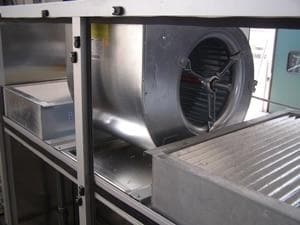

Water is filled into the collection Booth. When turned on the water circulates and creates a wall of water, or waterfall, from the top of the unit down to the collection tray at the bottom. Very powerful motors of the water dust collector creates a strong vacuum that pulls the dust particles horizontally from the work bench directly into the water which catches the dust. The dust is then collected in the catch basin at the bottom of the water dust collection booth. Every couple of weeks to a month, simply empty the mud that has been collected in the bottom of the catch basin.
The Filter Project Water Dust Collection Booth comes with a 3 ft (1 meter) extension enclosure that provides additional dust control and great vacuum efficiency. 6 ft (2 meter) extension enclosures are available as options
Water Dust Collection Power Requirements:
220 (208) 3 phase Power
30 Amp Breaker
Made specifically for:
Granite Dust Collection
Marble Dust Collection
Quartzite Dust Collection
Quartz Dust Collection
Engineered Stone Dust Collection
Ceramic and Porcelain Dust Collection
Filter Project makes the best granite and stone dust collectors in the industry.
