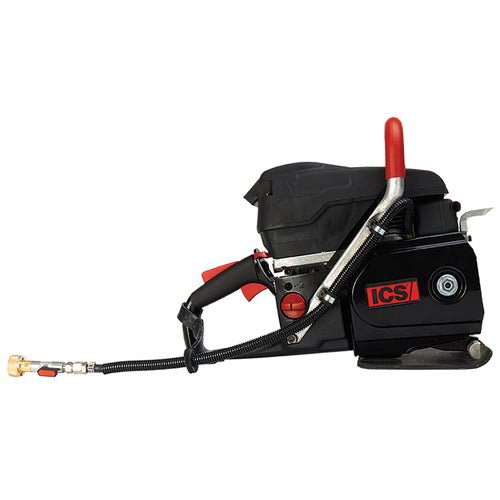

695XL Gas Saw. Powerhead only. Fits FORCE4 guidebars and diamond chains, which are available separately.

The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.

Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction and concrete professionals.

Product Details

  • Powerhead only
  • Use on concrete, stone, masonry, brick, block, ductile iron, cast iron, PVC, HDPE and more
  • Most versatile gas power cutter
  • Piston and cylinder lowers engine temperature
  • Longer life muffler with reinforced internal baffle
  • Easy-to-start with higher energy ignition system
  • Easy-to-tune carburetor
  • Operates FORCE4, PowerGrit and PowerGritXL diamond chain up to 20"
  • WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Gas Concrete Saw
Engine Type 2-stroke, single cylinder, air cooled
Displacement 5.7 cu in (94 cc)
Engine Speed Max 9,300 +/- 150 rpm (max)
Engine Speed Idle 2,700 +/- 100 rpm
Fuel Mix Ratio 50:1 (2%) fuel-to-oil
Fuel Capacity 0.26 gal (1 L)
Chainsaw
Power Type Gas
Use Application HDPE
Asphalt
Ductile Iron
Brick
Cast Iron
Block
Concrete
Masonry
PVC
Stone
AC Pipe
Weight, Saw Only 21 lbs (9.6 kg)
Cutting Depth up to 20 in (50 cm)
Bar Length 12 in (30 cm)
16 in (40 cm)
20 in (50 cm)
Noise Level (Power)  115 dB(A), (Kwa = 1.0 dB(A))
Chain Length 12 in (30 cm)
16 in (40 cm)
20 in (50 cm)
Noise Level (Pressure) 104 dB(A), (K=1.0 dB(A))
Horsepower 6.4 hp (4.8 kW)
Front Handle Vibration, ahv eq Concrete Cutting  3.6 m/s2 (K=0.2 m/s2)
Rear Handle Vibration, ahv eq Concrete Cutting  3.1 m/s2 (K=0.2 m/s2)
Front Handle Vibration, ahv eq Pipe Cutting  5.62 m/s2 (K=0.2 m/s2)
Rear Handle Vibration, ahv eq Pipe Cutting  5.28 m/s2 (K=0.2 m/s2)
Water Supply (Min) 20 psi (1.4 bar)
Water Flow Req (Min) 2 gpm (8 lpm)
General
Unit of Measure Each
