Undercarriage for Pontoon Excavator - AM300-2
SKU# 04703-CAT329E/CAT330F-AM300-2Call for Pricing
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here

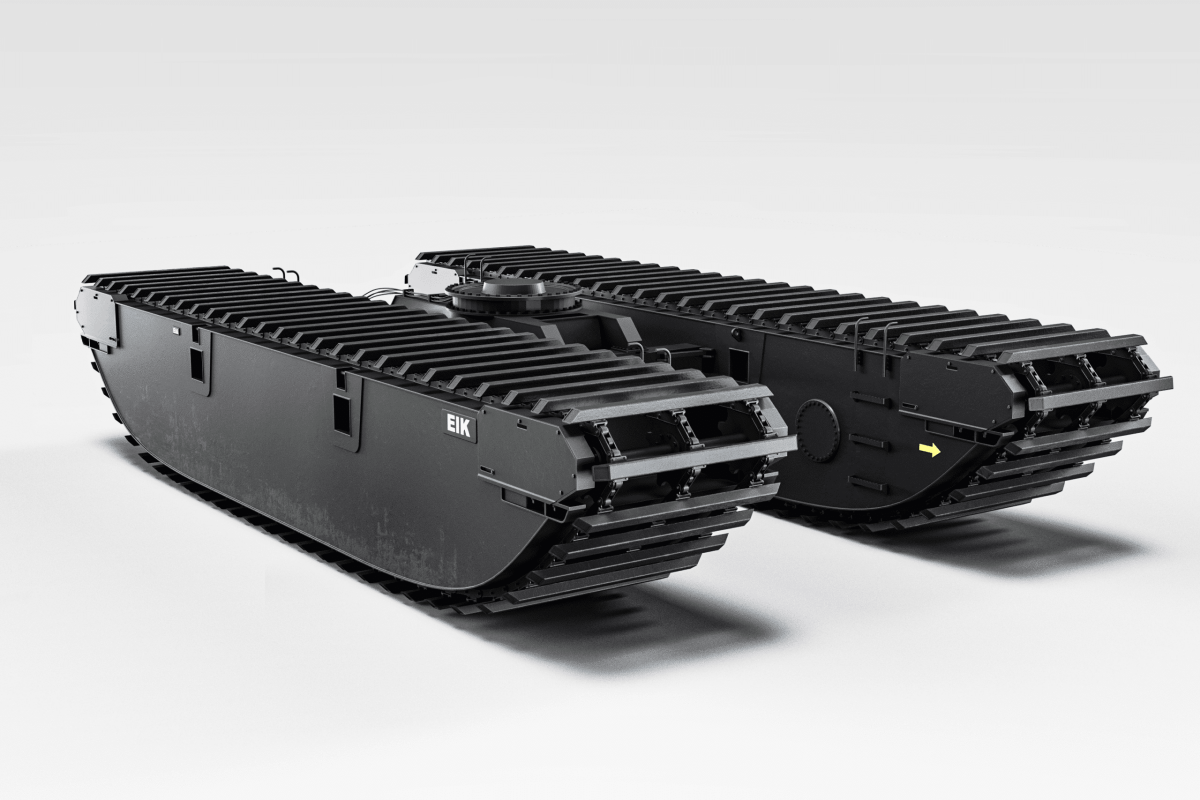

Undercarriage for Pontoon Excavator - AM300-2
Call for Pricing

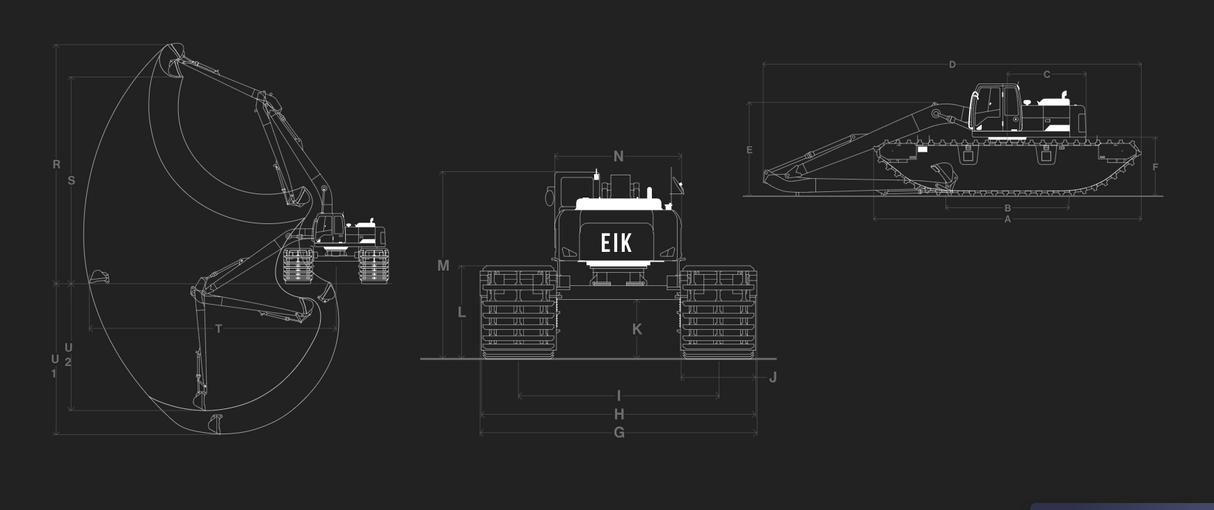

| Equipment Models | AM80 | AM140 | AM200 | AM250 | AM300 | AM350 | AM450 |
|---|---|---|---|---|---|---|---|
|
A
Max Track Length |
22’ 10” ft | 30’ 6” ft | 31’ 7” ft | 31’ 7” ft | 35’ 7” ft | 38’ 10” ft | 38’ 7” ft |
|
B
Track Length On Ground |
10’ 6” ft | 14’ 1” ft | 14’ 9” ft | 14’ 9” ft | 17’ 1” ft | 18’ 8” ft | 19’ 8” ft |
|
C
Rear Upper Structure Length |
5’ 9” ft | 7’ ft | 9’ 4” ft | 9’ 10” ft | 9’ 10” ft | 11’ 6” ft | 11’ 8” ft |
|
D
Overall Length |
30’ 4” ft | 40’ 2” ft | 44’ 5” ft | 47’ 3” ft | 51’ ft | 54’ 5” ft | 59’ 1” ft |
|
E
Height of Boom |
9’ 6” ft | 9’ 8” ft | 11’ 5” ft | 11’ 8” ft | 13’ 5” ft | 13’ 6” ft | 14’ 1” ft |
|
F
Counterweight Clearance |
5’ 8” ft | 6’ ft | 7’ 1” ft | 7’ 3” ft | 7’ 9” ft | 7’ 9” ft | 7’ 10” ft |
|
G
Overall Width |
11’ 1”/13’ 9” ft | 13’ 2”/ 16’ 10” ft | 14’ 9”/19’ 7” ft | 17’ 1”/21’ 9” ft | 19’ 6”/22’ 9” ft | 19’ 8”/23’ 0"ft | 19’ 8”/23’ 0” ft |
|
H
Undercarriage Width Min/Max |
11’/13’ 8” ft | 12’ 11”/16’ 6” ft | 14’ 8”/19’ 6” ft | 17’/21’ 8”ft | 19’ 5”/22’ 8” ft | 19’ 7”/22’ 3” ft | 21’/24’ 3”ft |
|
I Track Gauge min/max |
6’ 9”/9’ 5”ft | 8’ 2” /11’ 9” ft | 9’ 4”/14’ 2”ft | 10’ 8”/15’ 5” ft | 13’ 1”/16’ 4” ft | 13’ 2”/16’ 6” ft | 13’ 11”/17’ 3” ft |
|
J
Track Cleat Width |
4’ 3” ft | 4’ 9” ft | 5’ 4” ft | 6’ 4” ft | 6’ 4” ft | 6’ 5” ft | 7’ 1” ft |
|
K
Min Ground Clearance |
3’ 9” ft | 3’ 8” ft | 4’ 3” ft | 4’ 3” ft | 4’ 3” ft | 3’ 8” ft | 3’ 7” ft |
|
L
Track Height |
5’ 5” ft | 5’ 7” ft | 6’ 8” ft | 6’ 8” ft | 6’ 8” ft | 6’ 8” ft | 7’ 2” ft |
|
M
Overall Cab Height |
12’ ft | 12’ 4” ft | 13’ 5” ft | 13’ 6” ft | 14’ ft | 14’ 1” ft | 14’ 4” ft |
|
N
Upper Structure Overall Width |
7’ 5” ft | 8’ ft | 8’ 4” ft | 9’ 4” ft | 9’ 9” ft | 9’ 10” ft | 11’ 7” ft |
|
R
Max. Cutting Height |
26’ 1” ft | 37’ 5” ft | 40’ 8” ft | 44’ 11” ft | 47’ 11” ft | 50’ 2” ft | 53’ 6” ft |
|
S
Max. Loading Height |
20’ 8” ft | 30’ 6” ft | 34’ 5” ft | 37’ 5” ft | 39’ 8” ft | 42’ ft | 45’ 3” ft |
|
T
Recommended Outreach |
26’ 3” ft | 39’ 4” ft | 45’ 11” ft | 49’ 3” ft | 52’ 6” ft | 55’ 9” ft | 65’ 7” ft |
|
U1
Max. Digging Depth from Front |
12’ 6” ft | 23’ 11” ft | 29’ 2” ft | 30’ 10” ft | 32’ 6” ft | 36’ 1” ft | 45’ 7” ft |
|
U2
Max. Digging Depth from Side |
11’ 2” ft | 21’ 4” ft | 23’ 7” ft | 23’ 7” ft | 27’ 11” ft | 31’ 6” ft | 37’ 1” ft |
* The above specifications are for reference only, actual working range may vary from machine models.
** For the benefit of continuous product improvement, specifications are subjected to change without prior notice.
Multi-synchronous direct drive system
Our patented system allows multiple hydraulic active drive motors to propel each pontoon, which provides at least twice the tracking power and performance capacity of conventional single-moto designs.
Heavy-Duty Track Chain System
We laser trim our track chain systems to extreme precision, strengthening grip on the ground for better weight distribution and improved maneuverability.
Hydraulic Extendable Pontoons
An innovative undercarriage design allows the pontoons to retract inward hydraulically for easier land transport and extend outward for increased stability at work.
Bolt-On Sprocket System for Perfect Track Pitch Alignment
Our sprocket systems tightly bolt onto hubs for perfect track pitch alignment across even the most challenging terrain.
Dual Hermetically Sealed Bulkheads Per Pontoon
We improve buoyancy and enhance safety by dividing pontoons into bulkheads and going the extra mile to prevent water from creeping in.
Service Manholes on Each Pontoon for Easy Maintenance
Easily accessible manholes make maintenance and repair a guaranteed simple process.
