180º Rotation Vacuum Lifters 160kg

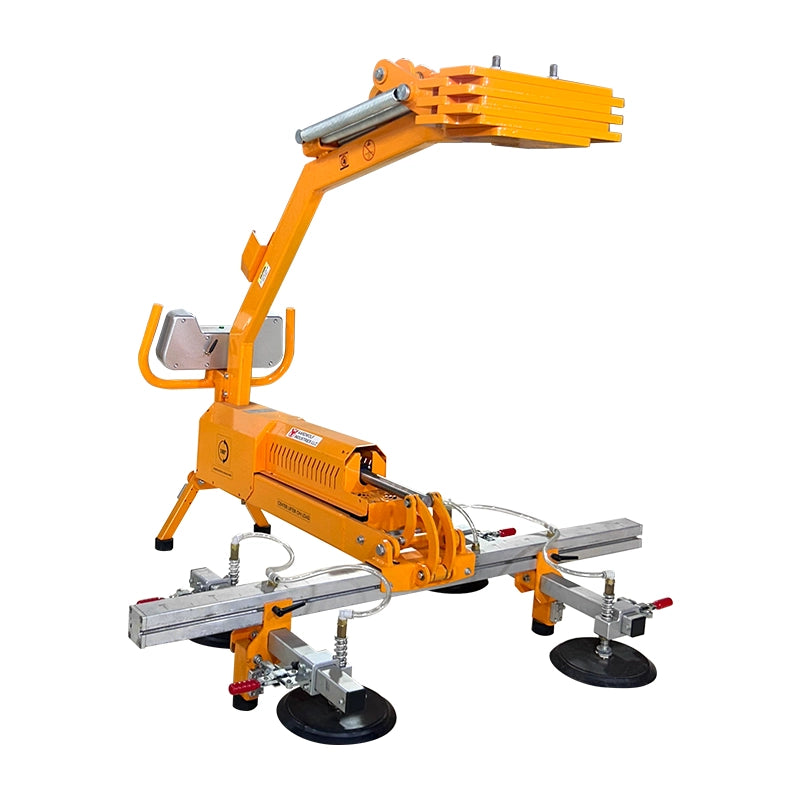

Aardwolf 180° Rotation Vacuum Lifters — 160 kg / 353 lbs.

Available in Two Variants: ARV-180 (Pneumatic) | AERV-180 (Electric)

The Aardwolf 180° Rotation Vacuum Lifter series is a crane- and hoist-integrated vacuum lifting system designed for handling flat, smooth, nonporous materials up to 160 kg (353 lbs). Both variants provide full 180° rotation and are built for demanding use in stone fabrication shops, glass handling, and job site installation work.

Both models share the same core design: a high-performance vacuum pump for strong, stable suction; adjustable vacuum pads with integrated measuring scales and locking handles; a self-balancing system; an integrated support stand for stable storage; and audio-visual safety alerts for vacuum pressure monitoring. The key difference is power source — the ARV-180 runs on compressed air (pneumatic), while the AERV-180 runs on 24V electric power with a quick-swap battery for cord-free operation.

Specifications

Ideal Applications

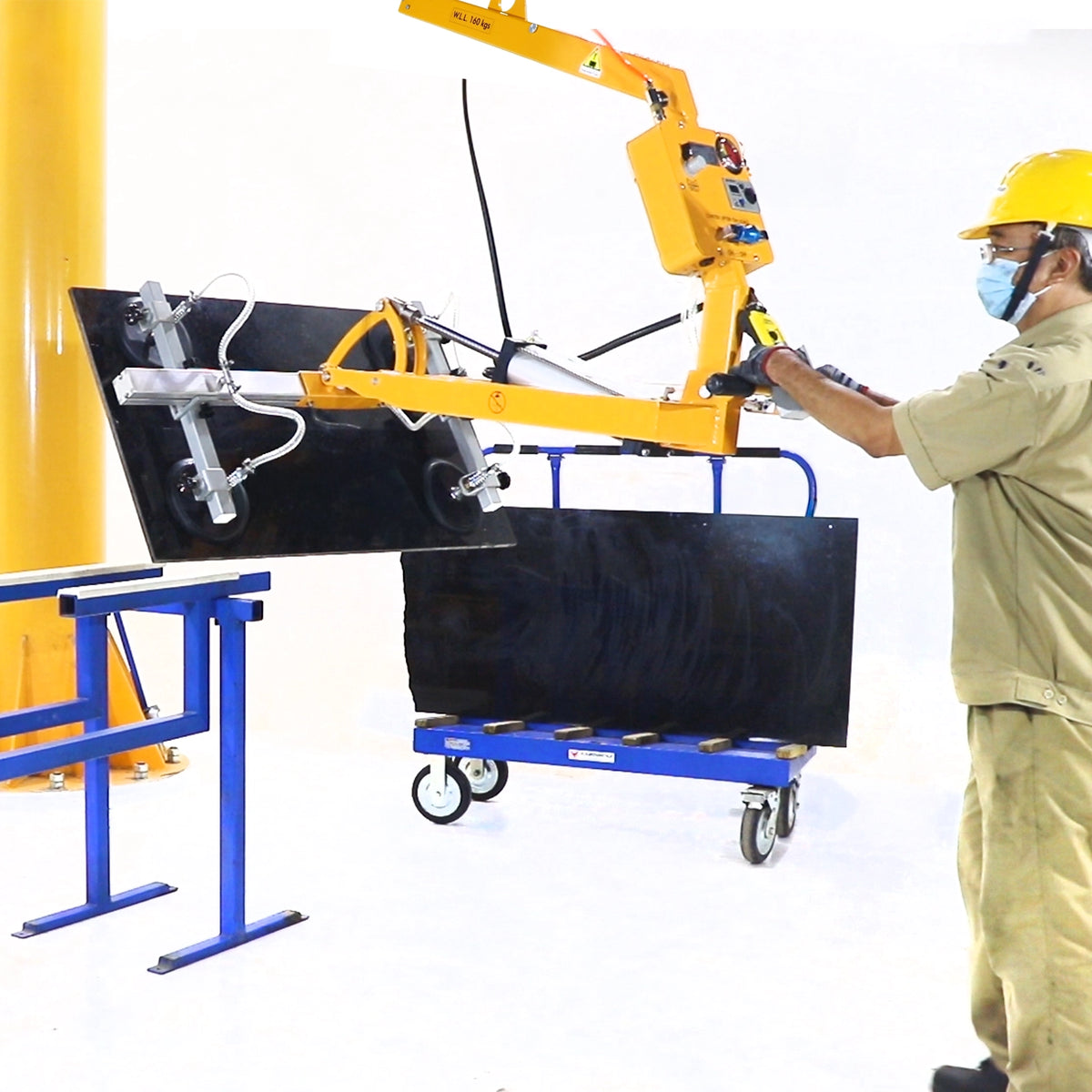

• Stone slab handling and fabrication
• Glass panel lifting and installation
• Large-format flat material positioning
• Shop and job site use with cranes or hoists
• Any smooth, nonporous flat load up to 353 lbs

180° Rotation

Full 180° rotation with linear control, allowing operators to adjust rotation speed and angle precisely for positioning loads in tight spaces or at specific orientations.

High-Performance Vacuum Pump

Provides strong, stable suction for reliable attachment to a wide range of smooth, flat materials throughout the work cycle.

Self-Balancing System

Keeps loads level and stable during lifting and transport, reducing operator effort and improving handling accuracy.

Adjustable Vacuum Pads

Pads are repositionable with integrated measuring scales and locking handles for fast, accurate setup to match different load sizes and configurations.

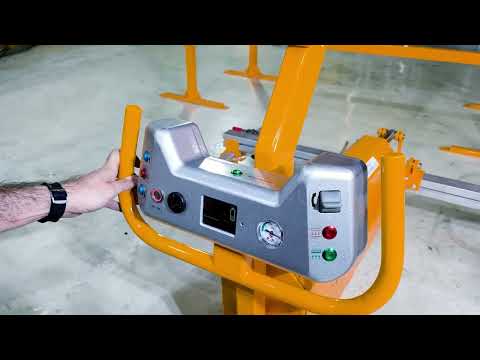

Safety Monitoring — Audio-Visual Alerts

Real-time alerts for vacuum pressure status give operators immediate warning of any loss of suction before it becomes a safety incident.

Integrated Support Stand

Built-in stand keeps the lifter stable and upright when not in use — no separate storage equipment required.

Ergonomic Handle

Designed for comfortable operation during extended use in both workshop and job site environments.

ARV-180 — Pneumatic Variant

The ARV-180 is the pneumatic version, powered by a standard compressed air supply. It is well suited for workshop environments where air lines are already in place, offering continuous operation without battery management. All rotation and vacuum functions are operator-controlled through the integrated control panel.

AERV-180 — Electric Variant

The AERV-180 is the electric version, running on a 24V quick-swap clip-in battery. The battery can be replaced within seconds, enabling continuous operation without downtime. A cooling fan supports high-duty cycles, and an electric cylinder provides smooth, precise rotation. This variant is ideal for job sites or locations where a compressed air supply is not available.
