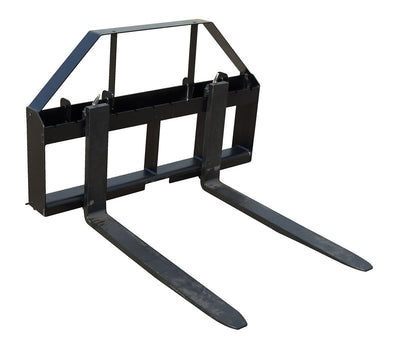

Forks with Universal Mount

Universal Mount Forks provide an easy way to transfer products, both big and small.

The universal mounting system allows the unit to be utilized in conjunction with a variety of skid steers on the market. A steel construction provides strength and durability for lifting and maneuvering heavy objects. Open design enables quick cleaning and maintenance with limited interference.

• Adjustable fork center to fit a variety of different sized fork pockets.
• Quick connection for immediate use
• Robust, all welded steel construction.
• Smooth liquid paint finish minimizes abrasions to both forks and products.
• Tall back design helps secure items from tipping

Forks with Universal Mount for Skid Steers
Model	Image	PDF's	Overall Size (WxLxH)	Fork Center	Capacity (lbs)	Fork Dimensions	Wt. (lbs)
EA-SKSF-F4-1.50-36			48-1/2"x47"x30-1/16"	Adjustable	4,000	4"x36"x1-1/2"	334
EA-SKSF-F4-1.50-42			48-1/2"x53"x30-1/16"	Adjustable	4,000	4"x42"x1-1/2"	346
EA-SKSF-F4-1.50-48			48-1/2"x59"x30-1/16"	Adjustable	4,000	4"x48"x1-1/2"	368
EA-SKSF-F4-1.50-60			48-1/2"x71"x30-1/16"	Adjustable	4,000	4"x60"x1-1/2"	420

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
