Lift Bar for Single Pad - Channel Lifter

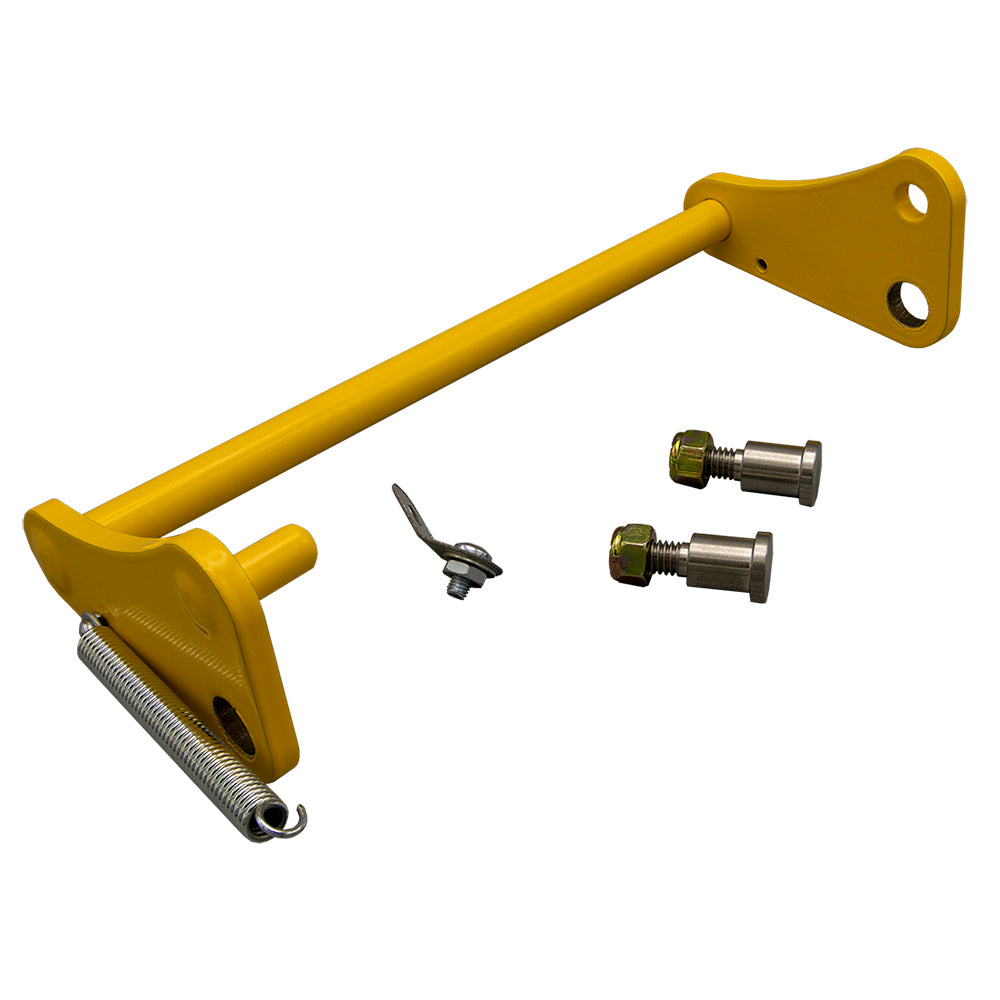

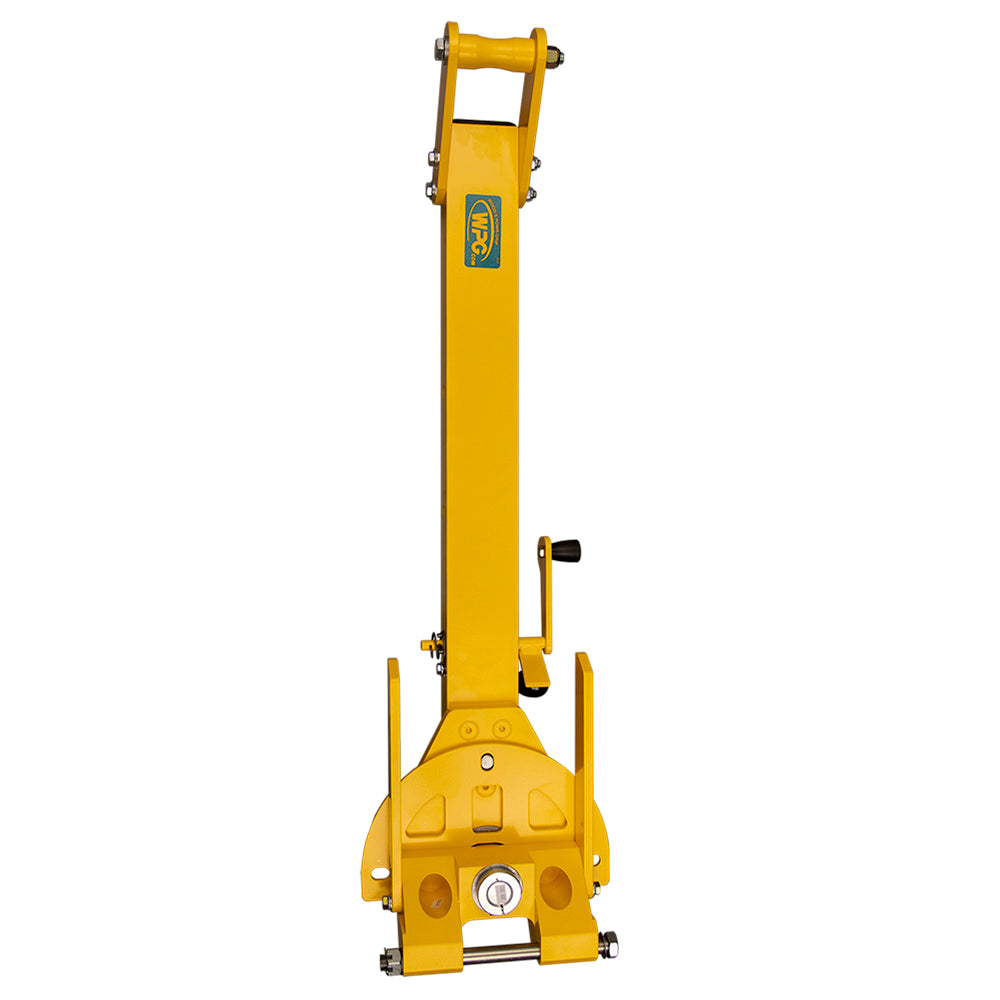

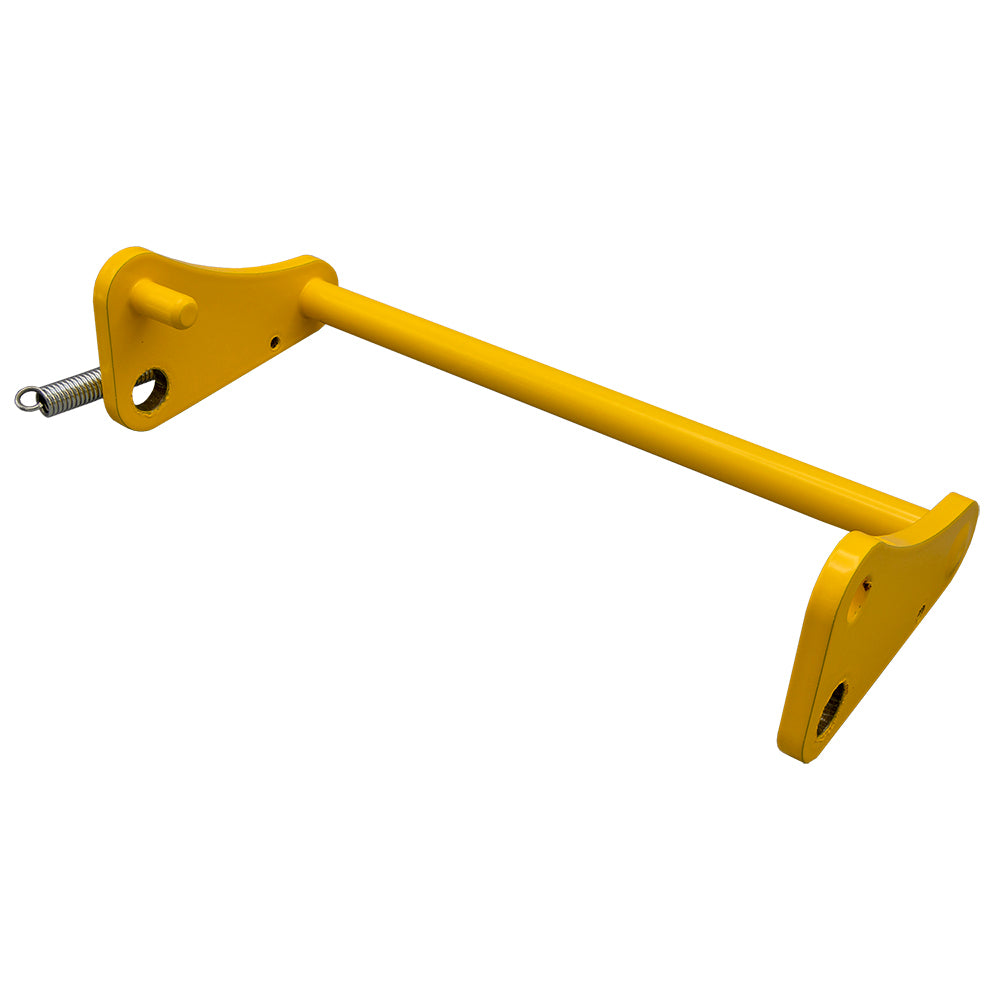

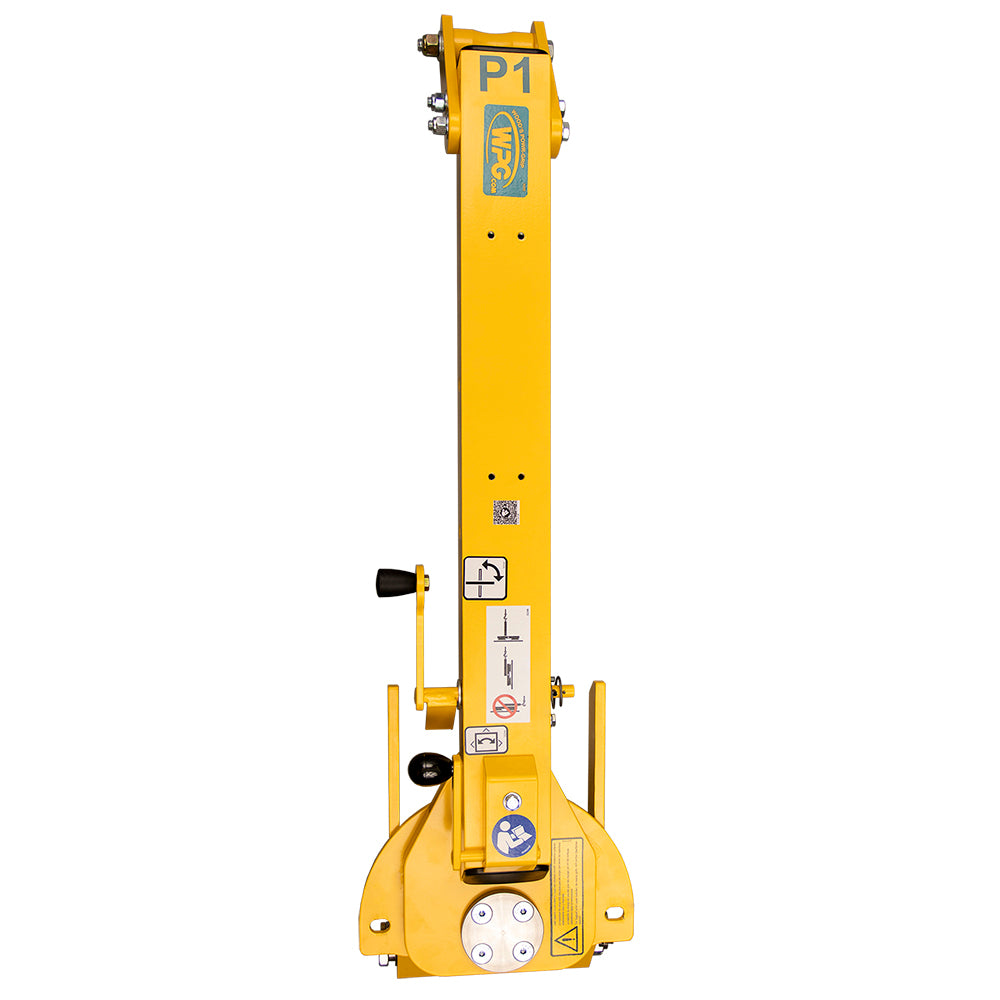

Wood's Powr-Grip PCFT1A1 Replacement Lift Bar P1 Lifter Series Versatility and Precision Load Control

The Wood's Powr-Grip PCFT1A1 is a replacement lift bar assembly designed specifically for the P1 Lifter Series vacuum channel lifters. It serves both as a direct replacement component for worn or damaged P1 lift bars and as an optional add-on that allows contractors to convert an existing P2 Lifter into a fully functional P1 configuration. Built for professional equipment operators working with large-format panel and glass handling, this lift bar delivers precise manual load movement in demanding jobsite environments.

Unlike generic aftermarket components, the PCFT1A1 is an OEM Wood's Powr-Grip part engineered to interchangeable specifications with the P1/P2 channel lifter system, ensuring full compatibility and compliance with ASME and Australian design standards. Its modular design gives contractors the flexibility to reconfigure their vacuum lifter fleet without investing in entirely new equipment.

Key Features & Benefits

Manual 180° Edgewise Rotation with Three Locking Positions

The lift bar provides full 180-degree edgewise rotation, controlled manually and lockable in three distinct positions. This allows operators to precisely orient large panels or glass sheets during placement without repositioning the crane or hoist, reducing cycle time and improving jobsite safety.

Manual 90° Tilt with Automatic Upright Latching

The PCFT1A1 enables manual tilt of 90 degrees between upright and flat load orientations, with an automatic latch that secures the load in the upright position. This automatic latching mechanism eliminates the need for a secondary manual lock step, reducing operator error during vertical panel transitions.

Tilt Restriction Safety Feature

Tilting is only permitted when the lift bar is locked in the center rotation position. This engineered safety restriction prevents uncontrolled load swing during tilt operations, providing a critical safeguard when handling heavy panels at elevation.

Dual-Purpose: Replacement and Conversion Component

The PCFT1A1 functions as a direct drop-in replacement for P1 Lifter Series lift bars and as an add-on component to convert a P2 Lifter into a P1 configuration. This dual functionality maximizes the value of existing lifter investments and simplifies spare parts inventory management for contractors running mixed fleets.

ASME and Australian Design Standard Compliance

The lift bar is designed to ASME B30.20-2006 (BTH-1 Design Category B, Service Class 0) and AS 4991-2004 standards, ensuring it meets rigorous safety and engineering requirements for below-the-hook lifting devices. Compliance with both North American and Australian standards makes this component suitable for international projects and contractor operations.

OEM Wood's Powr-Grip Engineering and Interchangeability

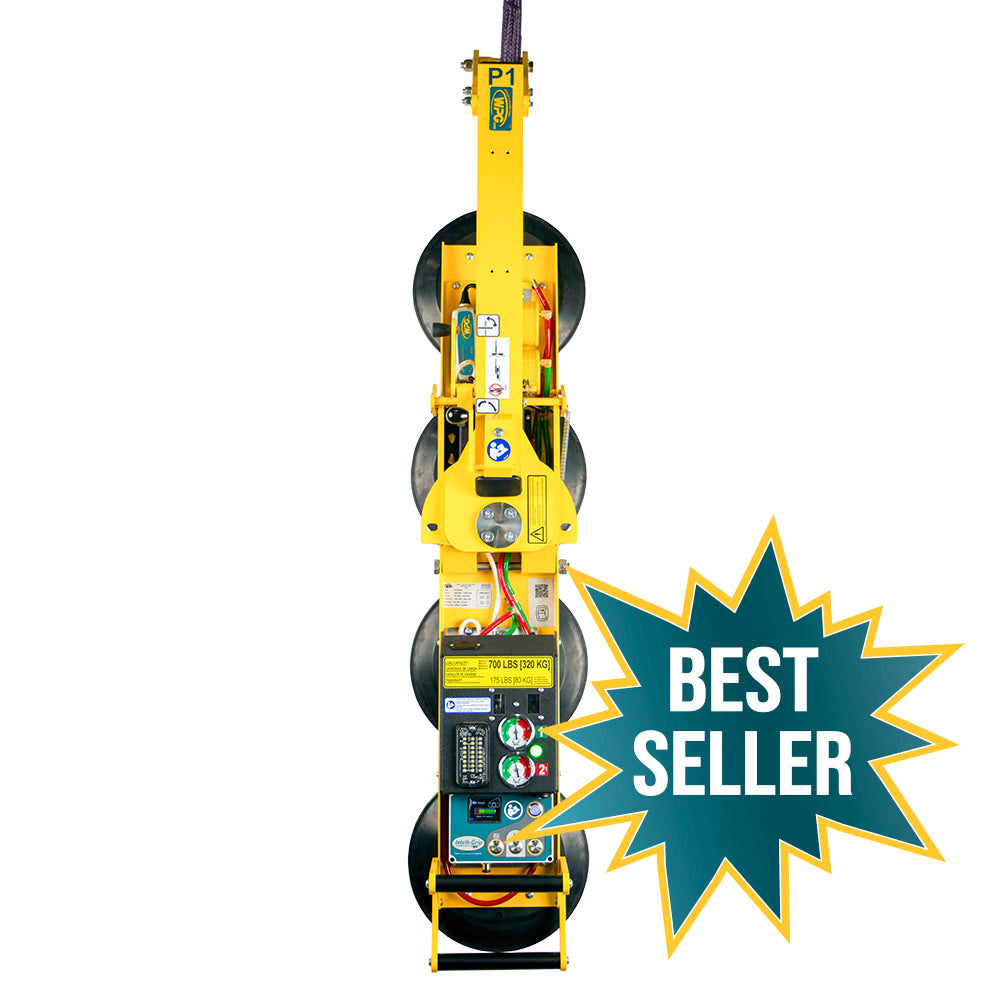

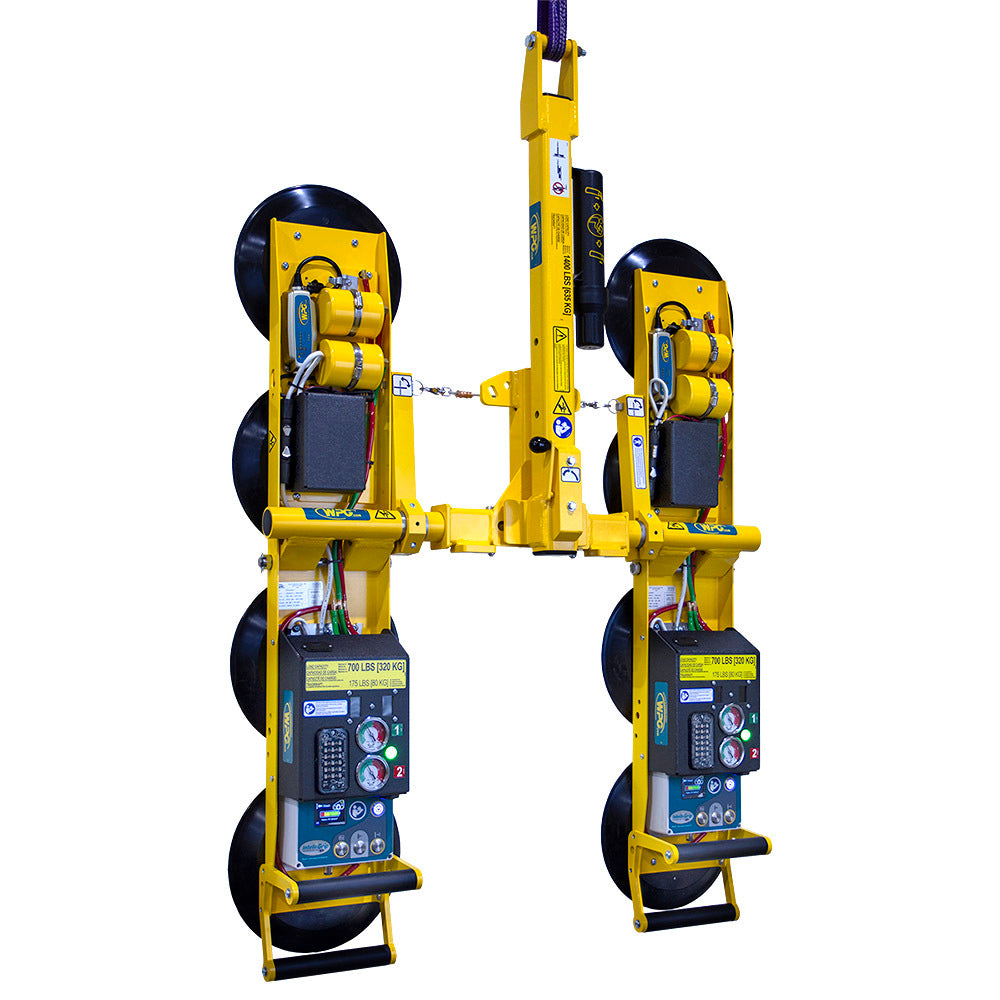

As a genuine Wood's Powr-Grip component, the PCFT1A1 is manufactured to the same specifications and tolerances as original factory lift bars. It integrates directly with P1-04DC(3) and P2-0435/45/7DC(3) model channel lifters, ensuring reliable performance without fitment issues common to third-party alternatives.

Common Applications

P1 Lifter Series Lift Bar Replacement

Contractors with damaged or worn lift bars on their P1 channel lifters can restore full functionality using the PCFT1A1 without replacing the entire lifter assembly, reducing downtime and repair costs.

P2 to P1 Lifter Conversion

Operations that need to transition a P2 double-channel vacuum lifter to a P1 single-channel configuration can use the PCFT1A1 as an add-on component, reconfiguring existing equipment for different panel sizes or jobsite requirements.

Large-Format Glass Panel Handling

The P1 lifter system paired with the PCFT1A1 lift bar is suited to lifting and rotating large glass panels on glazing and curtain wall projects, where precise load orientation is critical to safe installation.

Precast Concrete and Stone Panel Installation

The rotation and tilt capabilities of the PCFT1A1 support the controlled placement of precast concrete or stone panels, allowing crews to transition loads from horizontal transport to vertical installation position on-site.

Modular Vacuum Lifter Fleet Management

Contractors managing multiple Wood's Powr-Grip channel lifters can use the PCFT1A1 to standardize spare parts inventory, enabling rapid field repairs or configuration changes across P1 and P2 lifter models without stocking dedicated single-model parts.

Architectural Panel and Facade Work

The precise three-position rotation lock and 90-degree tilt range make the PCFT1A1-equipped P1 lifter well suited for facade and architectural panel installation where exact load positioning is required before fastening.

Compatible Materials

• Flat glass panels (tempered, laminated, insulated glazing units)
• Large-format ceramic and porcelain tile panels
• Precast concrete panels (smooth face)
• Natural stone slabs
• Aluminum composite panels
• Fiber cement panels
• Smooth-faced architectural cladding panels

Product Documents

• P1/P2 Channel Lifter Conversion Assembly Instructions Manual (Rev 5.0/3-24)

Application Instructions

Stage 1: Prepare for Assembly or Disassembly

1. Read and fully understand the Wood's Powr-Grip P1/P2 Conversion Instructions Manual before beginning any assembly or disassembly procedure.
2. Ensure you have the correct OPERATING INSTRUCTIONS for the specific lifter model being assembled. Obtain from wpg.com, your dealer, or Powr-Grip Technical Service if not already on hand.
3. Note that these instructions address lift bar assembly and lift frame configuration only — vacuum lifter safety, maintenance, and power system operation are covered in the separate OPERATING INSTRUCTIONS.

Stage 2: Assemble or Disassemble the P1 Lifter

1. Follow the "TO ASSEMBLE OR DISASSEMBLE P1-04DC(3) LIFTER" section of the assembly manual, beginning on page 6.
2. Attach the PCFT1A1 lift bar assembly to the channel component to form the complete P1 channel lifter (P1 LIFT BAR ASSEMBLY + CHANNEL = P1 CHANNEL LIFTER).
3. Identify and confirm key components: Lift Point (1), Lift Bar Assembly (2), Tilt Release Lever (3), Tilt Latch Bar (4), Rotation Release Lever (5), Tilt Pin (6), Control Handles (7), Vacuum Pad (8), Pad Frame (9).

Stage 3: Convert a P2 Lifter to P1 Configuration (If Applicable)

1. Disassemble the P2-0435/45/7DC(3) lifter following the "TO ASSEMBLE OR DISASSEMBLE P2" section of the assembly manual, beginning on page 10.
2. Review the "About P2 Lift Frame Support Arms" section (page 13) before removing or reassembling support arm components.
3. Attach the PCFT1A1 lift bar assembly to one of the P2 channel units to complete the P1 lifter configuration.

Stage 4: Complete Lifter Assembly and Verify Operation

1. Complete the full lifter assembly per the "TO COMPLETE LIFTER ASSEMBLY" section on page 14 of the manual.
2. Verify manual rotation: confirm the lift bar rotates 180° edgewise and locks securely in all three positions.
3. Verify manual tilt: confirm 90° tilt movement between upright and flat, and confirm the automatic latch engages in the upright position.
4. Confirm tilt restriction: verify that tilt is only possible when the lift bar is locked in the center rotation position before placing the lifter into service.

Stage 5: Operation — Rotating and Tilting Loads with a P1 Lifter

1. To rotate the load, follow the "TO ROTATE THE LOAD USING A P1 LIFTER" procedure on page 15 of the assembly manual.
2. To tilt the load, follow the "TO TILT THE LOAD USING A P1 LIFTER" procedure on page 16 of the assembly manual.
3. Only tilt the load when the lift bar is confirmed locked in the center position.

Technical Specifications

Frequently Asked Questions

Q: Can the PCFT1A1 be used to convert any P2 Lifter model into a P1 configuration?
A: The PCFT1A1 is compatible as an add-on conversion component for P2-0435/45/7DC(3) model series lifters. Consult the Wood's Powr-Grip P1/P2 Conversion Assembly Manual or contact Powr-Grip Technical Service to confirm compatibility with your specific P2 model before purchasing.

Q: Is this a genuine OEM Wood's Powr-Grip part?
A: Yes. The PCFT1A1 is a genuine Wood's Powr-Grip replacement component, manufactured to the same specifications and tolerances as the original factory lift bar used in P1 channel lifters.

Q: What safety restriction applies to the tilt function on the PCFT1A1?
A: The lift bar must be locked in the center rotation position before tilting is permitted. This design restriction prevents uncontrolled load swing during tilt operations and is an engineered safety feature of the P1 lifter system.

Q: What design standards does the PCFT1A1 comply with?
A: The PCFT1A1 is designed to ASME B30.20-2006 (BTH-1 Design Category B, Service Class 0) and AS 4991-2004, covering both North American and Australian below-the-hook lifting device standards.

Q: Where can I find full assembly and operation instructions for the PCFT1A1 and the P1/P2 conversion?
A: The complete assembly instructions manual (Rev 5.0/3-24, Document #35116) is available for download on this page. Additional OPERATING INSTRUCTIONS for your specific lifter model are available at wpg.com, through your dealer, or from Powr-Grip Technical Service at (800) 548-7341.

Q: Does the PCFT1A1 include vacuum pads, or is it the lift bar assembly only?
A: The PCFT1A1 is the lift bar assembly only. Vacuum pads and channel (pad frame) components are separate items. For complete P1 lifter model configurations, the PCFT1A1 is combined with the appropriate channel component — for example, PCFT1A1 + PC1104DC(3) = P11104DC(3).
