Shop Vestil

Overhead Load Lifters

SKU# OLA-2-36-DLX

$2,235.85

Shipping calculated at checkout.

Options

Adjustable Forks 13" To 38" O.D. - 4"x36" - 2000 Capacity Adjustable Forks 13" To 38" O.D. - 4"x42" - 2000 Capacity Adjustable Forks 13" To 38" O.D. - 4"x36" - 4000 Capacity Adjustable Forks 13" To 38" O.D. - 4"x42" - 4000 Capacity Adjustable Fork Width 17-5/8" to 35-5/8" - 2000 Capacity Adjustable Fork Width 17-5/8" to 35-5/8" - 4000 Capacity Fixed Fork Width at 27-1/2" - 2000 Capacity Fixed Fork Width at 27-1/2" - 4000 Capacity

This product lead time is 8-9 weeks.

Safe & Secure Payments

The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates with an overhead lifting crane.

Includes an adjustable bail for keeping the load level when moving. Includes (3) three height positions. Welded steel construction. Painted finish.

Lifter is designed to move pallets, skids and crates in industrial applications
Use with an overhead lifting crane for optimal results
Includes an adjustable bail for keeping the load level when moving
Includes three height positions for use with different sized loads

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Overhead Load Lifters
Model	Adjustable Clearance Height	Overall Height	Fork Size (WxL)	Capacity (lbs)	Wt. (lbs)

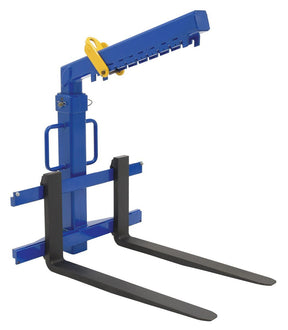

Deluxe with Adjustable Forks 13" To 38" O.D.
OLA-2-36-DLX	42-1/4", 54", 65-3/4"	65-11/16", 77-7/16", 89-3/16"	4"x36"	2,000	527
OLA-2-42-DLX	42-1/4", 54", 65-3/4"	65-11/16", 77-7/16", 89-3/16"	4"x42"	2,000	538
OLA-4-36-DLX	42-1/4", 54", 65-3/4"	65-11/16", 77-7/16", 89-3/16"	4"x36"	4,000	547
OLA-4-42-DLX	42-1/4", 54", 65-3/4"	65-11/16", 77-7/16", 89-3/16"	4"x42"	4,000	558
Adjustable Fork Width 17-5/8" to 35-5/8"
OLA-2-42	40-9/16", 52-5/16", 64-1/16"	64-3/8", 76-1/8", 87-7/8"	4"x43-1/8"	2,000	531
OLA-4-42	40-9//16", 52-5/16", 64-1/16"	64-3/8", 76-1/8", 87-7/8"	4"x43-1/8"	4,000	537
Fixed Fork Width at 27-1/2"
OLF-2-42	38-3/4", 50-1/2", 62-1/4"	62-9/16", 74-5/16", 86-1/16"	4"x 43-1/8"	2,000	488
OLF-4-42	38-3/4", 50-1/2", 62-1/4"	62-9/16", 74-5/16", 86-1/16"	4"x 43-1/8"	4,000	491
