Field-Installed Hydrophilic Waterstop Ring prevents water leakage along tie penetrations.

Full Data Sheet

FEATURES AND BENEFITS

• Prevents water leakage along tie penetrations.

• Easy attachment to the tie.

• The ULTRA-C-RING is a Hydrophilic Waterstop (that swells when in contact with water, stops water penetration).

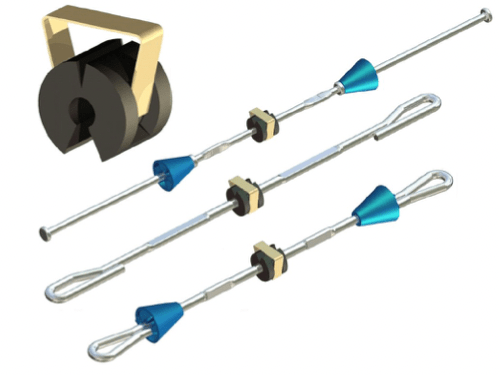

• Versatile can be used with: SNAP TIES, LOOP TIES, HEAVY DUTY LOOP TIES, SELF CENTERING LOOP TIES.

• Can be installed with formwork already assembled.

• Proven to be more successful in stopping water penetra-

  tion than traditional neoprene washer.

• Avoid special orders, long lead times, and expedited freight charges.

PRODUCT INFORMATION

INSTALLATION

PUSH

WATER PENETRATION TEST RESULT

1Place the ULTRA-C-RING onto the tie.

2Push the clip down. 3Done!

*Actual Product Test

Water Pressure

Water Pressure

ULTRA-C-RING

STD Rubber Washer

No Leaks

Leaks

ULTRA-C-RING

Sealing form tie-rods against penetration of water from wet-face of structure.

The product shall be a 2 component tie-rod waterstop consisting of a metal clip and vulcanized natural rubber ring.

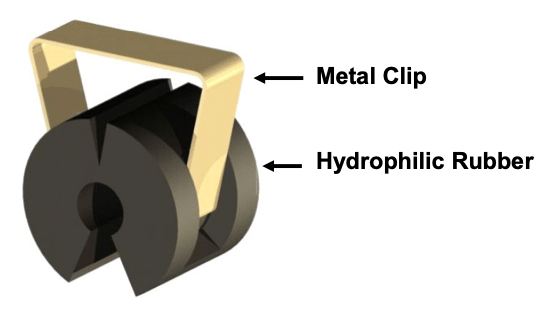

Metal Clip Hydrophilic Rubber

The product shall meet the minimum performance requirements as shown in the table above and in the official Adeka literature.

WATER SWELLING TIE ROD WATERSTOP
