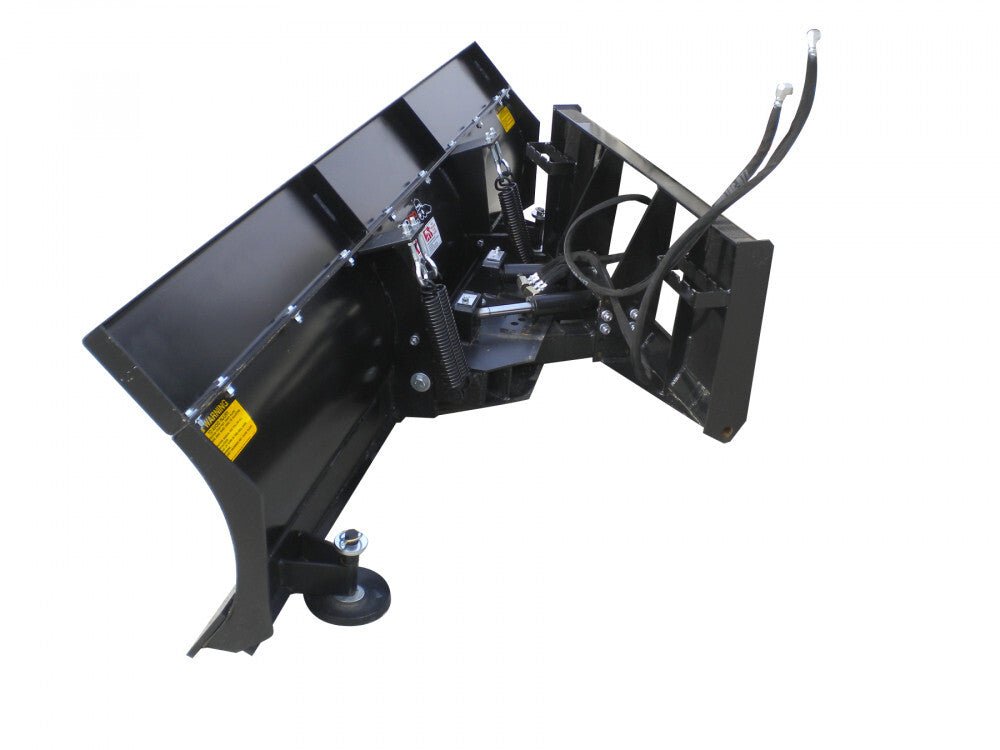

The Blue Diamond® Standard Duty Series 2 Multi-Purpose Blade for skid steers is great for snow and light dirt work.

At 22” tall, this blade is a great fit for most users and has an optional 8” height extension that can be bolted on for high-volume applications. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.

FEATURES INCLUDE :

  • Available in 72” and 84” widths
  • 22″ blade height
  • Optional bolt-on 8″ height extension
  • Full-trip mouldboard
  • Steel cutting edge
  • Hydraulic angle

STANDARD DUTY SERIES 2 MULTI-PURPOSE BLADE SPEC SHEET

PRODUCT SPECS

PART NUMBER STRAIGHT WIDTH ANGLED WIDTH ANGLE HEIGHT WEIGHT
123415 72” 62 1/4" 30° 22" 560 lbs
123420 84" 72 1/2" 30° 22" 590 lbs
