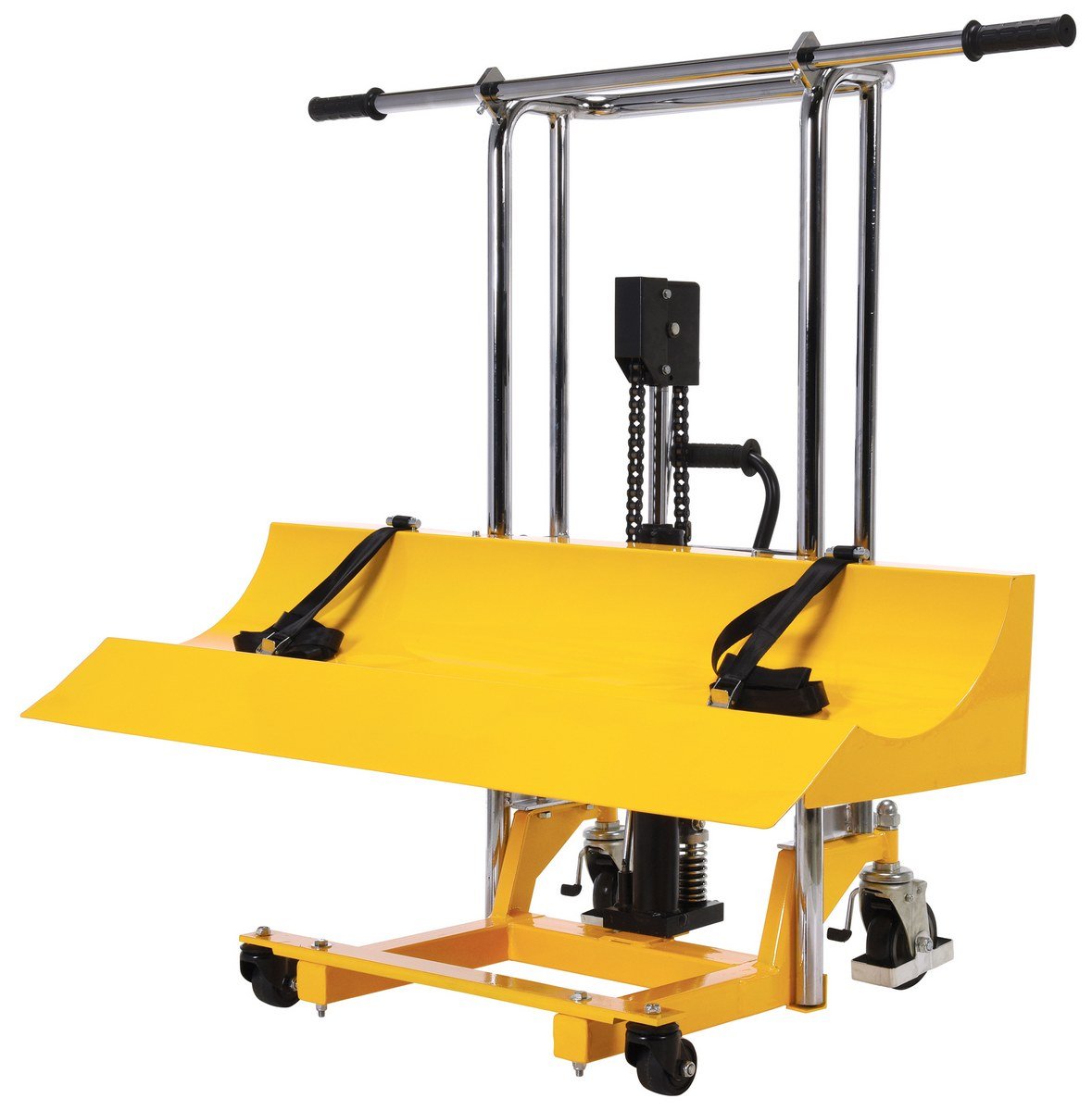

Roll Lifter and Transporters allow single users to maneuver heavy duty rolls onto the lifter and then directly onto the printer feeder.

Extended nylon strap provide leverage to help guide the roll into the trough and ensure materials are secured for transport. Concave trough design of the media tray stabilizes rolls for transit. Foot pump allows for smooth and effortless lifting. Heavy duty swivel casters in both front and rear allows the user to maneuver through standard doors and narrow passages. Maximum roll diameter is 15-3/4".

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Roll Lifters and Transporters
Model Image PDF's Max. Roll
Width
Tray
Width
Service
Range
Capacity
(lbs)
Wt.
(lbs)
HYD-ROLL-16 Warranty PDFCompliance Certificate 98" 31-1/2" 4"to 33-1/2" 880 190
HYD-ROLL-47 Warranty PDFCompliance Certificate 197" 47-1/4" 4"to 33-1/2" 880 205
HYD-ROLL-47-LP Warranty PDFCompliance Certificate 197" 47-1/4" 3-1/8"to 33-1/2" 880 205

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
