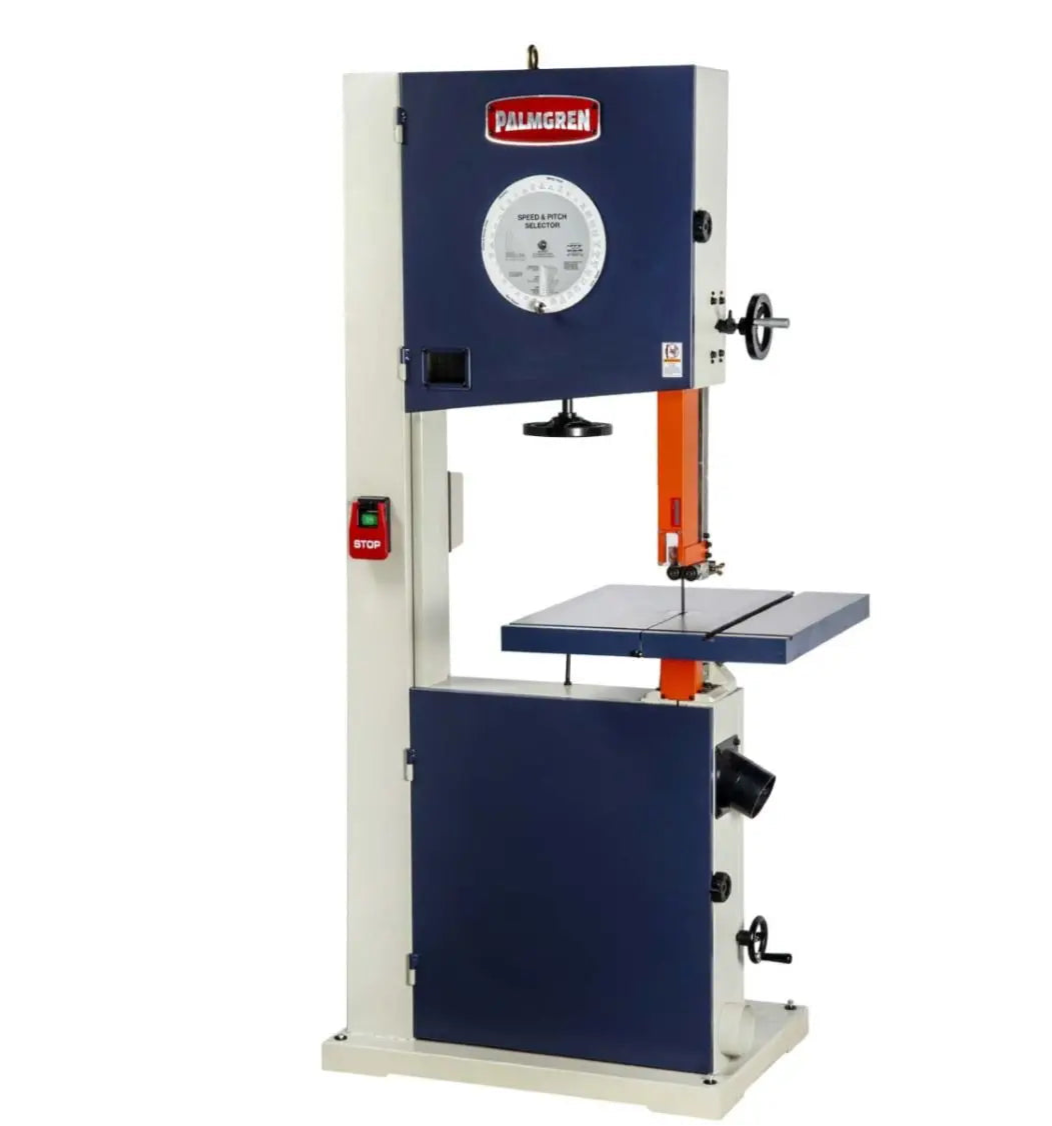

20" Vertical Wood/Metal Band Saw

With its dual pulley system, this saw can cut at high speeds for wood, and low speeds for ferrous and non-ferrous materials. With its high and low speed functionality, this saw replaces two machines in a single footprint for maximum space efficiency.

• Expected Ship Date - August 2025
• Welded steel frame construction

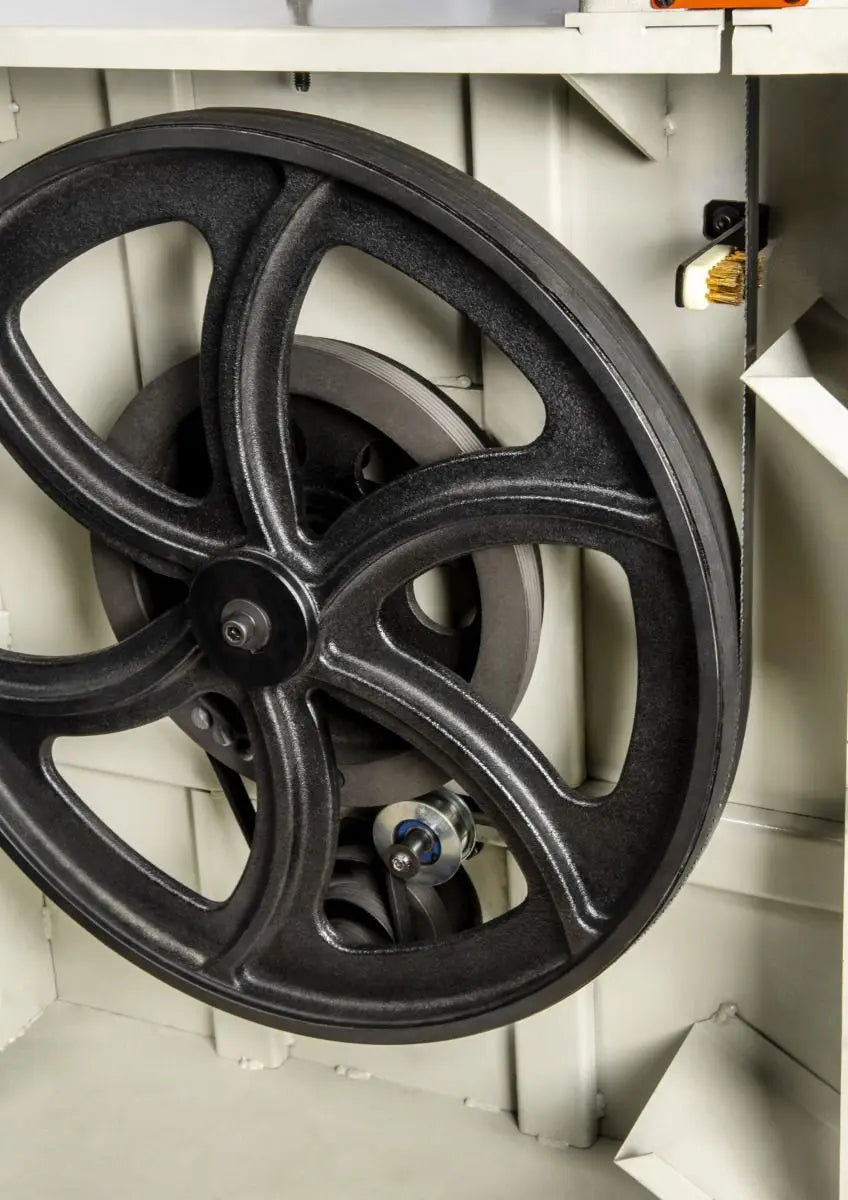

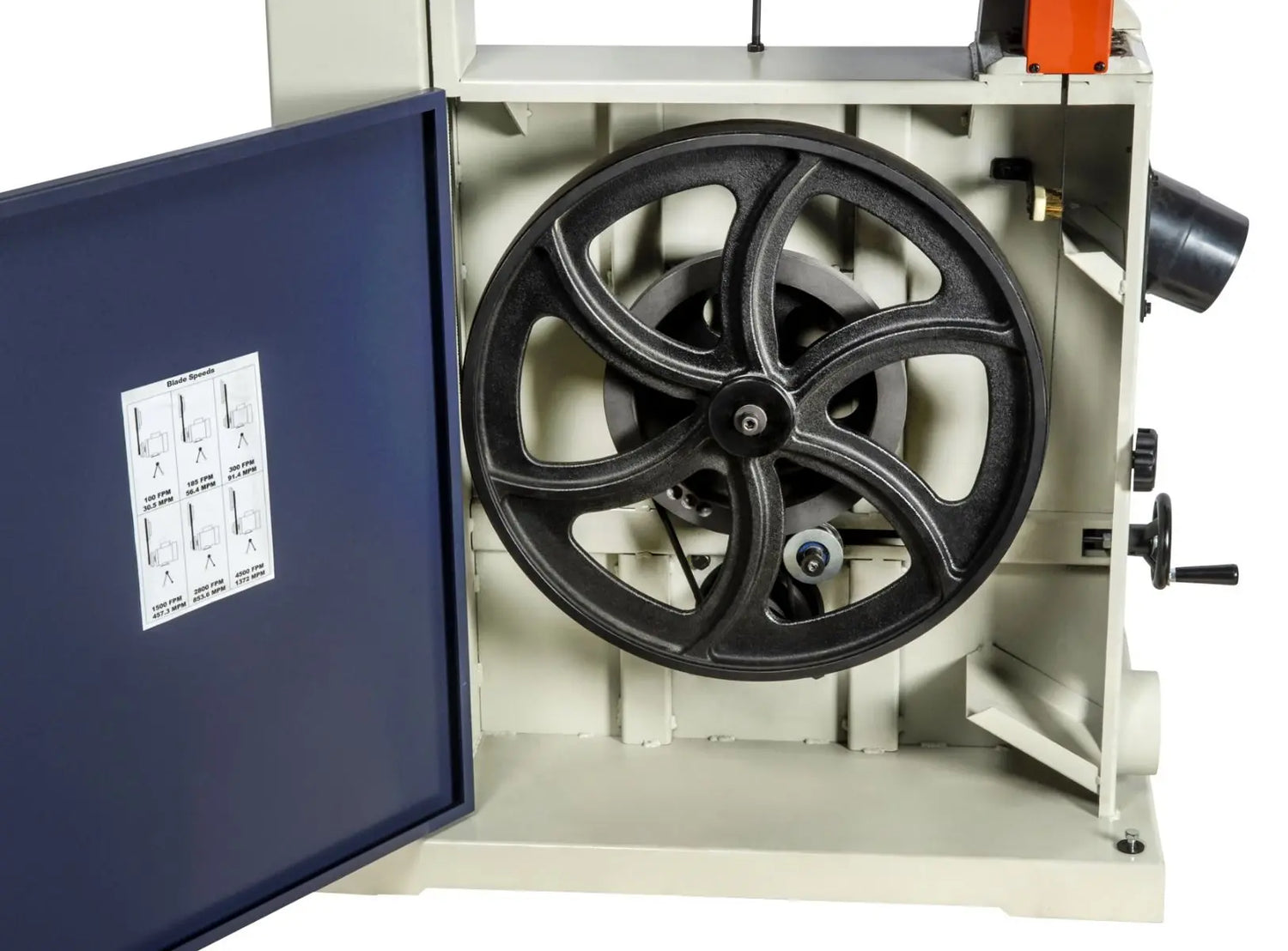

• Cast iron blade wheels

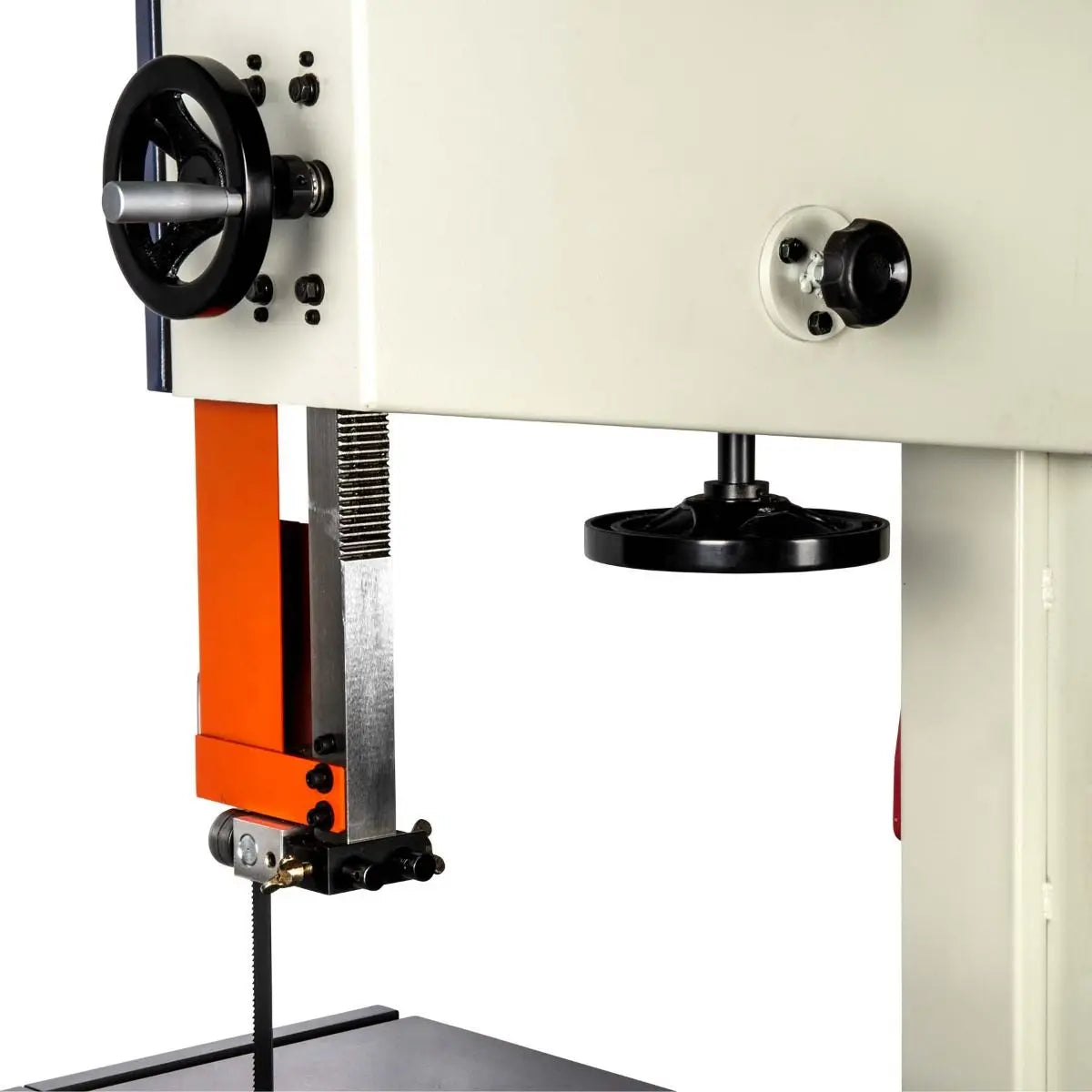

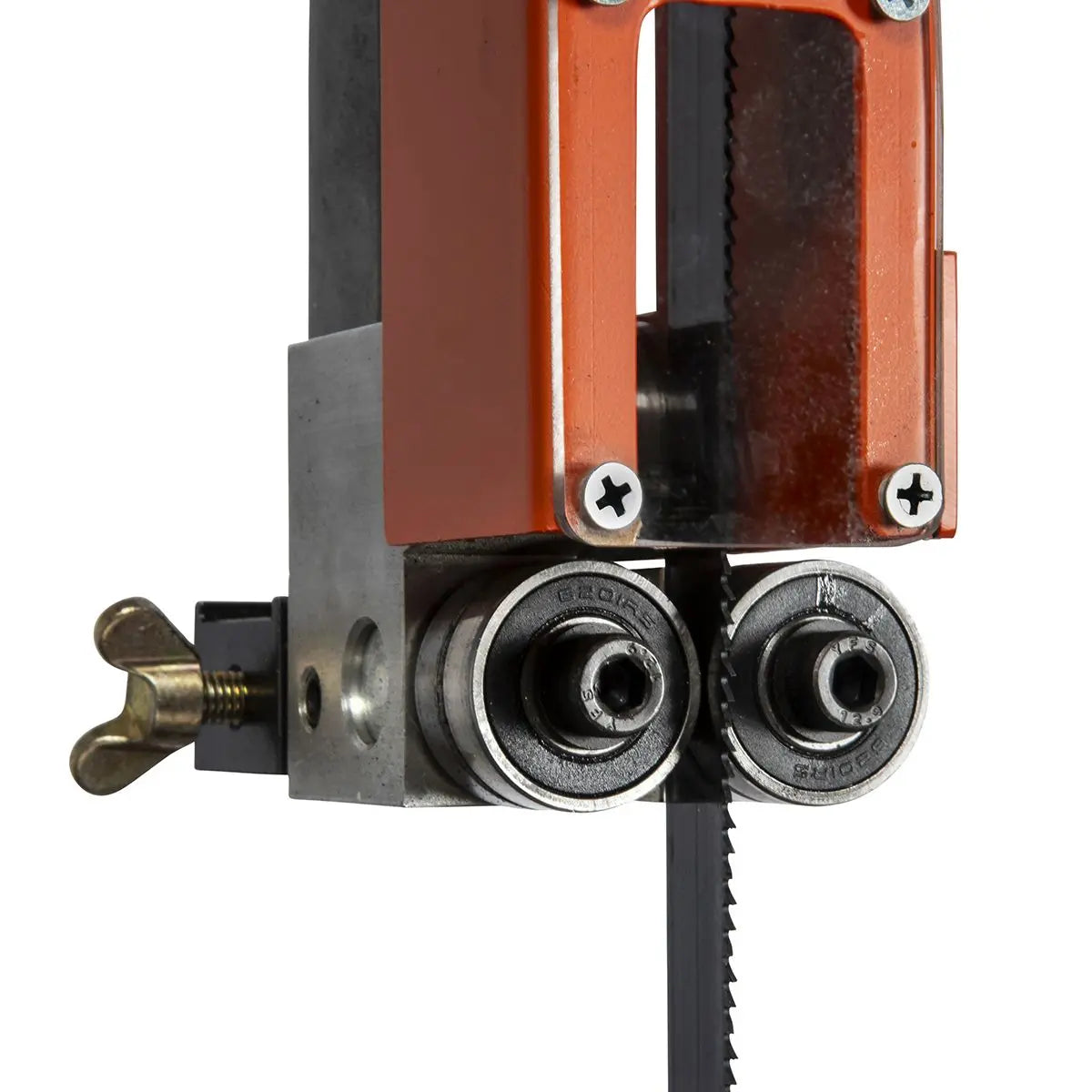

• Adjustable precision bearing blade guides
• Surface ground cast iron worktable
• Top and bottom doors include safety interlocks so the machine cannot run when opened
• Includes rip fence, miter gauge and chip blower
• Comes with one ¾” x 0.035” x 162” metal blade, and one ¾” x 0.035” x 162” wood blade

Blade Length	162"
Blade Width	1/4" - 1"
Blade Thickness	0.035"
Country of Origin	TW
Dust Collection Port Size-In.	4"
Machine Weight	660 lbs.

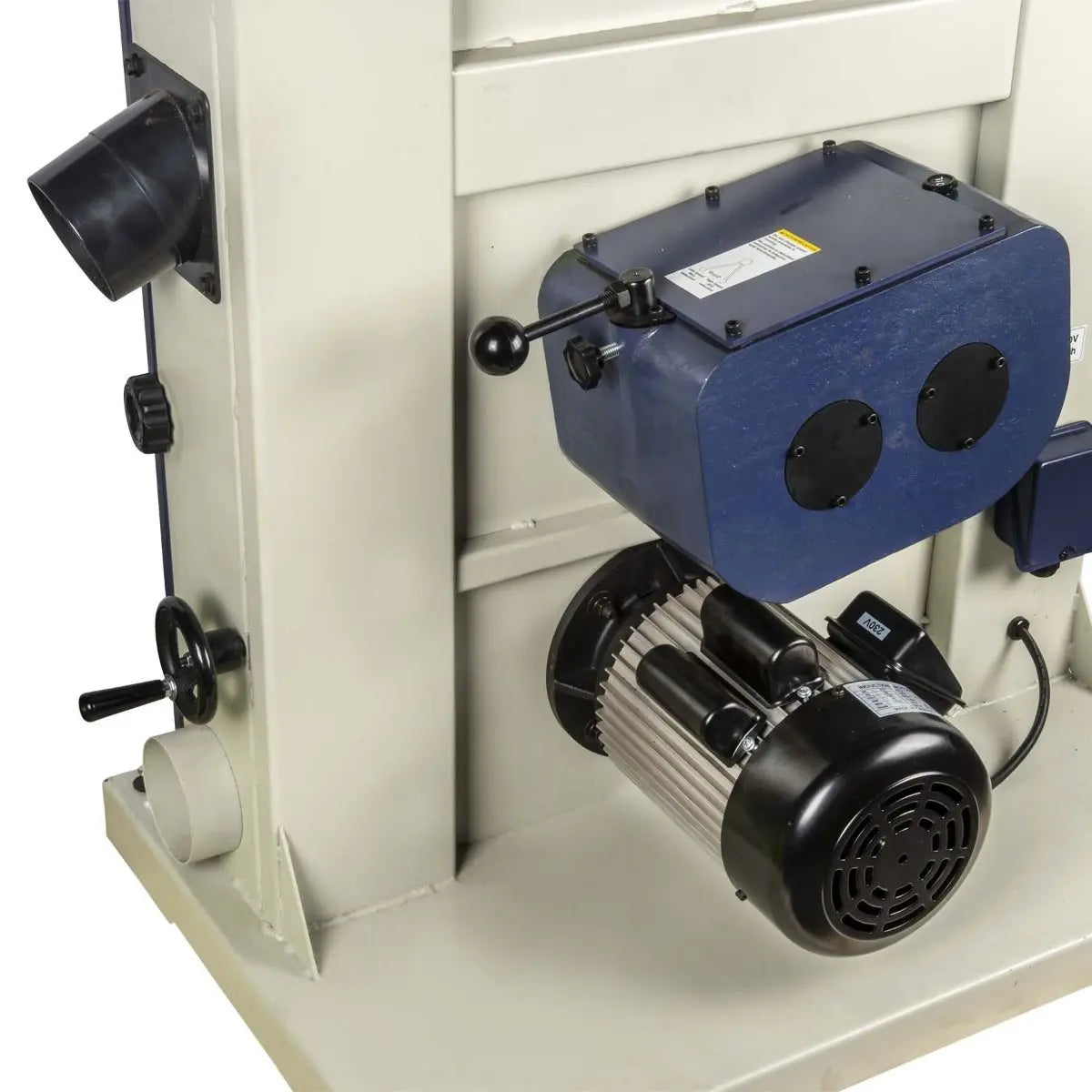

Motor HP	2.5
Phase	Single
Sawing Type	Vertical Band Saws
Table Dimensions	23-5/8" x 21-5/8"

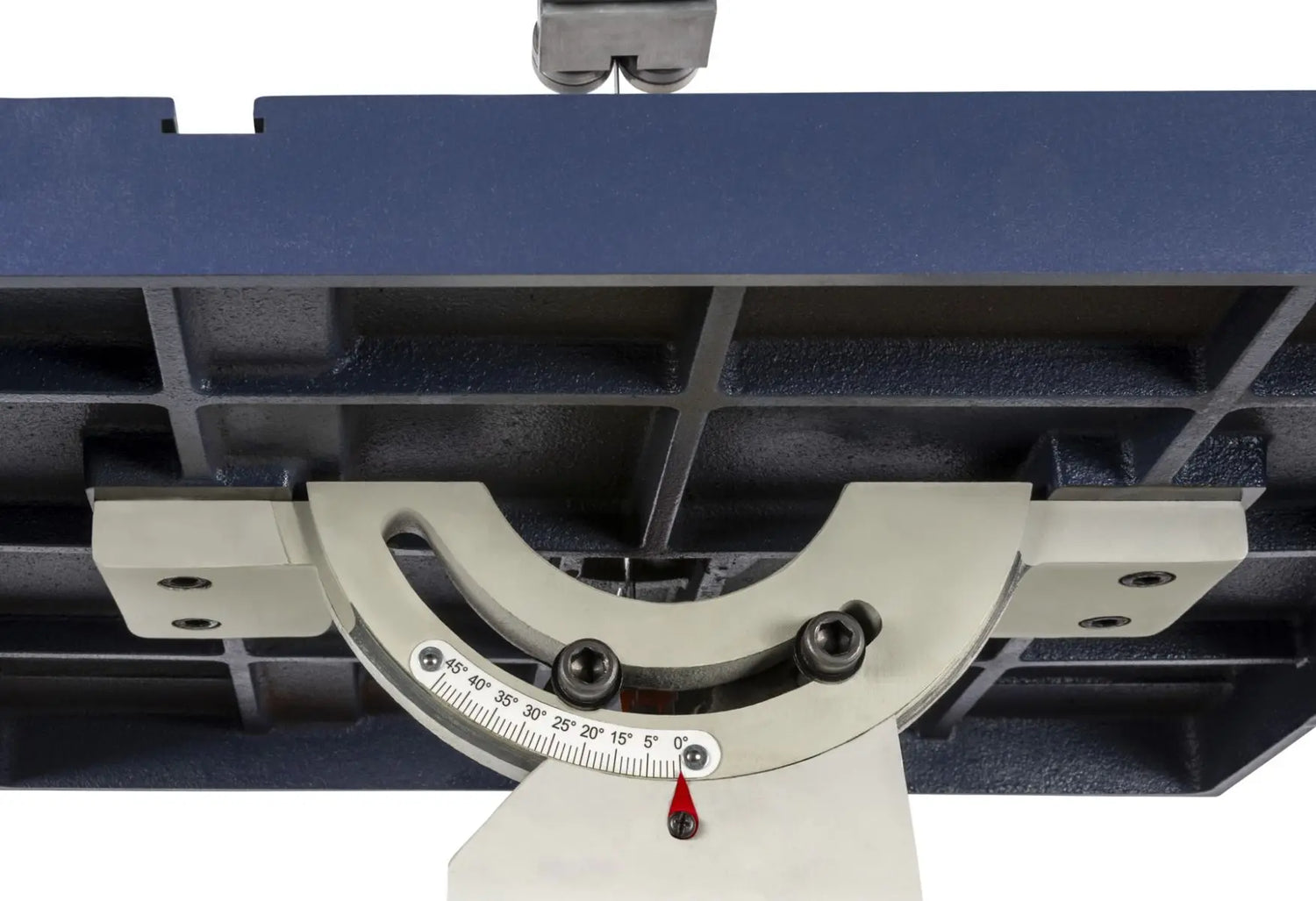

Table Tilt Right to Left	0°/45°
Voltage	230
Warranty	3 Year
Wood Cutting Saw Type	Vertical
UPC	726896831107
Unit of Measure	EA
Product Height (in)	77
Product Length (in)	39
Product Width (in)	47
Product Weight (lbs)	850



Manual
