Heavy Duty Orange Wet Core Bore Bits | Diamond Products Core Bits

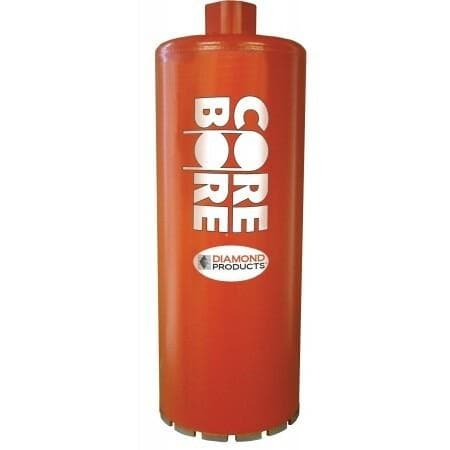

Heavy Duty Orange Wet Core Bore for fast drilling of concrete

Excellent footage and drilling speed. Designed for all types of wet drilling in applications with light to moderate steel.
Very high-quality diamond and longer coring life.

ORDERING INFORMATION All bits may be ordered with custom bonds Note: All diameters are nominal. Exact tolerances upon request.

Core Bit Lengths: 1/2" to 7/8" Diameter Core Bits Standard Core Length= 12", 1" to 14" Diameter Core Bits Standard Core Length = 13" 16" Diameter Core bits Standard Core Length = 19"/18" Diameter Core Bits Standard Core Length = 22" 20" to 30" Diameter Core bits Standard Core Length = 23" Note: Any length available upon request.

Hub Sizes: 1/2" to 1-1/2" = 5/8"-11 threaded hub. 1-5/8" and up = 1-1/4"-7 threaded hub

Smaller Sizes

Heavy Duty Orange Wet Core Bore Specifications:

SIZE	HOL CAT #	H38F CAT #	H42Z CAT #	H64L CAT #	HOL WIDE SPACE CAT #	OPEN END CAT #
1/2"	05099	45547	95431	36273	---	81402
5/8"	05141	39237	73994	16875	---	81403
3/4"	05173	45548	05171	16877	---	72183
7/8"	05192	45549	05191	16886	---	81406
1"	04812	04809	21539	04810	---	28042
1-1/8"	04837	45550	83034	27000	---	23312
1-1/4"	15509	67903	23217	25596	---	25944
1-3/8"	04874	45552	83029	36274	---	16137
1-1/2"	15525	45554	23218	28619	---	05208
1-5/8"	04907	45555	15038	26414	---	16056
1-3/4"	04910	45556	23219	28621	---	16138
1-7/8"	04920	45561	---	20934	---	16145
2"	15479	45563	20301	04934	20102	05212
2-1/4"	04959	45564	80125	04957	28637	16148
2-1/2"	00004	37094	18343	04976	05258	05216
2-3/4"	04992	45565	90035	28623	05260	16160
3"	00005	45567	05011	05013	05263	05220
3-1/4"	05032	45568	21540	28624	28671	16189
3-1/2"	00006	45569	24060	28625	22164	05224
4"	00007	45571	21917	05060	05269	05228
4-1/4"	05079	45572	58138	05077	28178	26118
4-1/2"	00008	45574	21541	05086	22165	27383
5"	00009	45575	21542	05107	05273	05232
5-1/2"	05117	45576	21543	28626	24610	16194
6"	00010	45577	18150	05131	05278	05238
6-1/4"	05144	99115	---	05143	28638	27782
6-1/2"	05151	45578	---	05150	28672	66853
7"	05163	45582	18151	24977	20415	05242
8"	05183	45585	18152	05180	05281	05246
9"	05199	45586	30302	28627	20055	05249
10"	04822	45588	44174	04820	21475	05206
