Pallet Forks – Block & Brick

SKU# 314500

$2,577⁰⁰ ~~$3,031⁷⁶~~

Shipping calculated at checkout.

Options

Complete PALLET FORK ASSEMBLY 48" W/ STEPS 3200# CAPACITY W/ (4) 1.5 X 2 X 48" Complete PALLET FORK ASSEMBLY 3200# HD FRAME W/ STEPS AND (4) 1 1/2 X 2 X 48" Complete PALLET FORK ASSEMBLY 48" W/ STEPS 4000# CAPACITY W/ (4) 2 X 2 X 48" Complete PALLET FORK ASSEMBLY 4800# HD FRAME W/ STEPS AND (4) 2 X 2 X 48" Complete PALLET FORK ASSEMBLY 4800# W/ STEPS & D-RING AND (4) 2 X 2 X 48" TINE ONLY - 42" x 2"x 1-1/2" STD CLASS 2 TINE ONLY - 48" x 2"x 1-1/2" STD CLASS 2 TINE ONLY - 42" x 2"x 2" STD CLASS 2 TINE ONLY - 48" x 2"x 2" STD CLASS 2

Product variants

Safe & Secure Payments.

Finance this today with Centra Funding Logo Apply Here

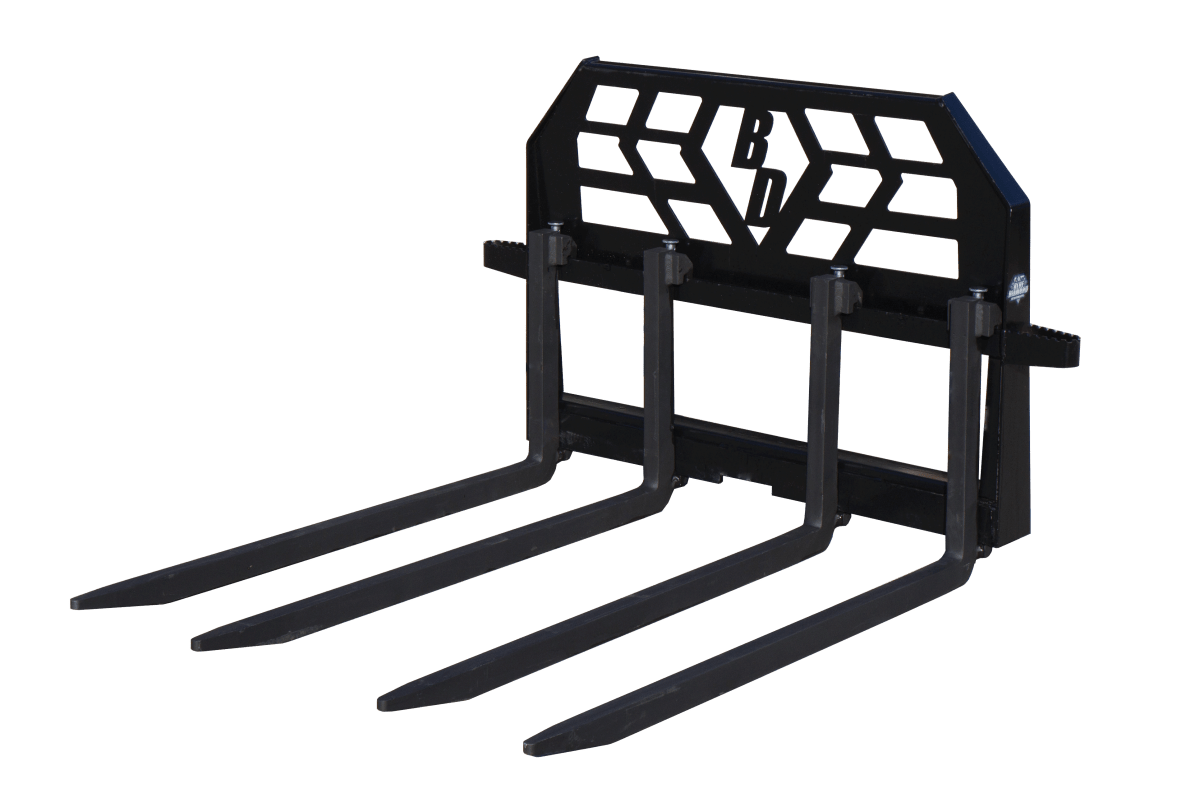

The Blue Diamond Heavy Duty Block & Brick Pallet Forks are available to fit large frame track loaders and wheel loaders that have the skid steer quick attach.

The cutout in the backrest offers easy cab entry for skid steers and also is designed to clear center linkage on wheel loaders. The Class 3 frame can accommodate a number of fork lengths from 48” to 72”.

Features

• Tines fit any Class 2 fork frame
• 3,600 – 4,800 lbs. capacity

Part Number	Model	Tine Size	Lift Capacity	Weight
314500	Pallet Fork, STD, W/Steps	48” x 2” x 1 1/2”	3,200 lbs.	313 lbs.
314505	Pallet Fork, STD, W/Steps	48” x 2” x 2”	4,000 lbs.	445 lbs.
314515	Pallet Fork, STD, W/Steps	48” x 2” x 1 1/2”	3,200 lbs.	363 lbs.
314520	Pallet Fork, HD, W/Steps/D-Ring	48” x 2” x 2”	4,800 lbs.	410 lbs.
314510	Pallet Fork, STD, W/Steps	48” x 2” x 2”	4,800 lbs.	471 lbs.

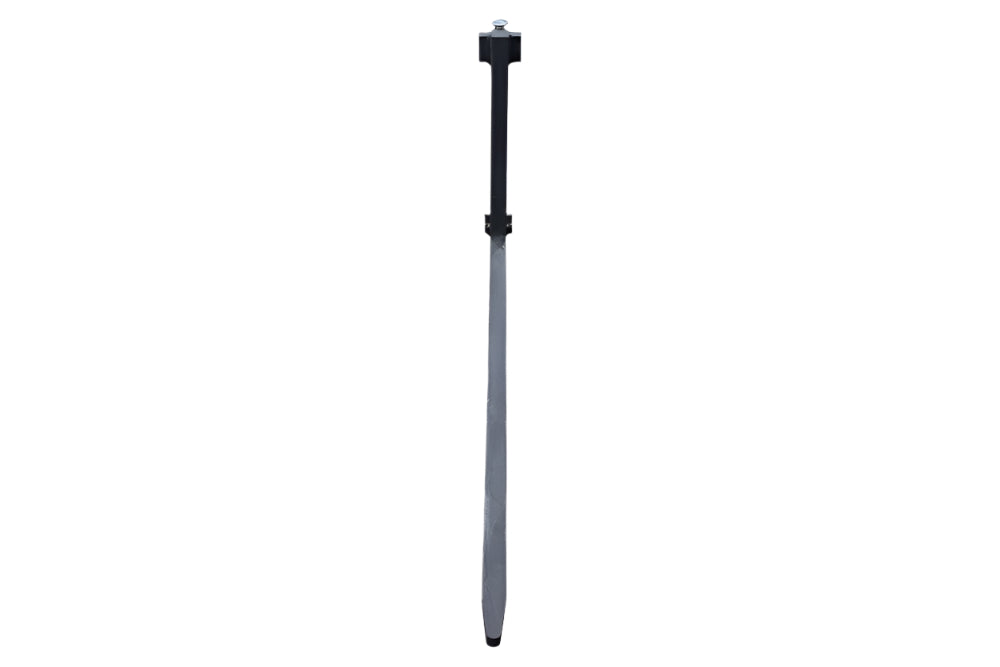

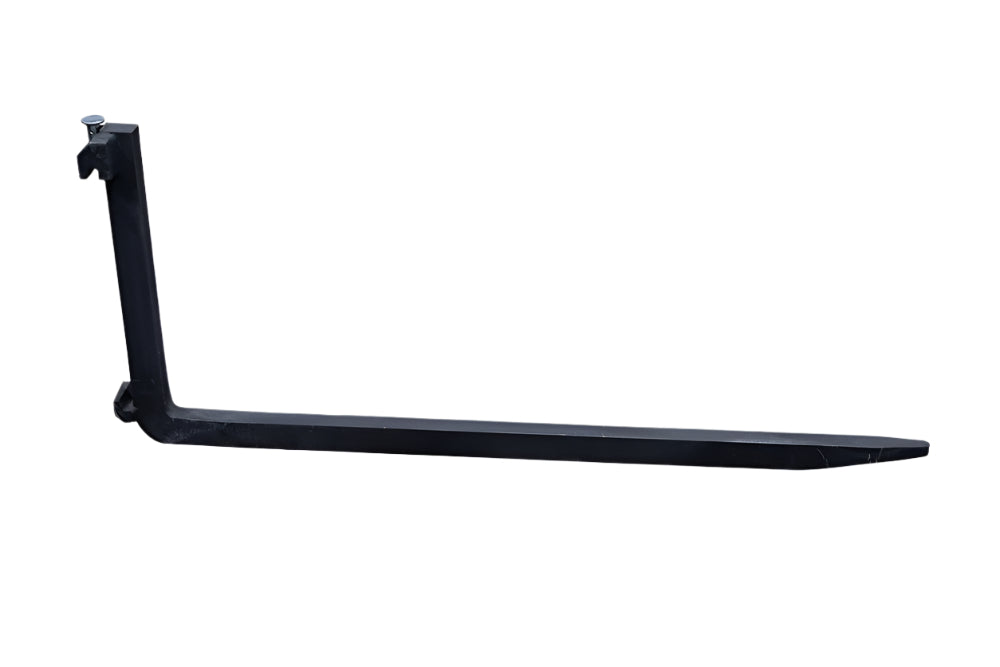

114175	42" Block/Brick Tines STD Class 2	42" x 2" x 1 1/2"	3,200 lbs.	64 lbs.
114178	48" Block/Brick Tines STD Class 2	48" x 2" x 1 1/2"	3,200 lbs.	69 lbs.
114185	42" Block/Brick Tines STD Class 2	42" x 2" x 2"	4,800 lbs.	77 lbs.
114180	48" Block/Brick Tines STD Class 2	48" x 2" x 2"	4,800 lbs.	84 lbs.
