When it comes to anchoring into concrete, the stakes are high. A fastener that pulls out under load isn't just a failed connection — it's a safety hazard. Whether you're securing structural steel, mounting equipment, or fastening fixtures to a slab, choosing the right concrete anchor type is critical to the long-term integrity of the installation.

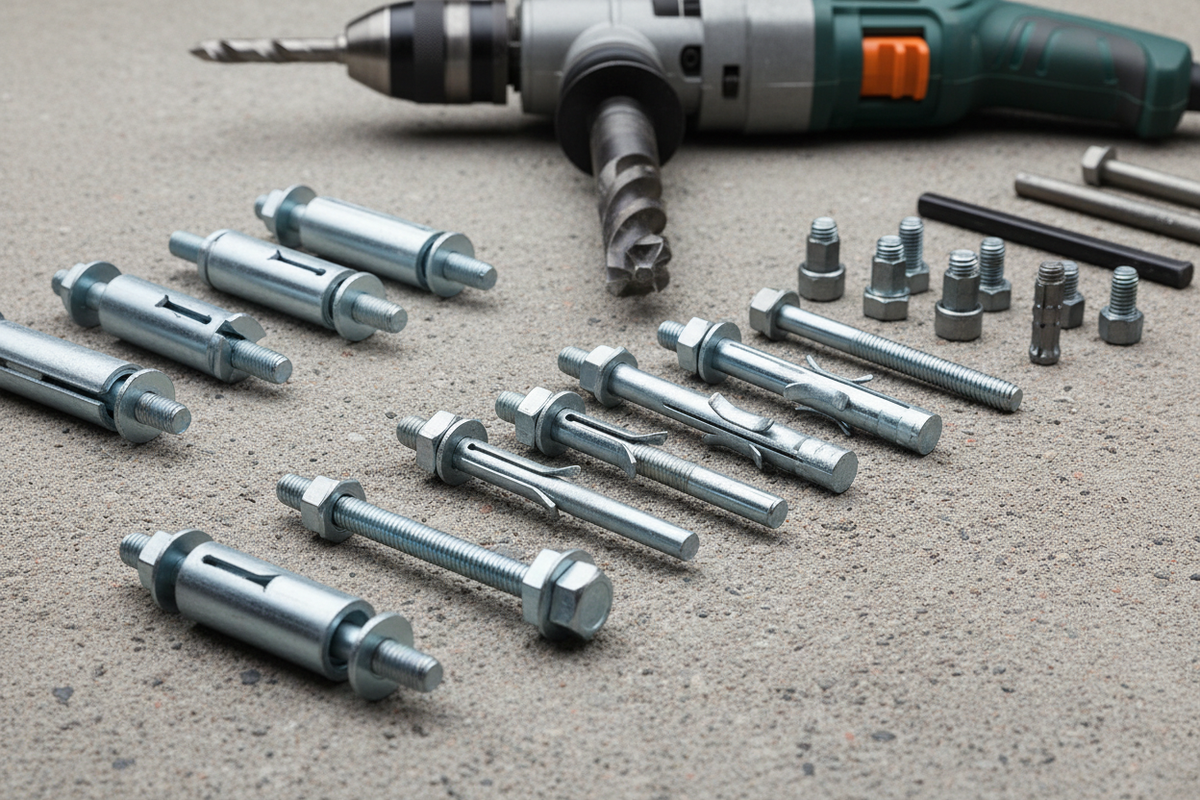

The three most common types of mechanical concrete anchors — wedge, drop-in, and sleeve — each work differently and excel in different applications. Understanding how to anchor into concrete correctly starts with knowing which anchor belongs where.
Wedge Anchors
Wedge anchors are one of the most widely used concrete anchors in heavy-duty construction. They work by expanding a clip at the bottom of the anchor against the walls of the drilled hole as the nut is tightened, creating a mechanical lock in hardened concrete.
When to use wedge anchors:
- Anchoring structural steel columns, base plates, and machinery to concrete floors
- Applications requiring high tensile and shear load capacity
- Permanent installations where the anchor will not need to be removed
- Solid, hardened concrete only — not suitable for hollow base materials
The MKT Sup-R Stud+ is a high-performance option engineered for demanding structural applications, delivering reliable holding power in concrete slabs and walls. It's available in carbon steel, mechanically galvanized, and 303/304 stainless steel, and is rated for medium to heavy loads.
Key advantage: Wedge anchors offer some of the highest load ratings of any mechanical anchor type, making them the go-to choice when structural performance is the top priority.
Drop-In Anchors
Drop-in anchors are internally threaded anchors set flush with or below the concrete surface. They are installed by dropping the anchor into a drilled hole and using a setting tool to expand the anchor body against the hole walls. Once set, they accept a threaded rod or bolt from above.
When to use drop-in anchors:
- Overhead and suspended load applications — hanging pipe, conduit, HVAC equipment, and ceiling fixtures
- When a flush or recessed anchor profile is required
- Applications where a threaded rod needs to be inserted after the anchor is set
- Solid concrete only
MKT offers two drop-in anchor options for different applications:
- Coil Thread Sup-R Drop — Accepts standard 1/2" or 3/4" coil thread rod or coil thread bolts. Preassembled for ease of installation and ideal for formwork and tilt-up bracing applications.
- Lipped Sup-R Drop Anchor — Features a lipped top for semi-flush installation, providing a positive stop at the concrete surface.
Key advantage: Drop-in anchors are ideal for overhead work where a clean, flush installation is needed and the fastener must be set before the hanging element is attached.
Sleeve Anchors
Sleeve anchors consist of a bolt surrounded by an expanding sleeve. As the nut is tightened, the sleeve expands outward against the hole walls, creating a secure hold. Unlike wedge anchors, sleeve anchors can be used in a wider range of base materials including concrete, brick, and block.
When to use sleeve anchors:
- Anchoring into concrete, brick, block, or other masonry materials
- Light to medium-duty applications such as handrails, signage, electrical boxes, and fixtures
- When versatility across multiple base materials is needed
- Applications where some adjustability during installation is helpful
The MKT Sup-R Sleeve Anchor is a reliable, versatile option for contractors who need consistent performance across a variety of masonry substrates. Its longer sleeve design induces less stress on the substrate than a wedge anchor — making it more forgiving on thinner or lower-strength materials.
Key advantage: Sleeve anchors offer the most versatility of the three types, working across multiple base materials and covering a broad range of light to medium-duty applications.
Common Anchoring Mistakes to Avoid
Wrong hole diameter or depth — Always drill to the exact diameter and minimum embedment depth specified for the anchor. Undersized holes prevent proper expansion; oversized holes reduce holding power.
Using standard anchors in cracked concrete — Standard mechanical anchors are not rated for cracked concrete. The MKT Sup-R Stud V-TZ is an ACI 318 Category 1 anchor rated for both cracked and uncracked concrete — use it where cracking is a concern.
Skipping hole cleaning — Dust and debris left in the hole reduce friction and holding strength. Always blow out and brush the hole before setting the anchor.
Over-torquing — Applying too much torque can strip threads or over-expand the anchor, reducing its holding capacity. Follow the manufacturer's torque specifications.
Wrong anchor for the base material — Wedge and drop-in anchors require solid, hardened concrete. Using them in block or brick can result in anchor failure. Use sleeve anchors when working in hollow or mixed masonry materials.
Quick Reference: Choosing the Right Anchor
| Application | Best Anchor Type | MKT Product |
|---|---|---|
| Structural steel & heavy machinery | Wedge Anchor | Sup-R Stud+ |
| Overhead pipe & suspended loads | Drop-In Anchor | Coil Thread Sup-R Drop |
| Flush surface installations | Drop-In Anchor | Lipped Sup-R Drop |
| Handrails, signage & fixtures | Sleeve Anchor | Sup-R Sleeve Anchor |
| Concrete bolting (multiple diameters) | Concrete Bolt | Sup-R Concrete Bolt |
| Cracked or uncracked concrete | Wedge Anchor | Sup-R Stud V-TZ |
Final Thoughts
Concrete anchoring isn't one-size-fits-all. Matching the right anchor type to your base material, load requirements, and installation conditions is what separates a secure, long-lasting connection from a liability. MKT's Sup-R line covers the full spectrum of concrete anchoring needs — from heavy structural wedge anchors to versatile sleeve anchors and precision drop-in systems.
