Concrete Dust Management: Safety Equipment and OSHA Guidance

Cutting concrete without dust control releases billions of respirable silica particles into the air within minutes. A basic paper mask cannot stop these microscopic particles from reaching deep lung tissue. Professional equipment is the only reliable defense.

This guide covers the full concrete dust management picture: the health risks of respirable silica, OSHA's regulatory requirements, the differences between dust extractors and shop vacs, wet cutting systems for saws and core drills, HEPA vacuum setups with dust shrouds, and how to build a complete dust control plan for your crew.

Why Is Concrete Dust Dangerous for Construction Workers?

Concrete dust contains respirable crystalline silica, a fine particulate that bypasses the body's natural filtration and embeds deep in lung tissue. The damage is cumulative and irreversible. Each unprotected cutting or grinding session adds to the total inhaled dose, and symptoms often do not appear until years after exposure has caused significant lung damage.

Silicosis is the most well-known disease caused by silica inhalation. The condition progresses through three stages: chronic silicosis develops after 10 or more years of low-level exposure, accelerated silicosis appears after 5 to 10 years of moderate exposure, and acute silicosis can occur within weeks or months of very high exposure levels. All forms of the disease involve progressive scarring of lung tissue that makes breathing increasingly difficult. There is no cure.

The health risks go beyond silicosis. The International Agency for Research on Cancer classifies respirable crystalline silica as a Group 1 carcinogen, meaning it is known to cause lung cancer in humans. Studies also link chronic silica exposure to chronic obstructive pulmonary disease (COPD), kidney disease, and autoimmune disorders like scleroderma. For construction crews working with concrete, masonry, or stone on a daily basis, these risks are a persistent occupational hazard.

Diamond Tool Store provides the dust control equipment that helps contractors minimize these health risks while maintaining productivity. When your crew is equipped with proper extraction and wet cutting gear, you eliminate the primary route of silica exposure and protect their long-term respiratory health.

What Does OSHA Require for Silica Dust Control?

OSHA's respirable crystalline silica standard for construction, 29 CFR 1926.1153, sets a permissible exposure limit (PEL) of 50 micrograms per cubic meter of air as an 8-hour time-weighted average. An action level of 25 micrograms triggers additional monitoring and medical surveillance. Every employer whose workers perform silica-generating tasks must comply with this standard or face citations and penalties.

OSHA provides two compliance pathways. Table 1 lists specific engineering controls for 18 common construction tasks. When an employer follows Table 1 exactly, no additional exposure monitoring is needed. For handheld grinders, Table 1 requires a shrouded grinder connected to a HEPA dust extractor. For walk-behind saws, it requires a saw with integrated water delivery. For handheld power saws used with masonry blades, Table 1 requires a saw with integrated water delivery or a dust extractor with a shroud. This is the simplest compliance route for most contractors.

The alternative pathway requires measuring each worker's actual exposure levels using air sampling methods specified in the standard. This approach demands industrial hygiene expertise, ongoing sampling costs, and documentation that controls keep exposures below the PEL. Most contractors choose Table 1 because the control methods are clearly defined and eliminate the need for exposure monitoring.

Written exposure control plans are mandatory under the standard. The plan must identify all silica-generating tasks on every jobsite, specify the control methods used for each task, and designate a competent person to oversee implementation. The plan must be reviewed and updated annually. Training must cover the health effects of silica, the specific tasks that create exposure, and the correct use of engineering controls, work practices, and personal protective equipment.

Diamond Tool Store carries the Table 1 compliant equipment contractors need: HEPA dust extractors, shrouded grinders, wet cutting saws, and core drills with water delivery systems. Finding the right equipment for your specific tasks starts with understanding which Table 1 row applies to your most common operations.

Dust Extractors vs. Shop Vacuums: What Is the Difference for Silica Control?

Many contractors assume a shop vacuum can handle concrete dust. This assumption is dangerous. Standard shop vacuums lack the filtration efficiency needed to capture respirable silica particles, and using one creates a false sense of safety while fine dust recirculates into the work environment.

Here are the key differences between a professional dust extractor and a standard shop vacuum for concrete dust management:

• HEPA filtration: Dust extractors use true HEPA filters that capture 99.97% of particles at 0.3 microns, including respirable silica. Shop vacs use standard filters that allow fine particles to pass through and recirculate into the air.
• OSHA Table 1 compliance: Dust extractors meet Table 1 requirements when paired with shrouded tools. Shop vacs are not Table 1 compliant for silica-generating tasks and do not satisfy OSHA inspection requirements.
• Continuous duty rating: Dust extractors are built for 8-plus hours of operation with automatic filter cleaning that maintains suction. Shop vacs overheat with prolonged use and lose suction as standard filters clog with fine dust.
• Consistent airflow: Professional extractors maintain rated CFM even with long hose runs. Shop vac suction drops significantly as hose length increases, reducing capture performance at the tool head.
• Construction and durability: Dust extractors use reinforced steel or impact-resistant polymer housings rated for jobsite conditions. Shop vacs are built from lightweight plastic that cracks under heavy use.

Feature	Dust Extractor	Shop Vacuum
HEPA Filtration	Yes (99.97% at 0.3 microns)	Standard filtration only
OSHA Table 1 Compliant	Yes, with shrouded tools	No
Automatic Filter Cleaning	Built-in pulse or shake mechanism	Manual cleaning required
Continuous Duty	Designed for 8+ hour operation	Risk of overheating
CFM at Tool	Consistent with long hoses	Drops with hose length
Construction	Reinforced steel or impact polymer	Lightweight plastic
Price Range	$500 to $2,500+	$100 to $500

The HEPA filter is the non-negotiable differentiator. True HEPA filters capture 99.97% of airborne particles at 0.3 microns, which covers the respirable silica size range. Standard shop vac filters achieve at best 99% efficiency, leaving thousands of silica particles per cubic foot to recirculate through the exhaust and back into your crew's breathing zone. Diamond Tool Store's dust collection and vacuum equipment selection helps contractors find the right extractor for their specific tools and tasks.

Automatic filter cleaning is another critical difference. Concrete dust clogs filter media rapidly as particles pack into the filter surface. A dust extractor with a pulse-jet or shaker mechanism clears the filter automatically, maintaining consistent airflow throughout the workday. Without this feature, suction drops measurably within 15 to 30 minutes of continuous grinding or cutting, reducing capture efficiency below effective levels.

How Do Wet Cutting Systems Control Concrete Dust?

Wet cutting is one of the most effective concrete dust control methods because it prevents particles from becoming airborne in the first place. Water introduced at the cutting interface traps silica in slurry form, eliminating airborne dust at the point of creation rather than trying to capture it after dispersion. For many Table 1 listed tasks, wet cutting is the simplest and most reliable compliance option.

Setting up a wet cutting system involves these key steps:

1. Select a water-rated tool. Choose a concrete saw, core drill, or grinder designed for wet operation. Verify that the tool has integrated water ports or a water swivel fitting and is rated by the manufacturer for wet use before introducing any water.
2. Connect a clean water supply. Attach a garden hose or pressurized water tank to the tool's water inlet. Most professional saws use quick-connect fittings for fast setup. Regulate flow between 0.5 and 2 gallons per minute depending on the tool type and material being cut.
3. Start water flow before blade contact. Activate the water before the blade touches the material so water is present at the cutting interface from the first moment of contact. This eliminates any dry-cutting phase that would release dust into the air.
4. Monitor water delivery throughout the cut. Keep water flowing consistently during the entire cutting operation. An interrupted water supply during a cut creates a burst of airborne silica. Inspect hoses and connections periodically for kinks, leaks, or blockages.
5. Collect and dispose of slurry properly. Wet cutting produces slurry containing trapped silica particles that must be contained. Use slurry collection mats, vacuum systems rated for wet pickup, or containment berms. Never allow slurry to run into storm drains, and dispose of dried slurry as silica-containing waste per local regulations.

Wet cutting requires some adjustments to normal work practices. Water on the work surface creates slip hazards that demand proper housekeeping and slip-resistant footwear. All electrical tools used near water must be GFCI protected. In cold weather, water lines and tool ports can freeze, making wet cutting impractical without heated storage. Some materials or finish requirements may not tolerate water exposure, in which case a HEPA dust extractor with a tool-specific shroud is the appropriate alternative.

Diamond Tool Store's dust and water recycling collection supports both wet and dry dust control approaches, giving contractors options that fit every jobsite condition and weather constraint.

What Equipment Do You Need for HEPA Vacuum Systems and Dust Shrouds?

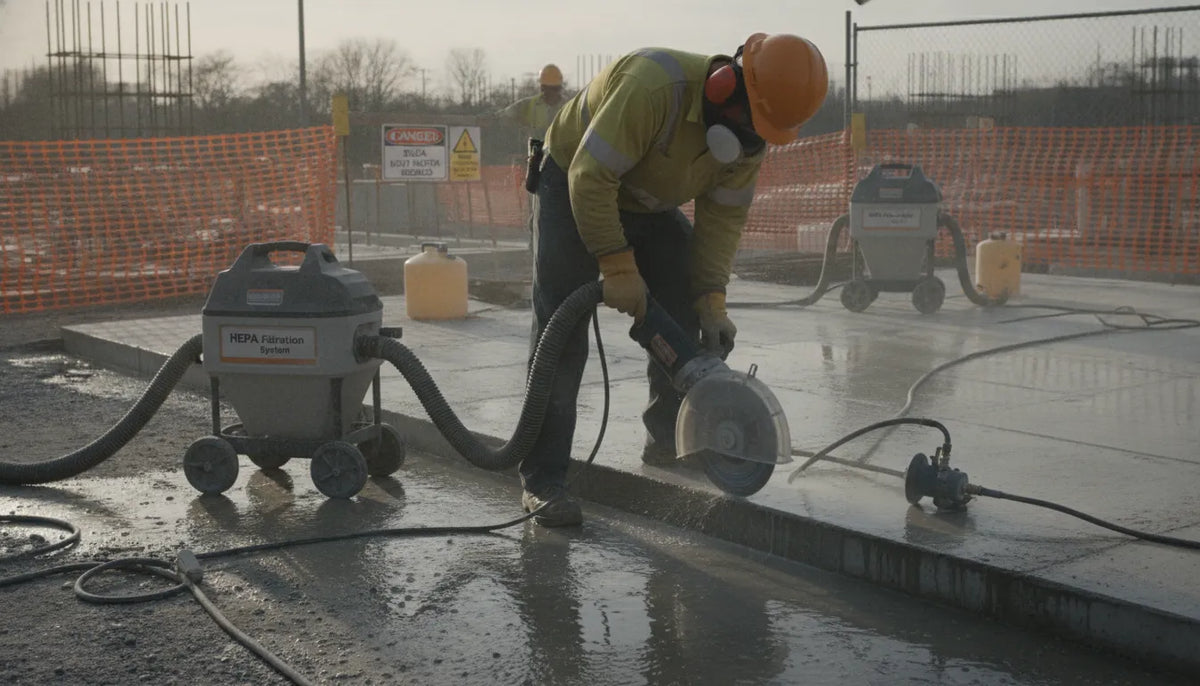

For dry cutting and grinding where wet methods are not practical, HEPA vacuum systems paired with dust shrouds provide the primary defense. A dust shroud encloses the cutting or grinding area and connects to a HEPA extractor through a hose, creating negative pressure that pulls particles into the collection system before they escape into the worker's breathing zone.

Selecting the right dust shroud setup involves these considerations:

• Shroud type: Universal shrouds use adjustable side plates or curtains to fit multiple tool sizes. Tool-specific shrouds mount directly to a particular grinder or saw model and provide a tighter seal with better capture efficiency. Tool-specific shrouds generally deliver superior performance.
• HEPA extractor CFM rating: The dust extractor must maintain adequate airflow at the tool head despite hose resistance. OSHA Table 1 compliant setups typically require a minimum of 25 CFM at the tool for handheld grinders and higher flow for walk-behind equipment.
• Hose diameter and length: Use the shortest practical hose with the largest diameter your extractor supports. Smooth interior hoses with gradual bends minimize airflow restriction. Kinks and tight bends degrade capture performance significantly.
• Filter maintenance: Check filter condition before each shift. Clogged filters cause rapid suction loss. Dust extractors with automatic filter cleaning maintain performance during extended grinding sessions on large-area concrete floors.

For walk-behind tools like floor grinders and power trowels, the dust collection challenge scales up. Large-area grinding generates substantial dust volumes that require high-capacity HEPA extractors with multiple large-diameter extraction hoses. Walk-behind shrouds cover the entire grinding head assembly, and the extractor must include automatic filter cleaning to maintain suction over extended sessions that can last multiple hours.

Diamond Tool Store's premium dust shrouds are designed for effective dust management across a range of grinder applications, and the store's dust collection equipment covers the full spectrum from handheld extractors to high-capacity floor grinding systems.

How Do You Build a Complete Concrete Dust Management Plan?

Effective concrete dust management is not a single purchase. It is a layered program combining engineering controls, work practices, training, and personal protective equipment. OSHA's hierarchy of controls puts engineering controls at the top, which means dust extractors, wet cutting systems, and shrouded tools come before respirators in the protection sequence.

Start with a written exposure control plan identifying every silica-generating task on your jobsite. Map each task to the appropriate Table 1 control method. For handheld grinding on concrete surfaces, the requirement is a shrouded grinder with a HEPA dust extractor. For walk-behind saws, the requirement is a saw with integrated water delivery. Document exactly what controls are needed for each task, who implements them, and how compliance is verified on every shift.

Designate a competent person to oversee plan implementation. This individual must have the authority to stop work if dust controls are not functioning. Daily responsibilities include inspecting dust control equipment, verifying filter cleaning systems are operational, checking that shrouds are properly seated on tools, confirming water delivery is adequate, and managing a stock of replacement parts including filters, hoses, and shroud curtains.

Training is the third pillar. Every worker performing silica-generating tasks needs hands-on instruction covering the health effects of silica, the specific controls for their tasks, and proper operation, setup, and shutdown procedures for dust extractors, shrouds, and wet cutting systems. Workers must know how to recognize ineffective controls and whom to notify when equipment is not working correctly.

Personal protective equipment is the final layer. When engineering controls cannot reduce silica exposure below the PEL, respirators become necessary. For most Table 1 compliant operations, a half-face respirator with N95 or N100 filters provides adequate protection. Respirator users must be medically cleared, fit-tested annually, and trained on proper use, storage, and maintenance. Medical surveillance must be offered to any worker wearing a respirator for 30 or more days per year.

Diamond Tool Store carries the equipment and supplies needed at every layer of this hierarchy, from engineering controls through PPE. Browse the safety and protective equipment collection for respirators, gloves, and other PPE that rounds out your dust management program.
