A wavy concrete floor can ruin a new warehouse and bust your job budget. Getting a flat, dense finish on large slabs demands motorized power instead of manual labor.
A concrete finishing machine is any motorized tool used to level, consolidate, and smooth fresh concrete. The most common types include motorized screeds for striking off wet concrete and power trowels for smoothing the surface. Using these machines instead of hand tools speeds up the job, improves slab density, and prevents surface defects. Motorized gear also protects workers by reducing the heavy physical strain of manual hand floating. For example, a study by the Centers for Disease Control and Prevention shows manual screeding carries the highest risk of back injuries. Selecting the proper gear depends on project size, finish type, and material handling. Ultimately, choosing the right concrete finisher helps crews meet tough flatwork specs on time while keeping workers safe.
To get the best results, you must choose the right gear for your slab size and finish specs.
Shop professional concrete finishing equipment at Diamond Tool Store before your next pour to see the full range of power trowels and screeds for flatwork and slab finishing.
To find the right fit, we must first address the question: What Is a Concrete Finishing Machine? The answer begins with
What Is a Concrete Finishing Machine?
A concrete finishing machine is a powered tool designed to level, smooth, and compact fresh concrete slabs. On any job site, these units take over when simple hand tools can no longer keep up with the drying mix. Using a powered concrete finishing machine helps crews work faster, seals the concrete surface, and builds a much stronger slab.
The Flatwork Finishing Workflow
Every flatwork project follows a strict three-step workflow. First, workers screed the poured concrete to bring it to the correct grade. Next, they float the wet surface to open the pores and let bleed water escape. Last, they use a trowel to pack the aggregate down and create a hard, dense finish.
Timing is the most vital factor during each job. Finishing concrete at the correct time is crucial. Working too early can trap water and weaken the surface, while waiting too late prevents a smooth finish. Screeding must happen right away, but hand screeding can cause high joint strain. According to a study from the Centers for Disease Control and Prevention, crews must weigh both worker strain and work rate when choosing tools. Pro crews use motorized screeds and other essential concrete tools and supplies to protect their workers while keeping the pour on schedule.
How Motorized Machines Compare to Hand Floating
For decades, crews used hand floats and hand trowels to finish flatwork. While hand tools still work for small home steps or tiny slabs, they fail on larger jobs. A hand tool cannot apply the force needed to pack down the concrete mix. This lack of force leaves air pockets and voids inside the slab, which leads to early cracking and surface wear.
Powered trowels are key to get a high-quality, dense, and smooth concrete surface, chiefly on big commercial slabs. These machines use heavy metal blades that spin at high speeds. The weight of the machine packs the aggregate tight while the spinning blades draw paste to the top. By using proper troweling techniques for flatwork, crews create a tough finish that resists water and heavy truck traffic. Using the correct concrete finishing machine can reduce overall project time by speeding up the grading, smoothing, and polishing steps.
Selecting the Right Finisher for Your Slab
No single tool fits every concrete job site. Choosing the right concrete finisher depends on the size of the project, the type of finish needed, and specific material handling needs. For large commercial slabs, heavy ride-on power trowels offer the high output needed to finish the pour before it sets. On smaller home pours, walk-behind models let crews work in tight corners and around plumbing pipes.
Slab thickness and job site access also play a role in your choice. Heavy machines need proper lifting gear to move onto the slab, while lighter walk-behind trowels can be carried by two workers. Crews can browse a wide range of professional-grade concrete finishing equipment to find the best match for their specific jobs. Selecting the correct machine ensures that every slab meets the high standards of modern commercial clients.
Power Trowels vs. Concrete Screeds
Concrete workers use screeds and power trowels at different steps. These tools perform distinct tasks on wet concrete. A screed strikes off the wet mix to the correct grade. Later in the process, a power trowel smooths and densifies the surface.
Role of concrete screeds
A concrete screed is the first tool to touch the wet mix. Using essential concrete tools and supplies like vibratory screeds helps bring concrete to grade and consolidate the surface. This action settles the aggregate and provides a solid base for troweling. They vibrate the fresh mix to push out trapped air.
For smaller slabs, crews might choose manual boards or roller screeds. Manual screeding relies on physical strength to drag a straightedge across the forms. Roller screeds use a rotating tube that rolls over the wet mix to strike it flat. While these methods are simple, they demand hard manual labor. They can slow down the job on larger pours where the concrete sets fast.
For large-scale concrete paving or slab projects, automated leveling screeds often prove to be the most cost-effective and efficient option. Laser screeds work fast. They greatly increase the speed and accuracy of leveling large concrete slabs compared to manual or common vibratory screeding. A laser beam guides the tool head to cut the concrete to an exact grade. This tech lets a small crew finish huge areas.
Function of power trowels
Once the screed finishes its pass, the concrete must set. When the slab can bear weight, workers start up the power trowel. It does not grade. Instead, its rapid blades spin to smooth the top. This heavy spinning action compacts the concrete to make it hard and dust-free.
Troweling has two main phases. First, operators use wide float blades to run over the damp concrete. This first pass breaks down bumps and fills in low spots. Later, they pitch the blades up as the mix hardens. The final pass uses finish blades. This creates a hard slab that resists heavy traffic.
Safety and ergonomic risks
Safety and health risks vary across these methods. According to a CDC ergonomics study, manual and roller screeding present the highest risk of muscle injury. Workers pull and bend constantly. This harsh labor strains their backs and arms. By contrast, walk-behind and cab-operated laser screeds present the lowest risk. These tools let workers steer with ease.
Vibratory screed operators are exposed to hand-arm vibration. This vibration is a known hazard that can cause nerve issues in the hands and arms over time. While vibration levels depend on the specific machine, the long-term risk remains high. You should limit operator time to protect your crew.
Power trowels also require proper training to run safely. They can spin out of control if the operator loses their grip, causing severe injury. Always wear proper protective gear when working near these units. Trained workers keep the jobsite safe for everyone. At Diamond Tool Store, we recommend that all crew members complete training before operating any finishing machine.

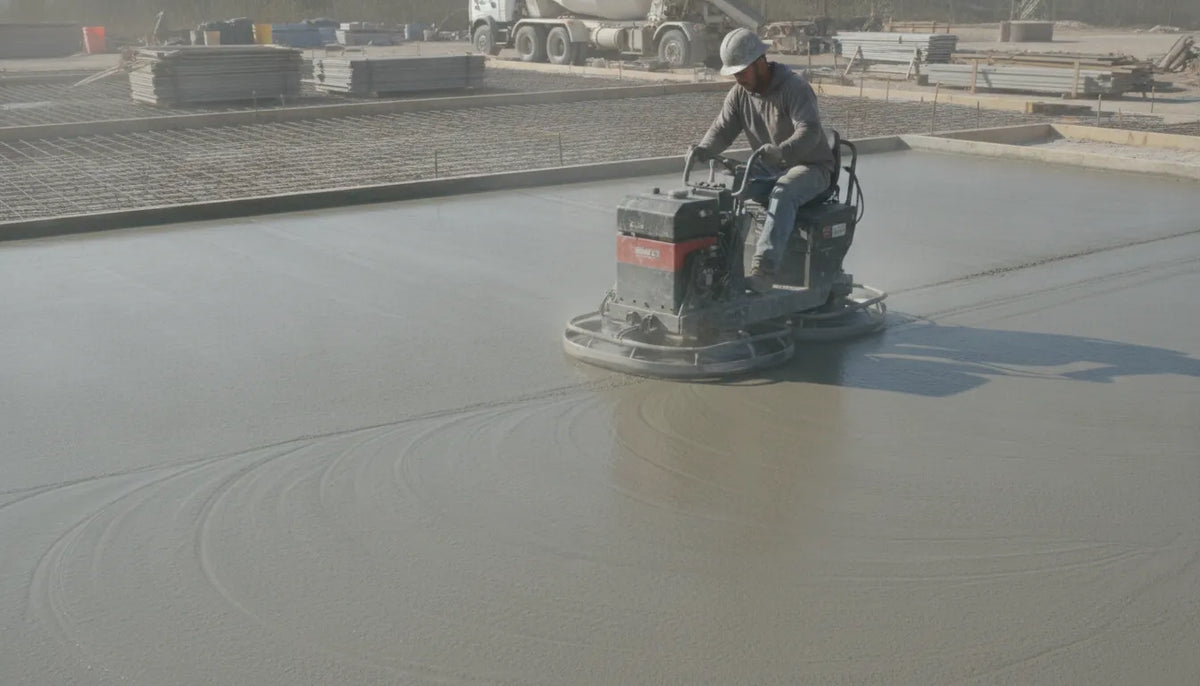

Ride-On vs. Walk-Behind Power Trowels
Choosing the right concrete finishing machine is a big choice for any concrete team. Power trowels come in two main types: walk-behind and ride-on models. Each type serves a clear role on the job site, based on the size and shape of the slab. Choosing the right tool helps you get a dense, smooth slab finish while keeping labor costs and operator strain low.
Key design differences
Walk-behind machines need the worker to guide the unit while walking on the fresh concrete. These trowels often have a single rotor with three or four blades. They are lightweight and compact, which makes them easy to move to and from the site. In contrast, ride-on models are much larger units with a seat. The driver sits directly above twin non-overlapping or overlapping rotors. These machines use a steering system to control movement and can cover large areas in a single pass.
The power and size differences between these options are large. Walk-behind models often feature troweling sizes from 24 to 48 inches and run on smaller engines between 4.8 and 13 horsepower. Ride-on units boast wider sizes from 36 to 60 inches and carry engines from 22.9 up to 74 horsepower. Many large riding trowels also add high-speed rotors and electronic pitch control for better control and rapid blade changes.
Project size and productivity
Slab size is the key factor when choosing your concrete finishing machine. A walk-behind trowel is ideal for small concrete slabs and driveways. It excels in tight areas where larger machines cannot easily turn. These small units excel at working near walls, around support pillars, and inside narrow door openings. They give you the tight control needed for detailed work on small or tight slabs.
For large commercial and industrial floors, a heavy-duty riding trowel is needed. Riding models deliver high productivity and a consistent flat finish on large surfaces. They allow you to cover thousands of square feet before the concrete sets, providing a flat floor. This high speed helps finish large slabs on schedule and lowers your total labor costs.
Ergonomics and safety regulations
Worker safety and physical strain vary greatly between these two tool styles. Guiding a walk-behind unit needs constant body effort, as the worker must steer the spinning machine by hand. This task can lead to arm and back strain over long shifts. In contrast, riding trowels let the driver sit in a comfortable seat. They steer using low-effort control joysticks, which reduces strain.
Federal safety rules also apply to these power tools. The Occupational Safety and Health Administration (OSHA) outlines specific rules for concrete tools. Under OSHA Standard 1926.702, every power trowel must have a control switch that shuts off the engine if the worker releases the handles. This safety shutdown system prevents runaway machines and keeps your crew safe on the jobsite.
| Feature | Walk-Behind Trowels | Ride-On Trowels |
|---|---|---|
| Blade diameter | 24 to 48 inches | 36 to 60 inches |
| Engine power | 4.8 to 13 hp | 22.9 to 74 hp |
| Productivity | Medium; best for tight areas | Very high; best for open spaces |
| Operator posture | Standing; high physical effort | Sitting; low physical effort |
| Maneuverability | High; works near walls and pillars | Medium; needs wide turning path |
| Best-fit project size | Under 5,000 square feet | Over 5,000 square feet |
Blade Pitch, Float Blades, and Finish Blades
A power trowel gets its speed and power from the blades it runs. Using powered equipment instead of hand finishing helps reduce the high musculoskeletal risk factors linked with hand concrete screeding and troweling. Each concrete finishing machine can use float blades for first flattening and finish blades for smoothing the surface. Knowing when to swap these parts is key to a flat floor.
The float-to-finish blade progression
Float blades are wide, flat metal plates. You clip or slip them over finish blades during the first pass. Their broad surface area spreads the machine weight across the wet slab to flatten high spots and fill low spots. You must start floating when the concrete can support your weight but still has enough moisture to work.
Once the concrete begins to set, you remove the float blades to expose the narrow finish blades. Finish blades have angled edges that pitch upward to seal the surface. They compact the concrete pores to create a hard, shiny, and dust-free slab.
Keeping power trowel blades and the nearby area clean helps prevent surface defects. This simple step improves the final finish. Caked concrete on a blade will scratch and mar the smooth floor.
Regular maintenance and blade changes are needed to keep power trowels safe and performing well. To learn more, read about proper troweling techniques for flatwork.
Controlling blade pitch and concrete slump
Blade pitch refers to the tilt angle of the trowel blades against the concrete. On your first float pass, set the pitch flat, then tilt the blades higher as the concrete gets harder. This puts more pressure on a smaller blade area, forcing cement paste to the top to create a dense finish. Do not pitch the blades too high too fast, or they will tear and ruin the wet slab.
Understanding how concrete slump affects your choice of finishing equipment is needed for getting a strong, smooth surface. Slump measures how wet the concrete mix is. A high-slump mix is wet and takes longer to set, so you must wait longer before starting. A low-slump mix is dry and stiff, needing a heavier trowel with more engine power to flatten the surface before it dries.
Reading machine specs for blades
When buying a troweling machine, you must match the blade specs to your job needs. Small walk-behind trowels often feature a thirty-six-inch trowel diameter and run on a five-horsepower to nine-horsepower gas engine. These compact units are easy to steer in tight spots and doorways. For large commercial jobs, double-rotor ride-on trowels have up to a sixty-inch troweling diameter per rotor and use large engines with up to seventy-four horsepower.
Large trowel diameters cover more floor area but need more engine torque to spin the blades. If you use wide float pans, a small engine may stall. Always check the machine spec sheet for the blade weight limit and size before you buy. This ensures you have enough power to run the right blades for your concrete slump and finish goals.
How to Size a Concrete Finishing Machine for Your Job
Picking the right machine depends on the project size, the required finish, and site needs. Using the correct concrete finishing machine can cut total job time by speeding up the leveling, smoothing, and polishing. To pick the best machine, you can browse professional-grade concrete finishing equipment to find the right fit.
Slab Size and Site Access
Small home slabs, narrow hallways, or quick patch jobs need small, mobile tools. Hand tools are good for edges and small corners. But for these tight spaces, walk-behind or hand-held power trowels are the perfect fit. They let you move around poles, pipes, and walls without hitting objects. Choosing a machine means you must balance power, body strain, and weight to fit the job.
Large work floors demand much higher speed and span. Big warehouse slabs need ride-on trowels or power screeds. These tools also speed up your workflow on massive projects. When you choose a screed type, you must look at both worker health and output. A safety study on screeding ergonomics and health shows that powered machines lower body strain.
Required Flatness and Precision
Some large jobs have strict rules for floor flatness and grade. For these high-spec jobs, standard hand tools are not exact enough. Advanced laser leveling systems can ensure a flat slab on large jobs. These systems use laser beams to guide the screed, reaching a level of flatness that hand work cannot match. They help you meet the toughest specs with ease.
If you need high F-number flatness on a big deck, you will want a laser screed. For smaller flatwork, a walk-behind machine can still yield a flat surface. These walk-behind trowels are easy to transport and quick to set up. Sizing your gear to match your flatness targets saves you from doing costly re-work later.
Surface Finish and Tool Matching
The final step of your job also guides how you size your machines. A slab meant for exposed outdoor use may only need a rough broom finish. But a warehouse floor needs a hard-troweled, dense sheen. If the plan is to polish the slab later, you will need to prep the surface with a grinder. This prep work creates a smooth base for the final seal.
Sizing a grinder means you need to match the weight and power of the machine to your floor size. Picking the right diamond tooling for concrete grinders is key to getting the desired surface profile. Be sure to check your tool guide to find the correct bond and grit for the concrete hardness. You can find more essential concrete tools and supplies to help with your choice.
Power Trowel Safety and Maintenance
Running a heavy concrete finishing machine takes skill and care on the job site. You must put safety first to protect your team and keep your gear in top shape. Only trained workers should run these units to get the best finish and prevent accidents. Every crew member must also wear the right gear. This safety gear includes safety glasses, work gloves, and steel-toe boots. Federal rules under OSHA standard 1926.702 require specific guards on trowels to shield workers from spinning blades. These rules help stop bad cuts if you slip or lose control of the trowel.
Pre-start checks and operator training
Before you pull the starter cord, you must do basic pre-start checks. Check the gas and engine oil levels first. Checking fuel levels, oil levels, and safety switches ensures the machine is ready to run. Always read the manual for your specific power trowel or screed model. The guide shows the unit limits, care steps, and clear safety rules. Once the engine is running, you must watch the work area. Keep a safe distance from other people and other machines on the slab. This helps you avoid crashes and keeps the job moving fast.
Dust, silica, and ventilation controls
Finishing concrete sometimes involves grinding the surface after forms are pulled. This task can make harmful silica dust that hurts your lungs if left in the air. According to the CDC NIOSH dust report, using a vacuum shroud on a grinder cuts silica dust down. You must use a dust collector when smoothing concrete to keep the air clean. If you run a gas power trowel inside a building, fumes can build up fast. You must set up strong fans or duct systems to vent those exhaust fumes safely. Proper air flow protects your team from harmful poison gas.
Routine equipment inspections
Routine care keeps your gear running smoothly. You must inspect your trowel for loose bolts, worn belts, or leaking fuel hoses. Finding these flaws early keeps small issues from turning into major breakdowns. Proper care is just as important as knowing the proper troweling techniques for flatwork. Clean the steel blades after every job to prevent dried paste from building up. If you spot bent or thin blades during your check, swap them out before the next pour. Using worn blades ruins the slab finish and can make the machine wobble.
Ergonomic safety and vibration
Using a screed or power trowel can make your hands shake from the strong vibration. This shaking can cause long-term nerve issues in your fingers and wrists. To limit this risk, crew members should rotate shifts often and use padded work gloves. This helps lower the strain on your back and arms during long flatwork jobs. By planning shift turns and breaks, you protect your crew's health and keep work speed high.
Shop professional-grade concrete finishing equipment at Diamond Tool Store to compare power trowels, screeds, and the safety accessories your crew needs.
Frequently Asked Questions
Should I rent or buy a concrete power trowel?
Whether you rent or buy depends on how often you pour slabs. If you finish concrete weekly, buying a power trowel saves money over time and ensures the machine is ready when the mix cures. For rare jobs, renting is a good choice because it avoids maintenance. You can view available machines through a distributor like Diamond Tool Store to see what fits your shop.
What size power trowel is best for residential concrete work?
For most residential slabs like driveways and patios, a 36-inch walk-behind power trowel is the best choice. This size balances speed with the ability to maneuver in tight spaces and fit through standard gates. If you work on small basements or close to walls, a 24-inch or 30-inch edger is better. Larger 46-inch machines are usually too heavy and hard to control on small home jobs.
What is a concrete finishing machine?
A concrete finishing machine is any motorized tool used to level, consolidate, and smooth fresh concrete. The most common types are motorized screeds, which strike wet concrete to the correct grade, and power trowels, which compact and smooth the surface. These machines replace hand floating so crews can finish large slabs faster, with a denser, flatter result.
Does using a power screed reduce physical strain?
Yes, using a powered machine greatly reduces injury risks. According to a CDC study, manual and roller screeding cause the highest risk for back and muscle injuries. Working with a walk-behind or cab-operated laser screed creates the lowest risk. Upgrading to a powered concrete finishing machine keeps workers safe and productive.
How does concrete slump affect finishing machine choice?
Slump measures the workability and wetness of the concrete mix. High-slump concrete is very wet and must set longer before it can support heavy machines. If you use a heavy ride-on trowel too early, it will sink and ruin the surface level. Knowing this relationship helps you choose the right timing and machine weight for a flat, durable slab.
