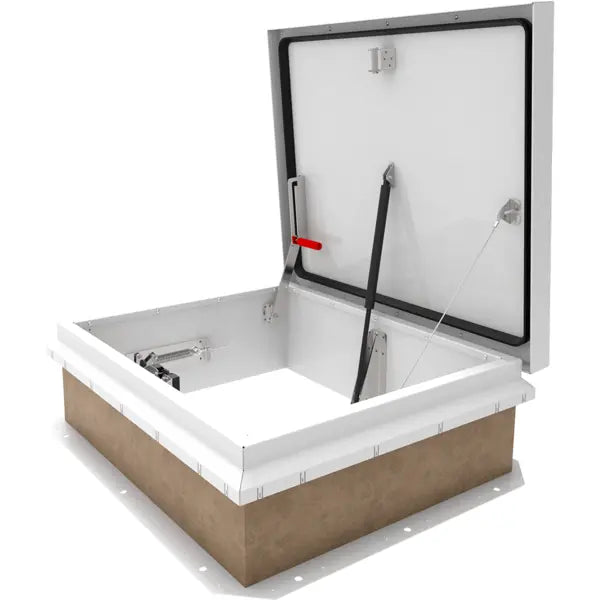

Single Door SafeMAX™ Smoke Vents

SKU# BSVSW36X30S1N165R

$1,644.29 Was: $1,808.72 Save $164.43

Shipping calculated at checkout.

Size

36 x 30

Material

Steel Aluminum

Final Sale; 2-3 Week Lead Time

Safe & Secure Payments

The Babcock-Davis Single Door SafeMAX Smoke Vent provides UL793 listed performance and is engineered with metal covers providing an emphasis on reliability and affordability.

The single door configuration is ideal for factory and storage/warehouse occupancies along with hoist way and elevator shafts.

Design considerations include total vent area required by code and application, effective vent area, and the roof structural support system.

Model	BSVS
Door	Single Leaf
Material	Aluminum: 11 gauge Steel: 14 gauge galvanneal
Finish	Aluminum: Mill Steel: Powder Coat, Red Oxide
Cover	Formed metal cover with liner internally stiffened to withstand a live load of 40psf
Curb	Single wall curb with EZ tab counterflash and mounting flange
Insulation	1 inch polyiso R-6 in cover and around curb
Gasket	Extruded EPDM adhesive backed gasket seal, continuous around cover
Hinge	Heavy-duty pintle hinge with stainless steel hinge pins
Springs	Gas spring with damper opens cover against 10psf snow load in not less than 2 seconds
Hold Open Arm	Zinc plated steel automatic hold open arm locks cover in open position
Latch	Zinc plated steel rotary latch designed to hold covers closed against 30psf for single doors. Opens manually by external and internal pull cables. Opens automatically with a fusible link at standard temperature 165°F.
Certification	UL 793 listed
Minimum Size	18 inches by 18 inches
Maximum Size	48 inches by 96 inches
Warranty	5 years

MODEL	MATERIAL	WIDTH	X	LENGTH	DOOR	CURB	OPENING	LINK TEMP	CLOSING		OPTIONS
BSVS			X		S				R	—
	A - Aluminum Curb & Cover B - Steel Curb & Aluminum Cover W - Steel Curb & Cover	30" x 30" 36" x 30" 36" x 36" 48" x 48" 48" x 72" 48" x 96" Additional size options also available.	S - Single Door	1 - Single Wall 2 - Double Wall 3 - Curb Mount	N - No Electrical L - 24VDC/24VAC H - 110VAC / 240VAC	165 212 280 350 360 450	R - Rooftop Close		SFM - FM Labeled OP1 - Door Position Sensor B__ - Burglar Bars
