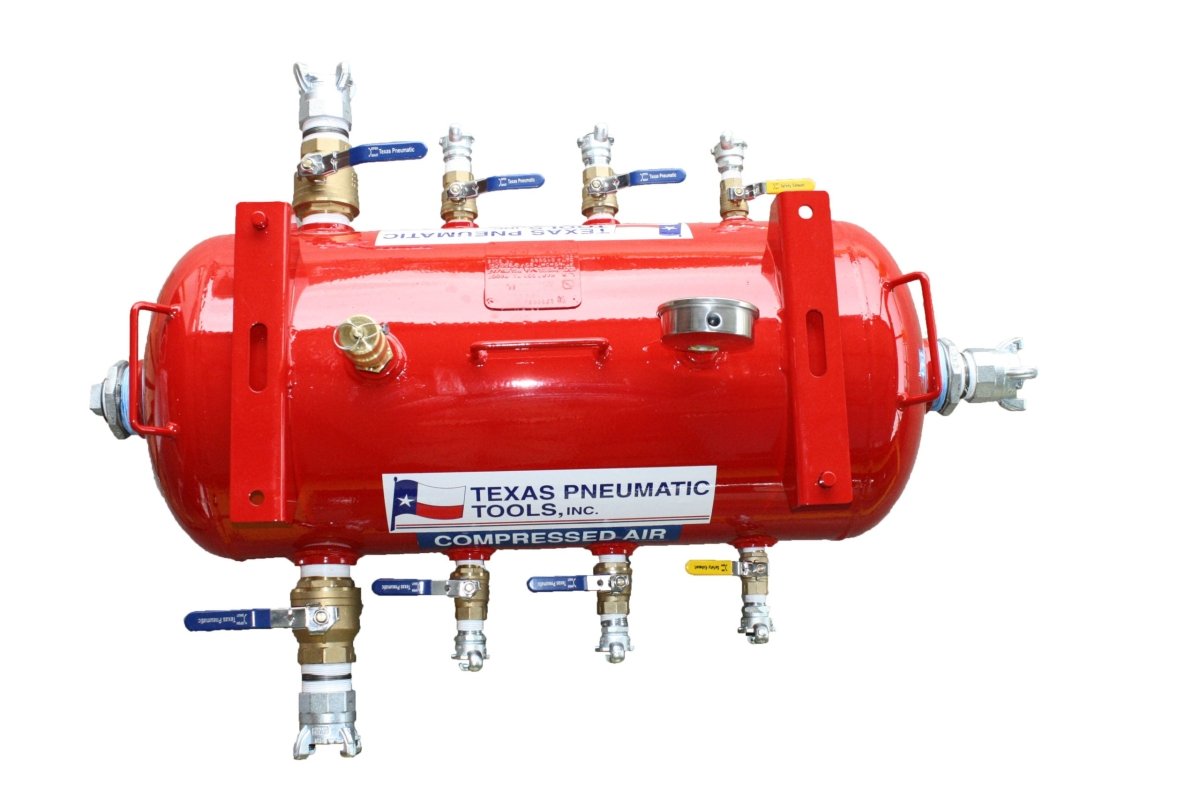

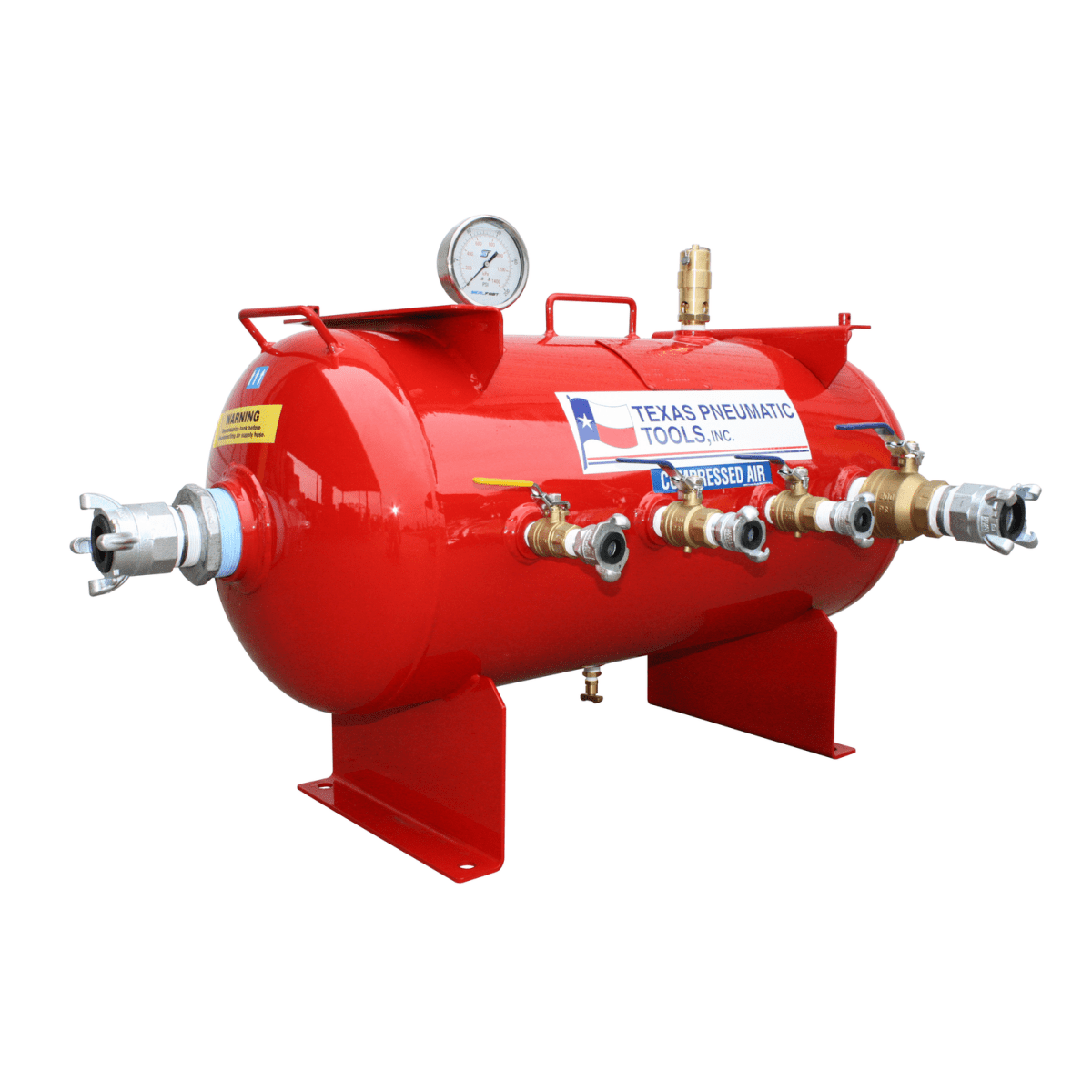

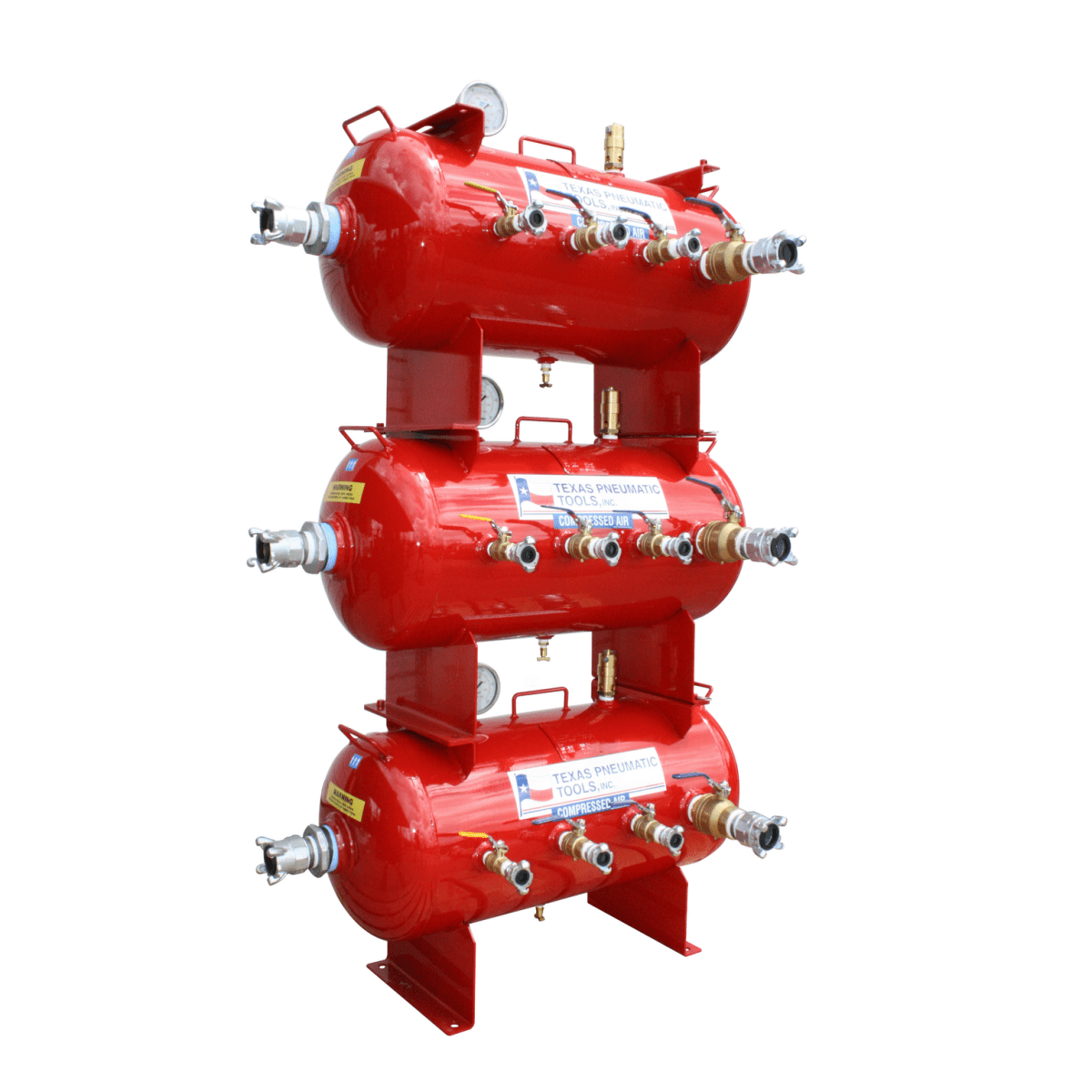

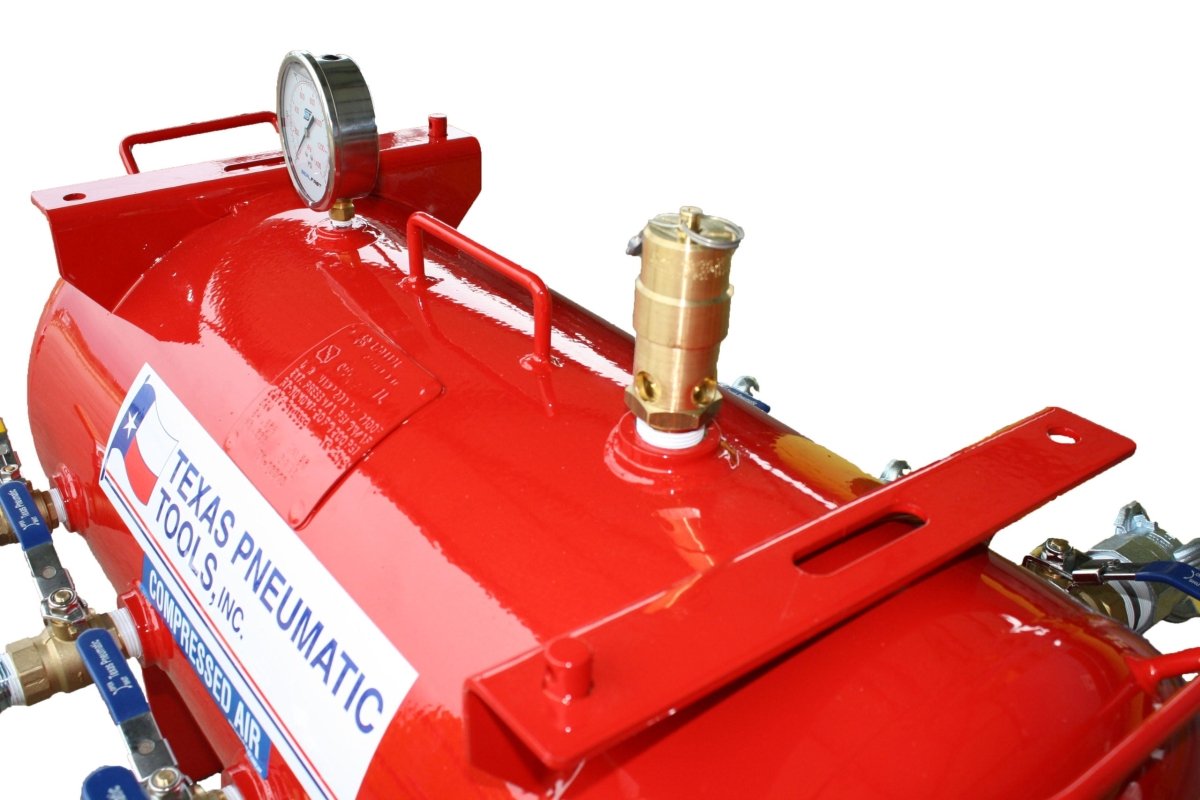

TX-5AMF - Air Manifold (30 Gal, ASME Tank)
SKU: TX-5AMF
Air Manifold (60 Gal,Asme Tank)
Specifications:
Weight = 245 lbs.
Height = 31″
Length = 54″
Tank Diameter = 20″
Width w/ Fittings = 39″
Inlet Size = 3″
Number of Outlets = 8
Size of Outlets = (2) – 3/4″, (4) – 1″, (2) – 2″
Working Pressure = 200 PSI
Test Pressure = 260 PSI
Shipping Dimensions = 60x40x38
