Belmont Safety Hatch System with Front Mount Brackets
SKU# 023-12157
$700.28 off
$768.20 off
$768.20 off
$3,96828
$4,66856
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Belmont Safety Hatch System with Front Mount Brackets
From
$3,96828
$4,66856
Unit price
/
Make a Selection
Hatch Systems

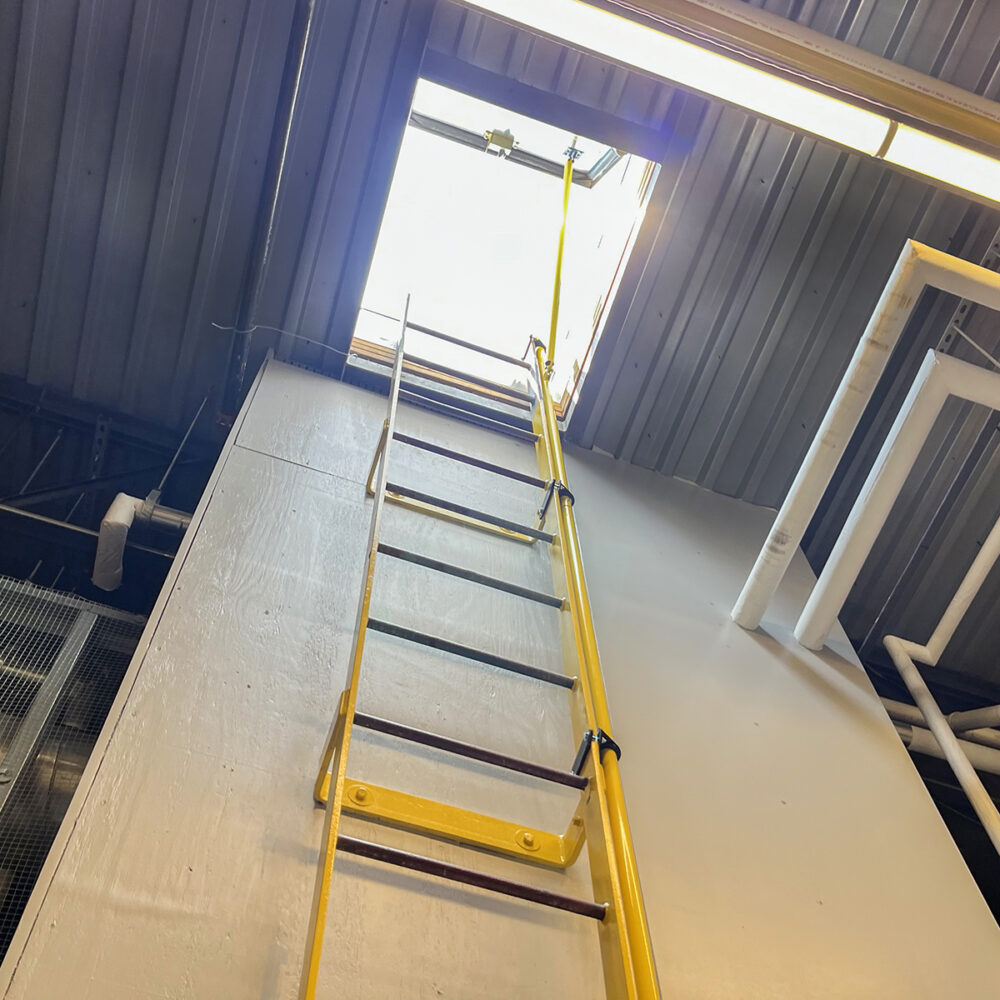

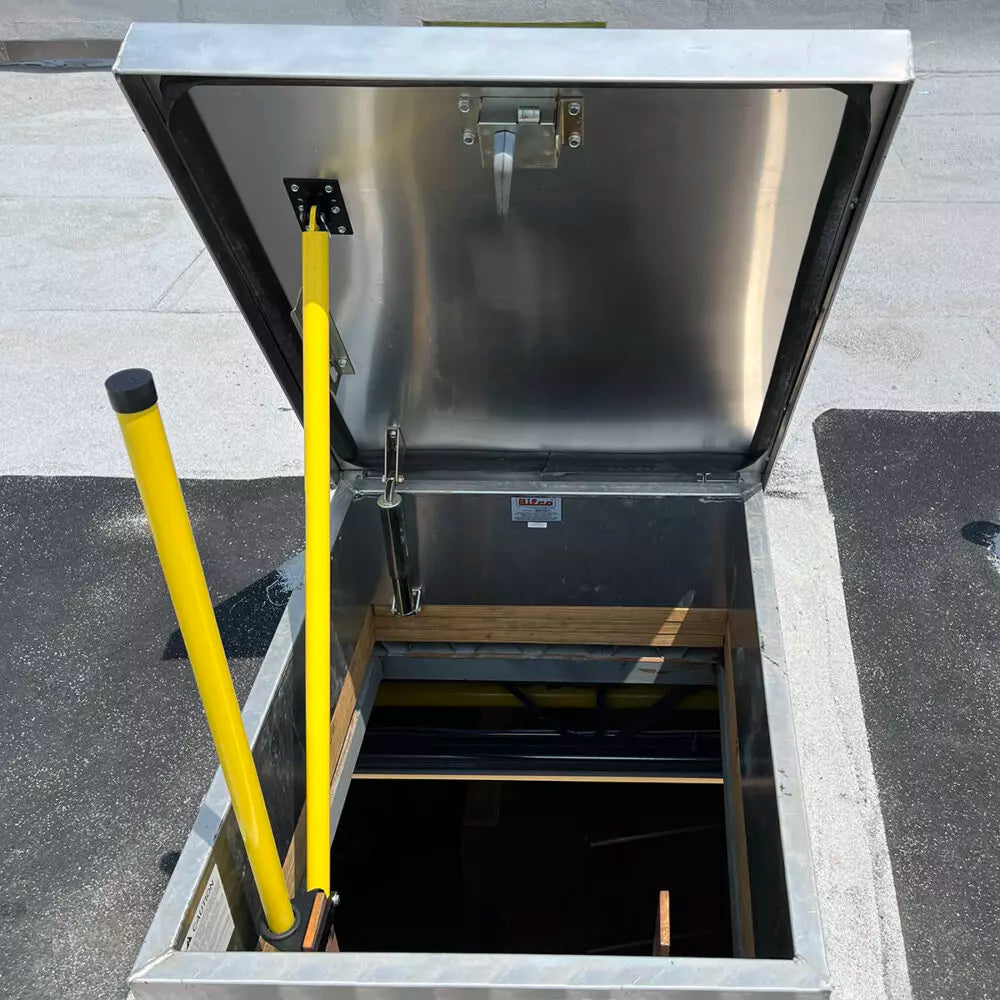

The Belmont Safety Hatch System with Front Mount Brackets is a complete solution for safe rooftop access when using a hatch from a fixed ladder. Open, close and secure the roof hatch from the safety of the ground, leaving hands free for climbing. An innovative built-in pole extends at top to ensure smooth transitions between the ladder and roof.
Features:
- System mounts directly to ladder for stability
- Ground level operation to open, close and secure hatch
- Safe transitions with built-in extension pole
- Manually operated drive unit with simple crank
- Installs on systems from 10' to 20' / 20′ to 27′ /
- For use on hatches from 30" square to 36" square
- Assembly required, padlock not included

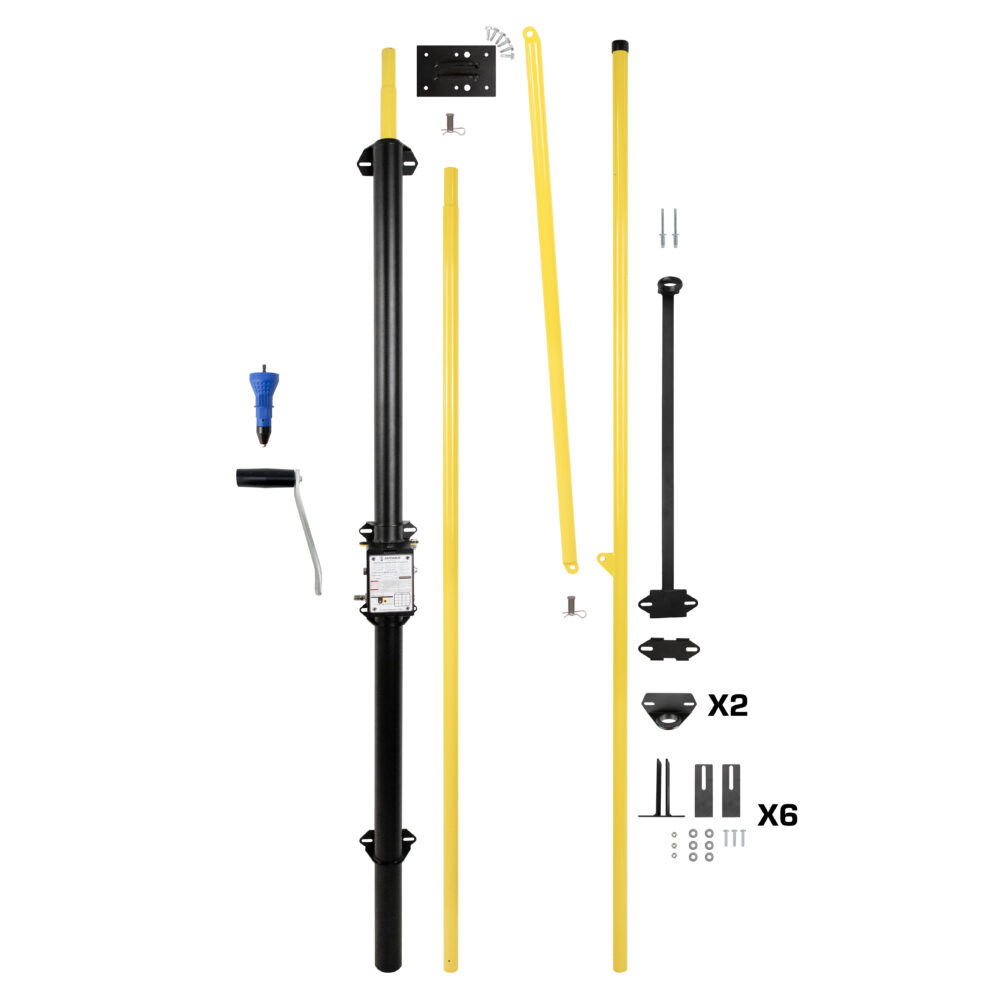

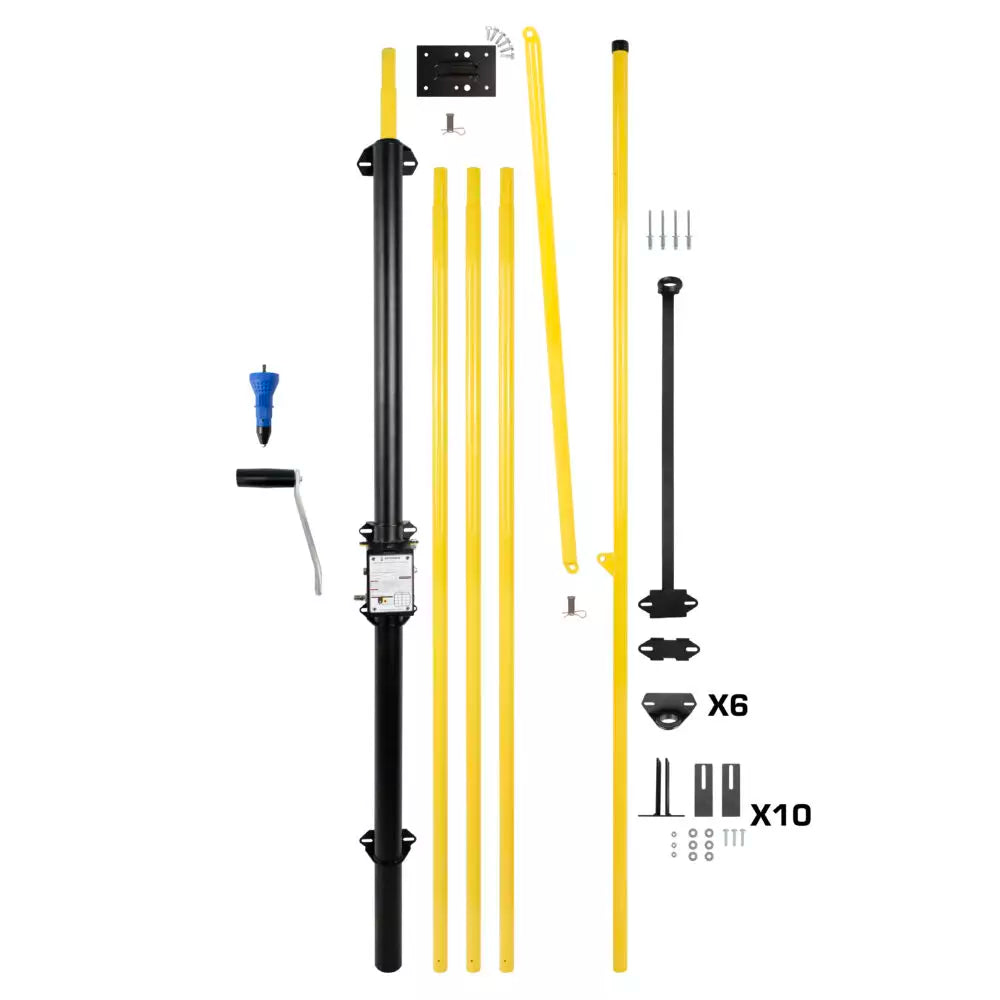

- Includes all required components and fasteners:

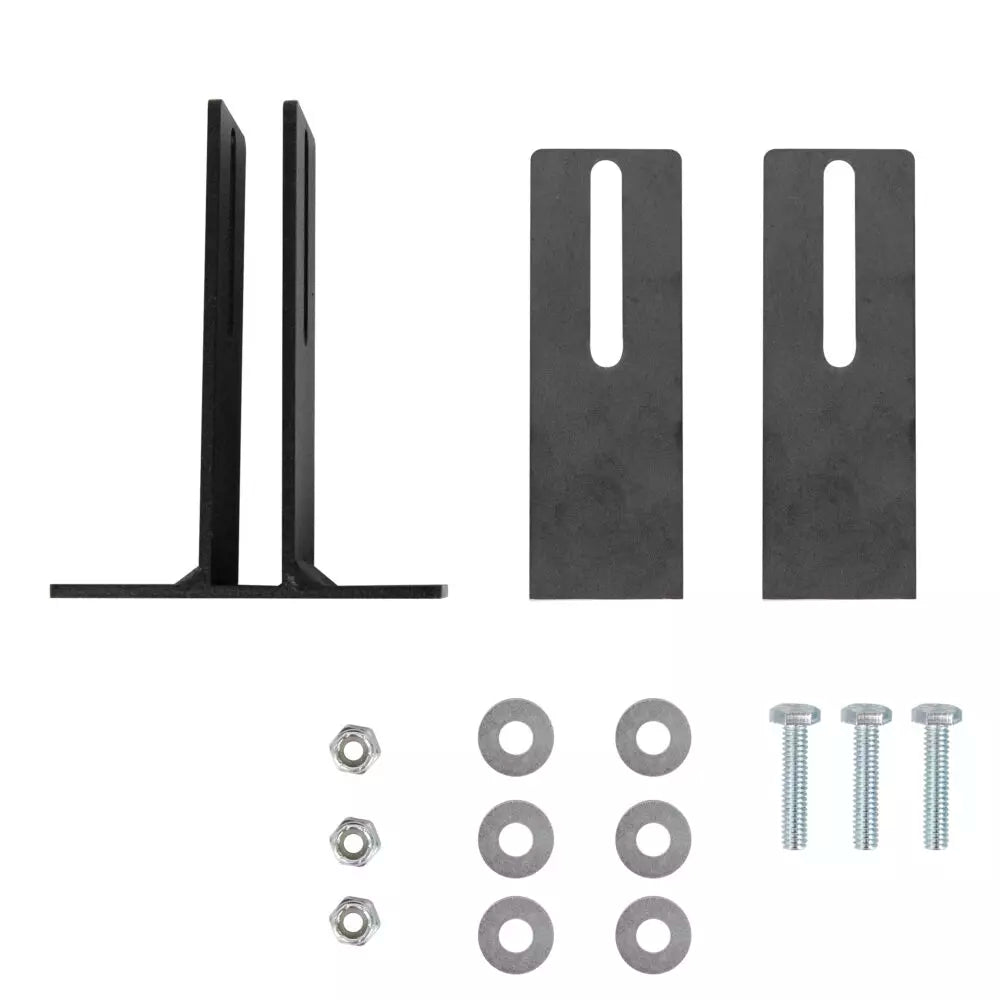

- (6) Brackets for front mounted installation on flat bar stock up to 1/2" thick and 4" deep (shims included for adjustability)
- (1) Lifting tube extension
- (2) Intermediate guide brackets

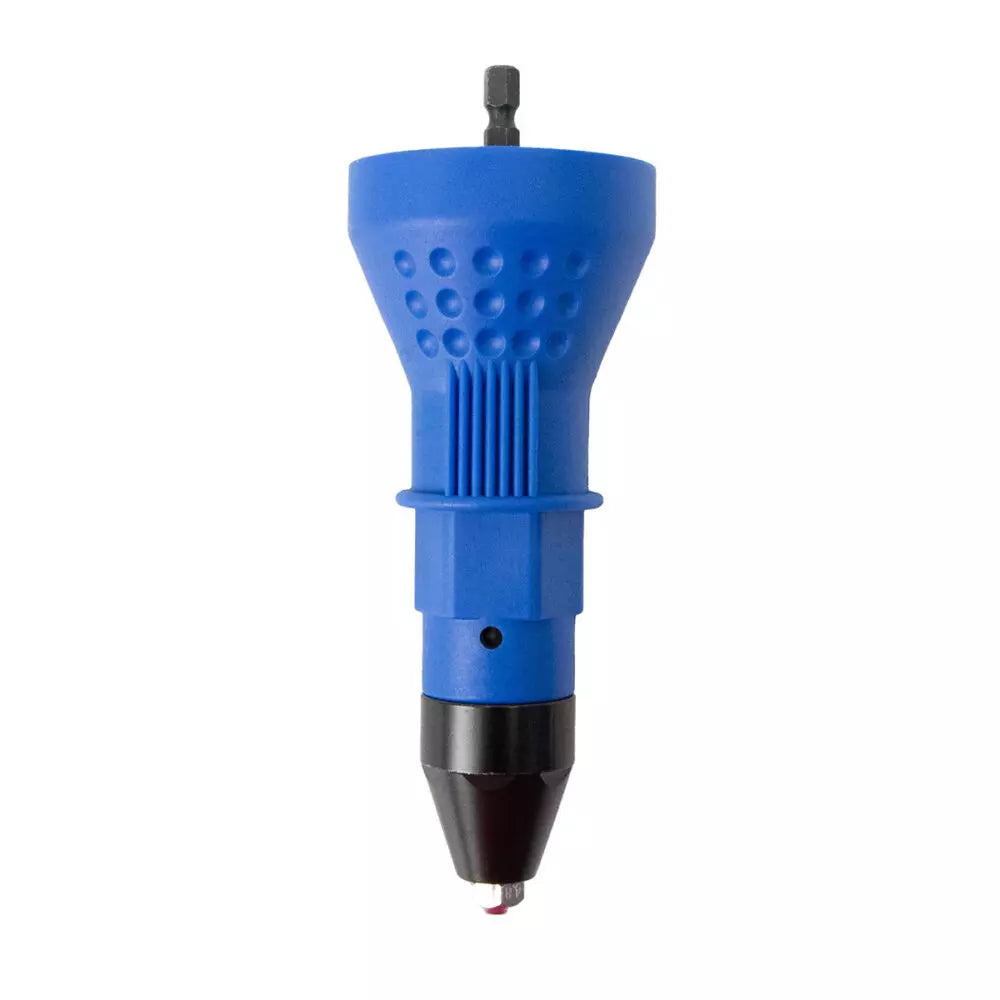

- (1) Drill bit rivet adapter
Specifications:
| Materials: | Powder coated steel, zinc plated steel fasteners | ||
| Weight: | 43.6 lbs. (19.8 kg) | 50.8 lbs. (23.0 kg) | 57.9 lbs. (26.3 kg) |
| System Length: | 10' to 20' (3.0 m to 6.1 m) | 20' to 27' (6.1 m to 8.2 m) | 27' to 34' (8.2 m to 10.4 m) |
| System Capacity: | 600 lbs. (272.2 kg) |
