Belmont Safety Hatch System with Round Bracket
From
$3,52356
$4,14536
Unit price
/
Make a Selection
Hatch Systems
The Belmont Safety Hatch System with Round Brackets is a complete solution for safe rooftop access when using a hatch from a fixed ladder. Open, close and secure the roof hatch from the safety of the ground, leaving hands free for climbing. An innovative built-in pole extends at top to ensure smooth transitions between the ladder and roof.
Features:
- System mounts directly to ladder for stability
- Ground level operation to open, close and secure hatch
- Safe transitions with built-in extension pole
- Manually operated drive unit with simple crank
- Installs on systems from 10' to 20' / 20′ to 27′ / 27′ to 34′
- For use on hatches from 30" square to 36" square
- Assembly required, padlock not included
- Includes all required components and fasteners:

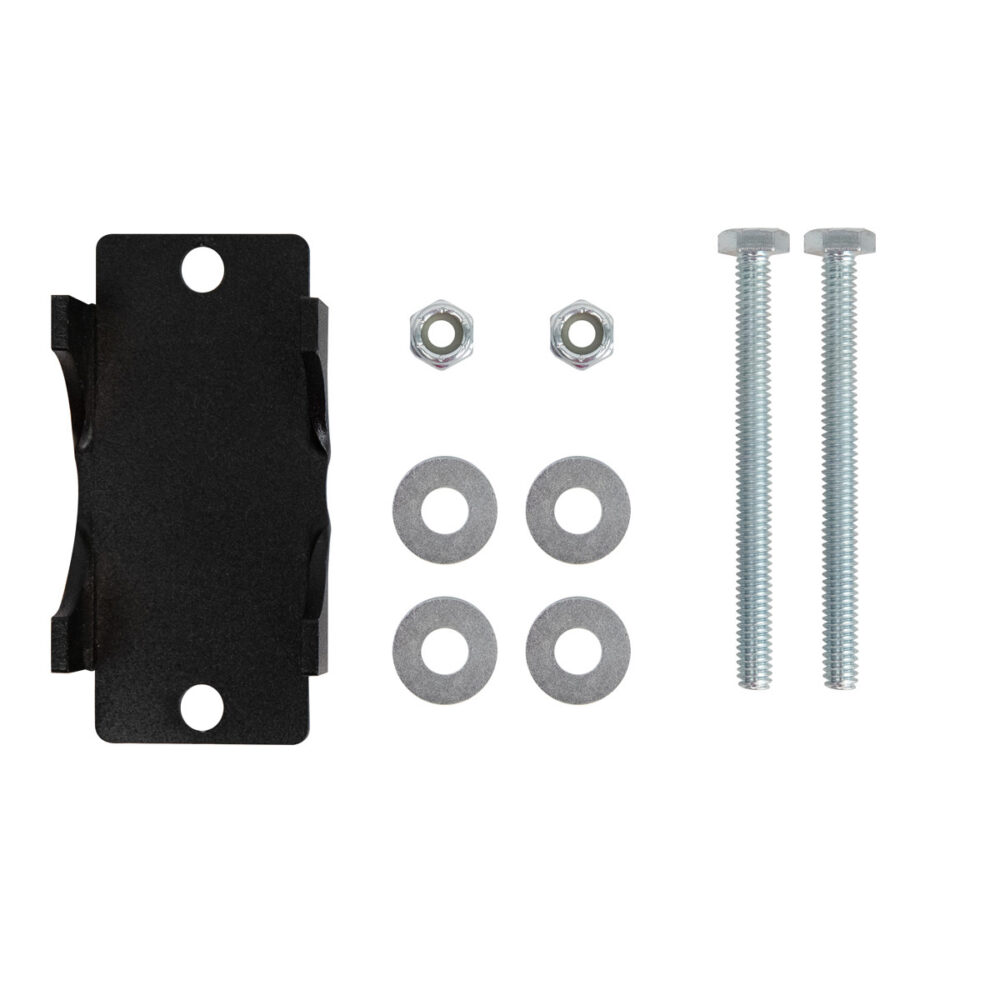

- (6)/(8)/(10) Brackets for side mounted installation on round tubing 1 3/4" diameter
- (1) Lifting tube extension
- (2) Intermediate guide brackets
- (1) Drill bit rivet adapter
Specifications:
| Materials: | Powder coated steel, zinc plated steel fasteners | ||
| Weight: | 39.4 lbs. (17.9 kg) | 45.2 lbs. (20.5 kg) | 51.1 lbs. (23.2 kg) |
| System Length: | 10' to 20' (3.0 m to 6.1 m) | 20' to 27' (6.1 m to 8.2 m) | 27' to 34' (8.2 m to 10.4 m) |
| System Capacity: | 600 lbs. (272.2 kg) |
