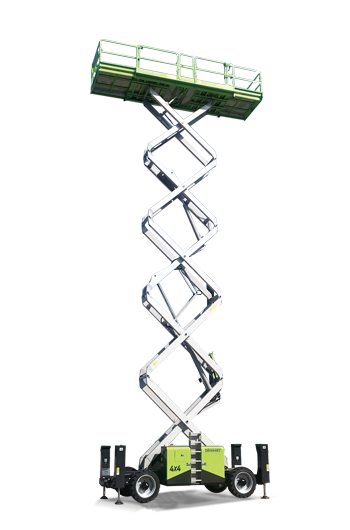

Diesel Rough Terrain - ZS5390RT
Regular price
$88,214.29
Unit price
/
Unavailable
Diesel Rough Terrain - ZS5390RT is backordered and will ship as soon as it is back in stock.
Rough terrain scissor lift, with 18m work height and 680kg platform capacity, offers large lift capacity with high reliability.
Comply with ANSI/CSA Standard
High Performance
- Reliable auto-leveling function
- 1500lb/680kg platform capacity
- 4ft 3in platform extension
- Bilateral swing-out trays, simple to service and effective to control noise
- Smart telematic control interface with self-diagnostic monitoring capability
Size
| Work Height | 59ft |
| A Platform Height-Elevated | 52ft 6in |
| B Platform Height-Stowed | 6ft 8in |
| C Platform Dimension (Length) | 13ft 1in |
| D Platform Dimension (Width) | 6ft |
| Platform Extension | 4ft 3in |
| Overall Height (Rails Up) | 10ft 4in |
| E Overall Height (Rails Down) | 8ft 1in |
| F Overall Length | 16ft |
| G Overall Width | 7ft 7in |
| H Wheelbase | 9ft 6in |
| I Ground Clearance | 11in |
Performance
| Platform Capacity | 1500lb |
| Capacity on Deck Extension | 510lb |
| Drive Height | 29ft 6in |
| Max. Number of Workers | 4 |
| Drive Speed (Stowed) | 4mph |
| Drive Speed (Raised) | 0.3mph |
| Turning Radius (Inside) | 9ft |
| Turning Radius (Outside) | 19ft |
| Up/Down Time | 60/65s |
| Gradeability | 40%(22°) |
| Max. Working Slope (Lateral/Vertical) | 2°/3° |
| Drive | 4WD |
| Tire | 315/55 D20 Foam-filled Tires33×12-20/8 Solid Tires |
Power
| Engine | Kubota V2403-M-DI |
| Fuel Tank Capacity | 27.7 (us gal) |
| Hydraulic Tank Capacity | 26.4 (us gal) |
Weight
| Gross | 19070lb |
Data Sheet
-
