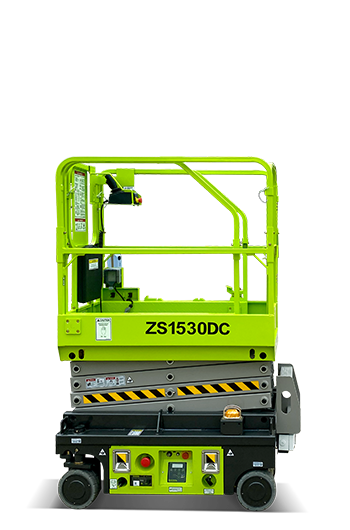

Micro Scissor Lifts - ZS1530DC
Regular price
$11,428.57
Unit price
/
Unavailable
Micro Scissor Lifts - ZS1530DC is backordered and will ship as soon as it is back in stock.
Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.
Comply with ANSI/CSA Standard
Cost- Effectiveness
- Modularized and unitized parts design ideal for maintenance
- Drawer type tray easy to service
- Robust & build to last, reliable, and safe
High Performance
- Efficiency of direct electric-driven almost doubles hydraulic pump-driven
- Compact dimensions ideal for low and tight access applications
- Lightweight only 19751b/895kg
- Climbing up30 percent grade slopes in a stowed position
- A maximum work height of 21ft 4in/6.5m
Size
| Work Height | 21ft 4in/18ft 5in |
| A-Platform Height-Elevated | 14ft 9in/11ft 10in |
| B-Platform Height-Stowed | 3ft 1in |
| C-Platform Length | 4ft 3in |
| D-Platform Width | 2ft 4in |
| Platform Extension | 2ft |
| E-Overall Height (Rails Up) | 6ft 9in |
| Overall Height (Rails Down) | 5ft 7in |
| F-Overall Length | 4ft 9in |
| G-Overall Width | 2ft 6in |
| H Wheelbase | 3ft 5in |
| I-Ground Clearance (Stowed) | 2.4in |
| J-Ground Clearance (Raised) | 0.65in |
Performance
| Platform Capacity | 530lb |
| Capacity on Deck Extension | 220lb |
| Max. Number of Workers | Indoor: 2 Outdoor: 1 |
| Drive Speed (Stowed) | 2.5mph |
| Drive Speed (Raised) | 0.5mph |
| Turning Radius (Inside) | 1ft 4in |
| Turning Radius (Outside) | 5ft 3in |
| Lifting Motor | 24V/1.2KW |
| Drive Motor | 2x0.4 5KW |
| Up/Down Time | 23/25s |
| Gradeability | 30%(17°） |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Rear Wheels |
| Brake | Rear Wheels |
| Tire | solid tire |
Power
| Battery | 2×12V/85Ah |
| Charger | 24V/15A |
Weight
| Gross | 1975lb |
