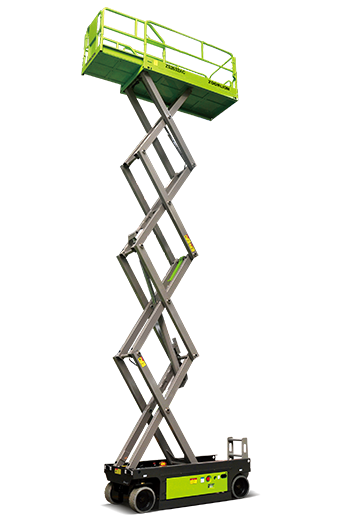

Scissor Lifts AC Series - ZS2632AC
Regular price
$19,071.43
Unit price
/
Unavailable
Scissor Lifts AC Series - ZS2632AC is backordered and will ship as soon as it is back in stock.
Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.
Comply with ANSI/CSA Standard
Cost Effectiveness
- Knuckles lubrication-free and maintenance-free
- AC motor full lifecycle maintenance-free
- Swing-out tray easy to service
High Performance
- AC System offers higher working efficiency
- IP67 rated waterproof protection on AC Wheel motors for longer lifespan
Size
| Work Height (indoor/Outdoor) | 32ft 10in/25ft 7in |
| A- Platform Height-Elevated (Indoor/Outdoor) | 26ft 3in/19ft 0in |
| B - Platform Height-Stowed | 4ft 2in |
| C - Platform Length | 7ft 7in |
| D- Platform Width | 2ft 8in |
| Platform Extension | 3ft |
| E-Overall Height (Rails Up) | 7ft 11in |
| Overall Height (Rails Down) | 6ft 3in |
| F- Overall Length | 8ft 2in |
| G - Overall Width | 2ft 8in |
| H - Wheelbase | 6ft 1in |
| I- Ground Clearance (Stowed) | 4.5in |
| J- Ground Clearance (Raised) | 0.75in |
Performance
| Platform Capacity | 510lb |
| Capacity on Deck Extension | 250lb |
| Max. Number of Workers (Indoor/Outdoor) | 2/1 |
| Drive Speed (Stowed) | 2.5mph |
| Drive Speed (Raised) | 0.5mph |
| Turning Radius (Inside) | 4in |
| Turning Radius (Outside) | 6ft 11in |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | 2x0.75KW |
| Up/Down Time | 31s/40s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Front Wheels |
| Tire | ф15in×5in |
Power
| Battery | 4×6V/170Ah (HOPPECKE)4×6V/190Ah (QUIMO) |
| Charger | 24V/30A |
Weight
| Gross | 4610lb |
Data Sheet
-
