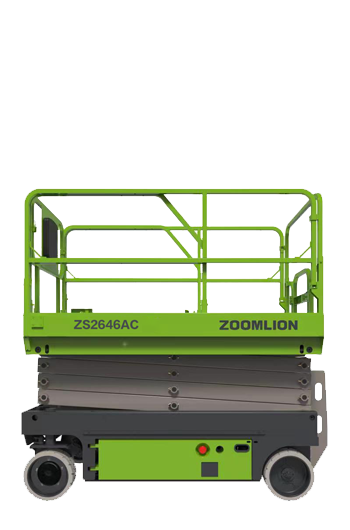

Scissor Lifts AC Series - ZS2646AC
Regular price
$21,285.71
Unit price
/
Unavailable
Scissor Lifts AC Series - ZS2646AC is backordered and will ship as soon as it is back in stock.
Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.
Comply with ANSI/CSA Standard
Cost Effectiveness
- Knuckles lubrication-free and maintenance-free
- AC motor full lifecycle maintenance-free
- Swing-out tray easy to service
High Performance
- AC System offers higher working efficiency
- IP67 rated waterproof protection on AC Wheel motors for longer lifespan
Size
| Work Height (indoor/Outdoor) | 32ft 10in |
| A- Platform Height-Elevated (Indoor/Outdoor) | 26ft 3in |
| B - Platform Height-Stowed | 4ft 2in |
| C - Platform Length | 7ft 7in |
| D- Platform Width | 3ft 8in |
| Platform Extension | 3ft |
| E-Overall Height (Rails Up) | 7ft 11in |
| Overall Height (Rails Down) | 5ft 8in |
| F- Overall Length | 8ft 2in |
| G - Overall Width | 3ft 9in |
| H - Wheelbase | 6ft 1in |
| I- Ground Clearance (Stowed) | 4.5in |
| J- Ground Clearance (Raised) | 0.75in |
Performance
| Platform Capacity | 990lb |
| Capacity on Deck Extension | 250lb |
| Max. Number of Workers (Indoor/Outdoor) | 2/1 |
| Drive Speed (Stowed) | 2.5mph |
| Drive Speed (Raised) | 0.5mph |
| Turning Radius (Inside) | 4in |
| Turning Radius (Outside) | 7ft 3in |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | 2x0.75KW |
| Up/Down Time | 31s/40s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 2°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Front Wheels |
| Tire | ф15in×5in |
Power
| Battery | 4×6V/220Ah(HOPPECKE)4×6V/210Ah (QUIMO) |
| Charger | 24V/30A |
Weight
| Gross | 5620lb |
Data Sheet
-
