MPC-100 Everflow Epoxy Coating (3 Gallon Kit)

MPC-100 is a 2-component, 100% solids, self-leveling and high-build epoxy floor coating.

It is designed to be used as a protective floor coating on concrete, over an existing epoxy coating or to create metallic/decorative flooring systems. It can also be used as the binder component for resurfacing
or patching surfaces exposed to severe and aggressive industrial environments. MPC-100 is a specifically formulated cycloaliphatic coating that reduces water spotting and amine blushing while providing excellent adhesion, abrasion, impact and chemical resistance.

This seamless coating from Master Protective Coatings is offered in a wide number of colors and can be top coated with a variety of MPC products to achieve different gloss finishes and textures. This coating contains no solvent, is complaint with the CFIA regulations for indirect food contact and meets the VOC regulations limit of under 100 g/L for architectural floor coatings.


Areas of application

• Industrial Use - Garages; Warehouses; Airports and hangars; Processing and manufacturing plants
• Commercial Use - shopping malls and boutiques; Hotels; Offices; Showrooms; Restaurants. Hospitals; Schools; Community centers
• Residential Use – Entrances and hallways; basements; entertainment rooms; bathrooms. kitchens and living rooms; outdoors spaces and pool outlines


Packaging and Recommended Thickness


MPC- 100 is offered in the following kit sizes:
o 3-gallon kit (7.56L resin (A) and 3.78L hardener (B))
o Bulk packaging also available upon request

Metallic pigments are offered in 6 oz containers (1 pigment pod per 3-gallon kit)

Recommended Film Thickness: Clear Coat: 5-8 mils
                                              Metallic Coat: 32-40 mils

Product Coverage:
1st Clear Coat:  200-300 sq. ft. / 3.78L (1 US gal.) @ 5-8 mils dft
2nd Clear Coat: 133-200 sq. ft. / 3.78 L (1 US gal.) @ 8-12 mils dft
Metallic Coat: 50 sq. ft. / 3.78 L (1 US gal.) @ 32 mils dft

Surface Preparation

Remove dust, dirt, grease, oil and all other contaminants with proper cleaner/degreaser. Prepare the surface mechanically as per ICRI-CSP2 profile by diamond grinding to ensure removal of laitance, curing agents and sealers. The compressive strength of a newly poured concrete substrate must be at least 25 MPA (3635 psi) after 28 days cure and at least 1.5 MPA (218 psi) tensile strength. Be careful with condensation (within 10 degrees of the dew point). All cracks, holes and irregularities must be repaired with our epoxy crack filler (MPC-125) prior to applying the coating.

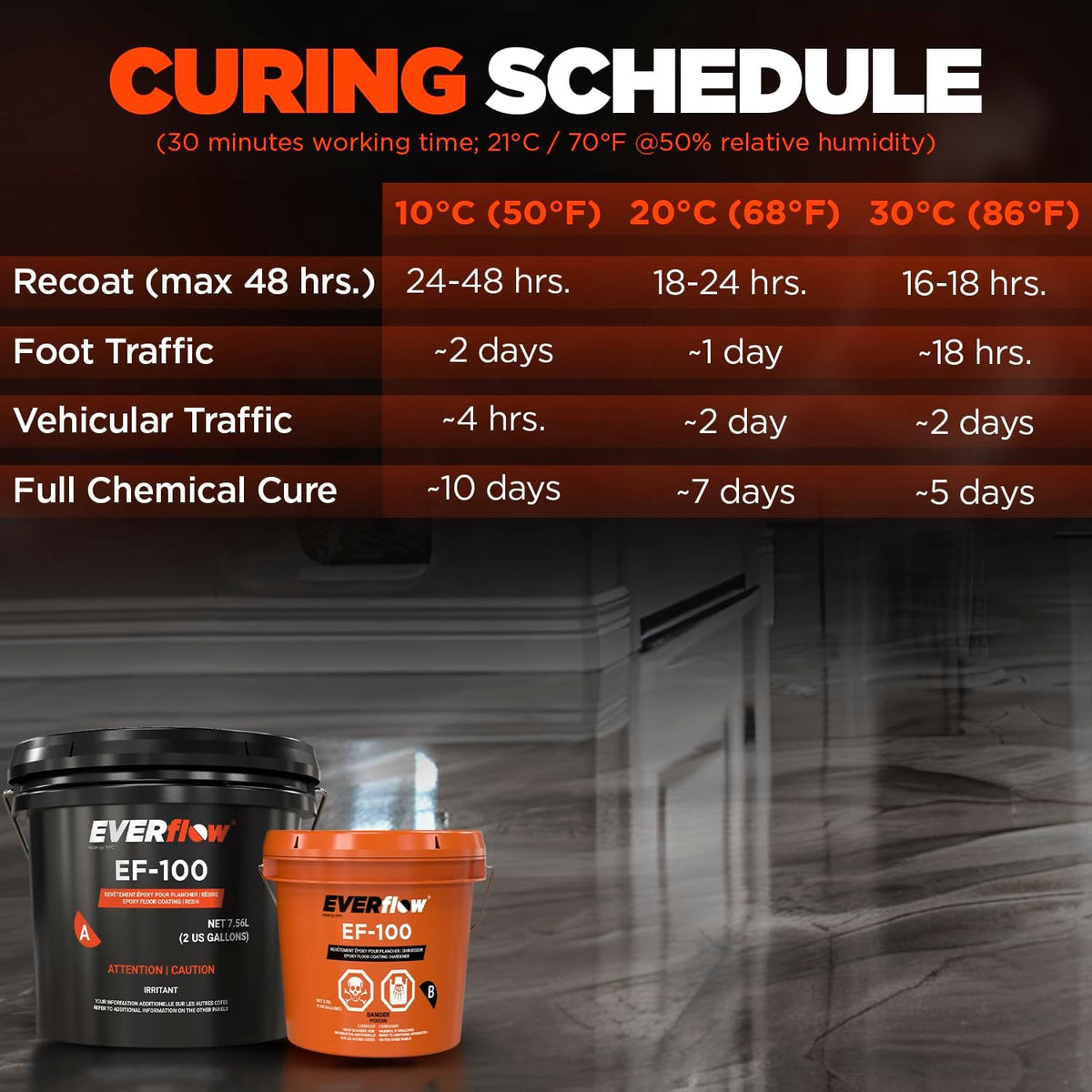

Mixing Instructions

The products must be conditioned between for 18°C (65°F) and 30°C (86°F) prior to application.

Clear/Colored version: Pre-mix each component separately for 2-3 minutes each. Open container with 2 parts of component A in it, then add the 1part of component B to it (mixing ratio 2:1). Mix the components for at least 2-3 minutes using a low-speed drill (300-450 rpm) to reduce air entrapment and to obtain a homogeneous mixture.

Metallic version: Pre-mix each component separately for 2-3 minutes each. Open container with 2 parts of component A in it, then add 6 ounces of metallic pigment and mix approximately 1 minute using a low-speed drill (150-200 rpm). Let the colored resin sit for at least 30 minutes to ensure proper pigment wetting. Then add 1 part of component B (mixing ratio 2:1). Mix the components for at least 2-3 minutes using a low-speed drill (300
