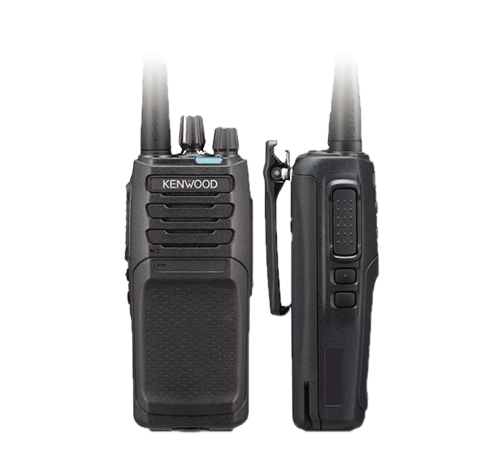

Kenwood 2W VHF/UHF Analog Portable Radios - NX-1202AV/1302AU
$27733
Unit price
/
Make a Selection
2W VHF/UHF Analog Portable Radios - NX-1202AV/1302AU for professional communication you can rely on.
-
Analog - FM
-
- FM Conventional Operation
- FleetSync: PTT ID, Stun/Revive,Talk back, Selcall
- MDC1200: PTT ID, Radio Inhibit/Uninhibit, Radio check, Emergency
- QT / DQT, DTMF, 2-tone
- Built-in Programmable Voice Inversion
- Scrambler (per channel)
- Built-in Compander (per channel)
-
Digital – NXDN® Mode (Optional License required)
-
- FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
- NXDN Conventional Operation
- Site Roaming
- Digital / Analog Mixed mode
- Group / Individual Call
- Status / Short data, Paging Call
- Remote Stun / Kill, Monitor, Check & Control
- Digital Bit Scrambler
- Late Entry
- Over-the-Air Alias (OAA)
-
Digital – DMR Mode (Optional License required)
-
- TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
- DMR Tier II Conventional Operation
- Site Roaming
- DMR Auto Slot Select
- Dual Slot Direct Mode
- Digital / Analog Mixed mode
- Call Interruption
- Group / Individual Call
- Status / Short data, Paging Call
- Remote Stun / Kill, Monitor, Check & Control
- Enhanced Encryption (ARC4)
- Digital Bit Scrambler
- Late Entry
- Over-the-Air Alias (OAA)
-
Features
-
- RF output power 2W both on VHF/UHF
- Large 7-Color LED indicator on the top panel
- Selective Power-on LED
- Selective Call Alert LED
- Battery Level Indication
- Multi-status function indication
- Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable
- digital processor
- Audio Equalizer: Flat, High, Low
- Auto Gain Control: On, High, Low, Off
- Noise Suppressor
- Microphone type settings
- Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi,
- Normal Scan
- VOX & PTT –triggered Semi- VOX, Voice-operated TX
- Emergency Function: Customizable Emergency Profile
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 and IP55
- Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM
- analog protocols (Optional License required)
SPECIFICATIONS
| General | NX-1202AV | NX-1303AU | |
|---|---|---|---|
| Pre-set Frequencies | Type 1 | 136-174 MHz | 450-520 MHz |
| Max. Channels per Radio | 64 | ||
| Number of Zones | 4 | ||
| Max. Channels per Zone | 16 | ||
| Channel Spacing | Analog | 30*1 / 25*1 / 15 / 12.5 kHz | |
| Digital | 12.5 / 6.25 kHz | ||
| Power Supply | 7.5 VDC ±20 % | ||
| Battery Life | DMR | Analog/NXDN | |
| KNB-45L (2000mAh) | Approx. 18 hours | Approx. 15 hours | |
| KNB-69L (2550mAh) | Approx. 23.5 hours | Approx. 19.5 hours | |
| Operating Temperature(Radio only)*2 | -22°F to +140°F (-30°C to +60°C) | ||
| Frequency Stability (-30 to +60°C; +25°C Ref.) | ±0.5 ppm | ||
| Antenna Impedance | 50 Ω | ||
| Dimensions | (W x H x D) Projections Not Included | ||
| Radio with KNB-45L | 2.13 x 4.84 x 1.32 in (54 x 123 x 33.5 mm) | ||
| Radio with KNB-69L | 2.13 x 4.84 x 1.48 in (54 x 123 x 37.5 mm) | ||
| Weight | (Basic model) | (Standard keypad model) | |
| Radio Only | 5.64 oz (160 g) | ||
| Radio with KNB-45L | 9.88 oz (280 g) | ||
| Radio with KNB-69L | 10.41 oz (295 g) | ||
| FCC ID | Type 1 | K44501000 | K44501101 |
| IC Certification | 282F-501000 | 282F-501100 | |
| Receiver | NX-1202AV | NX-1302AU | |
| Sensitivity | NXDN® @ 6.25 kHz Digital (3% BER) | 0.18 μV | |
| NXDN® @ 12.5 kHz Digital (3% BER) | 0.22 µV | ||
| DMR® @ 12.5 kHz Digital (1% BER) | 0.25 µV | ||
| DMR® @ 12.5 kHz Digital (5% BER) | 0.18 µV | ||
| Analog @ 12.5/25 kHz (12 dB SINAD) | 0.20 μV / 0.24 μV | ||
| Selectivity | Analog @ 12.5 / 25 kHz | 68 dB / 74 dB | |
| Intermodulation Distortion | 70 dB | ||
| Spurious Rejection | 70 dB | ||
| Audio Distortion | 7% | ||
| Audio Output Power | 1 W / 12 Ω (Internal Output) | ||
| Transmitter | NX-1202AV | NX-1302AU | |
| RF Power Output | (High / Low) | 2W / 1W | |
| Spurious Emission | -70 dB | ||
| FM Hum & Noise | Analog @ 12.5 / 25 kHz | 40 dB / 45 dB | |
| Audio Distortion | 2% | ||
| DMR Digital Protocol | ETSI TS 102 361-1, -2, -3 | ||
| Emission Designator | 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D, 7K60FXD, 7K60FXE | ||
*1 25 / 30 kHz in VHF/UHF Bands excluding T-Band are not included in the models sold in the USA or US territories.
*2 Operating temperature specification for a Li-ion battery is -10°C to +60°C [14°F to +140°F].Analog measurements made per TIA603. Specifications are measured according to applicable standards.Specifications are subject change without notice, due to advancements in technology.
FleetSync® is a registered trademark of JVCKENWOOD Corporation in the United States and/or other countries.NXDN® is a trademark of JVCKENWOOD Corporation and Icom Inc.NEXEDGE® is a registered trademark of JVCKENWOOD Corporation.All other trademarks are the property of their respective holders.
MIL-STD & IP
| MIL Standard | MIL 810C Methods/Procedures | MIL 810D Methods/Procedures | MIL 810E Methods/Procedures | MIL 810F Methods/Procedures | MIL 810G Methods/Procedures |
|---|---|---|---|---|---|
| Low Pressure | 500.1/Procedure I | 500.2/Procedure I, II | 500.3/Procedure I, II | 500.4/Procedure I, II | 500.5/Procedure I, II |
| High Temperature | 501.1/Procedure I, II | 501.2/Procedure I, II | 501.3/Procedure I, II | 501.4/Procedure I, II | 501.5/Procedure I, II |
| Low Temperature | 502.1/Procedure I | 502.2/Procedure I, II | 502.3/Procedure I, II | 502.4/Procedure I, II | 502.5/Procedure I, II |
| Temperature Shock | 503.1/Procedure I | 503.2/Procedure I | 503.3/Procedure I | 503.4/Procedure I, II | 503.5/Procedure I |
| Solar Radiation | 505.1/Procedure | 505.2/Procedure I | 505.3/Procedure I | 505.4/Procedure I | 505.5/Procedure I |
| Rain* | 506.1/Procedure I, II | 506.2/Procedure I, II | 506.3/Procedure I, II | 506.4/Procedure I, III | 506.5/Procedure I, III |
| Humidity | 507.1/Procedure I, II | 507.2/Procedure II, III | 507.3/Procedure II, III | 507.4 | 507.5/Prcedure II |
| Salt Fog | 509.1/Procedure I | 509.2/Procedure I | 509.3/Procedure I | 509.4 | 509.5 |
| Dust | 510.1/Procedure I | 510.2/Procedure I | 510.3/Procedure I | 510.4/Procedure I, III | 510.5/Procedure I |
| Vibration | 514.2/Procedure VIII, X | 514.3/Procedure I | 514.4/Procedure I | 514.5/Procedure I | 514.6/Procedure I |
| Shock | 516.2/Procedure I, II, V | 516.3/Procedure I, IV | 516.4/Procedure I, IV | 516.5/Procedure I, IV | 516.6/Procedure I, IV |
| International Protection Standard | |||||
| Dust & Water Protection* | IP54/55* | To meet IP54/55, the 2-pin connector cover has to be connected on the radio or the locking bracket has to be attached to the external speaker microphone. | |||
