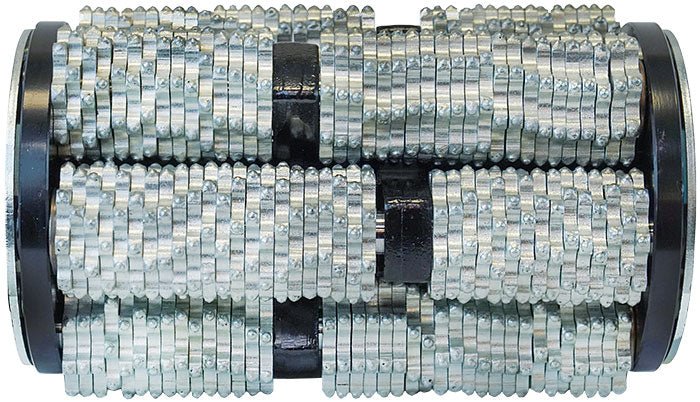

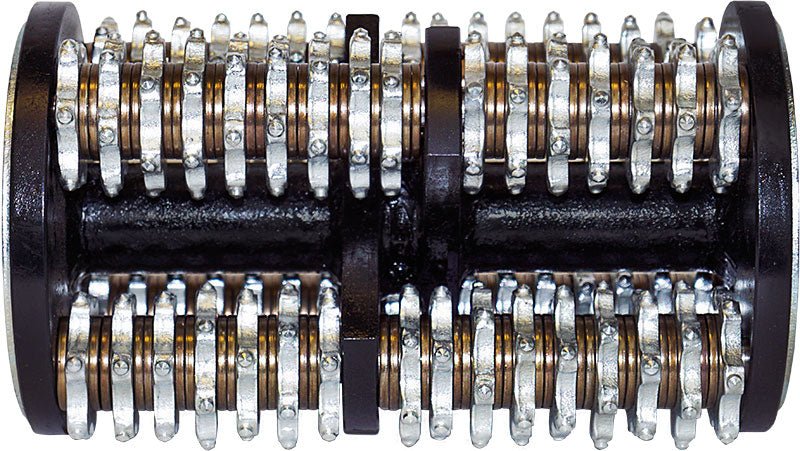

Smith Drum Scarifiers
SKU# 5502.6.1519.2C
$70700
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Smith Drum Scarifiers
From
$70700
Unit price
/
Make a Selection

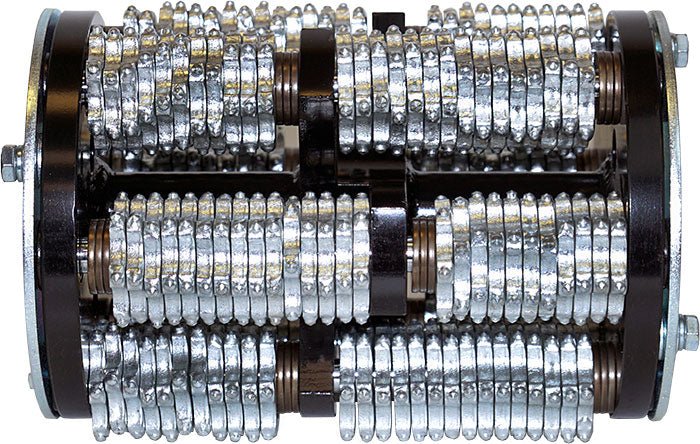

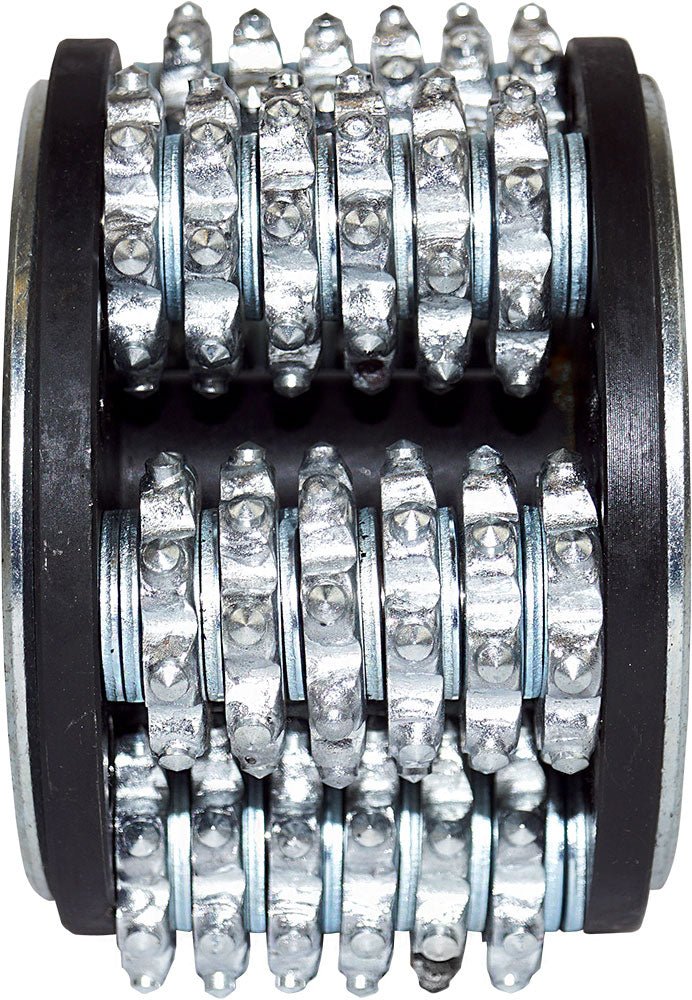

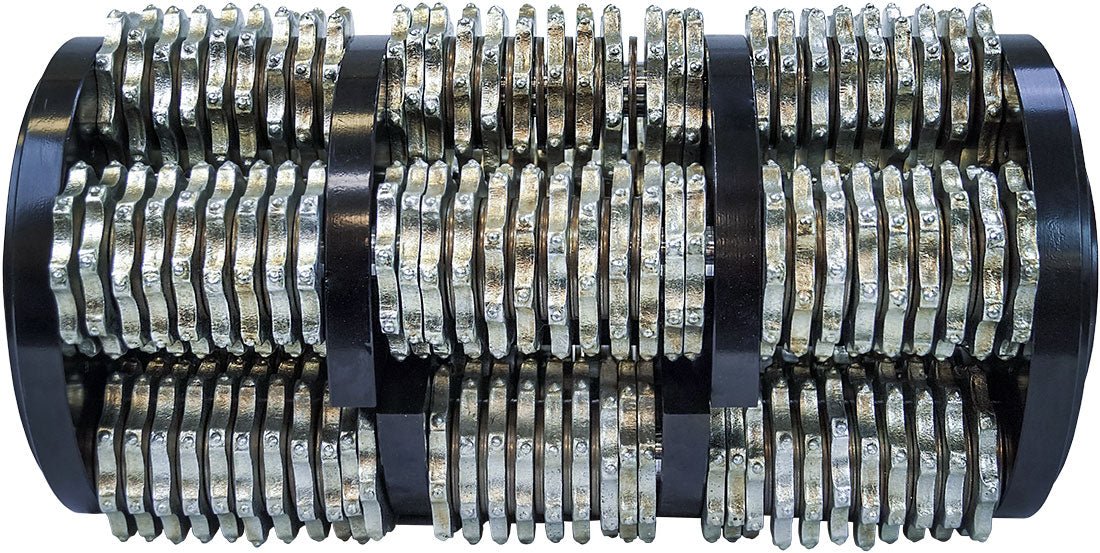

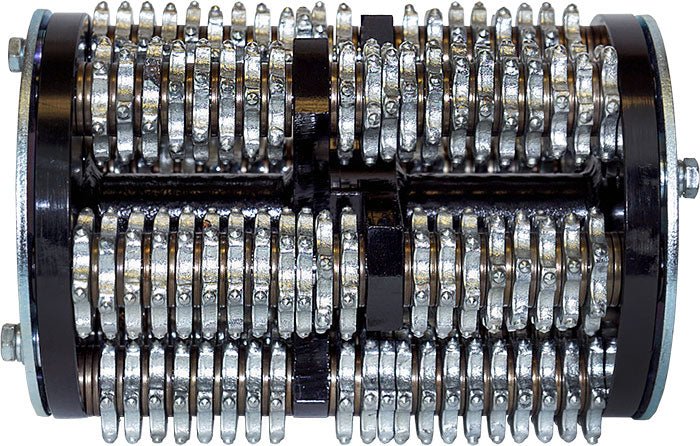

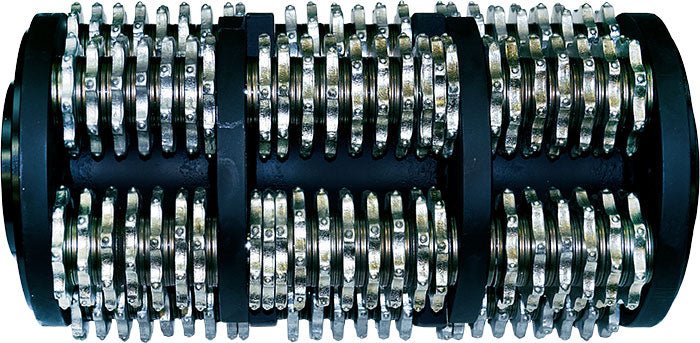

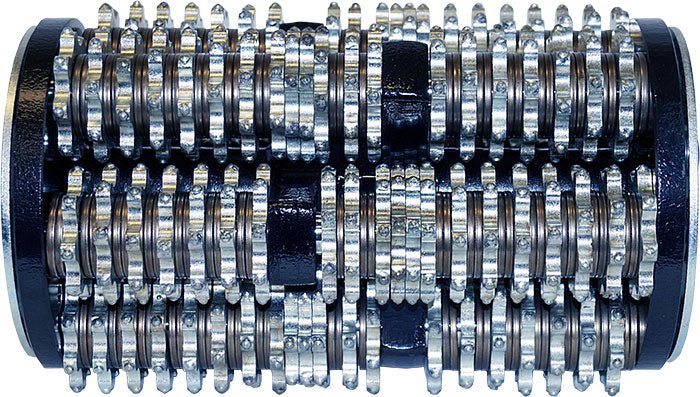

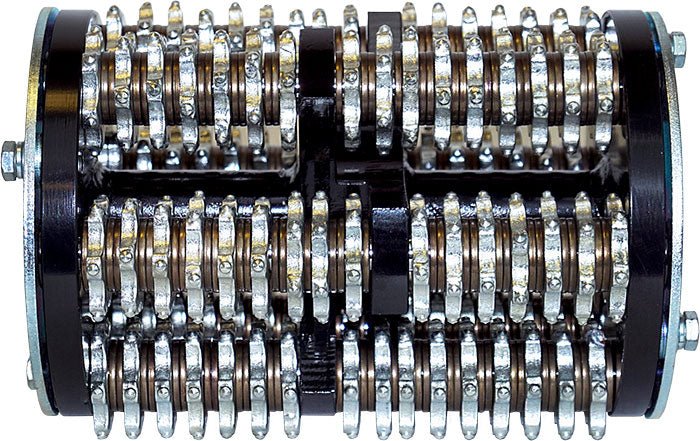

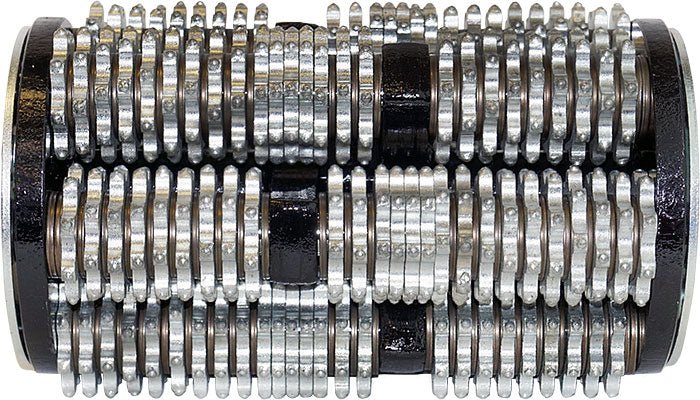

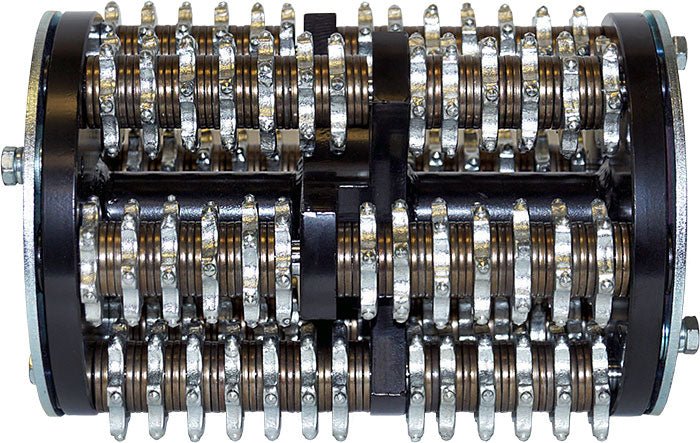

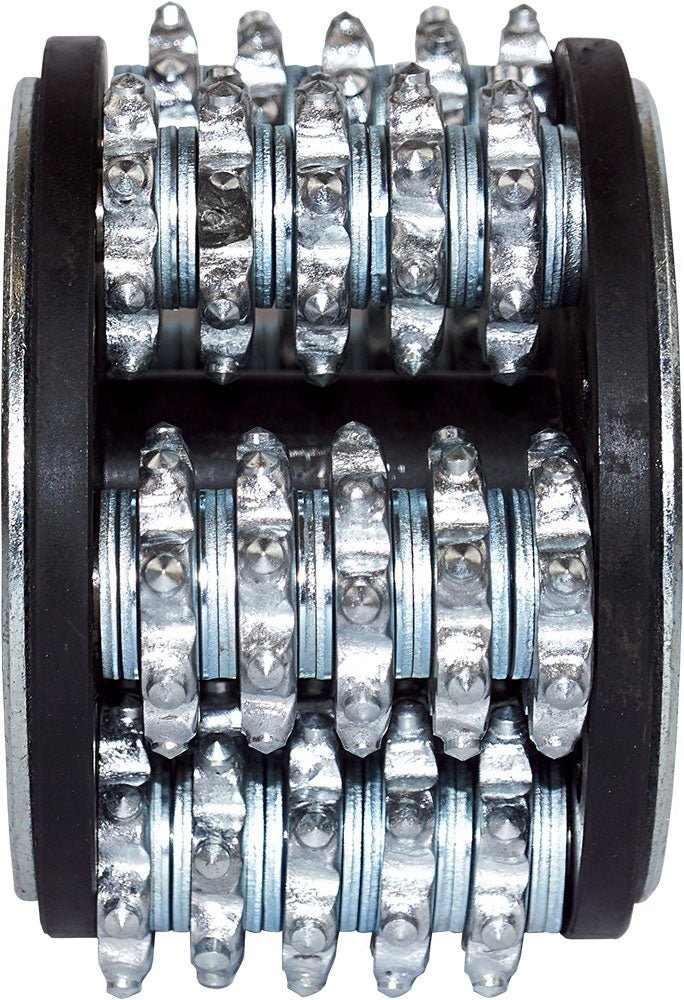

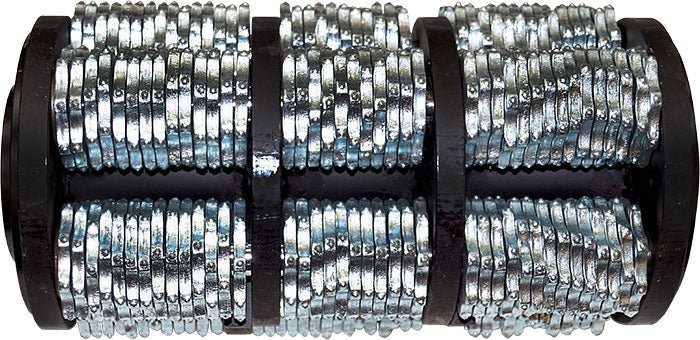

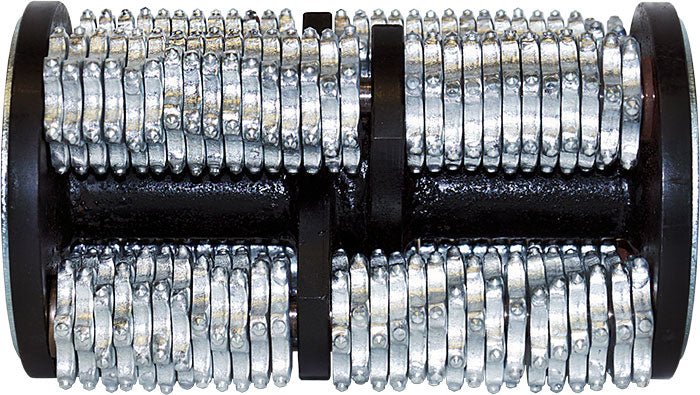

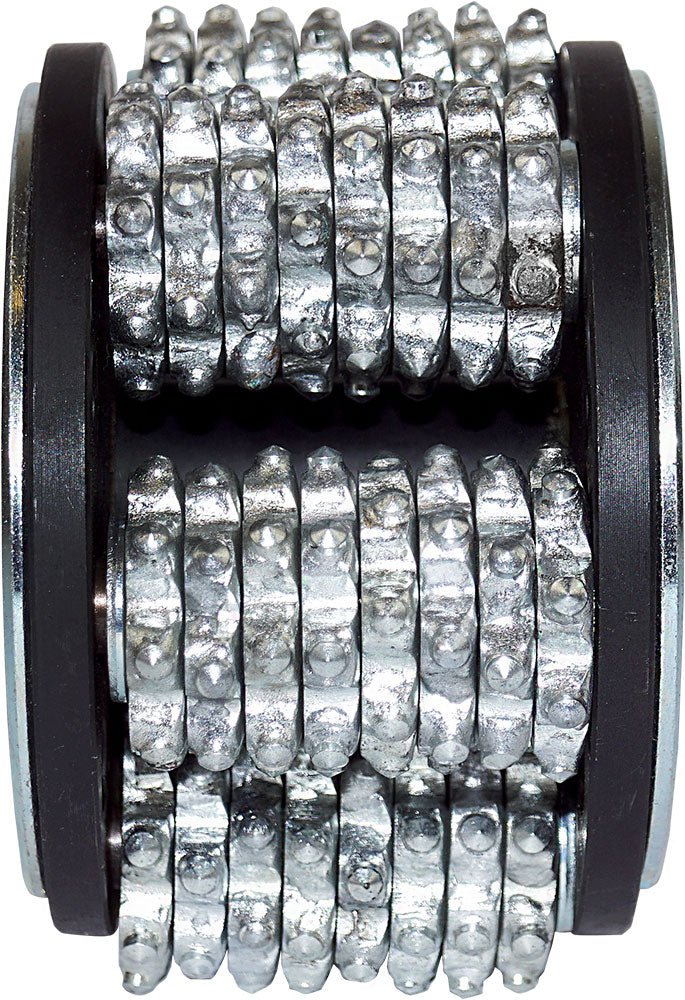

Smith Drum Scarifiers
2" Drum
Drum: FS050.002 (QTY: 1)
Shafts: S10.02.0500.4 (QTY: 6)
Cutters: CF1519 (QTY: 48)
Spacers: FLW.M10 (QTY: 6)
Details:
8 cutters per shaft
1 spacer per shaft
For SMITH FS050
7" Drum
Drum Assembly: FS150.475.3150A (QTY: 1)
Retaining Cup: FS150.675.3151 (QTY: 1)
Shafts: FS150.675.3155 (QTY: 7)
Cutters: CF1519 (QTY: 21)
Spacers: SP0010.3 (QTY: 21)
Details:
3 cutters per shaft, 3 spacers per shaft
8" Scarifying Drum
65050.2516.8
Drum 65050D (QTY: 1)
Shafts: S-20150.4 (QTY: 6)
Cutters: CF2516 (QTY: 156)
Spacers: 12230 (QTY: 36)
Details:
Small side: 3 spacers, 11 cutters
Big side: 3 spacers, 15 cutter
For SMITH SPS8
Custom patterns and cut widths from 2″ to 8″ available
10" Drum
Drum 1065051.75.R12 (QTY:1)
Shafts: S075.11.0080.4 (QTY:6)
Cutters: CF2128 (QTY: 150)
Spacers: SP2233.1 (QTY: 138)
Details:
Small side: 11 spacers, 9 cutters
Big side: 12 spacers, 16 cutters
For SMITH SPS10 Electric and SPS10 Gas
15" Drum
Drum: FS350.15.25 (QTY: 1)
Shafts: S25.16.770.4 (QTY: 5)
Cutters: CF3158.0 (QTY: 155)
Spacers: SP3344.1 (QTY: 120)
Dimensions: 10″x10″x19″
Details:
Small side: 6, 8 spacers, 9 cutters
Big side: 8, 9 spacers, 11, 13 cutters
For SMITH FS351

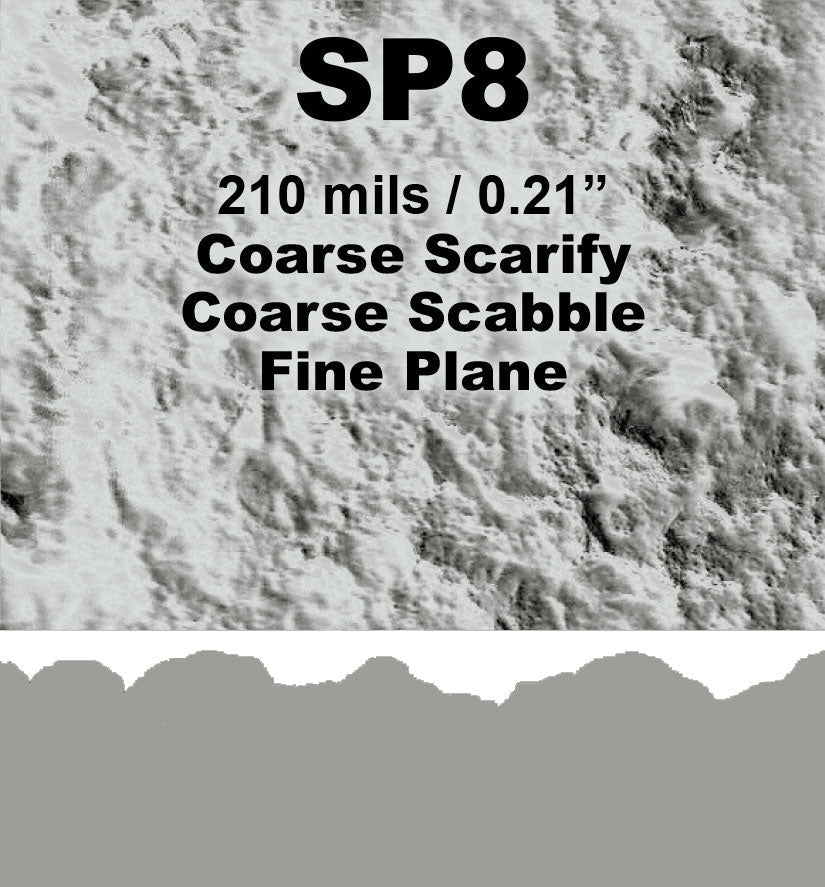

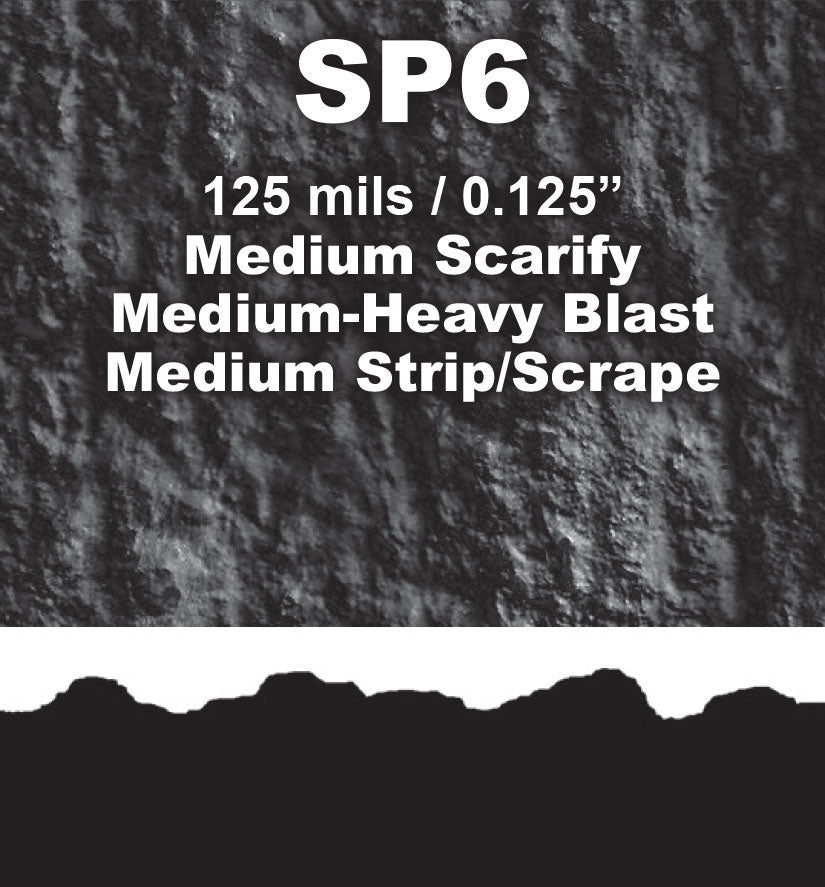

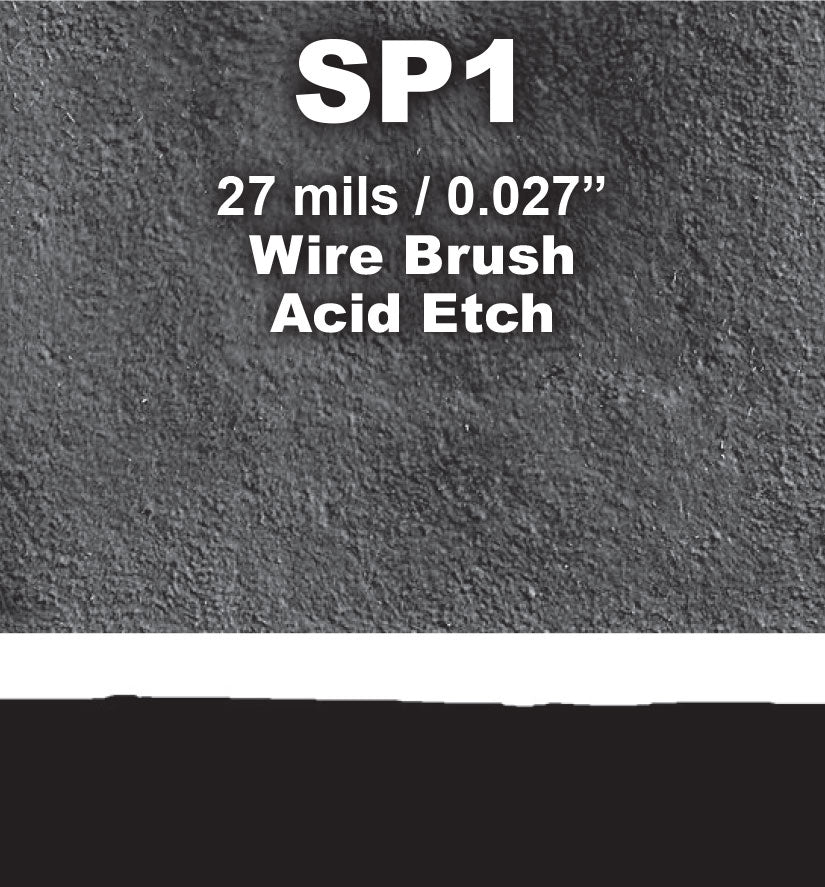

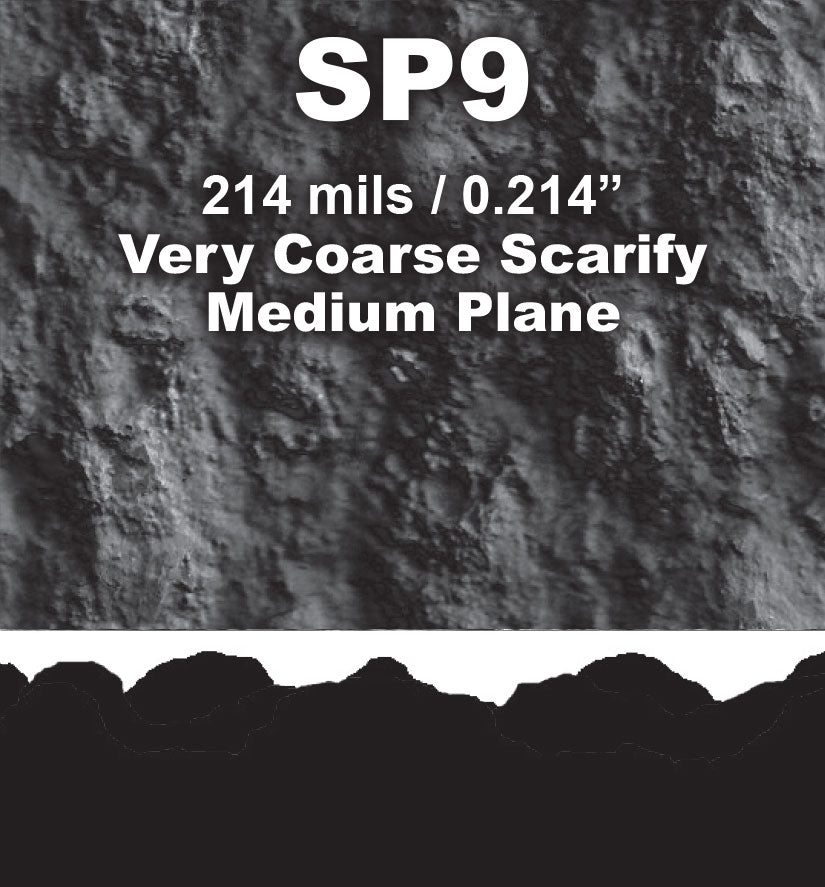

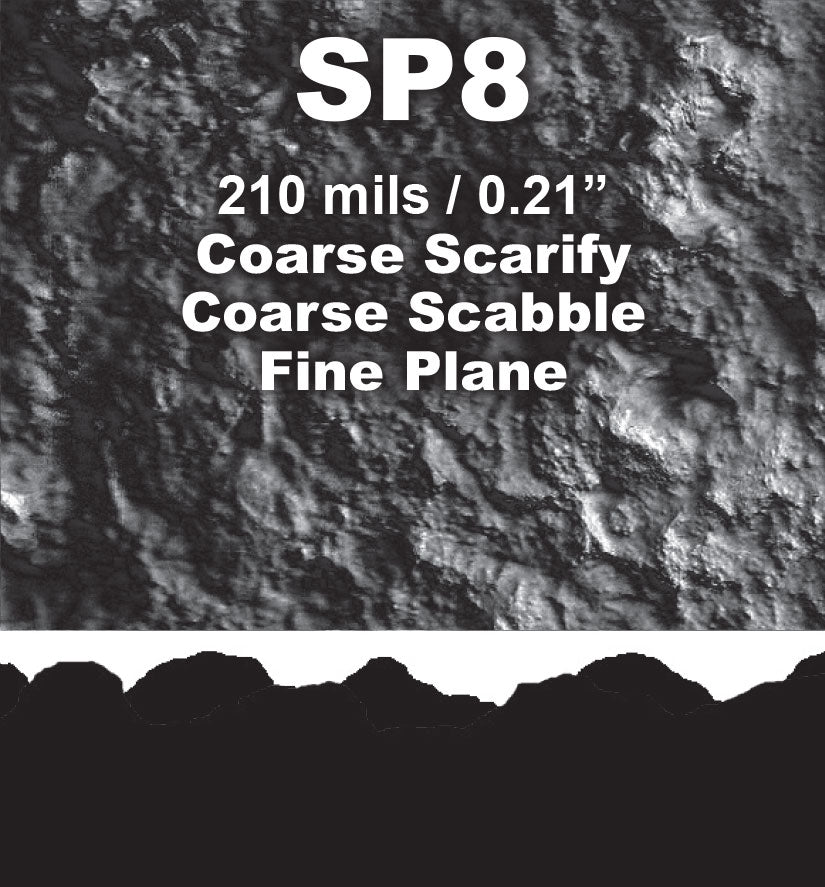

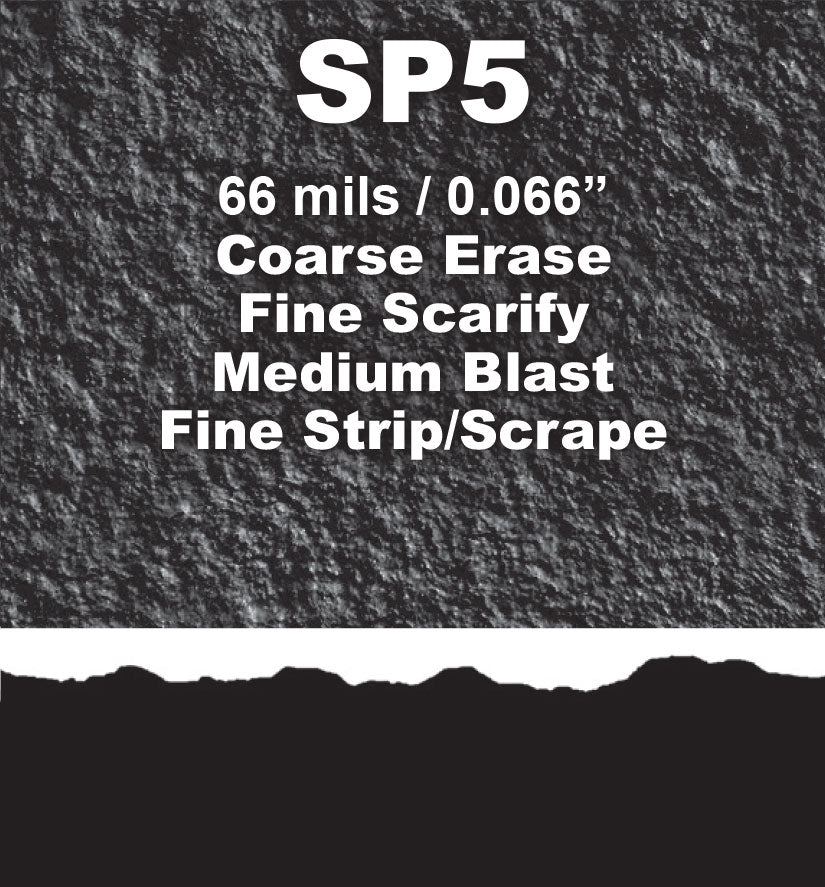

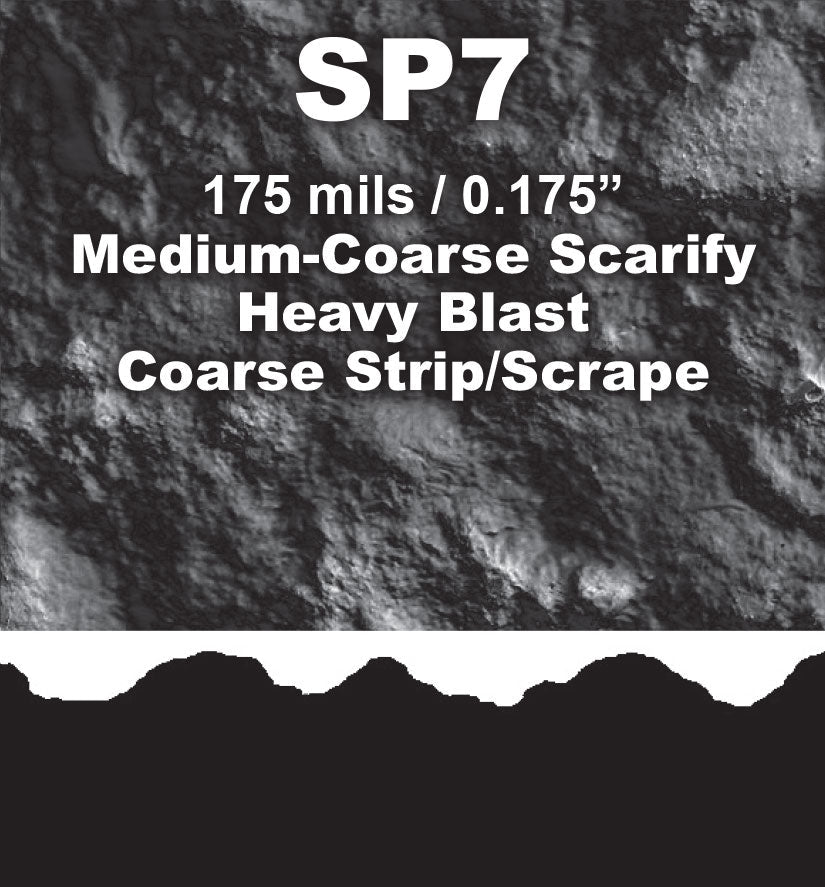

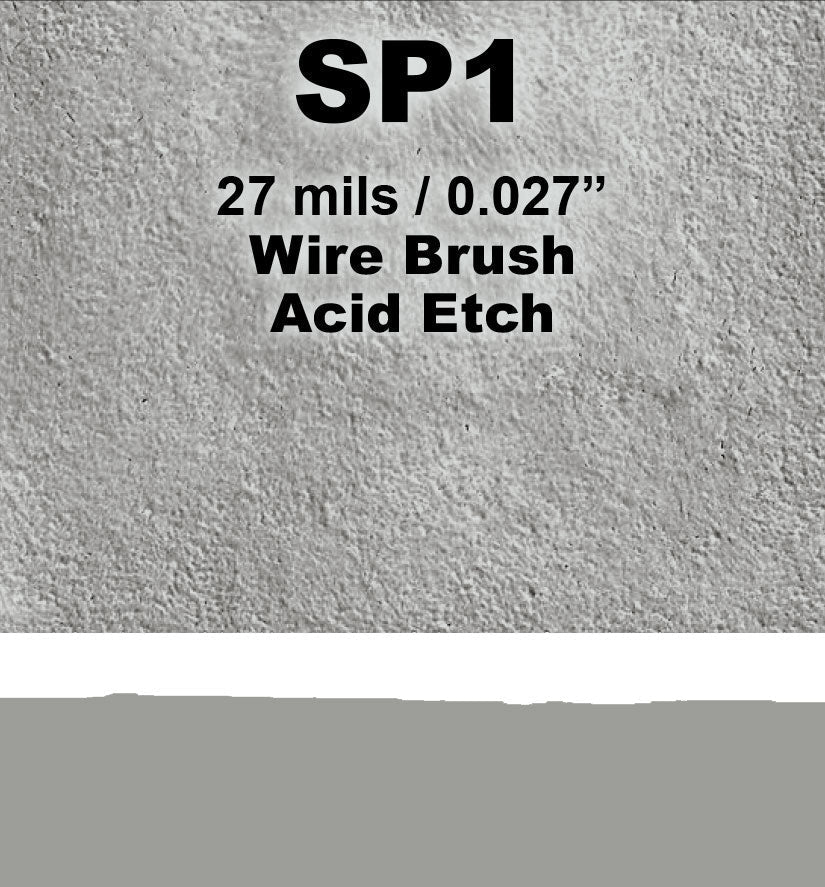

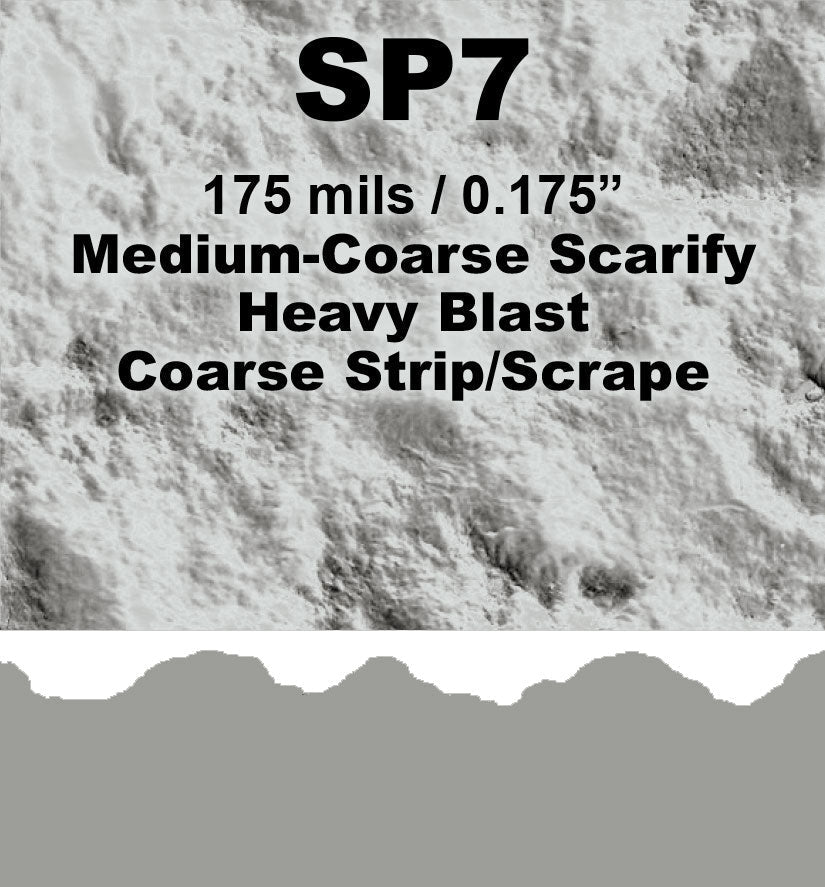

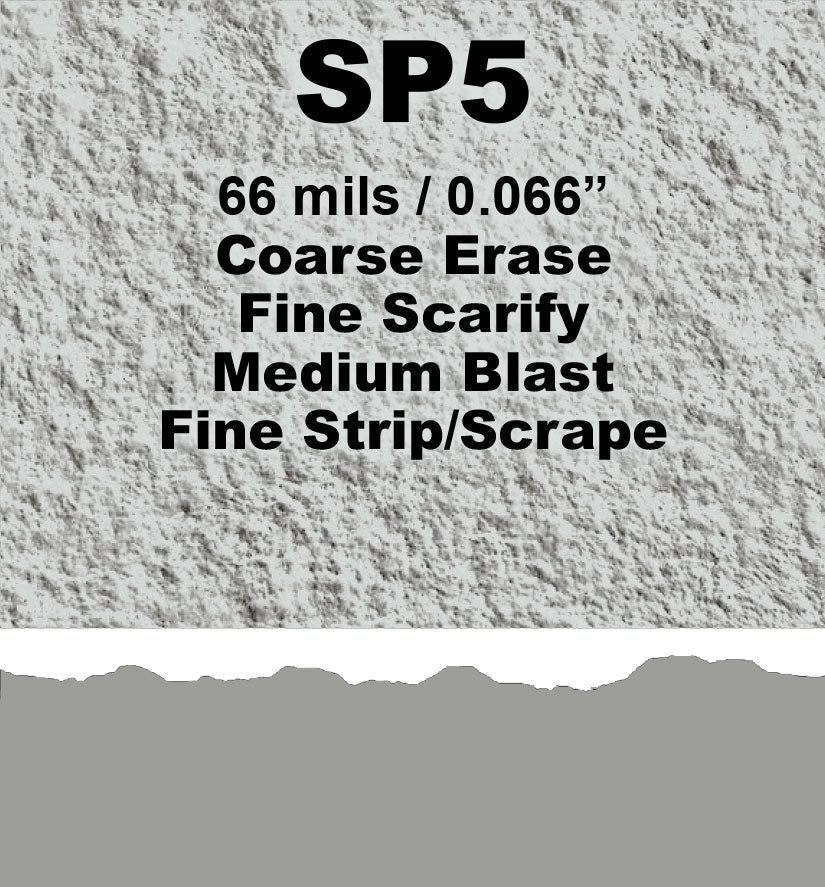

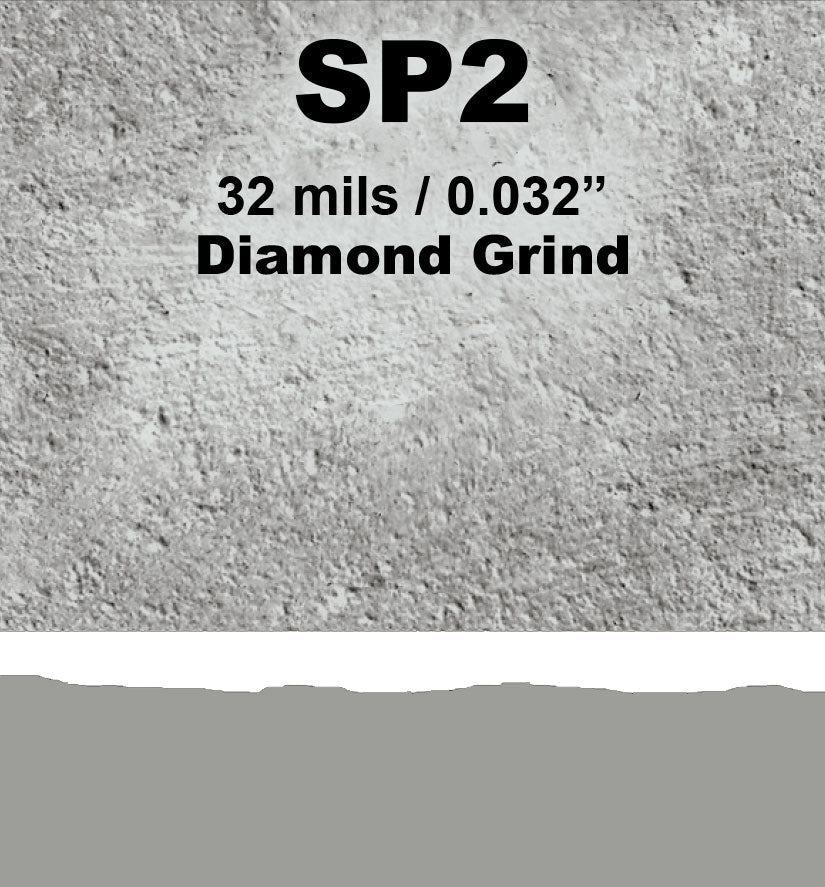

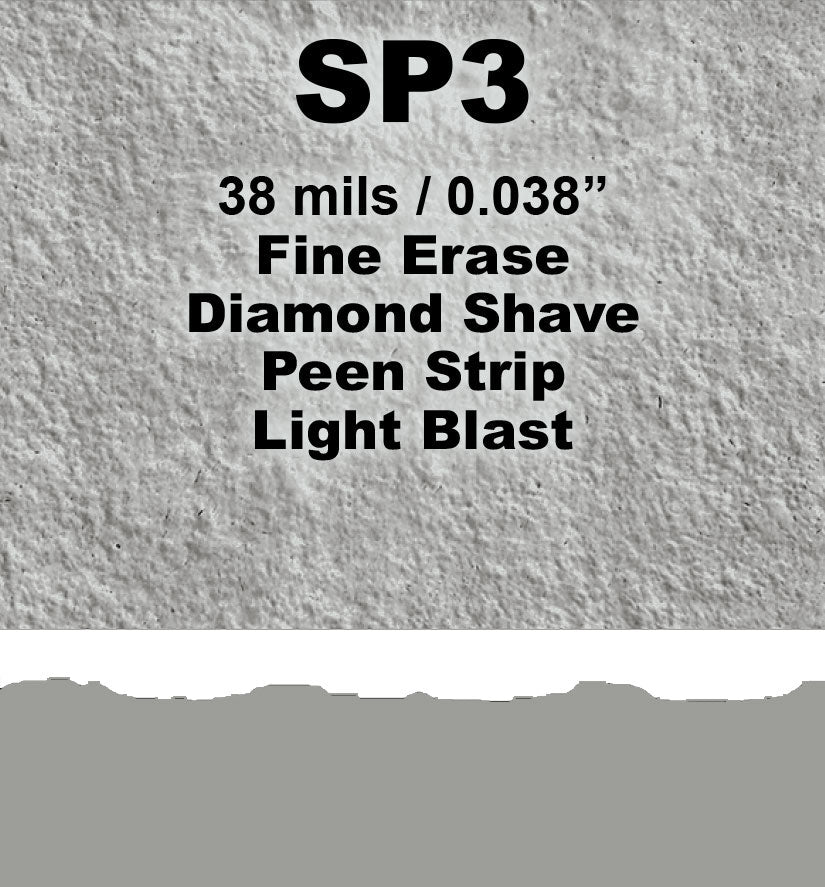

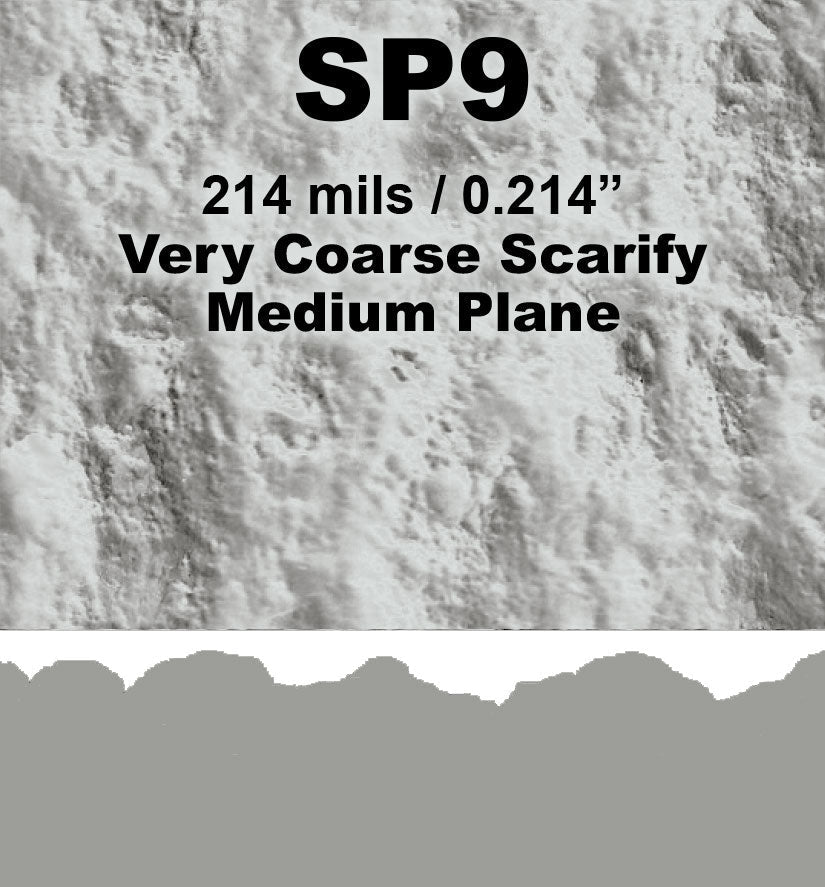

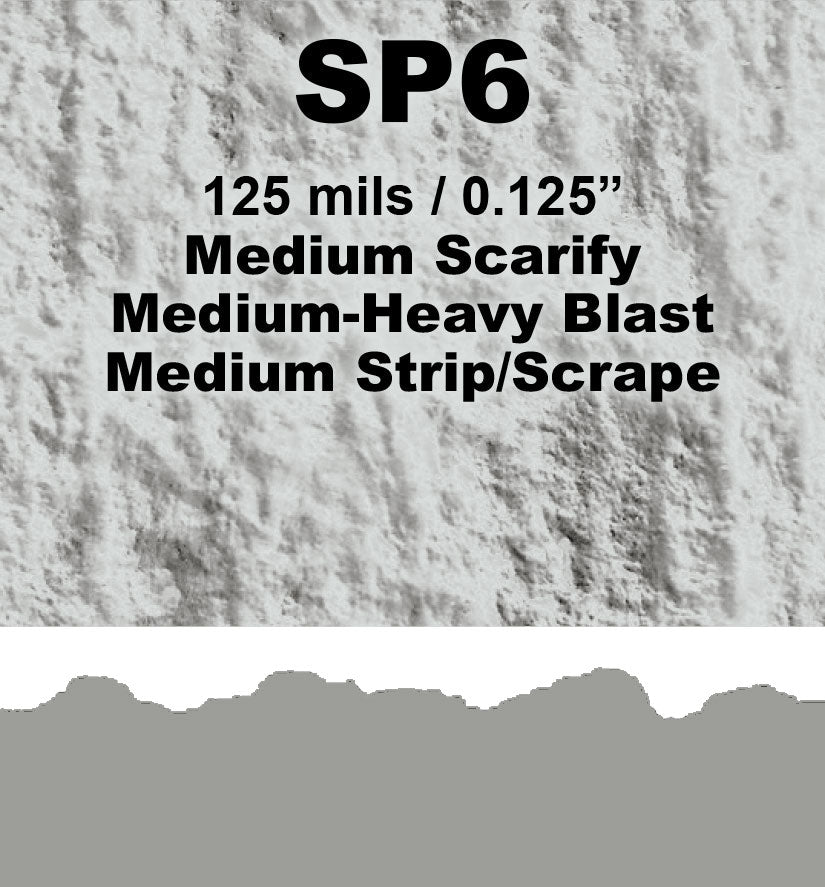

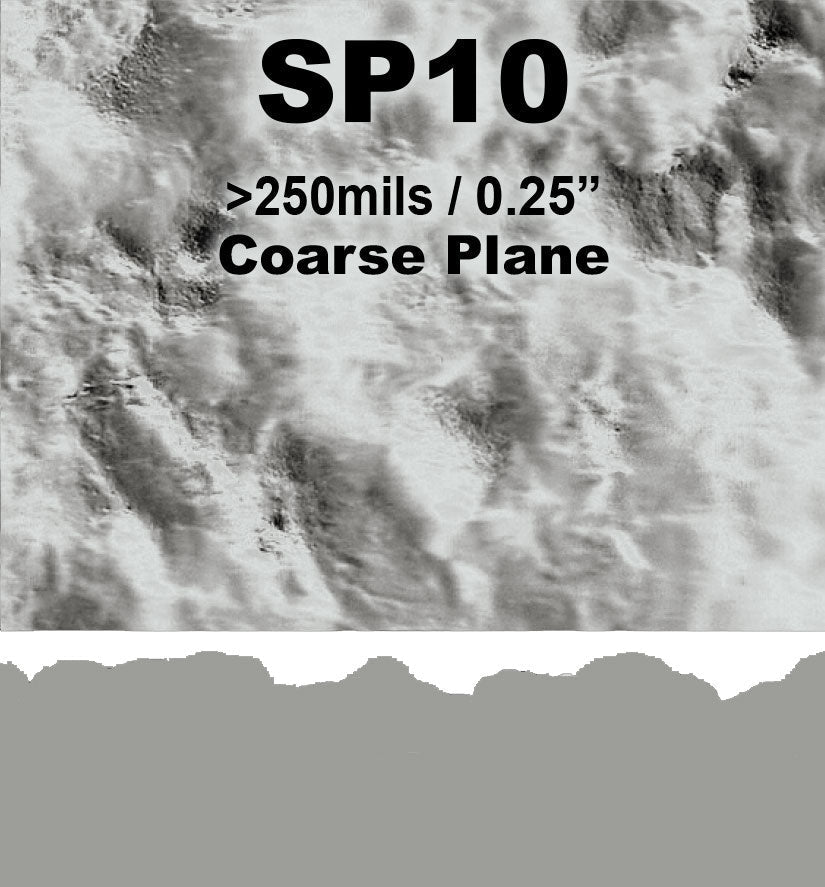

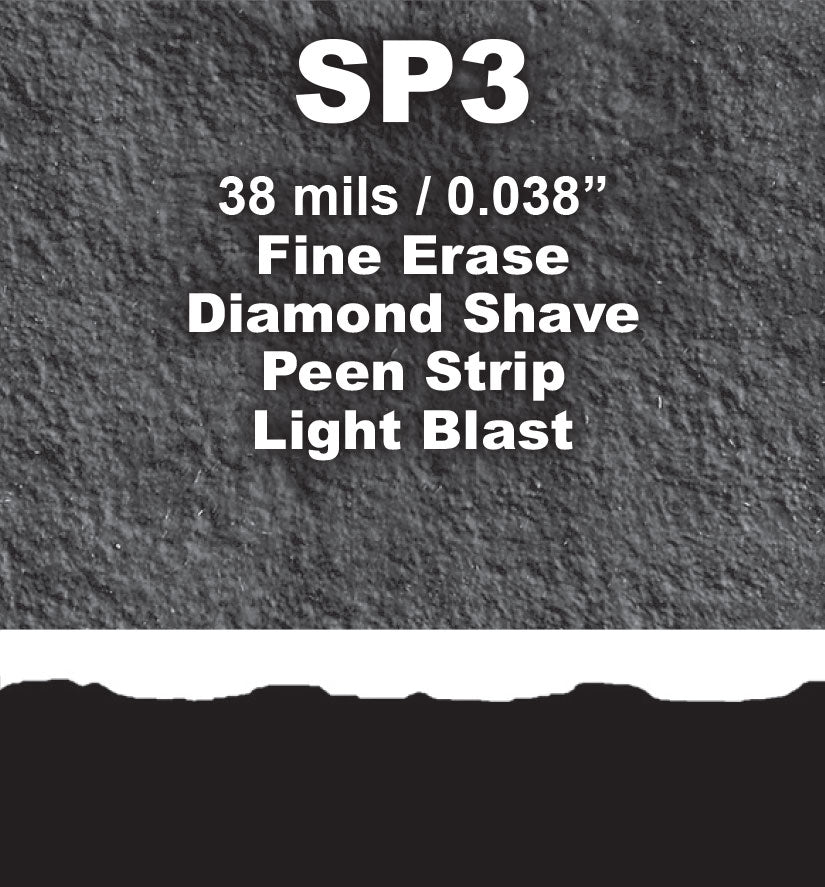

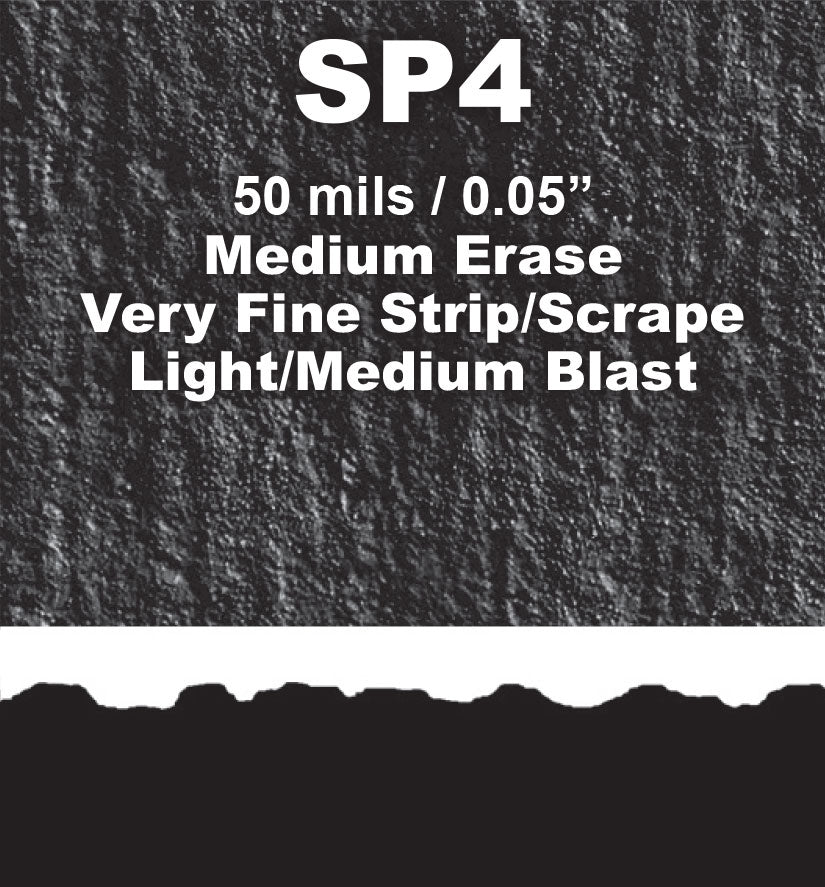

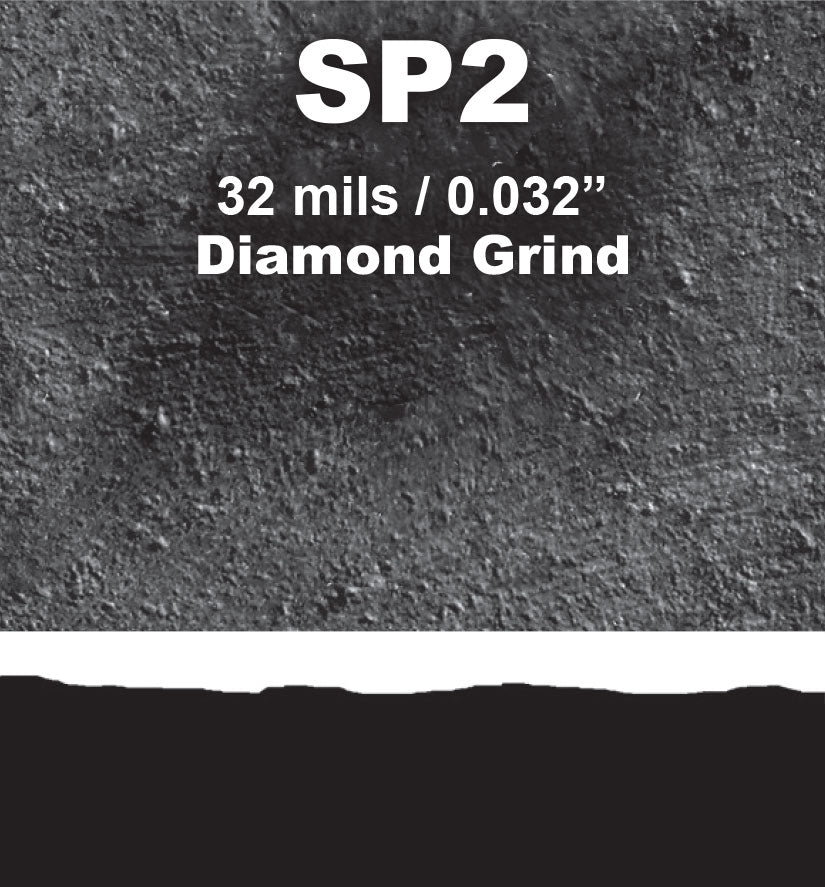

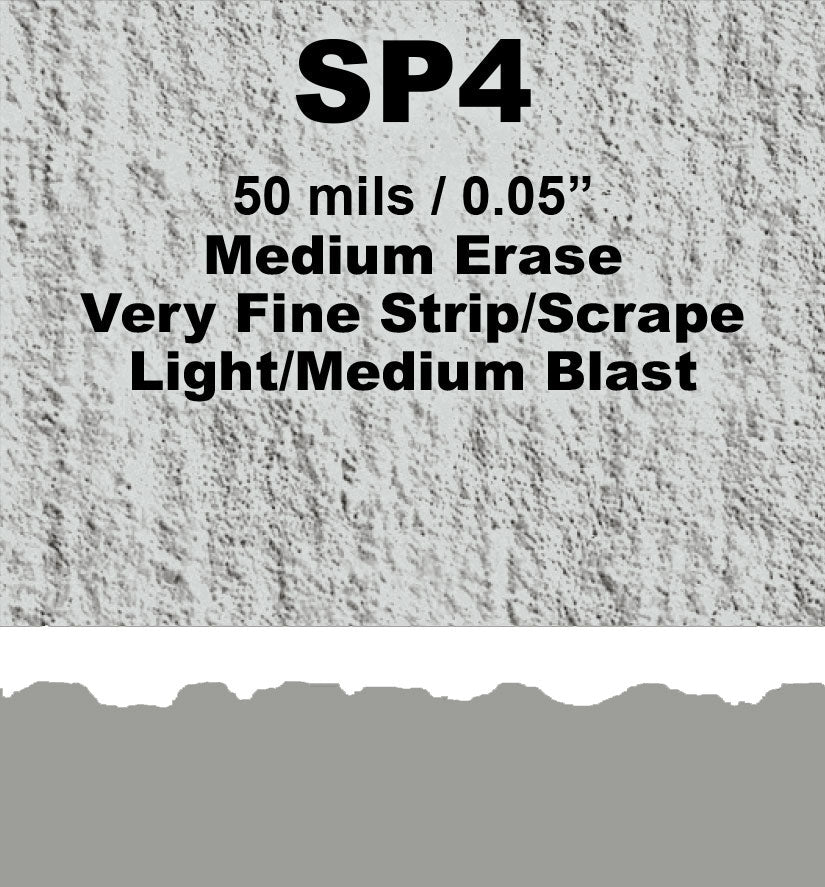

Surface Profiles (SP1 – SP10)
The surface profile (SP) chart is used as a visual representation of desired surface textures, roughness, and general appearance on concrete or asphalt. Each profile has a corresponding number, ranging from SP1 (nearly flat) to SP10 (extremely rough).
The surface profile is defined as the measurement of the average distance from the peaks of the surface to the valleys, as seen through a cross-section of the prepared surface.
The texture and appearance of the profile obtained through the surface-preparation process will vary, depending upon the concrete/asphalt strength, composition, aggregate and finish. On sound surfaces, the range of variation can be controlled to represent these standards, however, as removal depth increases, the profile of the prepared substrate will be increasingly dominant by the type and size of the coarse aggregate.
Confirmation that the desired profile has been achieved during the surface-preparation process is done by visually inspecting the surface, then comparing it to the profiles depicted by replica profile tiles, replica putty, replica tape, or SP photos (see below). The replica putty test is ASTM D7682, and the replica tape test is ASTM D4417.
The creation of a surface profile can be accomplished with a variety of tools, equipment and materials, and requires a specification to select the desired SP range, dependent upon the type of overlay system and material thickness to be installed
Concrete Profiles
