Moving Mast Walkie Reach Truck - 138" Lift Height

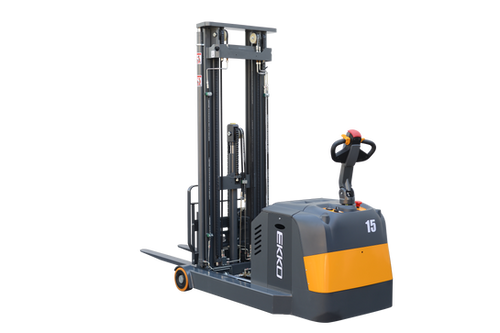

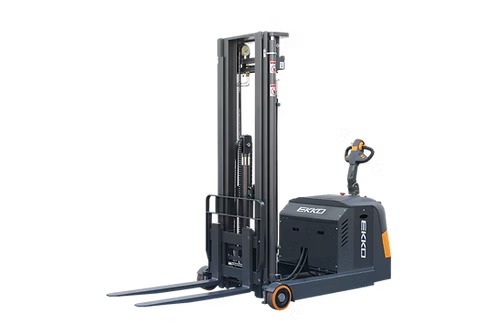

EKKO EH15T Moving Mast Walkie Reach Truck – 3,300 lb Capacity with 138" Lift Height

The EKKO EH15T Moving Mast Walkie Reach Truck combines the versatility of a forklift, reach truck, and walkie stacker into a single compact unit designed for contractors and warehouse professionals. With a 3,300 lb load capacity and a raised height of 138" (9.83 ft), it is built for demanding environments including loading docks, stock rooms, manufacturing floors, and warehousing operations. The moving mast design with a 19.7" reach distance enables efficient pallet placement in racking systems without repositioning the unit.

Unlike standard walkie stackers, the EH15T integrates Electronic Power Steering (EPS), a Curtis Controller, and a 24V AC drive motor, delivering a level of control and drivetrain sophistication typically associated with larger rider trucks. The inclusion of a 24V/270Ah battery and charger means the unit ships ready to deploy with no additional purchases required.

Technical Specifications

Key Features & Benefits

Moving Mast with 19.7" Reach

The moving mast design allows the forks to extend forward 19.7" independently of the chassis, enabling precise pallet placement in standard racking systems. This reach capability eliminates the need to drive the entire unit into a rack bay, improving safety and efficiency in tight aisle environments.

Electronic Power Steering (EPS)

EPS reduces operator fatigue during extended shift use by requiring minimal manual steering effort during directional changes and maneuvering. For contractors working in confined stock rooms or loading docks, this translates to faster, more controlled material handling with less physical strain.

Curtis Controller with 24V AC Drive Motor

The Curtis Controller is an industry-recognized motor control platform that delivers precise speed and torque management for both drive and lift functions. The 24V AC drive motor provides responsive acceleration and reliable performance across varied floor conditions and usage intensities.

Adjustable Forks (8.7" – 29.1")

Fork width is adjustable across a range of 8.7" to 29.1", allowing the EH15T to handle pallets and loads of varying widths without a tool change or separate attachment. This flexibility makes the unit suitable for mixed-load operations common on construction supply floors and distribution facilities.

Robotic-Welded Steel Construction

The frame is fabricated from high-quality steel using robotic welding processes, resulting in consistent weld quality and structural integrity throughout the chassis. This construction approach is designed to withstand repeated impacts, directional changes, and the demands of daily industrial use.

Battery and Charger Included

The EH15T ships with a 24V/270Ah lead acid battery and compatible charger, eliminating the need for separate procurement of power components. For contractors and warehouse operators, this reduces lead time and ensures the unit is operational immediately upon delivery.

Common Applications

Loading and Unloading Trucks

The EH15T's 3,300 lb capacity and compact walkie format make it well-suited for truck loading and unloading operations at ground level or from a loading dock.

Loading Dock Operations

The unit's reach capability and adjustable forks allow efficient pallet staging and retrieval at dock height, supporting high-throughput receiving and shipping workflows.

Stock Room and Warehouse Racking

With a raised height of 138" and 19.7" of reach, the EH15T can place and retrieve pallets from standard warehouse racking systems, making it effective for multi-level storage environments.

Manufacturing Floor Material Handling

The compact footprint and EPS steering enable the EH15T to navigate manufacturing floor layouts where space between workstations and equipment is limited.

Construction Supply Distribution

For construction supply distributors managing heavy building materials, the 3,300 lb capacity and polyurethane wheels provide the durability needed for repetitive load cycles across warehouse flooring.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Boxed and crated construction materials
• Bagged goods and bulk packaged products
• Racked warehouse inventory
• Manufacturing components and assemblies

Frequently Asked Questions

Q: Does the EH15T come with a battery and charger?
A: Yes. The unit includes a 24V/270Ah battery and a compatible charger, so no additional power components need to be purchased separately.

Q: What is the maximum lift height of the EH15T?
A: The EH15T raises loads to a maximum height of 138" (9.83 ft).

Q: Can the fork width be adjusted to fit different pallet sizes?
A: Yes. The forks are adjustable from 8.7" to 29.1" to accommodate a range of pallet and load widths.

Q: What type of wheels does the EH15T use?
A: The EH15T is equipped with polyurethane wheels, which are well-suited for smooth indoor warehouse and manufacturing floor surfaces.

Q: What warranty does the EH15T carry?
A: The EH15T is covered by a 3 Years Limited Warranty.
