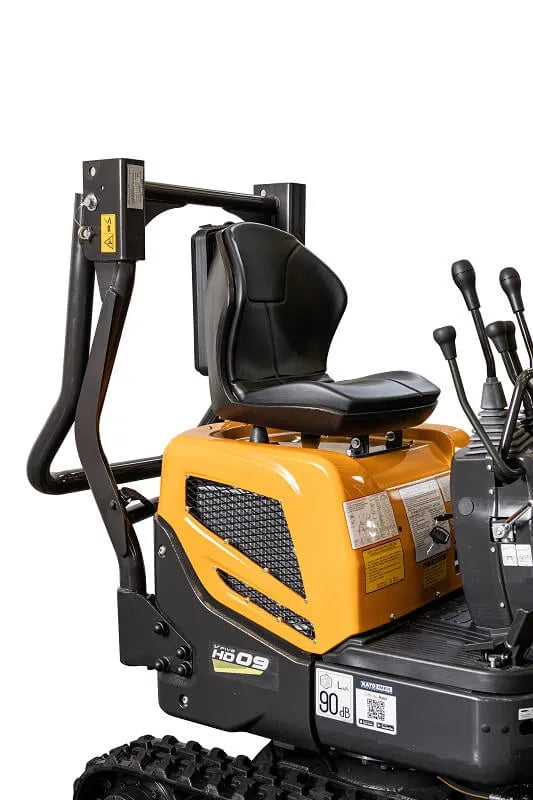

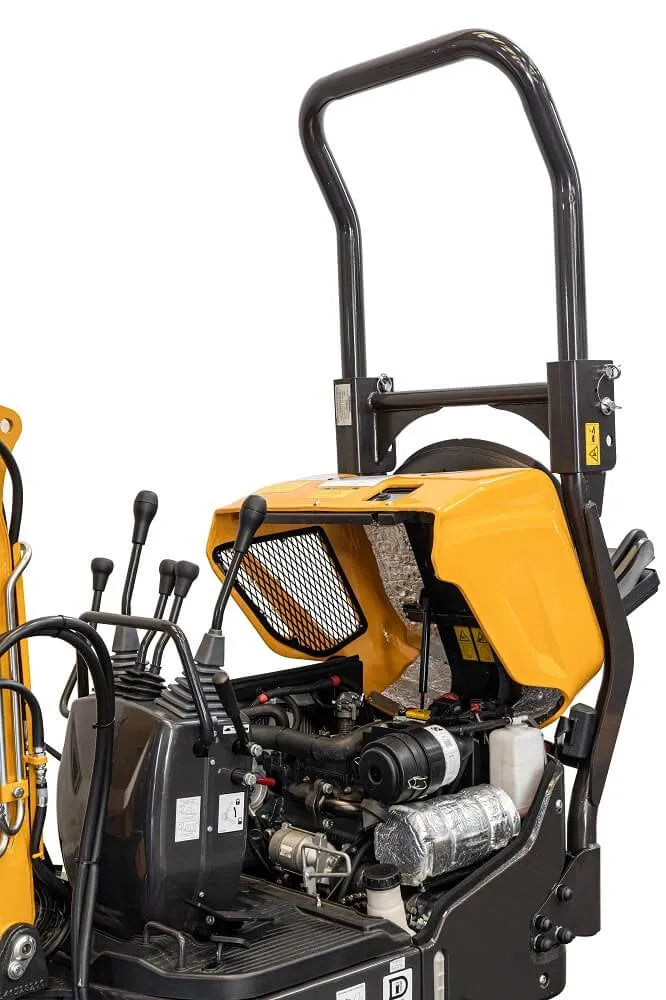

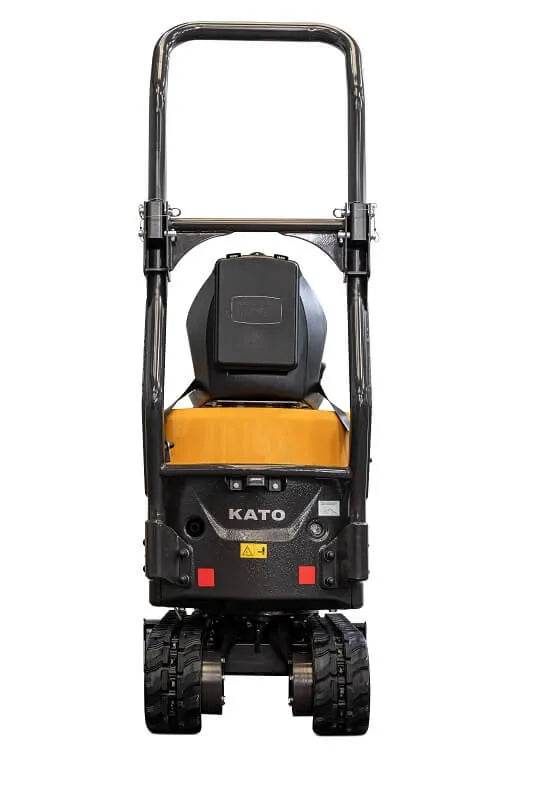

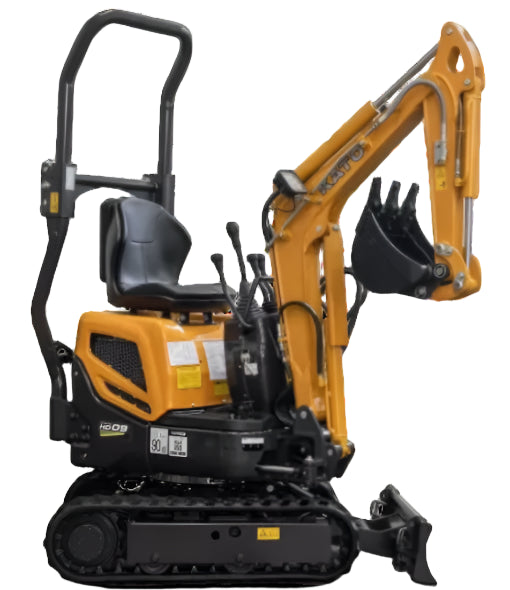

HD9V5 Mini Excavator
Comfortable, Easy-to-Use, and Stable
9V equipped with fold-down canopy, folding push blade, expandable rubber tracks, auxiliary hydraulics to front of unit
Digging Depth - 5'2"
Output Rating - 9.9 HP
Operating Weight 2,400 LBS.
The V5 Mini Excavator series not only has zero tail swing, but its high-powered digging force is increased by 10%, and the 4-pump system is quick to respond, making this the ultimate mini excavator.
Comfortable and easy-to-use, the V5 mini excavators are also fuel efficient and easy to maintain. With an auto-parking brake and a neutral engine-start, the V5 mini excavators are proactive in error-prevention.
Performance
| Bucket Capacity | 0.77 ft3 |
| Bucket Width | 12’’ |
| Operating Weight | 2,400 lbs. |
| Transport Weight | 2,169 lbs. |
| Swing Speed | 8.0 rpm |
| Travel Speed (Low/ High) | 1.1 mph/ 1.9 mph |
| Gradeability | 30° |
| Ground Pressure | 4.4 psi |
| Bucket Digging Force | 2,340 lbs. |

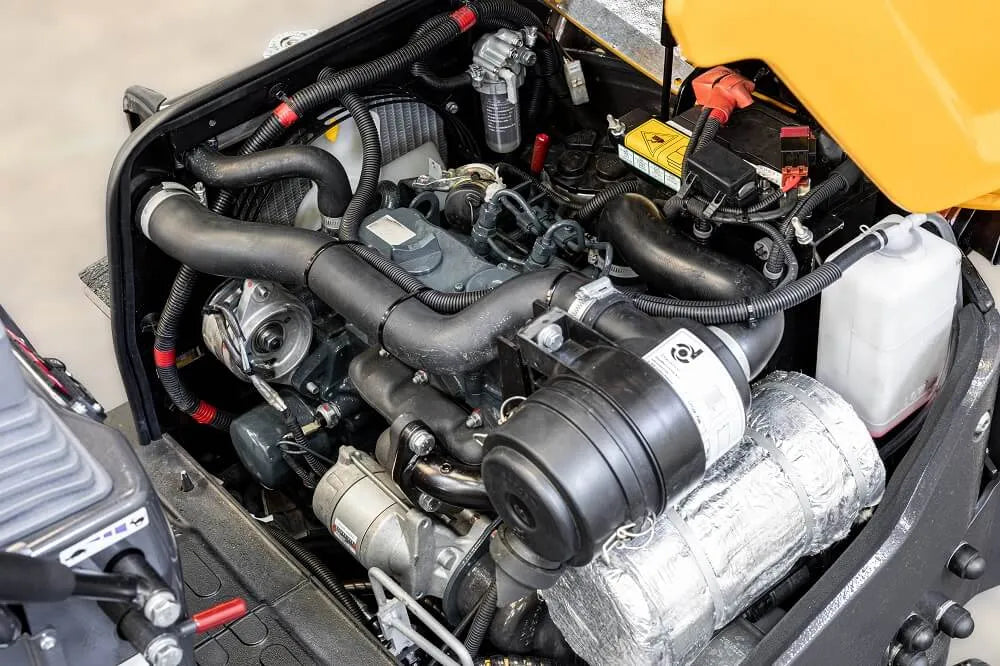

Engine
| Model | Kubota D722 |
| Output Rating | 9.9 hp / 2000 rpm |
| Fuel Tank Capacity | 2.9 gallons |
Boom Swing System
| Type | Offset Boom w/ Hydraulic Cyl. |
| Swing Angle (L / R) | 500 / 700 |
Hydraulic System
| Total Hydraulic System Flow | 5.9 gpm |
| Max Auxiliary Hydraulic Flow | 4 gpm |
| Size | 2’5’’ x 8.6’’ |
| Lift Above / Drop Below Ground | 8.6’’ x 6’’ |
