| Model | HRC 750 ST |
|---|---|
| Motor | 15 HP |
| Drive Inverter | 11 kW |
| Volt | 380-480 |
| Hertz | 50/60 |
| Amp | 32 |
| Tool Speed | 600-1300rpm |
| Work Diameter | 750mm |
| Tool Size | 3x340mm |
| Water Tank | 46 lt |
| Size LxAxP cm | 750x110x123 |
| Weight | 565 Kg |

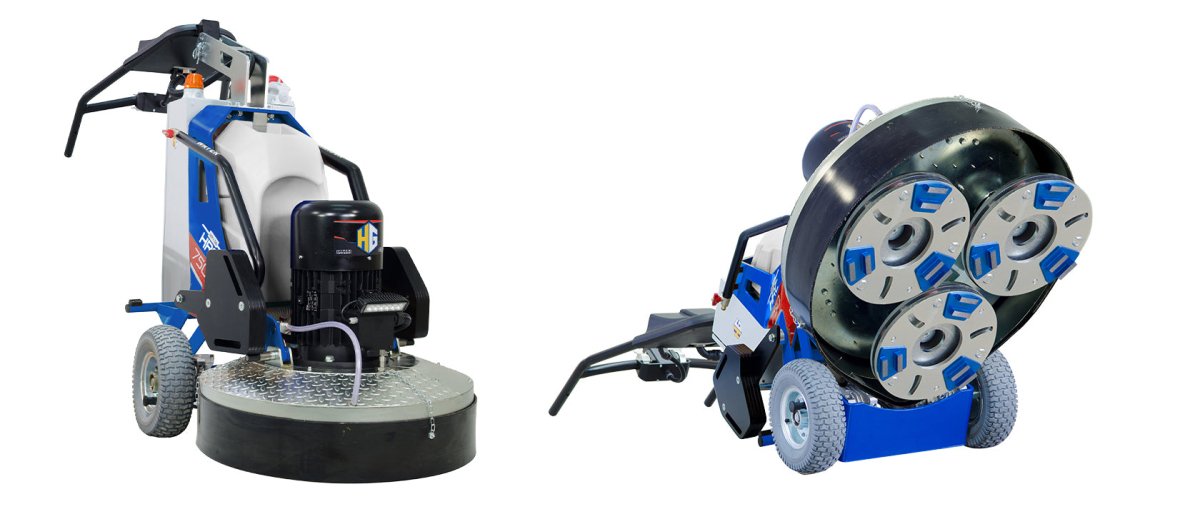

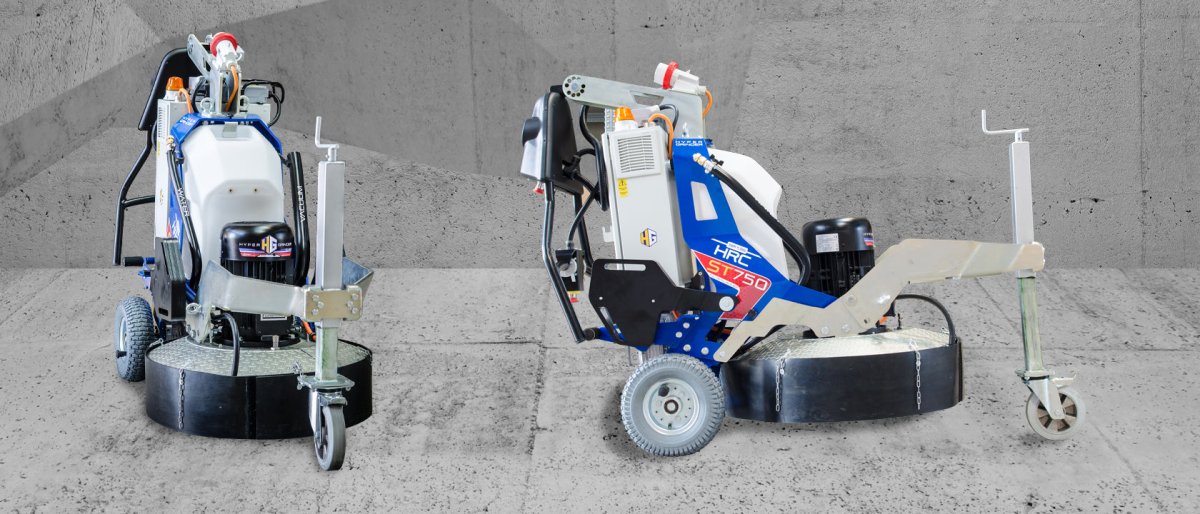

HRC 750 ST
SKU: HRC 750 ST
Floor Grinder With Dct System

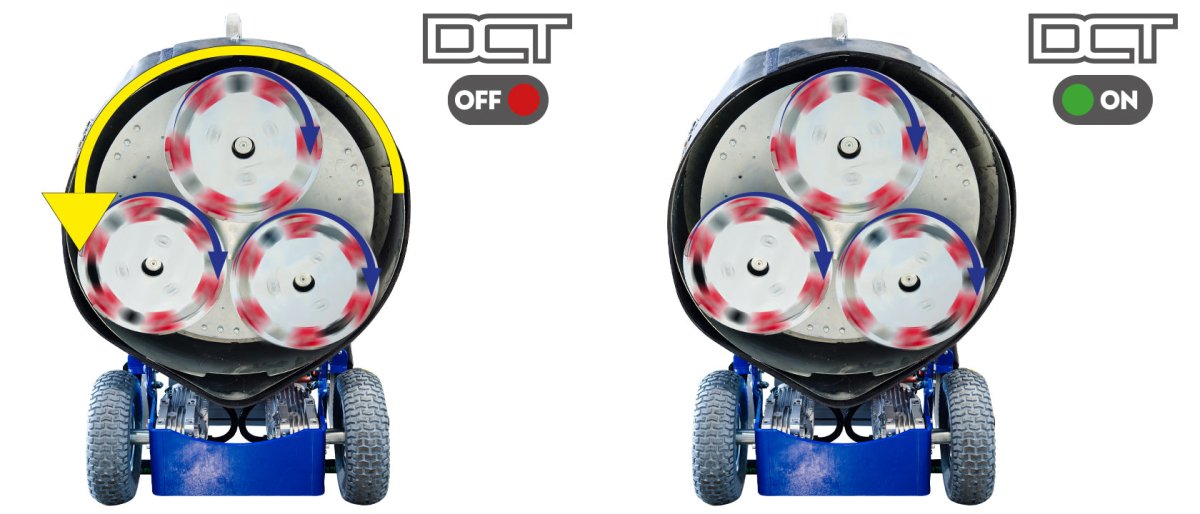

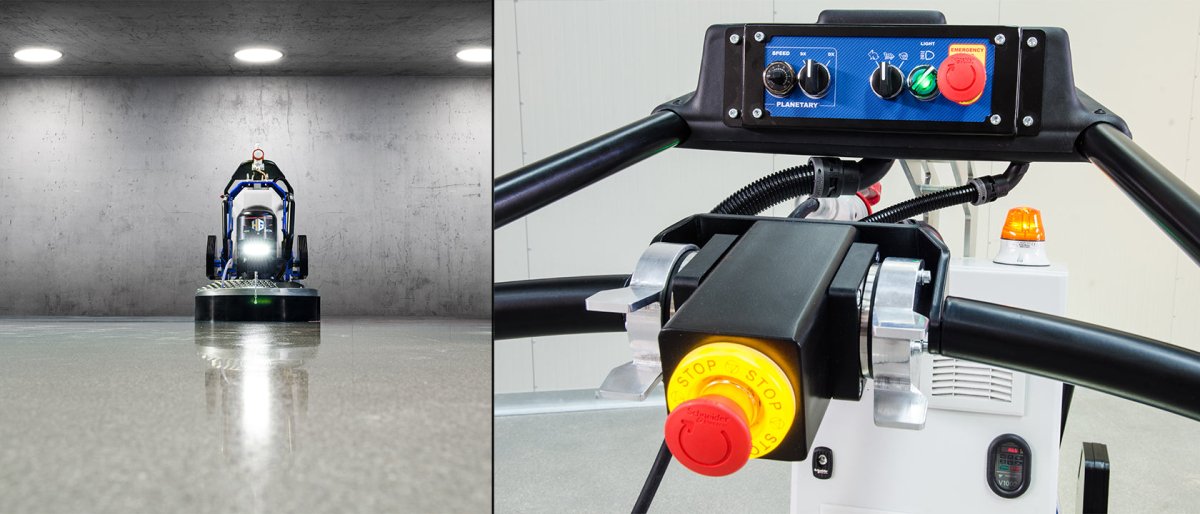

The new floor grinder HRC 750 SELF TRACK has 2 traction dedicated motors that allow to operate the machine in all directions. The ergonomic controls on the handle permits any operator to set and drive the drift control as well as the direction and the working speed of the machine. With the HRC 750 SELF TRACK, hourly productivity can be significantly increased by minimizing the risk of problems arising from manpower fatigue at the same time. The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).
MAIN CHARACTERISTICS:
- Tempered stainless steel planetary and gear box. Fully geared transmission.
- 180° overturning system for extra weight. (Optional).
- Third wheel for easy transportation and for operations on very large surfaces (Optional).
- Utensils free quick attachment system for diamond tools.

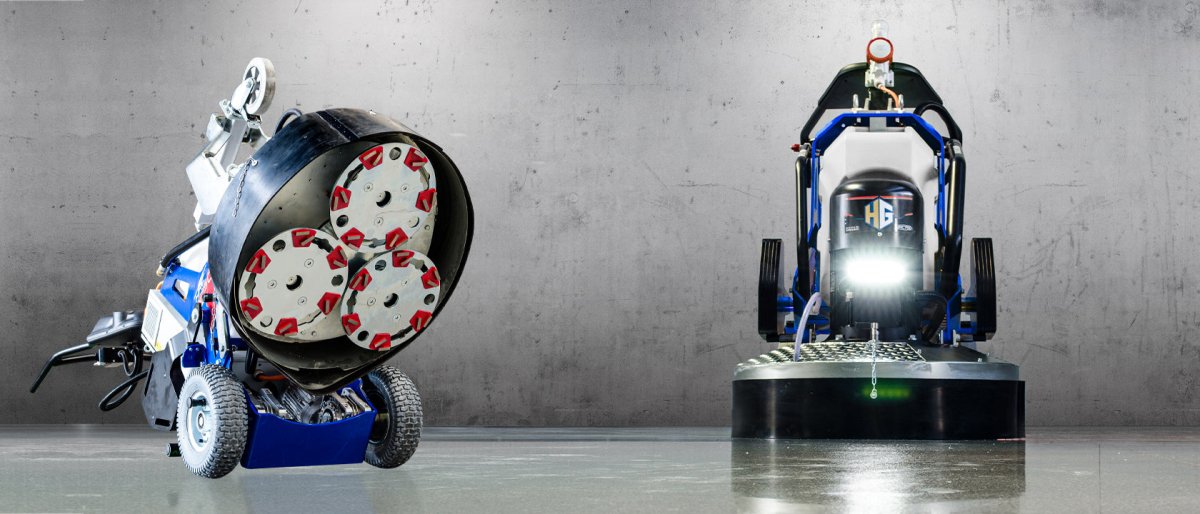

- Powerful front and rear LED spotlights (Optional).
- Noise reduction levitating planetarium.
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 20-30 m2/h |
| Concrete Grinding 1 step | 90-110 m2/h |
| Terrazzo Polishing 5 step | 20-25 m2/h |
| Resin Removal 1 step | 80-130 m2/h |
| Paint Removal 1 step | 80-130 m2/h |
| Marble Polishing 5 step | 8-13 m2/h |
| Granite Polishing 7 step | 5-7 m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | HRC 750 ST |
|---|---|
| Volume | 1.80 m3 |
| Size | 88x163x155 cm |
| Weight | 700 kg |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
