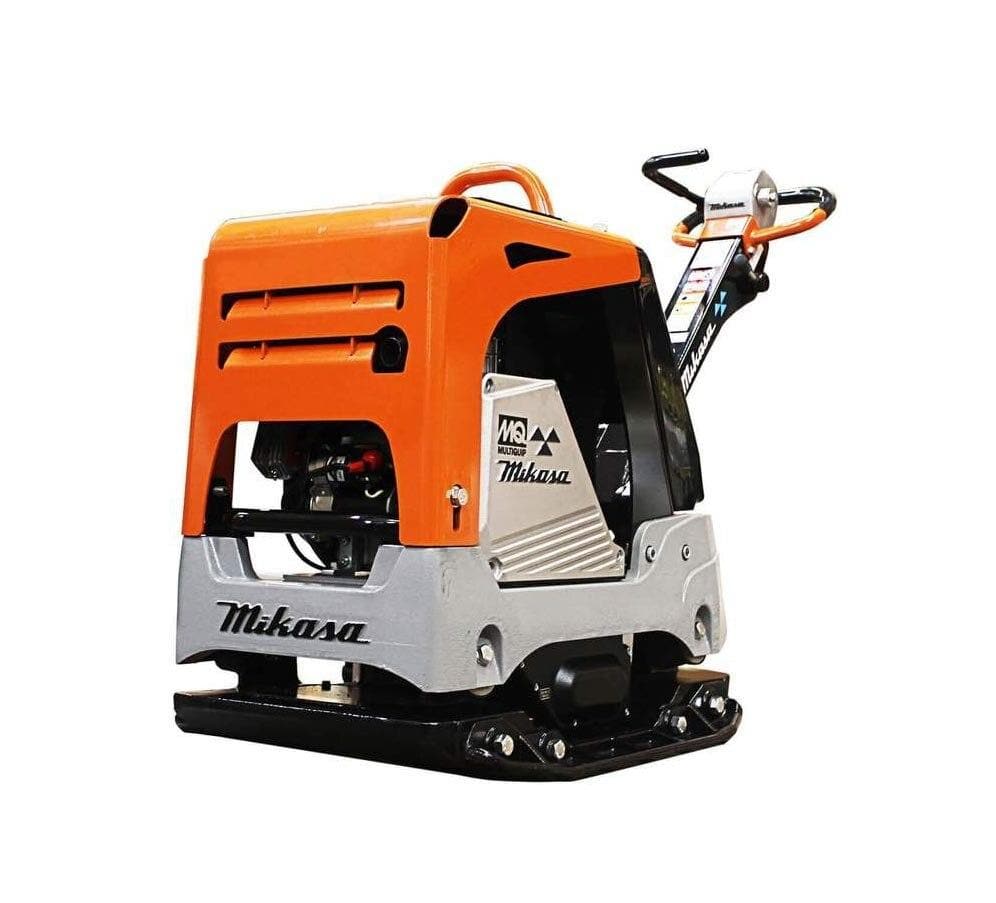

MVH208GH Reversible Plate Compactor are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils

8,318 lbs cf, Honda GX-240 Gas, 20" wide plate

Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

  • Reliable Honda GX240 engine.
  • Fold-out front cover for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.

Unit Specifications
Centrifugal Force 8318 lbf 37 kN
Exciter Speed 5200 VPM
Plate Size 28.3 x19.7 in
720 x 500 mm
Max Forward Speed
Per Min.
85 ft 26 m
Fuel Consumption
Per Hour
.67 gal 2.54 L
Dimensions & Weights
Overall Length 51.6 in 1311 mm
Overall Width 19.7 in 500 mm
Overall Height 39.2 in 996 mm
Operating Weight 463 lb 210 kg

Notice: Features and equipment specifications are subject to change without notice.
