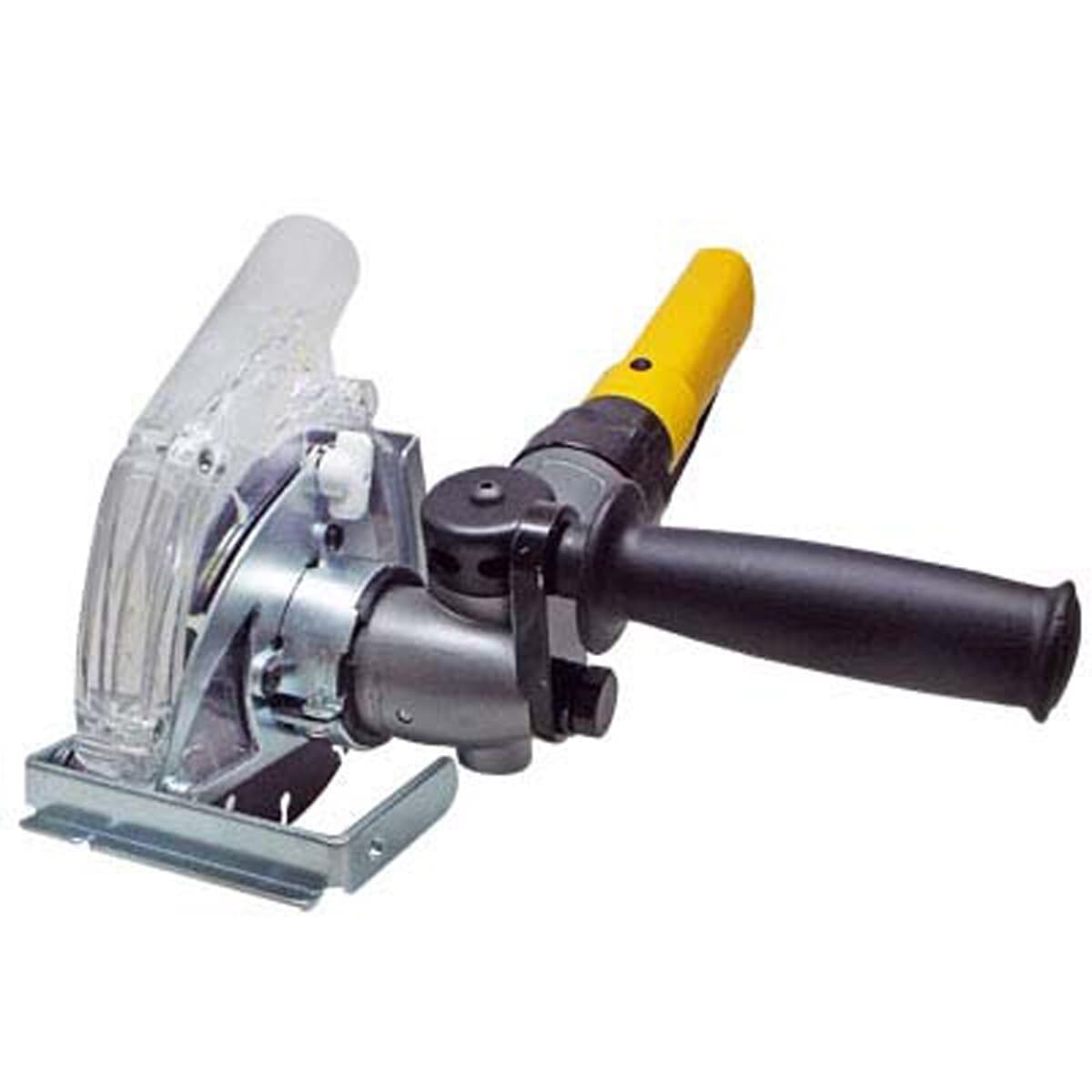

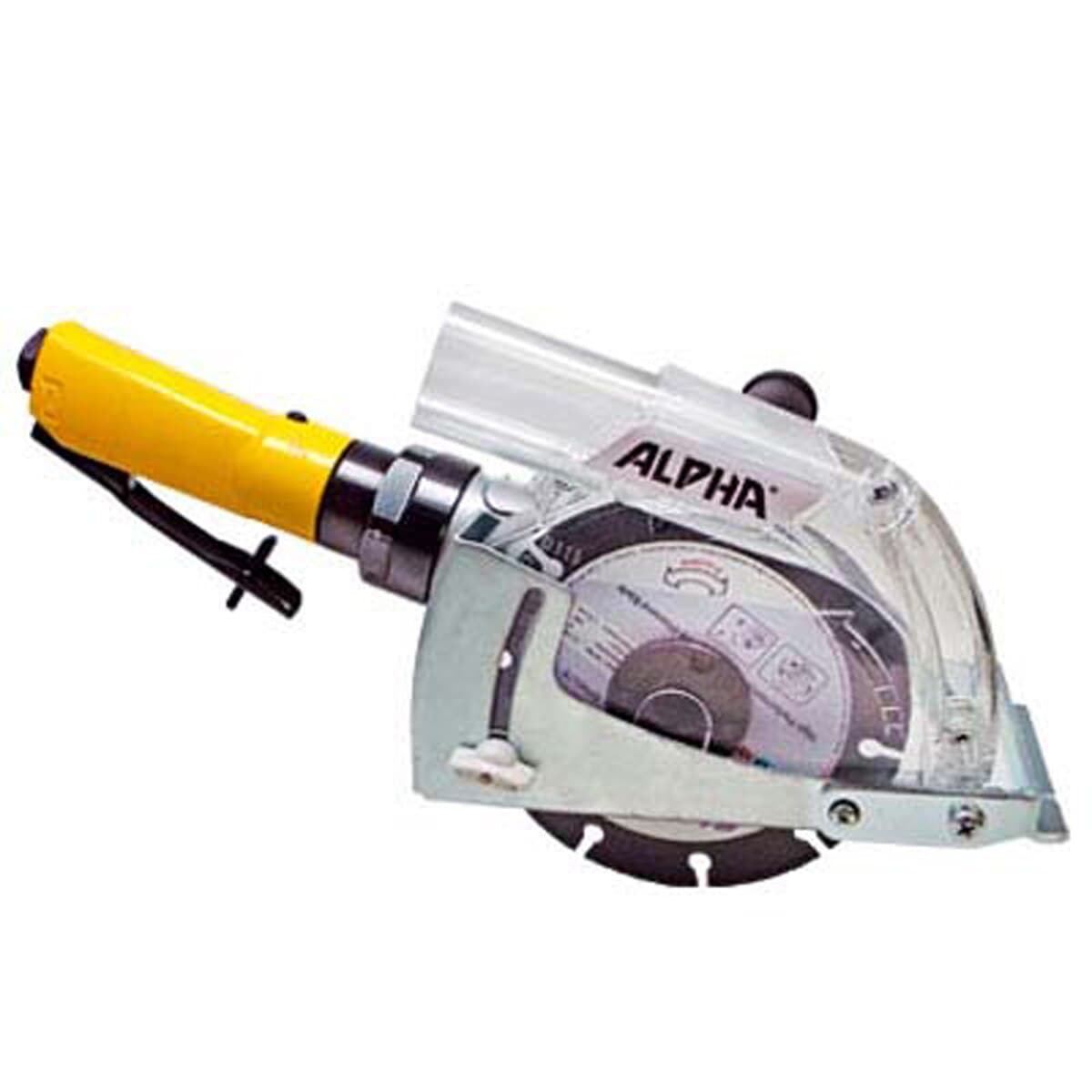

PSG-125 Diamond Cutting Kit

Dust Shroud and Masonry Saw

Alpha® is pleased to introduce the PSG-125 Diamond Cutting Kit. This system is recommended for virtually dust-free masonry cutting applications using a diamond blade. It fits not only standard cutting blades but also wide kerf blades for tuck pointing, crack chasing and grout removal. Also, great for curve cutting blades for sink-hole cut out applications. To keep the keep dust to a minimum, an optional water feed system is available.

• Virtually dust-free masonry cutting
• Fits wide kerf blades for tuck pointing, crack chasing and grout removal
• Powerful 1.4 HP motor with speed control governor
• Compact ergonomic aluminum body
• Optional water feed system available
• Reversible safety lever throttle
• Two auxiliary handle positions
• Adjustable rotating exhaust
• Built-in oil port for easy maintenance
• Kit Contains PSG-125 and Ecoguard W5 with Connector
• One Year Tool Warranty* (*See manual for details)

Product Details

• Model 5480-1301 (PSG-125)
• Air Pressure 90 PSI
• Air Consumption Max 33 CFM (934L/min)
• No Load RPM 12,000 RPM
• Weight 4.6 lbs / 2.1 kgs
• Length 11-3/4" / 298mm
• Air Inlet 3/8" NPT
• Spindle 5/8"-11
• Maximum disc capacity 5" x 1/4" x 7/8"
• Max. HP 1.4 HP

Equipment Included

• PSG-125 Pneumatic Grinder 1
• Ecoguard W5 Assembly/Connector 1
• Lock Nut with 7/8" Arbor 1
• Inner Flange 1
• Side Handle 1
• Hex Wrench (1/4") 1
• Pin Wrench 1
• Handle Bracket 1
• Hex Bolt (M12 x 16) 1
• Spring Washer (M12) 1
• Rubber Hose Connector 1
• Stainless Steel Hose Band 1
• Rust Inhibitor Oil (8oz / 237ml) (AIR-008) 1
