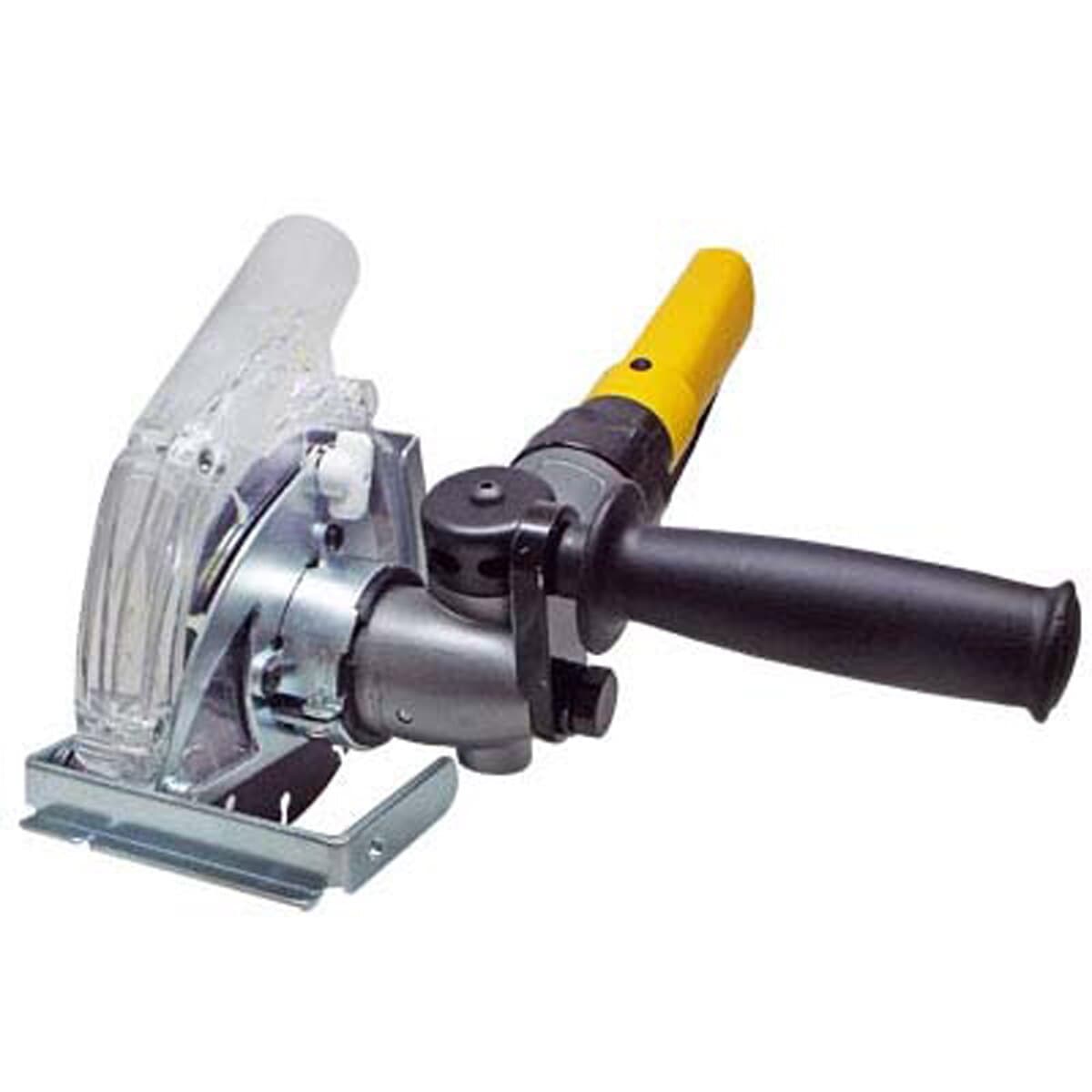

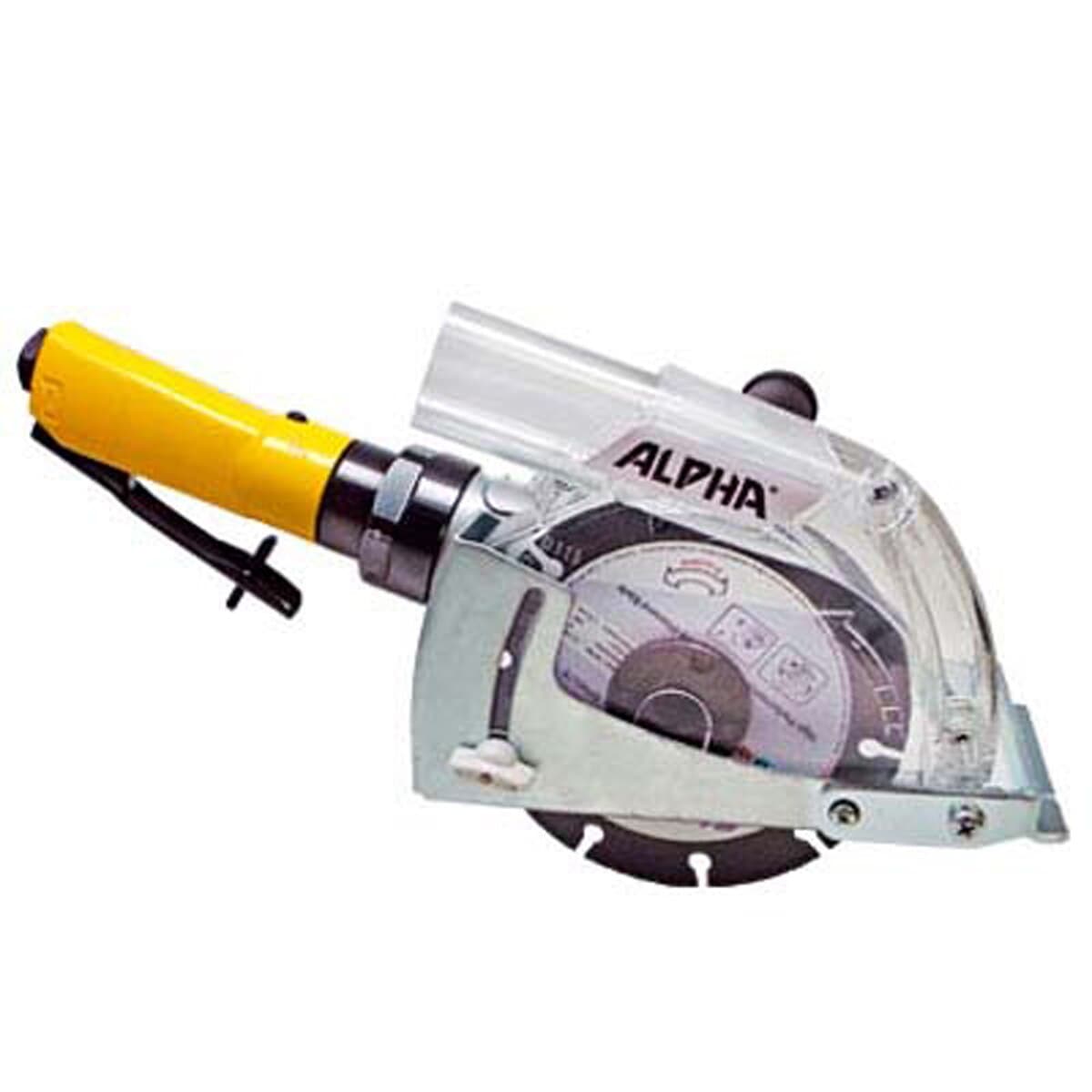

Dust Shroud and Masonry Saw

Alpha® is pleased to introduce the PSG-125 Diamond Cutting Kit. This system is recommended for virtually dust-free masonry cutting applications using a diamond blade. It fits not only standard cutting blades but also wide kerf blades for tuck pointing, crack chasing and grout removal. Also, great for curve cutting blades for sink-hole cut out applications. To keep the keep dust to a minimum, an optional water feed system is available.

  • Virtually dust-free masonry cutting
  • Fits wide kerf blades for tuck pointing, crack chasing and grout removal
  • Powerful 1.4 HP motor with speed control governor
  • Compact ergonomic aluminum body
  • Optional water feed system available
  • Reversible safety lever throttle
  • Two auxiliary handle positions
  • Adjustable rotating exhaust
  • Built-in oil port for easy maintenance
  • Kit Contains PSG-125 and Ecoguard W5 with Connector
  • One Year Tool Warranty* (*See manual for details)

Product Details

  • Model 5480-1301 (PSG-125)
  • Air Pressure 90 PSI
  • Air Consumption Max 33 CFM (934L/min)
  • No Load RPM 12,000 RPM
  • Weight 4.6 lbs / 2.1 kgs
  • Length 11-3/4" / 298mm
  • Air Inlet 3/8" NPT
  • Spindle 5/8"-11
  • Maximum disc capacity 5" x 1/4" x 7/8"
  • Max. HP 1.4 HP

Equipment Included

  • PSG-125 Pneumatic Grinder 1
  • Ecoguard W5 Assembly/Connector 1
  • Lock Nut with 7/8" Arbor 1
  • Inner Flange 1
  • Side Handle 1
  • Hex Wrench (1/4") 1
  • Pin Wrench 1
  • Handle Bracket 1
  • Hex Bolt (M12 x 16) 1
  • Spring Washer (M12) 1
  • Rubber Hose Connector 1
  • Stainless Steel Hose Band 1
  • Rust Inhibitor Oil (8oz / 237ml) (AIR-008) 1

Part No. Description
5480-1301 PSG-125 Diamond Cutting Kit
5.0
Rated 5.0 out of 5 stars
Based on 1 review
Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
1 review
  • K
    Kris
    Verified Reviewer
    ESC-125 Wet/Dry Stone Cutter
    Reviewing
    ESC-125 Wet/Dry Stone Cutter
    I recommend this product
    Rated 5 out of 5 stars
    2 days ago
    Excellent

    I mainly use the tool for removing of grout. I equipped a 1/4 in blade for the tile i service. Cuts Fast without getting caught or kickback. only tough thing is with the water flowing it is somewhat difficult to see where you are about to cut as the blade pushes the water into your cutting path. with the dirty water it is hard to see. Currently getting a shopvac setup to try and remove the water and grout waste during cutting to try to speed up the clean-up process. Been using the same blade now for a year and no slowing down seen. Purchased through amazon.
