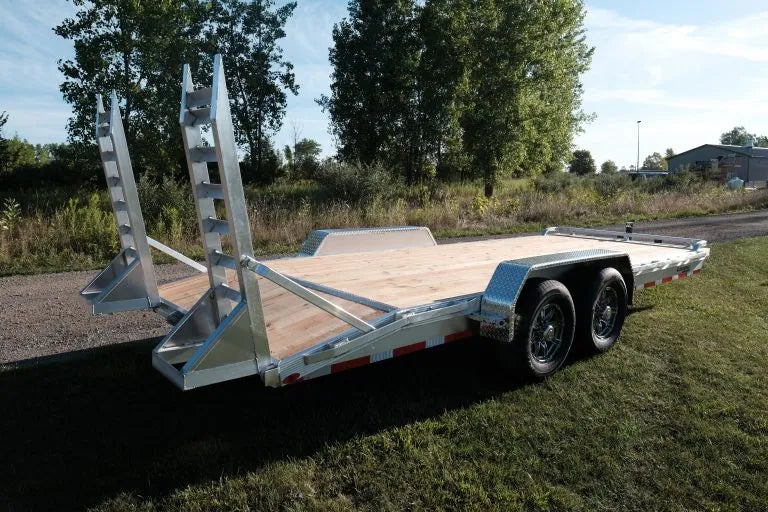

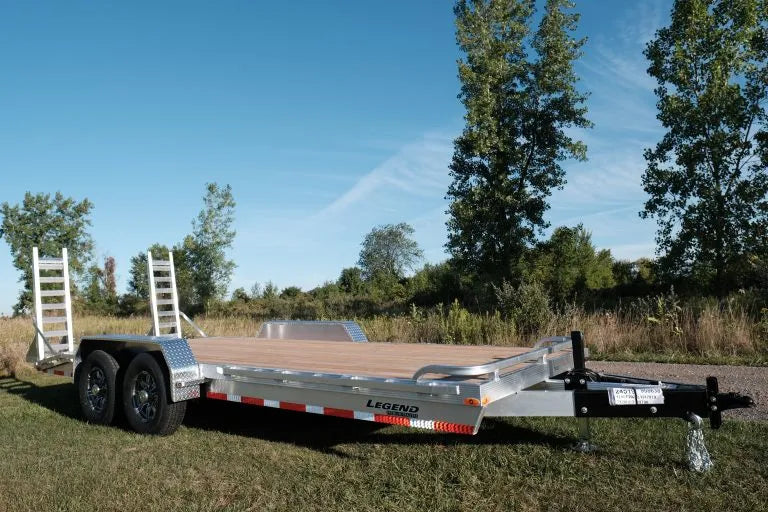

Medium & Heavy Duty Equipment Hauler Aluminum Open Trailers

Legend Medium & Heavy Duty Aluminum Open Equipment Hauler Trailers — Lightweight Strength for Demanding Jobsites

Introduced in 2019, Legend's Equipment Hauler series is an all-aluminum open trailer engineered for contractors and trades professionals who need maximum payload capacity without the weight penalty of steel. Available in both Medium Duty (MEQ) and Heavy Duty (HEQ) configurations, these trailers are purpose-built for hauling general cargo, heavy equipment, ATVs/UTVs, and lawn and landscape loads. The all-aluminum construction eliminates the rust and corrosion issues common with steel trailers, extending service life in demanding commercial environments. Four deck lengths are available in each duty rating, ranging from 7x18 to 7x24.

Technical Specifications

Medium Duty Equipment Hauler (MEQ) — Dimensional Specs by Model

Medium Duty Equipment Hauler (MEQ) — Common Specs (All Sizes)

Heavy Duty Equipment Hauler (HEQ) — Dimensional Specs by Model

Heavy Duty Equipment Hauler (HEQ) — Common Specs (All Sizes)

Unlike steel equipment trailers that are prone to rust and corrosion over time, Legend's all-aluminum construction delivers long-term durability with reduced trailer weight, allowing contractors to maximize payload within their tow rating. The choice between MEQ (up to 12,000# GVWR) and HEQ (14,000# GVWR) configurations means there is a purpose-matched option whether you're hauling landscape equipment or heavy construction machinery. The EZ-Lube torsion axle system on both duty ratings simplifies routine maintenance compared to traditional spring axle setups.

Key Features & Benefits

All-Aluminum Construction

The fully aluminum frame and structure eliminates the rust and corrosion that shortens the service life of steel trailers, particularly in wet or road-salt environments. For contractors running equipment year-round, this translates directly to lower long-term maintenance costs and a longer usable trailer life.

EZ-Lube Torsion Axles

Both MEQ and HEQ configurations use EZ-Lube torsion axles, which simplify bearing maintenance by allowing grease to be added without disassembly. Torsion axles also provide independent wheel suspension, reducing shock transfer to the trailer frame and cargo during transport.

Dual Electric Brakes

Two electric brakes are standard on both duty ratings, providing reliable stopping power appropriate for the GVWR range of these trailers. Electric brakes are a requirement for safe towing at these load capacities and reduce wear on the tow vehicle's braking system.

Flip Knee Ramps

Rear loading is handled via flip knee ramps on all models and sizes, enabling drive-on loading of wheeled equipment such as ATVs, UTVs, skid steers, and mowers. The flip knee design keeps ramps compact when not in use while providing a stable loading surface when deployed.

Stake Pockets with Chain Spools

Stake pockets are included as standard equipment on all models and come with integrated chain spools, giving contractors a built-in tie-down anchor system for securing heavy equipment loads. This eliminates the need to source and install aftermarket anchor points.

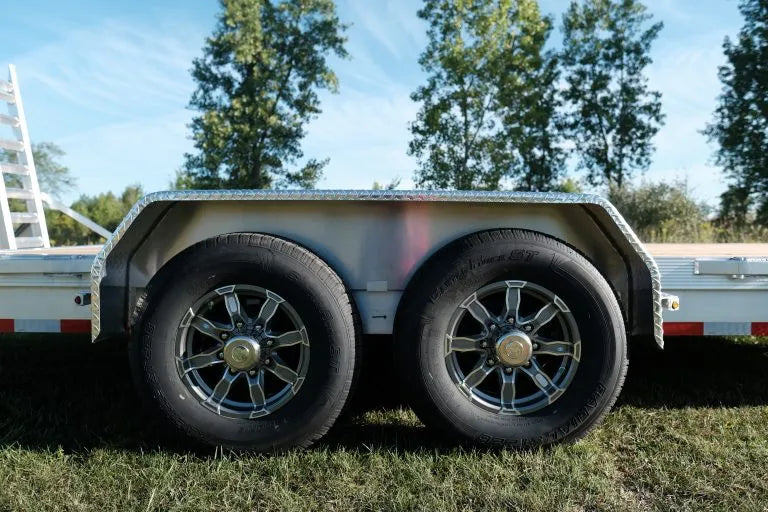

Removable HD ATP Fenders

Heavy-duty aluminum tread plate (ATP) fenders are removable, making it easier to access the tires and axles for maintenance or replacement. The ATP surface provides durability and resistance to impact from road debris.

Surface Mount LED Lighting

Surface-mounted LED exterior lighting is standard across all models, providing bright, low-current visibility for road compliance. LED fixtures have a longer service life than incandescent alternatives, reducing the frequency of lighting maintenance on a working trailer.

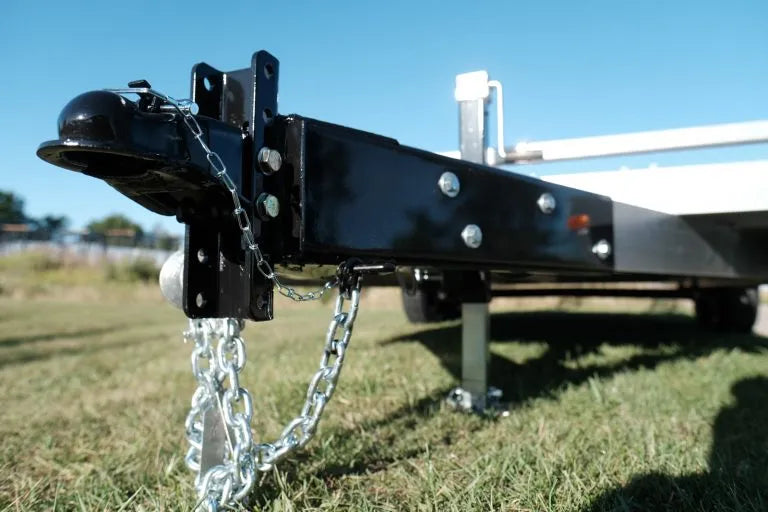

Steel-Reinforced Tongue

The 2″ x 6″ tube tongue includes steel reinforcement at the hitch point, addressing the high-stress area where aluminum alone may be insufficient for repeated heavy-load coupling cycles. This hybrid approach maintains the weight benefits of aluminum while adding strength where it counts most.

Common Applications

General Cargo Hauling

The open deck design and available lengths from 18 to 24 feet accommodate a wide range of general cargo loads for contractors moving materials between job sites.

Auto Hauling

The 82.25″ width between fenders and flip knee ramps make these trailers suitable for loading and transporting vehicles, including work trucks or equipment vehicles.

ATV / UTV Transport

The flip knee ramps and open deck provide straightforward drive-on loading for ATVs and UTVs used in site survey, landscaping, or utility work.

Lawn & Landscape Equipment

Landscape contractors can load zero-turn mowers, walk-behinds, and related equipment using the rear ramps, with stake pockets and chain spools available for securing loads.

Heavy Equipment

The HEQ configuration's 14,000# GVWR and 7,000# torsion axles support the transport of heavier construction equipment such as compact track loaders or small excavators within the rated capacity.

Compatible Materials

• General cargo and construction materials
• Automobiles and work vehicles
• ATVs and UTVs
• Lawn and landscape equipment (zero-turn mowers, walk-behinds)
• Heavy construction equipment (within rated GVWR)

Product Documents

• Medium Duty Equipment Hauler | Tandem Axle | Product Guide PDF
• Heavy Duty Equipment Hauler | Tandem Axle | Product Guide PDF
• Warranty Information

Frequently Asked Questions

Q: What is the difference between the MEQ and HEQ configurations?
A: The Medium Duty (MEQ) uses 5,200# torsion axles and has a GVWR of 9,990#–12,000#, while the Heavy Duty (HEQ) uses 7,000# torsion axles and has a GVWR of 14,000#. The HEQ also features a taller deck height (25.75″ vs. 24″) and a heavier 2″ x 7″ main frame tube compared to the MEQ's 2″ x 6″ frame.

Q: What sizes are available for each duty rating?
A: Both the MEQ and HEQ are available in four deck lengths: 7x18, 7x20, 7x22, and 7x24.

Q: Are tie-downs included as standard equipment?
A: Tie-downs are listed as optional on both MEQ and HEQ models. Stake pockets with chain spools are included as standard equipment and can serve as anchor points for load securement.

Q: What is the warranty coverage for these trailers?
A: Legend's Open Series trailers carry a 3-year structural warranty and a 1-year commercial use warranty for the original retail purchaser. Components such as tires, axles, brake components, lights, and wooden flooring are warranted by their respective manufacturers and are excluded from Legend's limited warranty. The warranty registration card must be completed and returned within 15 days of purchase to validate coverage.

Q: Can the fenders be removed for maintenance access?
A: Yes. Both MEQ and HEQ models are equipped with removable HD ATP fenders, allowing easier access to the tires and axle components for inspection and maintenance.
