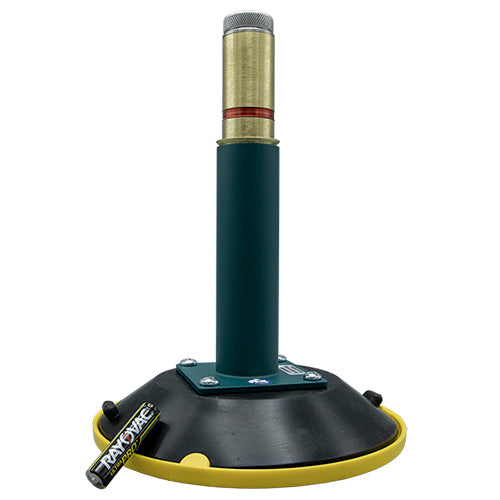

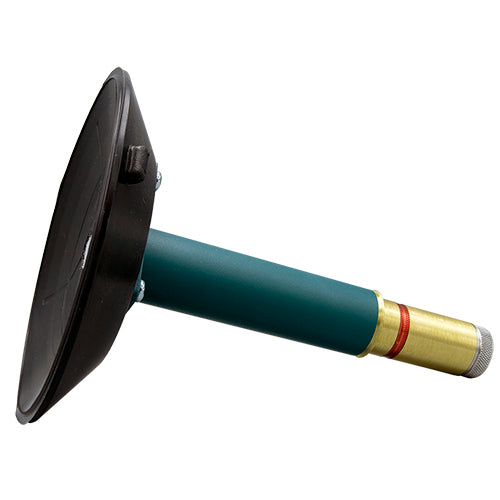

6" Vertical Hand Cup For Flat To Curved Surfaces With Low Vacuum Audio Alarm

Wood's Powr-Grip LJ6VHWBP — 6" All-Metal Vertical Handle Vacuum Hand Cup for Flat and Curved Surfaces with Low Vacuum Audio Alarm (70 lbs / 32 kg)

The Wood's Powr-Grip LJ6VHWBP is the premium safety version of the standard LJ6VH, adding a Low Vacuum Audio Alarm (LVAA) that emits an audible warning from the plunger when vacuum pressure drops to a critical level — providing a second, independent safety alert that does not require the operator to maintain visual contact with the red-line indicator during a lift. Featuring a 6" (15 cm) standard rubber suction pad (Model LJ6), an all-metal handle and plunger, and a rated load capacity of 70 lbs (32 kg) on flat and curved smooth, nonporous surfaces with a minimum radius of 12" (305 mm), the LJ6VHWBP is specifically recommended for windshield handling and other curved glass applications where the audio alarm provides critical vacuum loss warning during overhead or awkward-angle lifts where visual monitoring of the red-line indicator is not continuously possible. Battery powered (AAA battery included). The LJ6VHWBP (SKU: 91382, Model: LJ6VHWBP) is manufactured by Wood's Powr-Grip and ships with a vacuum pad protector.

The LJ6VHWBP is identical to the LJ6VH in pad, capacity, handle construction, and surface ratings — the sole differentiator is the Low Vacuum Audio Alarm plunger, which adds an audible warning channel to the existing red-line visual indicator. In windshield installation and automotive glass handling, the operator frequently works at awkward angles — reaching across the vehicle, positioning glass from outside the vehicle into the opening, or holding the glass overhead — where maintaining continuous visual contact with the red-line indicator on the cup body is difficult or impossible. The LJ6VHWBP’s audio alarm provides the critical vacuum loss warning that the visual indicator alone cannot reliably deliver in these orientations.

Key Features & Benefits

Low Vacuum Audio Alarm (LVAA) — Audible Warning During Vacuum Loss

The LJ6VHWBP’s defining feature is its Low Vacuum Audio Alarm plunger, which emits an audible warning signal when vacuum pressure drops to a critical level during a lift. This audio alarm operates independently of the red-line visual indicator, providing a second, redundant safety channel that alerts the operator — and nearby personnel — to vacuum loss even when the red-line indicator cannot be seen. For windshield installation and automotive glass handling, where the operator is frequently positioned at an angle that prevents direct sightline to the cup body, the audio alarm is the primary practical vacuum loss warning during the most critical phase of the lift. The LVAA is battery-powered (AAA battery included and user-replaceable).

Dual Safety Alerting — Audio Alarm Plus Red-Line Visual Indicator

The LJ6VHWBP retains the standard red-line visual indicator in addition to the audio alarm, providing two independent vacuum loss warning channels. The visual indicator remains the primary monitoring tool during lifts where the operator can see the cup; the audio alarm provides backup alerting when visual monitoring is not possible or is interrupted. This dual-channel safety design makes the LJ6VHWBP the highest-safety-specification 6" curved-surface hand cup in the standard WPG lineup.

Windshield and Curved Glass Handling — Specifically Recommended

The LJ6VHWBP is specifically recommended for windshield handling and automotive glass installation — the same application focus as the standard LJ6VH. The 6" LJ6 pad, 12" minimum radius, and 70 lb capacity are well-matched for the full range of automotive windshields, side glass, and rear windows encountered in auto glass installation. The audio alarm is particularly valuable in this application because windshield installation frequently requires the operator to position glass from outside the vehicle into the opening, hold the glass overhead, or reach across the vehicle body — all orientations where the red-line indicator on the cup body may not be visible.

All-Metal Handle and Plunger — Maximum Durability

Both the handle and plunger are constructed from metal, providing maximum structural rigidity and long-term durability for repeated professional use in auto glass installation and glazing environments. The all-metal construction resists deformation under sustained loads and delivers consistent vacuum engagement and release action over the tool’s service life. The audio alarm mechanism is integrated into the metal plunger assembly and powered by the AAA battery.

Flat and Curved Surface Compatibility (Min. 12" Radius)

The LJ6VHWBP is rated for both flat and curved smooth, nonporous surfaces with a minimum curved surface radius of 12" (305 mm), matching the standard LJ6VH. The 12" minimum radius accommodates most automotive windshield curvatures and the full range of curved architectural glass encountered in glazing work. The audio alarm is equally valuable on flat surface lifts where the operator’s position prevents visual monitoring of the indicator.

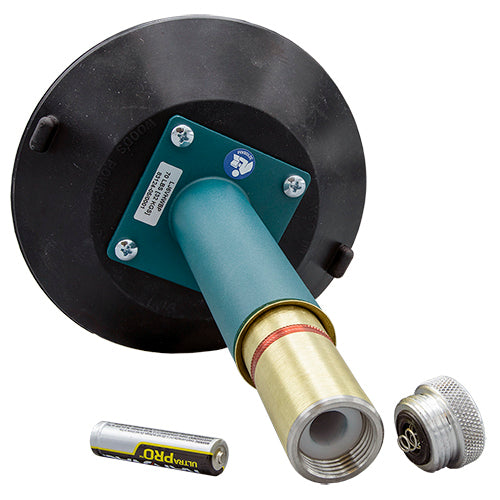

AAA Battery Included — Vacuum Pad Protector Included

The LJ6VHWBP ships with an AAA battery installed and ready for use. The battery is user-replaceable — verify battery condition before each use to ensure the audio alarm is operational. The LJ6VHWBP ships with a vacuum pad protector to keep the LJ6 pad clean and protected during storage and transport.

Common Applications

Automotive Windshield Installation and Replacement

Auto glass technicians use the LJ6VHWBP as the premium safety tool for windshield installation and replacement, where the operator frequently works at angles that prevent continuous visual monitoring of the red-line indicator. The audio alarm provides the critical vacuum loss warning during the most demanding phase of the lift — positioning the windshield into the vehicle opening — where a sudden cup release would result in a dropped windshield. This is the primary application that makes the LJ6VHWBP the correct choice over the standard LJ6VH for safety-conscious auto glass operations.

Automotive Side Glass and Rear Window Handling

Auto glass technicians handling side glass, quarter glass, and rear windows use the LJ6VHWBP where the glass must be positioned from outside the vehicle into the opening at angles that prevent visual monitoring of the indicator. The 12" minimum radius accommodates most automotive glass curvatures, and the audio alarm provides vacuum loss warning regardless of the operator’s position relative to the cup.

Overhead Glass Installation

Glaziers installing overhead glass panels — including skylights, overhead curtain wall units, and ceiling glass — use the LJ6VHWBP where the operator is looking upward during the lift and cannot maintain visual contact with the red-line indicator. The audio alarm provides the critical vacuum loss warning that the visual indicator cannot deliver in this orientation.

Curved Architectural Glass Handling

Glaziers handling curved architectural glass panels use the LJ6VHWBP for its combination of curved surface capability (min. 12" radius), 70 lb capacity, all-metal construction, and audio alarm safety feature. The audio alarm is valuable in any curved glass handling scenario where the operator’s position relative to the glass prevents continuous visual monitoring of the indicator.

Safety-Regulated Auto Glass and Glazing Environments

In auto glass shops, glazing operations, and construction environments where safety regulations, shop safety plans, or insurance requirements mandate redundant vacuum loss alerting for glass handling, the LJ6VHWBP’s dual-channel audio+visual alarm system satisfies requirements that the standard LJ6VH’s visual-only indicator cannot meet.

Compatible Materials

• Automotive windshields (curved, min. 12" radius)
• Automotive side glass, quarter glass, and rear windows
• Curved architectural glass (min. 12" radius)
• Flat plate glass and float glass
• Tempered and laminated safety glass (flat and curved)
• Polished stone tile and panels (flat and curved)
• Smooth painted or coated metal panels (flat and curved)
• Any smooth, nonporous flat or curved surface with min. 12" (305 mm) radius and load ≤ 70 lbs

Not compatible with: rough, textured, or porous surfaces; surfaces with radius tighter than 12" (305 mm); loads exceeding 70 lbs; surfaces contaminated with oil, wax, or debris in the pad contact area; concrete, brick, unpolished stone, wood, or drywall.

Application Instructions

Step 1: Pre-Use Battery and Alarm Check

1. Verify the AAA battery is installed and in good condition — test the audio alarm function before each use session. A dead or missing battery disables the audio alarm, leaving only the red-line visual indicator as the vacuum loss warning.
2. Confirm the audio alarm is audible in your specific work environment — in auto glass shops or noisy environments, verify the alarm volume is sufficient to be heard over ambient noise before relying on it as a warning channel.

Step 2: Surface and Material Assessment

1. Confirm the surface is smooth and nonporous — do not proceed on rough, textured, or porous surfaces.
2. For curved surfaces, confirm the radius is 12" (305 mm) or greater.
3. Verify the panel or object weight does not exceed 70 lbs (32 kg).
4. Clean the pad contact area — remove dust, oil, moisture, adhesive residue, and debris.

Step 3: Pad Inspection and Preparation

1. Inspect the LJ6 suction pad for cuts, cracks, hardening, or contamination. Replace if damaged.
2. Wipe the pad face clean before each lift.
3. Ensure the pad is at operating temperature (above 10°F / -12°C) before use.

Step 4: Attaching the Cup

1. Position the pad flat against the surface with full perimeter contact.
2. Engage the vacuum mechanism using the metal handle/plunger until firm resistance is felt.
3. Check the red-line vacuum indicator — confirm full vacuum before lifting.
4. Apply a controlled test load to verify seal integrity before committing to the full lift.

Step 5: Lifting, Positioning, and Release

1. Lift smoothly — avoid sudden jerking motions that can break the vacuum seal.
2. Monitor the red-line indicator when possible; rely on the audio alarm as the backup warning channel when visual monitoring is not possible (e.g., overhead lifts, windshield positioning).
3. If the audio alarm sounds during a lift, lower the load immediately to a stable surface — do not attempt to continue the lift or reposition the panel.
4. Do not exceed the 70 lb (32 kg) rated load capacity.
5. Lower the load fully to a stable surface before releasing the vacuum.
6. Engage the release mechanism slowly and in a controlled manner.
7. Clean the pad after use and store with the vacuum pad protector.

Technical Specifications

Safety Data Summary

Hazard Information

• A dead or discharged battery disables the audio alarm — verify battery condition before every use session; the red-line visual indicator remains active regardless of battery state
• The audio alarm volume may not be sufficient in all high-noise environments — verify alarm audibility in your specific work environment before relying on it as the primary warning channel
• If the audio alarm sounds during a lift, lower the load immediately — do not attempt to continue the lift
• Vacuum loss during a windshield or glass lift can result in sudden load drop, causing serious injury or property damage
• Overloading beyond 70 lbs (32 kg) rated capacity may cause sudden cup release without warning
• Use on surfaces with radius tighter than 12" (305 mm) will prevent full pad seal
• Damaged or contaminated suction pads must be replaced before use
• Operating below 10°F (-12°C) may degrade rubber pad performance and vacuum retention
• Do not use above 5,000 ft (1,500 m) elevation

Personal Protective Equipment

• Safety glasses or face shield when handling glass panels
• Cut-resistant gloves rated for automotive glass and architectural glass handling
• Steel-toed safety footwear
• Hearing protection where required — note that hearing protection may reduce the audibility of the audio alarm; assess alarm audibility with PPE in place before relying on it

Safe Handling

• Verify battery condition and test the audio alarm before every use session
• Confirm audio alarm audibility in your specific work environment, including with any PPE worn
• Inspect the pad and clean the contact area before each lift
• Never exceed the rated 70 lb load capacity
• Lower the load immediately if the audio alarm sounds or if vacuum loss is detected on the red-line indicator
• Store with the vacuum pad protector to maintain pad condition between uses

Frequently Asked Questions

Q: What is the difference between the LJ6VHWBP and the standard LJ6VH?
A: The LJ6VHWBP is identical to the LJ6VH in pad (LJ6), capacity (70 lb), handle construction (all-metal), and surface ratings (flat and curved, min. 12" radius). The sole difference is the Low Vacuum Audio Alarm plunger, which adds an audible vacuum loss warning to the standard red-line visual indicator. Choose the LJ6VHWBP for windshield installation, overhead glass lifts, or any application where visual monitoring of the red-line indicator is not continuously possible; choose the standard LJ6VH for applications where the visual indicator is sufficient.

Q: Why is the audio alarm especially important for windshield installation?
A: Windshield installation frequently requires the operator to position glass from outside the vehicle into the opening, hold the glass overhead, or reach across the vehicle body — all orientations where the red-line indicator on the cup body may not be visible. In these positions, the audio alarm is the only practical vacuum loss warning the operator can receive without interrupting the lift to check the indicator. A sudden cup release during windshield positioning would result in a dropped windshield, causing serious injury and property damage.

Q: What happens if the battery dies during a lift?
A: If the battery is dead or discharged, the audio alarm will not function — but the red-line visual indicator remains active regardless of battery state. Always verify battery condition before each use session to ensure both warning channels are operational. Replace the AAA battery immediately if the alarm does not function during pre-use testing.

Q: Is the LJ6 pad interchangeable with the standard LJ6VH?
A: Yes. The LJ6VHWBP and LJ6VH both use the LJ6 standard rubber pad (6" diameter), making replacement pads interchangeable between the two models. Replacement pads are available separately through Wood's Powr-Grip authorized distributors.

Q: Is this product made to order?
A: Yes. This product is made to order and all sales are final. Please confirm your surface type, curved surface radius, load requirements, and application environment before placing your order.
