8" Metal Hand Cup With Low-Marking Vacuum Pad for Flat Surfaces

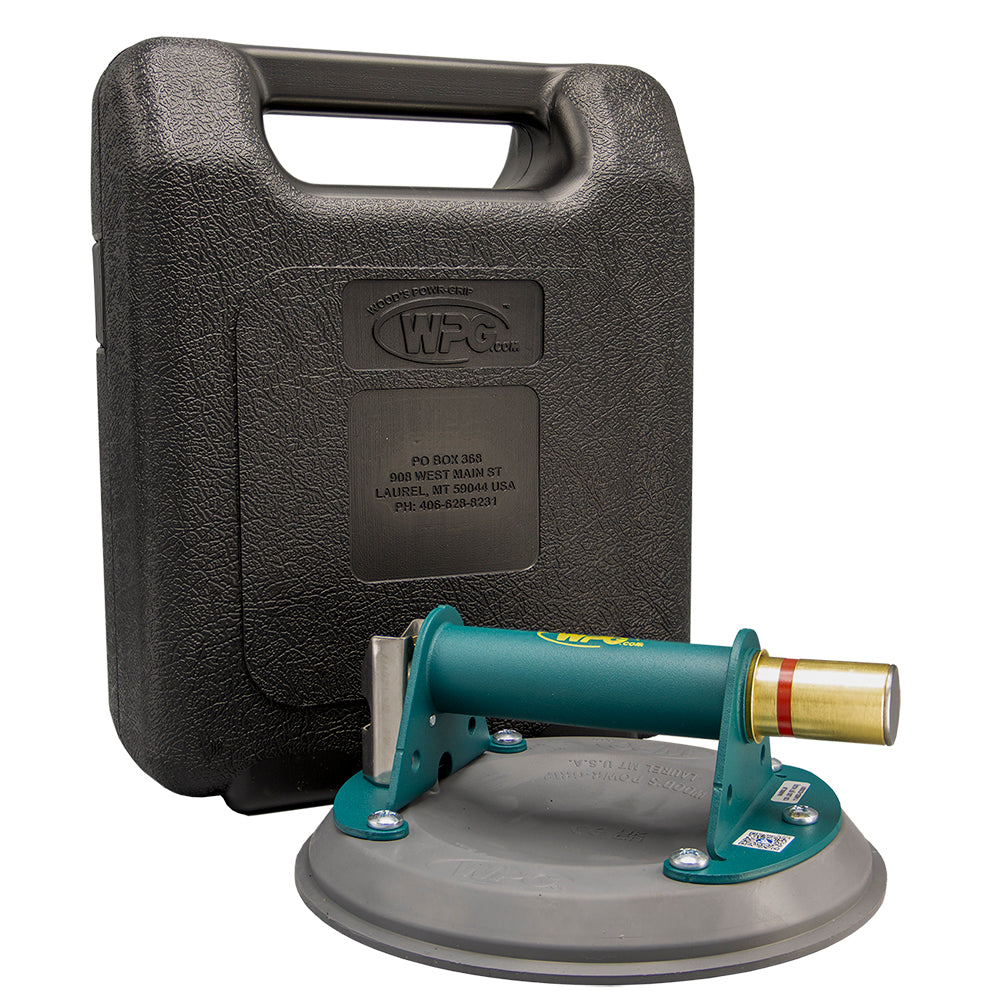

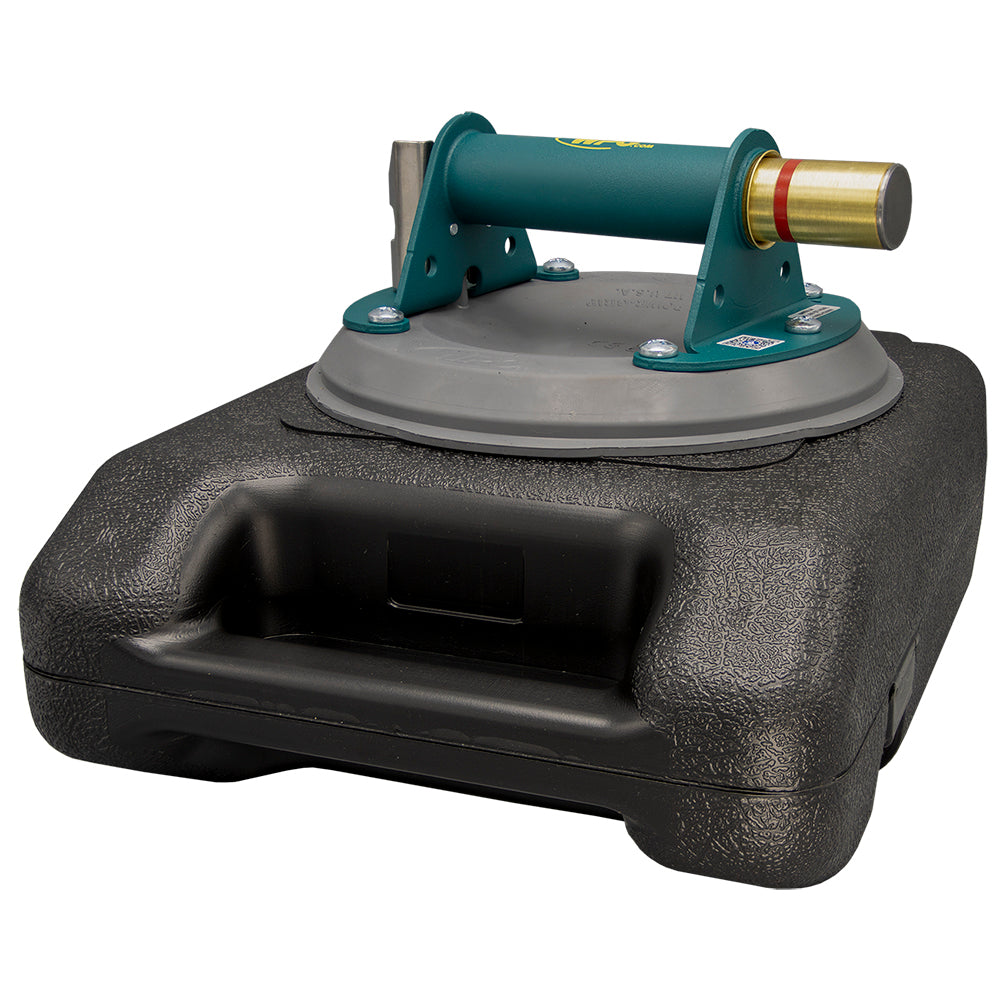

Wood's Powr-Grip N4950LLM — 8" All-Metal Handle Vacuum Hand Cup with Low-Marking Pad for Flat Smooth Surfaces (125 lbs / 57 kg)

The Wood's Powr-Grip N4950LLM is a professional-grade vacuum hand cup engineered for the safe lifting and handling of flat, smooth, nonporous surfaces where standard rubber compounds could leave marks, stains, or residue on the finished surface. Featuring an 8" (20 cm) low-marking rubber pad (Model VPFS8L), an all-metal handle and plunger, and a rated load capacity of 125 lbs (57 kg), the N4950LLM is the purpose-built choice for glaziers, stone installers, architectural panel handlers, and material handlers working with high-value finished surfaces — including coated glass, lacquered metal panels, polished stone, back-painted glass, and other smooth nonporous materials where surface appearance must be preserved after handling. The N4950LLM (SKU: 91505, Model: N4950LLM) is manufactured by Wood's Powr-Grip.

The N4950LLM is the all-metal, smooth-surface, low-marking counterpart to the N4000TS and N4950TS (both of which use the G0695TS low-marking pad for textured surfaces). Where the TS models are designed for textured and irregular surfaces, the N4950LLM uses the VPFS8L pad — a low-marking compound specifically formulated for smooth, nonporous flat surfaces where marking prevention is the primary concern and the surface is smooth enough for a standard pad geometry. The all-metal handle and plunger provide maximum structural rigidity and long-term durability for repeated professional use, making the N4950LLM the premium low-marking option for smooth flat surface applications.

Key Features & Benefits

Low-Marking Rubber Pad (Model VPFS8L) — Designed to Avoid Marks and Stains

The VPFS8L pad uses a rubber compound specifically formulated to minimize the risk of leaving marks, stains, or residue on finished smooth, nonporous surfaces. Standard rubber compounds can leave visible marks on high-value finished surfaces — particularly on coated glass, lacquered metal, polished stone, and back-painted glass — that are difficult or impossible to remove without damaging the finish. The VPFS8L’s low-marking compound is engineered to prevent this, making the N4950LLM the correct choice whenever surface appearance after handling is a critical requirement. This is the defining feature that distinguishes the N4950LLM from the standard N4000 and N4950, which use standard rubber compounds.

All-Metal Handle and Plunger — Maximum Durability

Both the handle and plunger are constructed from metal, providing maximum structural rigidity and long-term durability for repeated heavy-duty use in professional glazing, stone fabrication, and architectural panel installation environments. The all-metal construction resists deformation under sustained heavy loads and delivers consistent vacuum engagement and release action over the tool’s service life. For operations where low-marking capability and maximum handle durability are both required, the N4950LLM is the correct choice over the plastic-handle alternatives.

125 lb (57 kg) Rated Load Capacity

The N4950LLM is rated for loads up to 125 lbs (57 kg) on flat, smooth, nonporous surfaces — matching the standard N4000 and covering the majority of heavy glass panels, polished stone slabs, and large architectural panels encountered in professional installation work. Always confirm the actual panel weight before selecting this tool for a lift.

8" Low-Marking Pad — Large Contact Area on Smooth Surfaces

The 8" (20 cm) VPFS8L pad provides a large contact footprint for strong, stable vacuum retention on smooth flat surfaces. The low-marking compound is optimized for smooth, nonporous surfaces — unlike the G0695TS soft rubber used on the TS models, the VPFS8L is not designed for textured or irregular surfaces. Use the N4950LLM on smooth surfaces only; for textured surfaces requiring low-marking rubber, use the N4000TS or N4950TS.

Fast Attach and Release — Red-Line Vacuum Loss Indicator

The quick-engage vacuum mechanism allows rapid attachment and release without tools, supporting efficient workflows on high-value finished surfaces where handling speed and surface protection are both priorities. The built-in red-line indicator provides a continuous visual warning if vacuum pressure drops significantly during a lift — monitor it before and throughout every lift to ensure the low-marking pad maintains its seal on the finished surface.

Common Applications

Coated and Back-Painted Glass Handling

Glaziers and architectural glass installers handling coated glass, back-painted glass, and specialty glass products use the N4950LLM where standard rubber compounds could leave marks or residue on the coated surface that would be visible after installation. The low-marking VPFS8L pad is specifically designed to prevent this type of surface contamination.

Lacquered and High-Gloss Metal Panel Handling

Architectural metalwork installers handling lacquered aluminum panels, high-gloss coated steel, and other finished metal surfaces use the N4950LLM to prevent rubber marks on surfaces where any contamination would require refinishing. The all-metal handle provides the grip rigidity needed for controlled positioning of heavy metal panels.

Polished Stone and High-Value Stone Surface Handling

Stone fabricators and installers handling polished granite, marble, and engineered stone surfaces where standard rubber marks would be visible on the polished face use the N4950LLM to protect the surface finish during lifting and positioning. The 125 lb capacity covers most standard countertop sections and stone panels.

Decorative Architectural Panel Installation

Installers working with decorative architectural panels — including high-gloss composite panels, finished ACM, and specialty surface materials — use the N4950LLM where the panel surface finish must be preserved throughout the handling process and standard rubber marking is not acceptable.

Display Glass and Showcase Glass Handling

Retail fixture installers and display fabricators handling showcase glass, display case panels, and museum-quality glass use the N4950LLM to prevent any rubber residue or marks on glass surfaces that will be visible to end users after installation.

Any Smooth Flat Surface Where Marking is Unacceptable

For any smooth, nonporous flat surface application where standard rubber marking is a concern — regardless of material type — the N4950LLM is the correct choice when maximum handle durability is also required. The low-marking compound provides protection against surface contamination that standard rubber cups cannot offer.

Compatible Materials

• Coated and back-painted glass (flat)
• Lacquered and high-gloss metal panels (flat)
• Polished granite, marble, and natural stone (flat)
• Engineered stone and quartz composite (flat)
• High-gloss composite architectural panels (flat)
• Finished ACM (aluminum composite material) — smooth face (flat)
• Plate glass and float glass (flat) — where marking prevention is required
• Tempered and laminated safety glass — smooth face (flat)
• Display and showcase glass (flat)
• Any smooth, nonporous flat surface where standard rubber marking is unacceptable

Not compatible with: curved surfaces (flat only); rough, textured, or porous surfaces (use N4000TS or N4950TS for textured surfaces requiring low-marking rubber); surfaces contaminated with oil, wax, or debris in the pad contact area; concrete, brick, unpolished stone, wood, or drywall.

Product Documents

• N4950LLM Instructions (PDF)
• N4950LLM Troubleshooting Guide (PDF)

Application Instructions

Step 1: Surface Assessment

1. Confirm the surface is smooth, flat, and nonporous — do not proceed on rough, textured, porous, or curved surfaces. For textured surfaces requiring low-marking rubber, use the N4000TS or N4950TS instead.
2. Clean the pad contact area — remove dust, oil, moisture, and debris. Even with a low-marking pad, surface contamination can cause marks or affect seal performance.
3. Verify the panel weight does not exceed 125 lbs (57 kg).

Step 2: Pad Inspection and Preparation

1. Inspect the VPFS8L low-marking pad for cuts, cracks, hardening, contamination, or embedded particles. Replace if damaged — a contaminated low-marking pad can transfer debris to the finished surface.
2. Wipe the pad face clean with a lint-free cloth before each lift — any debris on the pad face can cause marks even with a low-marking compound.
3. Ensure the pad is at operating temperature (above 10°F / -12°C) before use.

Step 3: Attaching the Cup

1. Position the pad flat against the surface with full perimeter contact across the 8" diameter.
2. Engage the vacuum mechanism using the metal handle/plunger until firm resistance is felt.
3. Check the red-line vacuum indicator — confirm it shows a stable, full vacuum before lifting.
4. Apply a controlled test load (firm downward pull) to verify seal integrity before committing to the full lift.

Step 4: Lifting, Positioning, and Release

1. Lift smoothly — avoid sudden jerking motions that can break the vacuum seal.
2. Monitor the red-line indicator continuously throughout the lift and during positioning.
3. Do not exceed the 125 lb (57 kg) rated load capacity.
4. Lower the load fully to a stable surface before releasing the vacuum.
5. Engage the release mechanism slowly and in a controlled manner.
6. After release, inspect the surface for any marks — if marks are present, inspect the pad for contamination and clean before the next lift.
7. Clean the pad after use and store in a clean, protected location.

Technical Specifications

Safety Data Summary

Hazard Information

• Vacuum loss during a lift can result in sudden load drop, causing serious injury or property damage
• Overloading beyond 125 lbs (57 kg) rated capacity may cause sudden cup release without warning
• Use on curved, rough, textured, or porous surfaces will prevent a full pad seal — flat, smooth surfaces only
• Pad contamination can cause marks on finished surfaces even with a low-marking compound — inspect and clean the pad before every lift
• Damaged or contaminated VPFS8L pads must be replaced before use
• Operating below 10°F (-12°C) may degrade rubber pad performance and vacuum retention
• Do not use above 5,000 ft (1,500 m) elevation

Personal Protective Equipment

• Safety glasses or face shield when handling glass panels
• Clean, lint-free gloves when handling high-value finished surfaces to prevent fingerprint contamination
• Cut-resistant gloves rated for glass and stone handling
• Steel-toed safety footwear

Safe Handling

• Inspect and clean the VPFS8L pad with a lint-free cloth before every lift — debris on the pad face can cause marks even with a low-marking compound
• Clean the pad contact area on the work surface before attaching
• Never exceed the rated 125 lb load capacity
• Monitor the red-line indicator continuously — lower the load immediately if vacuum loss is detected
• Inspect the surface after release for any marks — if marks appear, identify and address the contamination source before the next lift
• Store the pad in a clean, protected location to prevent contamination between uses

Frequently Asked Questions

Q: How does the N4950LLM differ from the standard N4000 and N4950?
A: All three are 8" flat-surface cups with 125 lb capacity and all-metal construction (N4950 and N4950LLM) or plastic construction (N4000). The N4950LLM uses the VPFS8L low-marking rubber pad instead of the standard G0695, specifically to prevent marks and stains on finished smooth surfaces. Choose the N4950LLM when surface appearance after handling is a critical requirement; choose the N4000 or N4950 for standard smooth surface applications where marking is not a concern.

Q: How does the N4950LLM differ from the N4000TS and N4950TS?
A: The TS models (N4000TS and N4950TS) use the G0695TS low-marking soft rubber pad designed for textured and irregular surfaces. The N4950LLM uses the VPFS8L low-marking pad designed for smooth surfaces only. Choose the N4950LLM for smooth flat surfaces where marking prevention is required; choose the N4000TS or N4950TS for textured or irregular surfaces requiring low-marking rubber.

Q: Will the low-marking pad guarantee no marks on my surface?
A: The VPFS8L low-marking compound is specifically formulated to minimize the risk of marks and stains, but “low-marking” does not mean “zero-marking” in all conditions. Pad contamination — from dust, oil, or debris on the pad face — can cause marks even with a low-marking compound. Always inspect and clean the pad with a lint-free cloth before every lift, and clean the surface contact area before attaching. Inspect the surface after release and address any contamination source immediately.

Q: What replacement pad does the N4950LLM use?
A: The N4950LLM uses the VPFS8L low-marking rubber pad (8" diameter). This is a different pad model from the G0695 (standard N4000/N4950) and G0695TS (N4000TS/N4950TS) — do not substitute a standard or TS pad on the N4950LLM for smooth surface low-marking applications. Replacement pads are available through Wood's Powr-Grip authorized distributors.

Q: Is this product made to order?
A: Yes. This product is made to order and all sales are final. Please confirm your surface type, flatness, and load requirements before placing your order.
