Wood's Powr-Grip MRTA8 Series Rotator/Tilter Vacuum Lifter — Heavy-Duty Lifting with Intelli-Grip® Technology

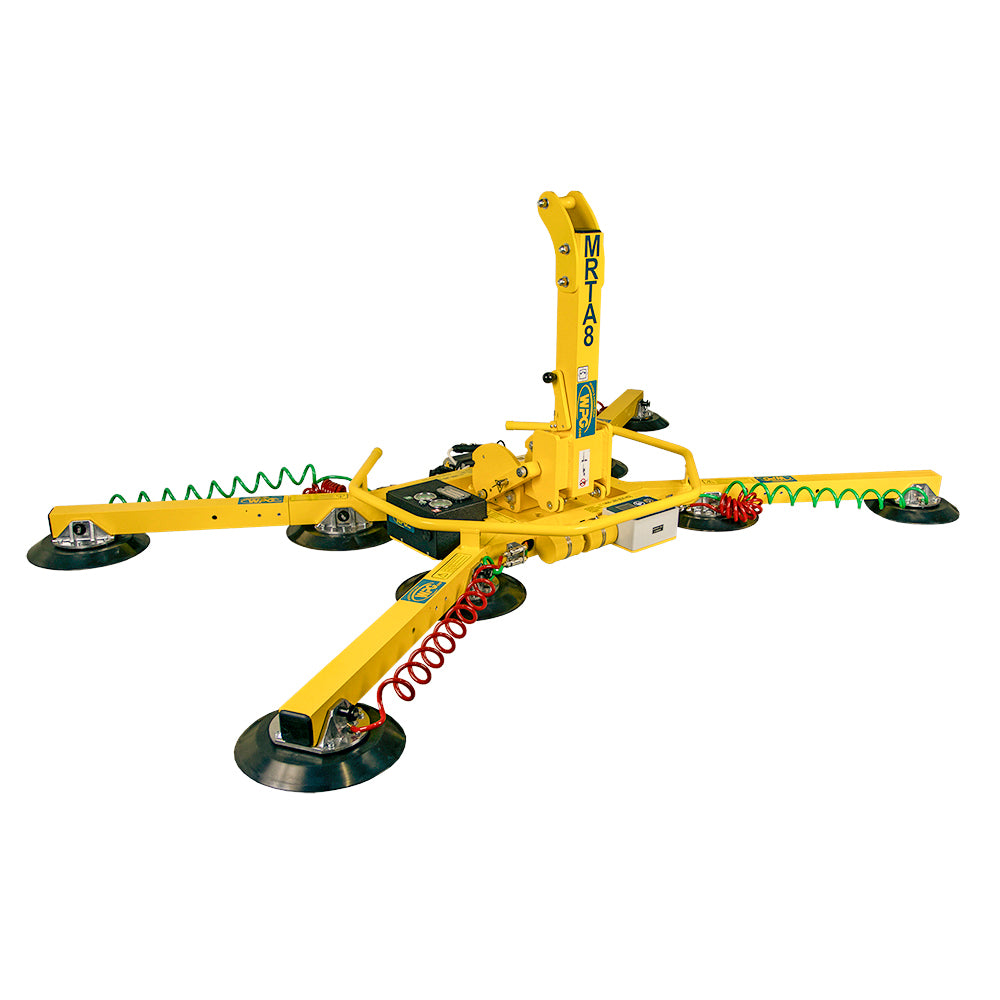

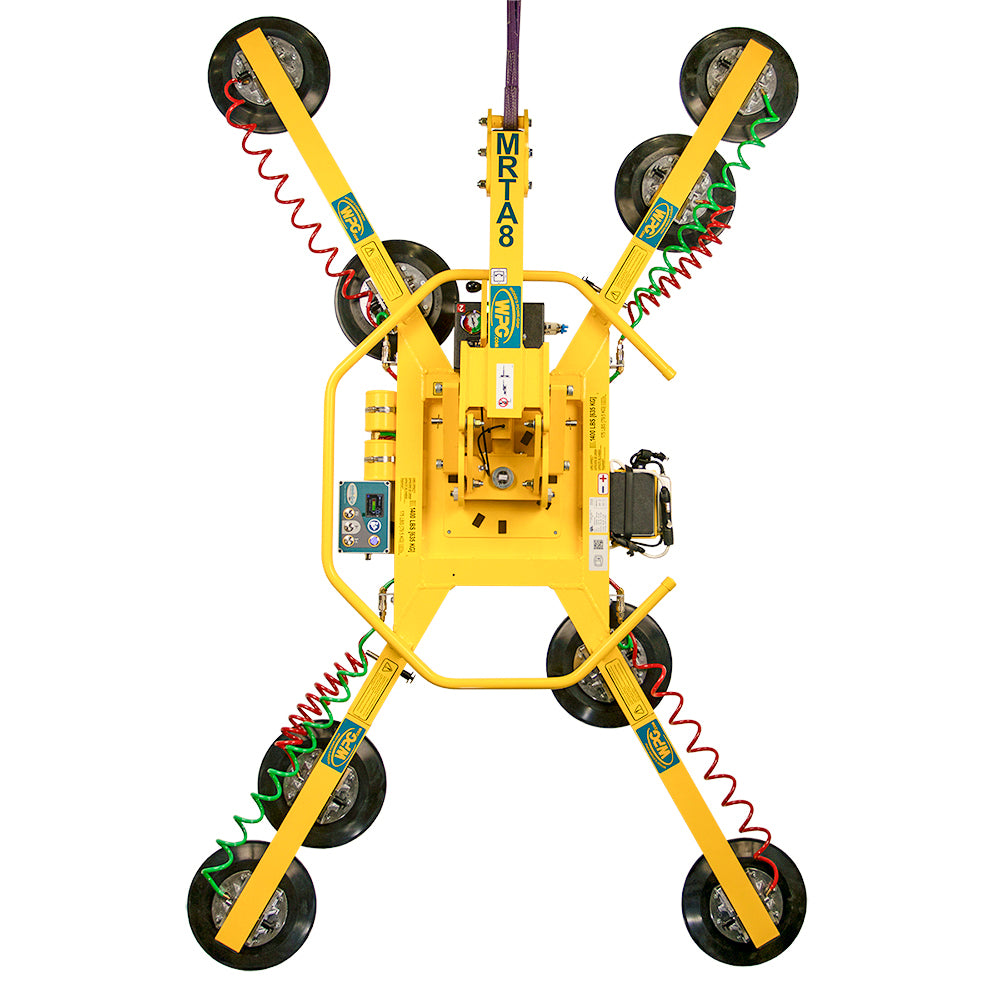

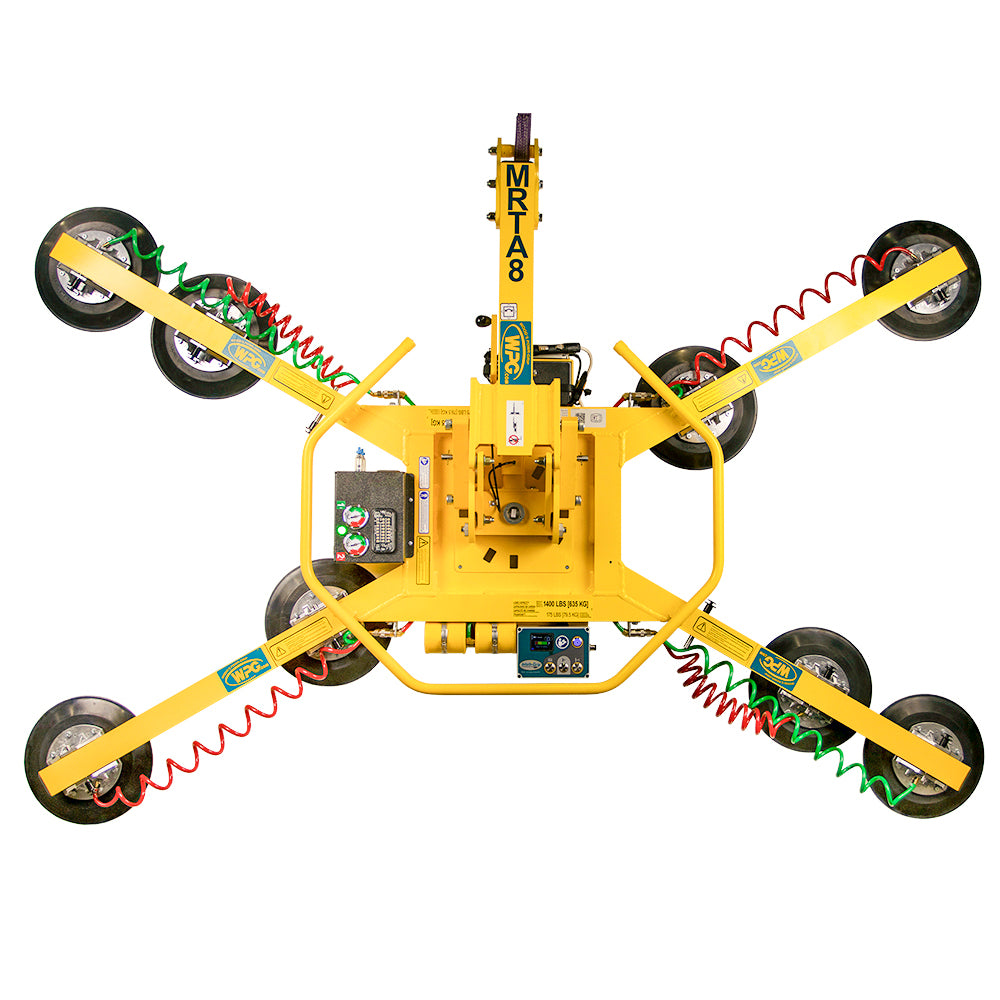

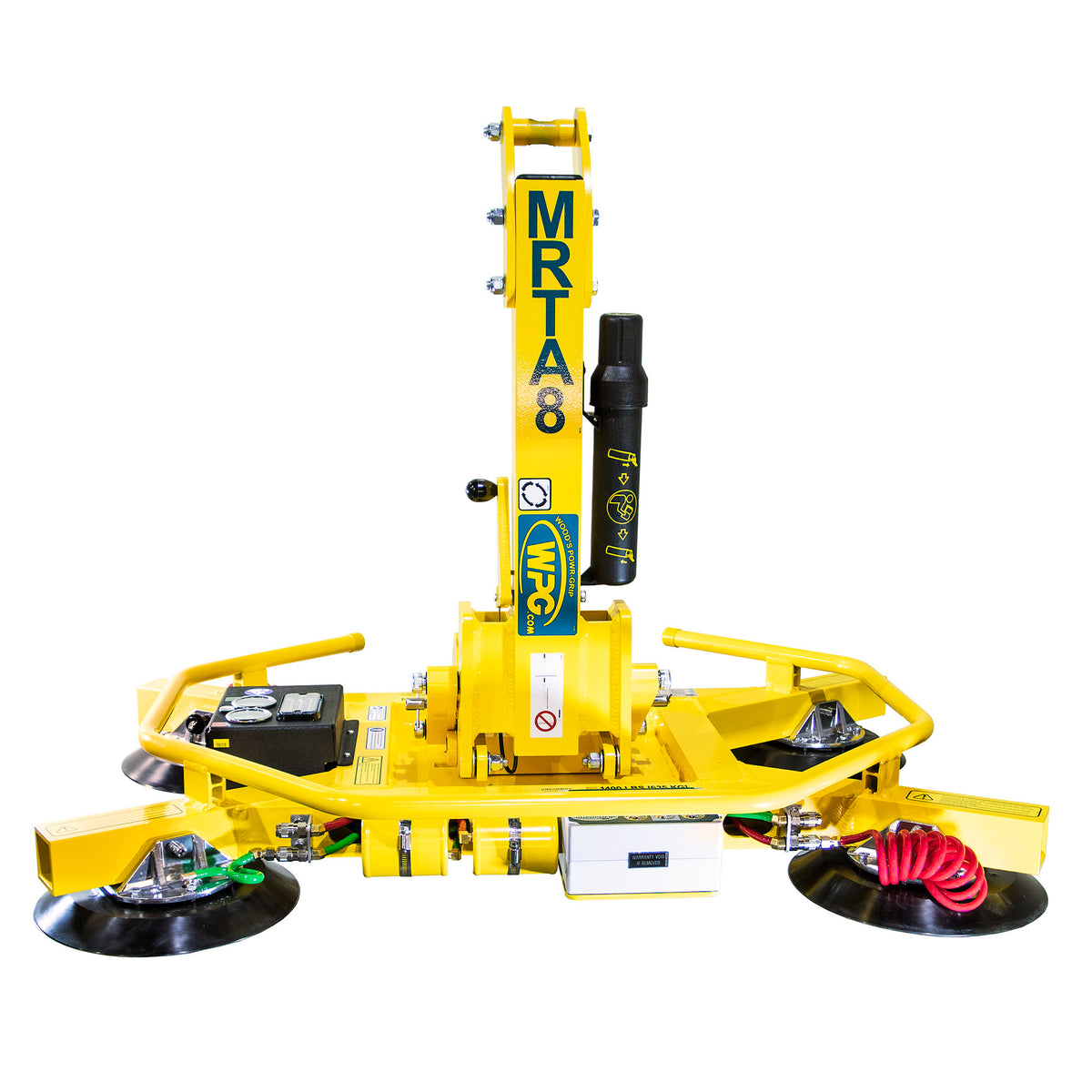

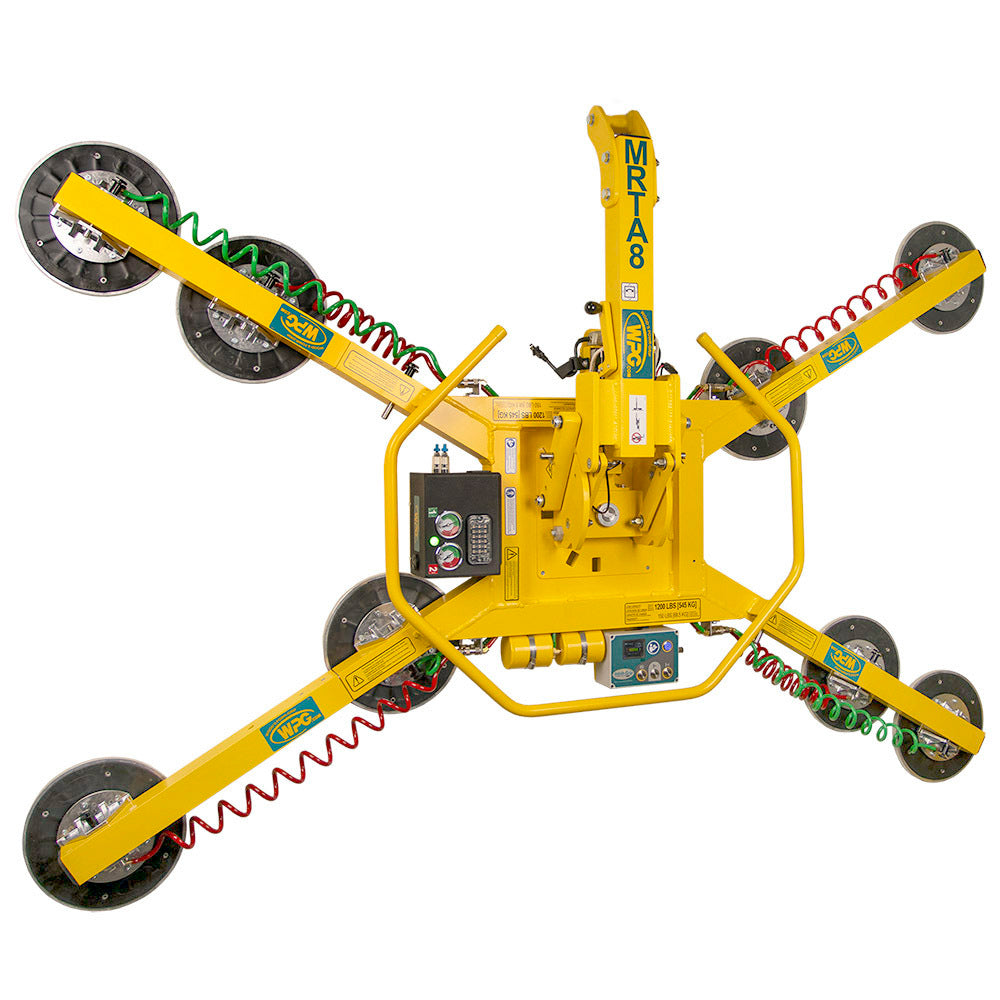

The Wood's Powr-Grip MRTA8 Series is a professional-grade rotator/tilter vacuum lifter designed for contractors and installation professionals handling large, heavy materials such as glass panels, insulated metal panels (IMPs), and other flat or textured surfaces. Available in two configurations — the MRTA811LDC3 for smooth surfaces (up to 1,400 lbs) and the MRTA810TDC3 for textured surfaces (up to 1,200 lbs) — these DC-powered lifters are built for demanding construction and installation environments. The MRTA8 series combines full rotation, quad-axis tilt, and a dual vacuum system to give operators precise, safe control over heavy loads at any stage of the lift.

Unlike conventional vacuum lifters, the MRTA8 series features Intelli-Grip® Technology, which actively monitors vacuum and power systems in real time, automating diagnostics and safety checks that would otherwise require manual intervention. The result is a lifter that is safer to operate, easier to maintain, and more efficient on multi-story and complex installation projects than competing units without integrated monitoring systems.

Key Features & Benefits

Intelli-Grip® Technology

Intelli-Grip® continuously monitors the vacuum and power systems, displaying real-time diagnostic codes and status information so operators can identify issues before they become hazards. It simplifies maintenance and repairs by guiding service personnel through diagnostic procedures, reducing downtime on the job site. This system also supports a mobile app for remote data submission directly to Wood's Powr-Grip for advanced troubleshooting support.

Dual Vacuum System

The MRTA8 series uses a Dual Vacuum System with two independent vacuum circuits (red and green), ensuring that if one circuit experiences a leak or fault, the other maintains holding force on the load. This redundancy is a critical safety feature when lifting high-value or hazardous materials like large glass panels at elevation. Each circuit is individually monitored and displayed via onboard vacuum gauges.

Tilt-Assist

The tilt-assist mechanism allows operators to tilt heavy materials more safely and with less physical effort, reducing operator fatigue and risk of injury during installation. This is especially valuable when setting large panels or glass into frames where precise angular positioning is required. Tilt locks engage and disengage to secure the load at the desired angle during placement.

Movable and Removable Vacuum Pads with Extension Arms

Vacuum pads are repositionable and removable, and the lifter accommodates extension arms to adapt the pad frame configuration to a wide variety of load sizes and shapes. This versatility means contractors can use a single lifter across multiple material types and project sizes without swapping equipment. Pad frame reconfiguration is straightforward and designed for field adjustment.

DC Power with Optional Remote Control

DC power makes the MRTA8 series fully cordless and suitable for use at any elevation or location on a job site without proximity to an AC power source. The optional Remote Control System (Stock# 59906) extends operator control up to 250 ft (76 m), enabling safe, precise operation when installing windows and panels on multi-story buildings from a distance. The remote system uses a plug-and-play connection for fast setup.

Quadra-Tilt Rotation

The MRTA8 series provides full rotation of the load in addition to quad-axis tilt capability, giving operators complete control over load orientation during pick, transport, and placement. Secondary rotation stops can be configured to limit rotation range as required for specific applications. This level of control is essential for complex glazing and panel installation tasks.

Common Applications

Commercial Glazing and Window Installation

The MRTA811LDC3 is ideal for lifting and placing large glass panels, storefronts, and curtain wall units, with smooth-surface pads providing secure adhesion to glass. The optional remote control allows a single operator to guide placement from up to 250 ft away on multi-story facades.

Insulated Metal Panel (IMP) Installation

The MRTA810TDC3 is specifically designed for textured surfaces such as IMPs, providing reliable vacuum adhesion on surfaces that would defeat standard smooth-surface pads. Contractors installing building envelope panels can handle large, heavy sections safely and efficiently.

Multi-Story Building Envelope Work

With DC power and an optional long-range remote control system, the MRTA8 series is well-suited for crane-assisted or aerial lift-based installation of panels and glass at height. The Intelli-Grip® system provides continuous monitoring to maximize safety when the load is elevated.

Prefabricated Panel Placement

The adjustable pad frame and extension arms accommodate a range of prefabricated panel sizes, making the MRTA8 series adaptable to modular construction workflows. Tilt-assist and full rotation allow panels to be oriented precisely for connection to the building structure.

Architectural Glass and Specialty Glazing

For high-value architectural glass applications where surface protection and precise placement are critical, the MRTA8 series provides controlled, damage-free handling. The dual vacuum system's redundancy adds an additional layer of protection for expensive or irreplaceable materials.

Transport and Repositioning of Heavy Flat Materials

On-site material handling of large flat sheets — glass, stone, composite panels — is simplified by the lifter's rotation and tilt capabilities. The optional MRT Dolly (Stock# 98790) allows for easy ground-level transport and storage between lifts.

Compatible Materials

• Flat, smooth glass panels (MRTA811LDC3)
• Flat, textured surfaces including Insulated Metal Panels / IMPs (MRTA810TDC3)
• Architectural and commercial glazing units
• Curtain wall and storefront components
• Composite and prefabricated building panels
• Other flat, non-porous smooth surfaces compatible with vacuum adhesion
• Other flat, textured non-porous surfaces compatible with vacuum adhesion

Product Documents

• Operating Instructions — MRTA8-DC3 Series
• Service Manual — DC3 Dual Vacuum System with Intelli-Grip®
• Troubleshooting / Leak Test Procedure — DC3 Intelli-Grip Lifters
• Specifications Sheet — MRTA811LDC3 / MRTA810TDC3
• Operating Instructions — Remote Control System (Stock# 59906)
• Specifications Sheet — Remote Control System Option
• Instructions — Shipping/Storage Case (Stock# 53007)
• Instructions — MRT Dolly (Stock# 98790)
• Specifications Sheet — MRT Dolly Option
• Instructions — Forklift Adapter Option
• Instructions — Curved Pad Frame Adapter Option
• Specifications Sheet — Curved Pad Frame Adapter Option
• Instructions — Pad Mount Extensions / Adjustable Spacers Option
• Specifications Sheet — Adjustable Spacers Option
• Instructions — Pad Frame T-Arms Option
• Specifications Sheet — T-Arm Options

Application Instructions

Stage 1: Pre-Operation Inspection and Setup

1. Read and understand the full Operating Instructions before using the lifter.
2. Select the appropriate screen language on the Intelli-Grip® Control Unit.
3. Perform all required inspections and tests as outlined in the Operating Instructions.
4. Check the 12-volt battery charge level and verify it is adequate for the planned operation.
5. If using the Remote Control System (Stock# 59906), prepare and connect it per the remote control instructions before beginning the lift.
6. Configure the pad frame — install or remove extension arms and reposition vacuum pads as needed for the load size and shape.
7. Connect all vacuum hoses securely per the hose-routing diagram.

Stage 2: Attaching the Lifter to the Load

1. Position the lifter on the load surface, centering the pad frame over the load's center of gravity.
2. Power up the lifter using the Intelli-Grip® Control Unit.
3. Seal the vacuum pads onto the load surface and initiate vacuum draw.
4. Read the vacuum gauges on both circuits — verify both circuits are in the green/safe zone before proceeding.
5. Confirm the Lift Light indicates it is safe to lift the load.

Stage 3: Lifting, Moving, and Positioning the Load

1. Monitor vacuum indicators continuously throughout the lift and move.
2. Use the control handle or remote control to manage lifter and load position.
3. To rotate the load, use the rotation controls; engage or disengage secondary rotation stops as needed.
4. To tilt the load, disengage tilt locks, use the tilt-assist mechanism to move the load to the desired angle, then re-engage tilt locks to secure.
5. In the event of a power failure during the lift, follow the power failure procedures in the Operating Instructions to safely recover the load.

Stage 4: Releasing the Load and Post-Operation

1. Once the load is placed and secured, release the vacuum pads from the load per the release procedure in the Operating Instructions.
2. Power down the lifter.
3. After use, perform all required post-operation maintenance and store the lifter per the storage instructions.
4. If shipping or storing the lifter, use the optional protective Shipping Case (Stock# 53007).

Technical Specifications

Safety Data Summary

Hazard Information

• Intended for use by professional equipment operators only — not for untrained personnel.
• Service and maintenance must be performed by qualified service personnel only.
• Disconnect power source before servicing to prevent electrical shock or other risks.
• Severe vacuum leakage (vacuum level below 16" Hg [-54 kPa]) indicates an unsafe condition — do not lift loads until the system is repaired.
• Moderate vacuum leakage (Intelli-Grip® warning: "High leak rate on circuit #") warrants inspection and repair before continued use.
• Do not apply soapy water to fittings or vacuum hoses when testing for leaks — it will be drawn into the vacuum system and cause damage.
• Always verify both vacuum circuits are in the safe (green) zone and the Lift Light confirms safe-to-lift status before raising a load.
• Monitor vacuum indicators continuously throughout any lift and move operation.
• Follow power failure procedures immediately if power is lost during a lift.

Personal Protective Equipment

• Use appropriate PPE as required by the job site and applicable regulations when operating lifting equipment.
• Follow all site-specific safety requirements when working at elevation or near lifted loads.

Safe Handling

• Read and fully understand the Operating Instructions before operating this equipment.
• Perform all required pre-operation inspections and tests before each use.
• Verify battery charge is adequate before beginning a lift.
• Configure pad frame and extension arms appropriately for the specific load dimensions and weight.
• Only lift materials within the rated load capacity of the specific model in use.
• Only use the MRTA811LDC3 on flat, smooth surfaces; only use the MRTA810TDC3 on flat, textured surfaces — do not use on porous or incompatible surfaces.
• Engage tilt locks to secure the load at the desired tilt angle before placing.
• Use secondary rotation stops when limiting rotation range is required for the application.
• Store the lifter properly after use; use the protective shipping case when transporting.

Frequently Asked Questions

Q: What is the difference between the MRTA811LDC3 and the MRTA810TDC3?
A: The MRTA811LDC3 (Stock# 98760) is designed for flat, smooth surfaces such as glass and similar materials, with a load capacity of 1,400 lbs (635 kg). The MRTA810TDC3 (Stock# 98750) is designed for flat, textured surfaces such as insulated metal panels (IMPs), with a load capacity of 1,200 lbs (545 kg). The pad type and vacuum system configuration differ between models to optimize adhesion on each surface type.

Q: What does Intelli-Grip® Technology do, and why does it matter on a job site?
A: Intelli-Grip® continuously monitors both vacuum circuits and the power system in real time, displaying diagnostic codes and alerts on the control unit screen. This automated monitoring catches developing issues — such as vacuum leaks or battery conditions — before they create a hazardous situation, and it guides maintenance personnel through troubleshooting and repairs to minimize downtime. It also supports mobile app connectivity for submitting lifter data and video directly to Wood's Powr-Grip technical support.

Q: How far away can the optional remote control operate the lifter?
A: The optional Remote Control System (Stock# 59906) provides control of all lifter functions from up to 250 ft (76 m) away. It uses a plug-and-play connection for fast installation and is particularly useful for window and panel installation on multi-story buildings where the operator cannot be directly adjacent to the lifter.

Q: Can the vacuum pad configuration be changed in the field?
A: Yes. The MRTA8 series features removable and repositionable vacuum pads, and extension arms can be installed or removed to adapt the pad frame to different load sizes and shapes. The Operating Instructions include detailed procedures for changing the pad frame configuration, connecting and disconnecting vacuum hoses, and using secondary rotation stops.

Q: What should I do if the Intelli-Grip® system displays a "High leak rate on circuit #" warning?
A: This warning indicates that the leakage rate on one vacuum circuit has exceeded the default threshold of 4" Hg in 5 minutes. Inspect the affected vacuum pads, hoses, and fittings for visible damage, contamination, or loose connections. If the warning appears at the end of each pump cycle, the vacuum system requires repair before further use. Refer to the Leak Test Procedure document (TST-021) and the Service Manual for systematic diagnostic and repair procedures.

Q: Is leasing the MRTA8 lifter an option?
A: Yes. Wood's Powr-Grip offers a lease program for the MRTA8 series lifters. Contact Diamond Tool Store for details on lease availability and terms for your specific project needs.
