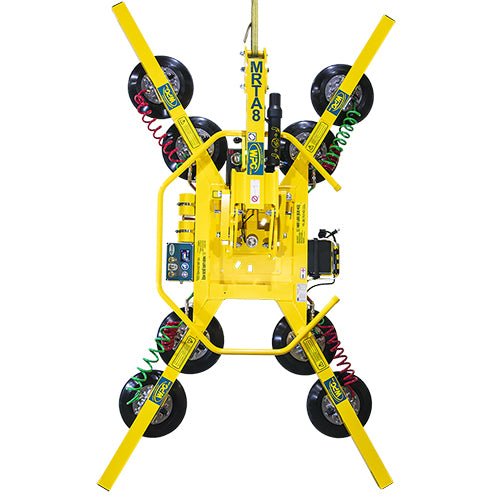

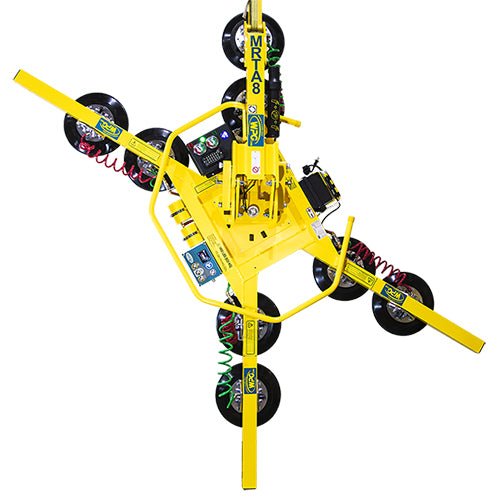

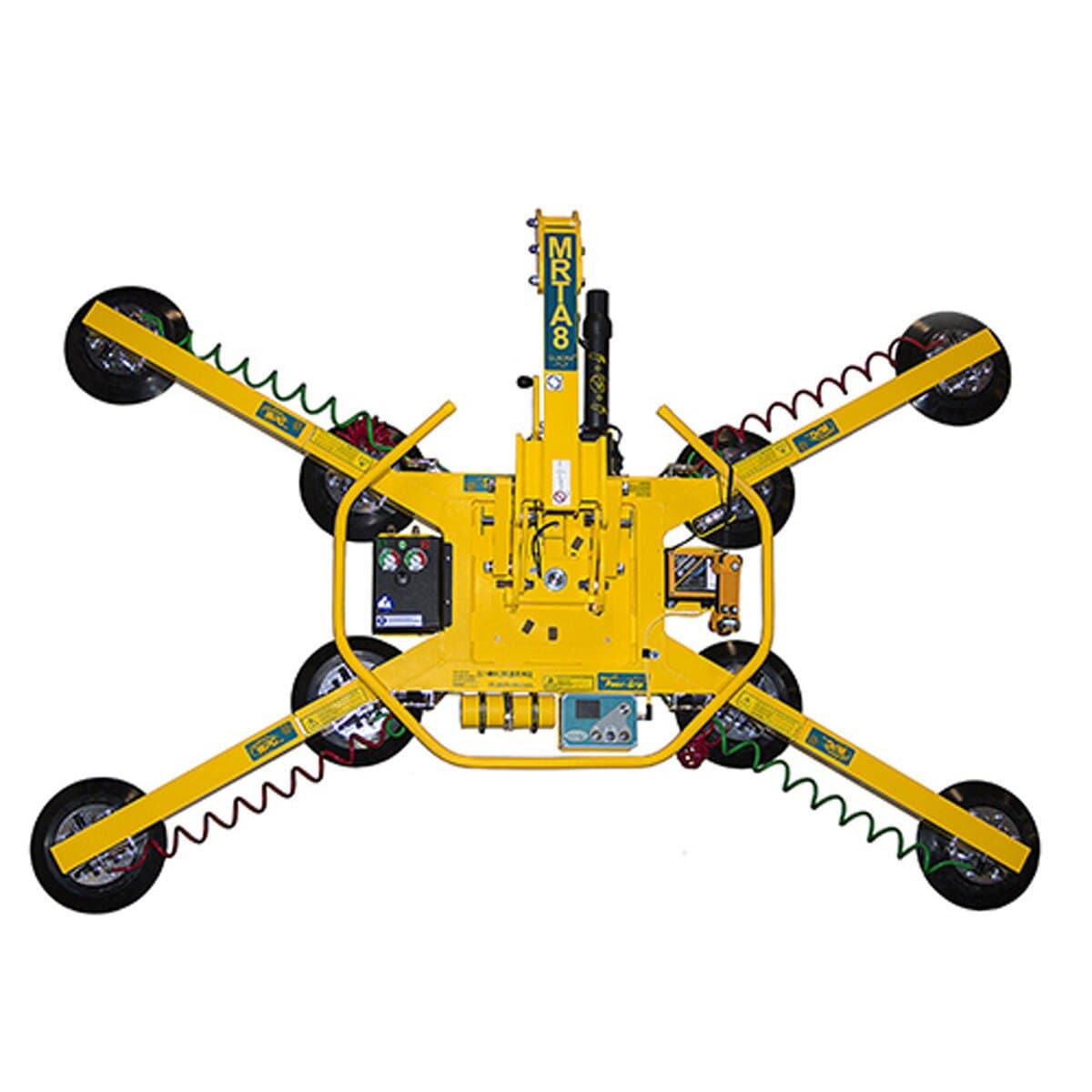

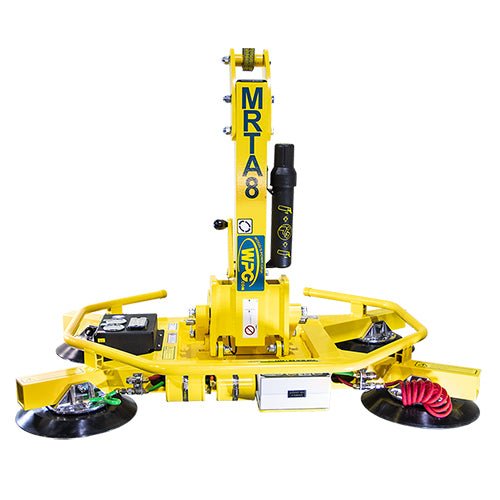

MRTA Lifter Series - Quadra-Tilt Rotator

SKU
Original price $7,745.44 - Original price $8,241.25
Original price
$7,745.44
$7,745.44 - $8,241.25
Current price $7,745.44
Choose a Options
Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

Quadra-Tilt Rotator (DC) With Intelle-Grip | Made to Order Vacuum Lifter with a typical lead time of 5-6 weeks.

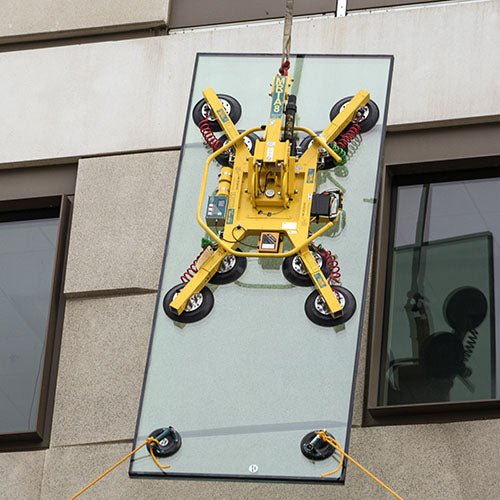

This versatile rotator/tilter features tilt-assist, allowing operators to tilt heavy materials safely and efficiently. (Re)movable vacuum pads and extension arms accommodate a variety of load sizes and shapes.

Dual Vacuum models now available w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

  • Maximize productivity
  • Help reduce human error
  • Simplify maintenance and repairs
  • Protect employees and property from harm

Specifications

Instructions

Service Manual

Stock# Model#

 Description

Load Capacity Power
98760 MRTA811LDC3

Flat and smooth surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for glass and other materials for Construction/Installation.

1400 lbs [635 kg] DC
98750 MRTA810TDC3

Flat and textured surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for textured surfaces in Construction/Installation settings.

1200 lbs [545 kg] DC



Maximum Load Capacity:

  • 1400 lbs [635 kg]


Intelli-Grip™ Technology:

  • Automatic self-testing ensures lifter is ready for use, every lift.
  • Color display provides critically relevant information at a glance.
  • Anticipates threats and alerts operator beforehand with clearly visible and audible warnings.
  • Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low.
  • Multiple alarm levels plainly identify the severity of hazards.


Load Movement:

  • Manual rotation, 360° edgewise, with automatic locking at each 1/4 revolution
  • Assisted manual tilt, 90° between upright and flat


Standard Operating Power:

  • 12 volts DC, 4.5 amps


Weight of Lifter:

  • 200 lbs [91 kg]


Standard Pad Spread:

  • Minimum Width: 12-1/2" [32 cm]
  • Maximum Width: 58-3/4" [149 cm]
  • Minimum Length: 47" [119 cm]
  • Maximum Length: 104-3/4" [266 cm]


Number / Size of Vacuum Pads:

  • 8 / 11" [28 cm] diameter, lipped pads


Standard Features:

  • Intelli-GripTM technology
  • Dual vacuum system
  • Battery and charger
  • Battery energy gauge
  • Low vacuum strobe light
  • Low vacuum/power loss warning buzzer with back-up battery
  • Green lift light
  • Vacuum gauges
  • Vacuum line filters
  • Vacuum reserve tanks
  • Spring-mounted vacuum pads
  • (Re)movable pad mounts
  • Pad extension arms
  • Tilt locks
  • Blow-off for quick release
  • Two-action, push-button release


Dual Vacuum System:

  • Features two completely independent vacuum circuits.
  • Provides vacuum system redundancy.
  • Limits possibility of a catastrophic failure.
  • Reduces chance of harm to personnel or equipment.
