Metal Cutting

  • Diablo made TiCo Hi-Density Carbide specifically designed for mild steel applications to provide maximum performance, superior cuts, and longer life vs. standard grinding discs.
  • Triple Chip Cutting action reduces sparks and the possibility of needing “hot” permits
  • Optimized blade design reduces wandering and deflection of metal, creating precise cuts that require virtually no re-work

Cuts

  • Roofing
  • Siding
  • Sheet
  • Decking
  • Corrugated Sheets
  • Steel Studs

PRODUCT OVERVIEW

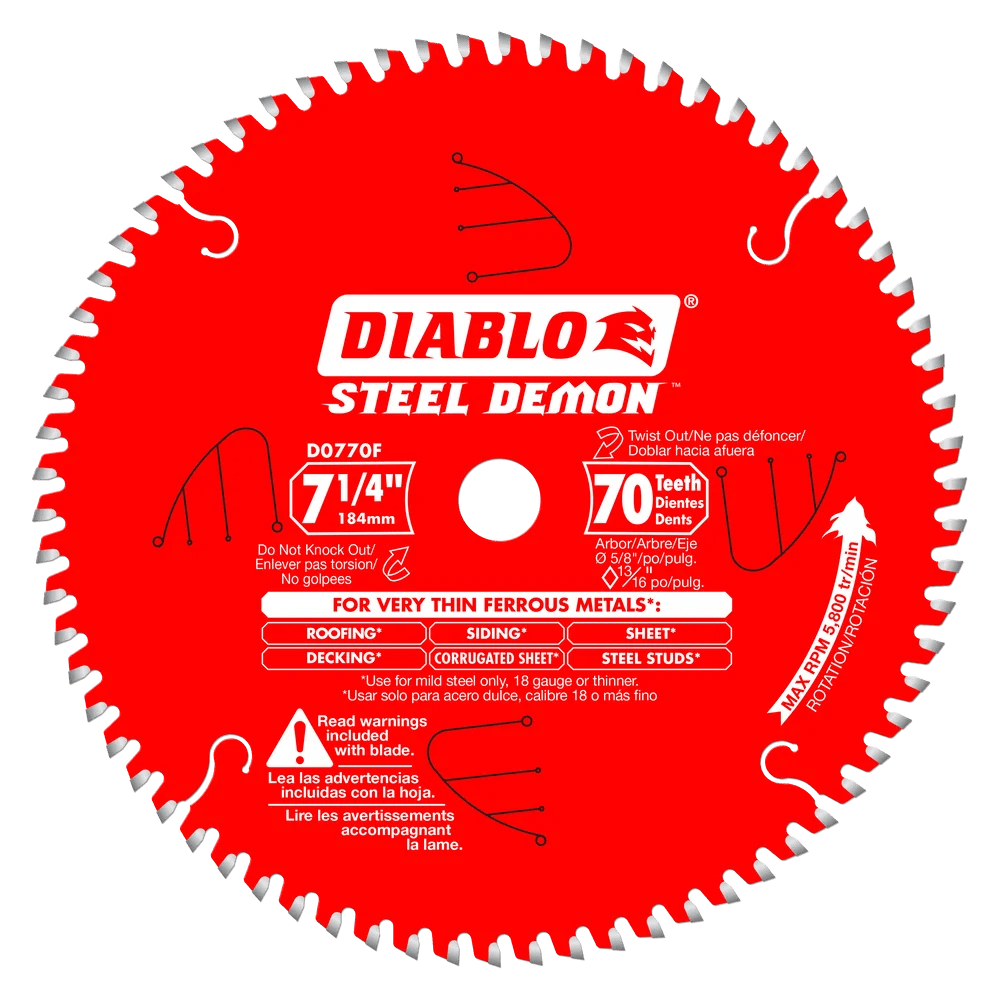

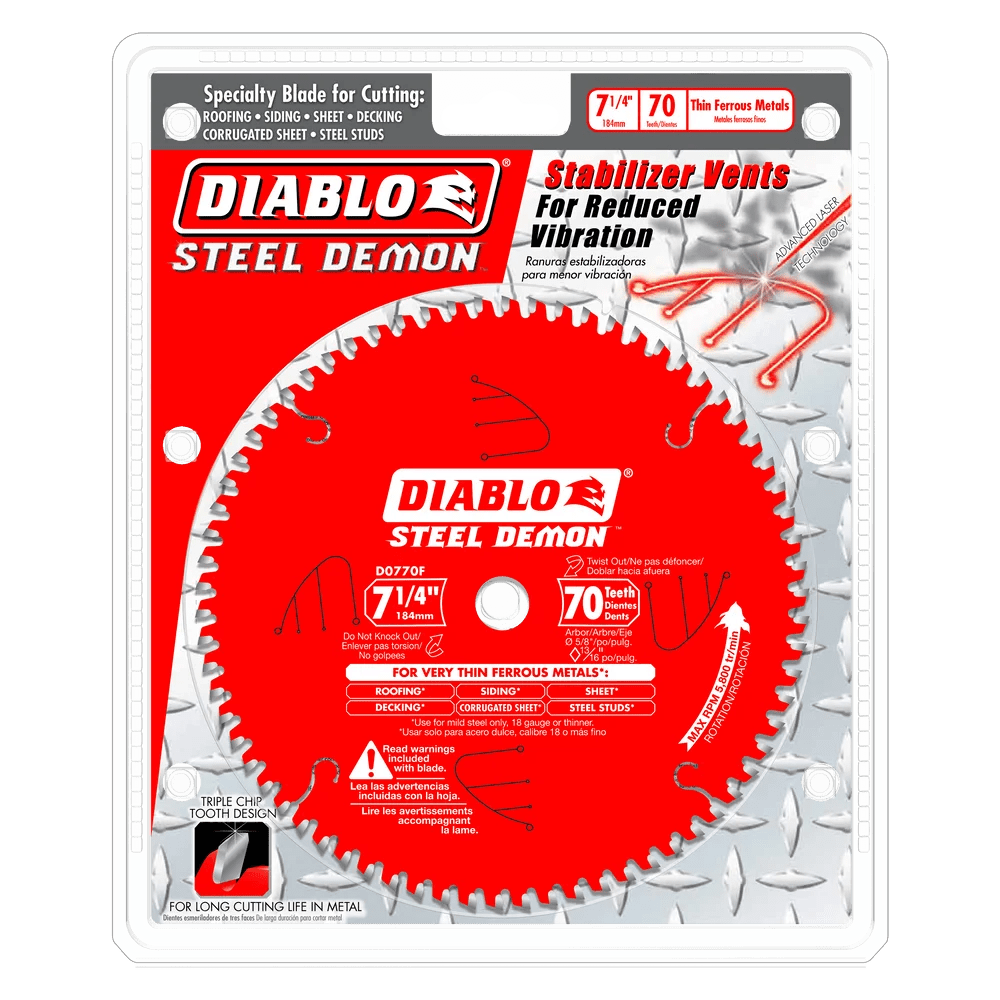

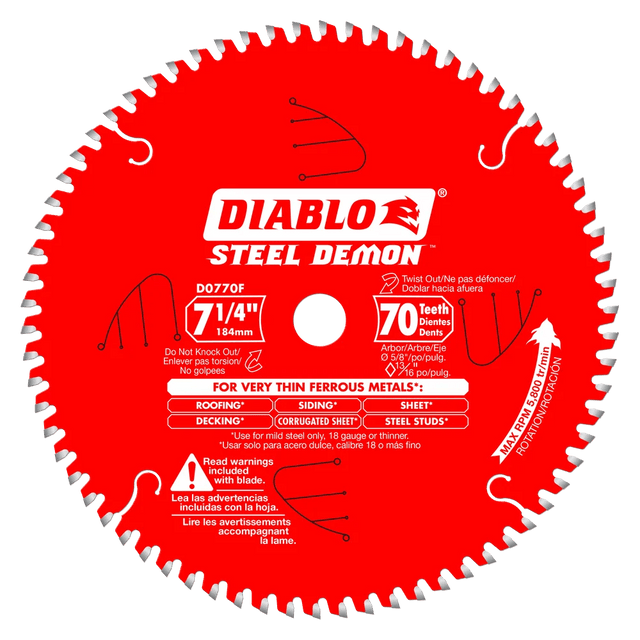

Diablo’s Steel Demon metal cutting saw blades produce fast, accurate cuts in a wide-range of mild steels. These blades feature Diablo made TiCo Hi-Density Carbide engineered exclusively to deliver maximum performance, superior quality cuts and longer life when compared to standard grinding discs. Designed with a Triple Chip Grind (TCG) and Perma-SHIELD® coating, these blades slice through the toughest of metals to produce precise, burr-free cuts with less sparks. A controlled cutting action produces larger chip sizes that generates less dust and airborne contaminates. The thin kerf body minimizes material removal and requires less cutting power, delivering fast, clean cuts in cordless and corded circular saws.
  • Diablo made TiCo Hi-Density Carbide specifically designed for mild steel applications to provide maximum performance, superior cuts, and longer life vs. standard grinding discs.
  • Triple Chip Cutting action reduces sparks and the possibility of needing “hot” permits
  • Optimized blade design reduces wandering and deflection of metal, creating precise cuts that require virtually no re-work
  • Advanced Laser Cut Stabilizer Vents trap noise and vibration for maximum stability, keeping the blade cool for straight, accurate cuts
  • Tri-Metal Shock Resistant Brazing, a three-metal brazing system, allows Cermet II teeth to withstand extreme impact for maximum durability
  • Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy, and long cutting life in cordless or corded saws
  • Perma-SHIELD® coating resists heat build-up by protecting the blade against gumming and corrosion
  • Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation when in use
  • Circular saw blades create a controlled cutting action resulting in larger chip sizes that generates less dust and airborne contaminates versus standard grinding discs
  • Ideal for mild steels only, 18 gauge or thinner
  • Compatible with cordless and corded circular saws
  • Max RPM: 5800
Ideal For: Roofing*, Siding*, Sheet*, Decking*, Corrugated Sheet*, Steel Studs Note: Use for mild steel only, 18 gauge or thinner
Suggested Projects: Metalworking

TECHNICAL SPECIFICATIONS

  • ARBOR: 5/8"

  • DIAMETER7-1/4"

  • HOOK ANGLE-5°

  • KERF.071"

  • PLATE.051"

  • TEETH70 TCG

  • MAX RPM5800
