Shop TruFast

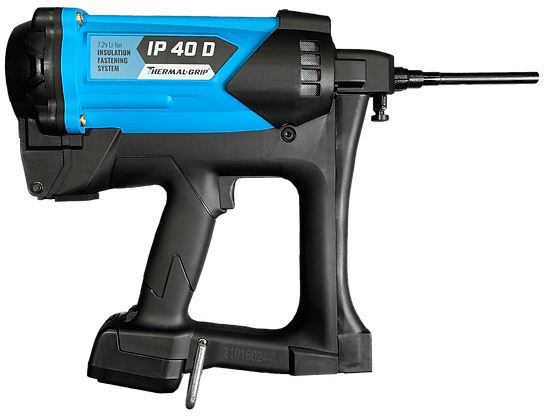

IP40D Insulation Fastening Tool

SKU# A-W-IP40D

$674.14

Shipping calculated at checkout.

Options

Fastener Gun Fuel - 10 Pack

Safe & Secure Payments

The IP40D Concrete Pinner Tool is designed to quickly attach insulation to concrete and masonry substrates without the need for pre-drilling.

Ideal for low to mid-range PSI masonry applications, it is especially suited for fastening insulation over CMU block using Thermal Grip Insulation Pins.

Engineered for speed and efficiency, the IP40D rapidly secures rigid insulation to concrete, masonry, tilt-up walls, and precast wall systems. It features a quick-charge lithium-ion battery with a 165 mm fuel cell for reliable performance on demanding construction projects.

Key Features

Designed to attach insulation to concrete and masonry substrates.
Ideal for low to mid-range PSI masonry applications.
Recommended for attaching insulation over CMU block.
Compatible with Thermal Grip Insulation Pins.
No pre-drilling required—simply point and shoot.
Rapidly attaches rigid insulation to concrete, masonry, tilt-up, and precast walls.

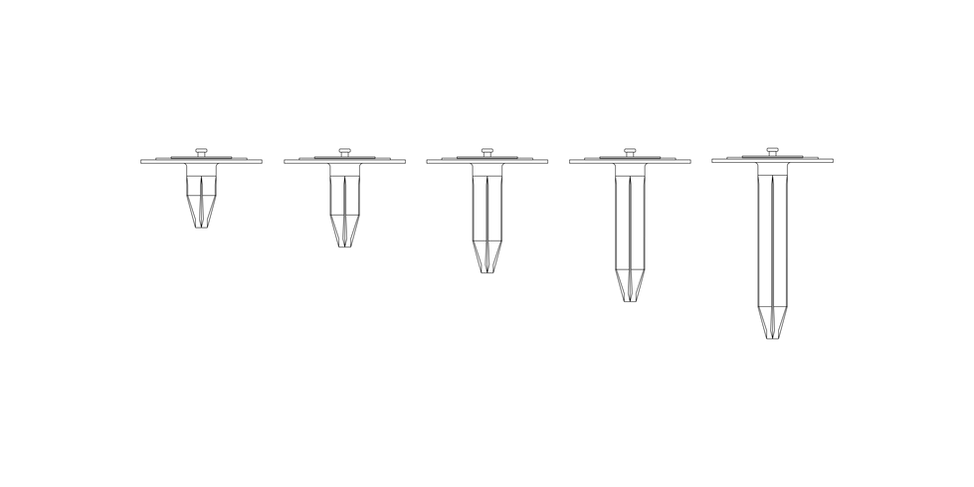

Fastener lengths available for insulation thicknesses from 1.5 inches to 6 inches.
Powered by a quick-charge lithium-ion battery with a 165 mm fuel cell.
Fast and efficient installation.

Common Applications

Rigid insulation attachment.
CMU block wall insulation.
Concrete wall insulation.
Masonry construction.
Tilt-up wall systems.
Precast concrete wall systems.
Commercial construction.
Exterior insulation installations.

Ideal For

Insulation contractors.
Commercial construction projects.
Masonry wall applications.
Concrete wall assemblies.
Fast installation of rigid insulation.

Key Benefits

Fast Installation

Eliminates pre-drilling, allowing installers to quickly fasten insulation by simply positioning the tool and firing.

Optimized for Masonry

Designed specifically for low to mid-range PSI masonry applications, making it ideal for CMU block installations.

Versatile Performance

Compatible with concrete, masonry, tilt-up, and precast wall assemblies while accommodating insulation thicknesses from 1.5 inches to 6 inches.

Portable Power

The quick-charge lithium-ion battery and 165 mm fuel cell provide dependable cordless performance on the jobsite.

Product Information

Property	Description
Model	IP40D
Product Type	Concrete Pinner Tool
Compatible Fasteners	Thermal Grip Insulation Pins
Compatible Substrates	Concrete, masonry, CMU block, tilt-up and precast walls
Recommended Application	Low to mid-range PSI masonry
Battery	Quick-charge lithium-ion
Fuel Cell	165 mm
Supported Fastener Lengths	1.5 in to 6 in insulation thickness
Pre-Drilling Required	No

Safety Information

Always wear proper ear, eye, and hand protection when operating the tool.
Follow all manufacturer operating and safety instructions before use.

Installation Note

Anchor length should match the insulation thickness.

Frequently Asked Questions (FAQ)

Q1. What is the IP40D Concrete Pinner Tool used for?
The IP40D is used to attach rigid insulation to concrete and masonry substrates quickly without pre-drilling.

Q2. What substrates is the IP40D designed for?
It is designed for concrete, masonry, CMU block, tilt-up walls, and precast concrete wall applications.

Q3. What fasteners are compatible with the IP40D?
The tool is designed for use with Thermal Grip Insulation Pins.

Q4. What insulation thicknesses can it accommodate?
It supports fastener lengths for insulation thicknesses ranging from 1.5 inches to 6 inches.

Q5. What safety equipment should be worn when using the IP40D?
Proper ear, eye, and hand protection should always be worn during operation.
