Reusable Roof Anchor

Reusable Roof Anchor – 5000 lb. Min. Breaking Strength for Secure Fall Protection on Wooden Beams

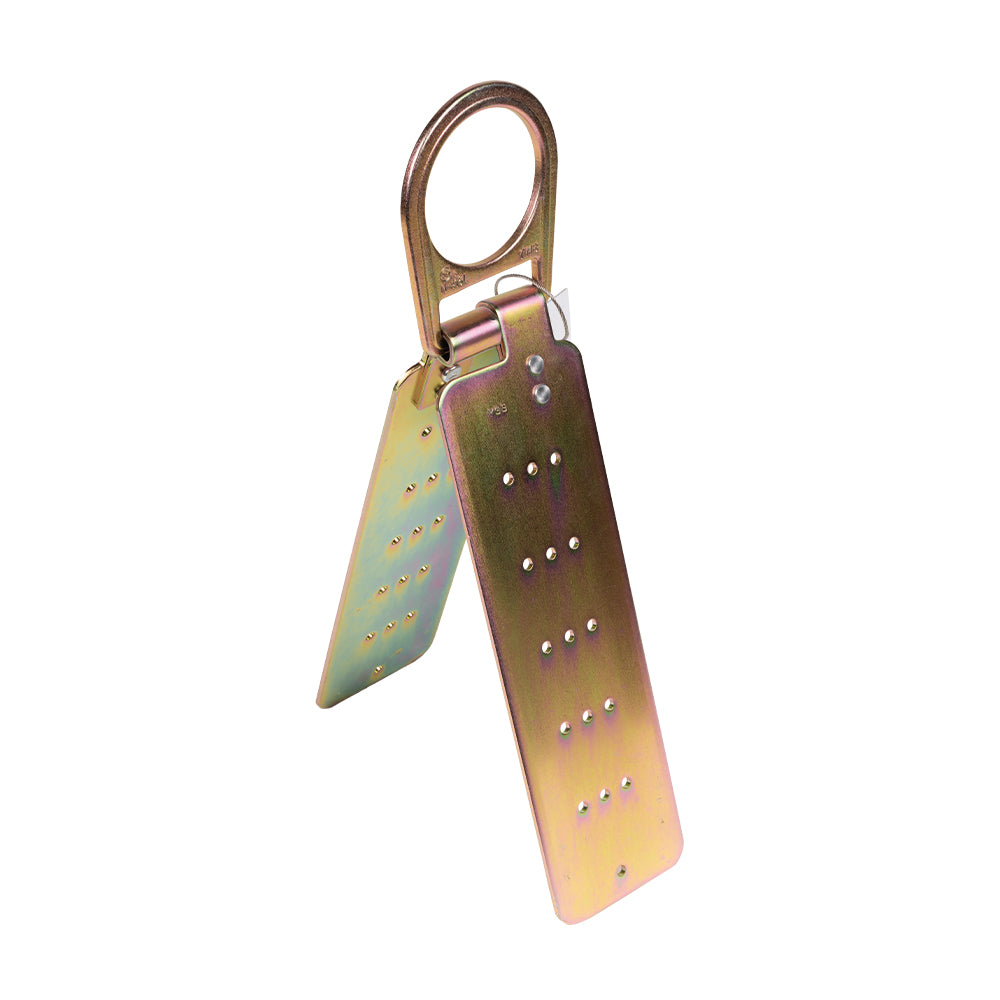

The Palmer Safety A00150 Reusable Roof Anchor is a galvanized steel anchorage connector designed for fall protection applications on wooden beam roof structures. Built for roofing contractors and trades professionals who require a reliable, code-compliant anchor point, it features a stamped D-ring that serves as the designated attachment point for personal fall arrest systems. The anchor meets or exceeds ANSI Z359.18-2017 and OSHA requirements for anchorage connectors, making it suitable for regulated jobsite use. Its reusable design allows the anchor to be removed and reinstalled across multiple projects, reducing per-job material costs.

Technical Specifications

Unlike single-use disposable roof anchors, the A00150 is engineered for repeated installation and removal across multiple roofing projects, offering contractors a cost-effective solution without sacrificing compliance. Its dual-flap, 16-hole-per-side nail pattern distributes load across the wooden beam for a secure connection, and the galvanized steel construction provides corrosion resistance suited to outdoor roofing environments.

Key Features & Benefits

ANSI Z359.18-2017 & OSHA Compliant

The A00150 meets or exceeds ANSI Z359.18-2017 and satisfies OSHA requirements for anchorage connectors, ensuring contractors can use it on regulated jobsites without compliance concerns. Proper compliance documentation is critical when fall protection systems are inspected by safety officers or project owners.

5,000 lb. Minimum Breaking Strength

With a minimum breaking strength of 5,000 lbs., this anchor provides the structural capacity required for personal fall arrest system anchorage points. This rating supports the load demands of a single worker's fall arrest event as defined by applicable standards.

Dual-Flap, 32-Hole Nail-In Design

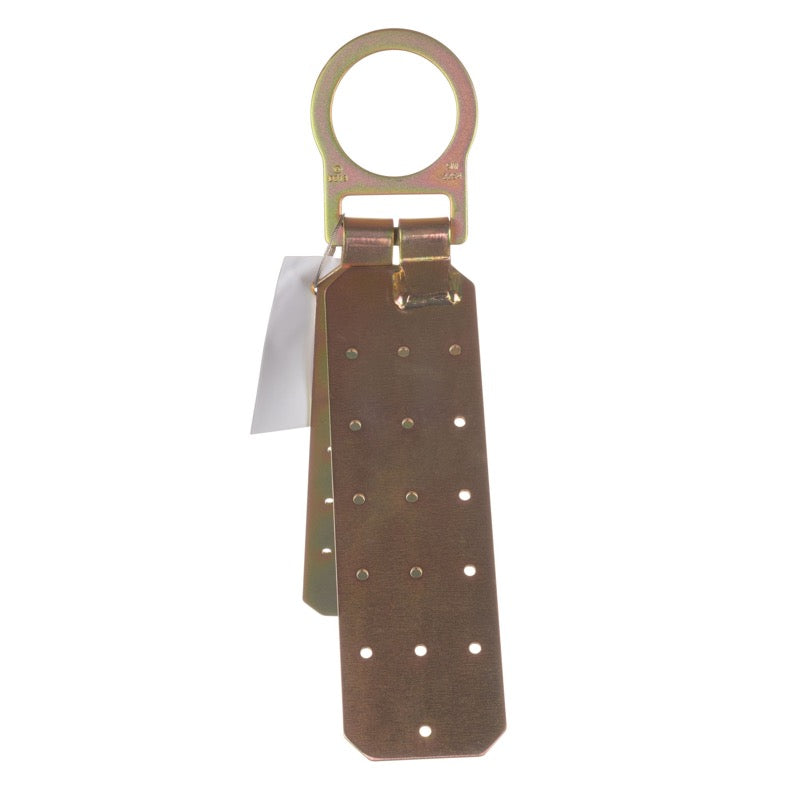

The anchor consists of two steel flaps, each with 16 holes, that wrap around both sides of a wooden beam and are secured with nails through the holes. This bilateral attachment method distributes forces across the beam, maximizing holding strength during a fall event.

Reusable Construction

Designed to be installed and removed repeatedly, the A00150 can be redeployed across multiple roofing projects, reducing the need to purchase new anchors for every job. This reusability lowers overall fall protection costs for contractors who work on frequent roofing assignments.

Galvanized Steel with Powder Coat or Zinc Plate Finish

The galvanized steel base material combined with a powder coated or zinc plated finish provides corrosion resistance appropriate for outdoor roofing environments where exposure to moisture and weather is common. This extends the service life of the anchor across multiple uses.

Stamped D-Ring Anchor Point

The integrated stamped D-ring provides a defined, secure attachment point for connecting lanyards, self-retracting lifelines, or other fall arrest components. A fixed, purpose-built anchor point eliminates improvised connections that could compromise system integrity.

Common Applications

Residential Roofing

Ideal for installation on wooden roof rafters or ridge beams during residential roofing projects where a temporary, removable fall protection anchor point is required.

Commercial Wood-Frame Roof Construction

Suitable for use on commercial structures with exposed wooden beam framing where workers require an ANSI-compliant anchorage connector during roofing operations.

Roof Repair and Replacement

Can be installed on existing wooden beam structures during re-roofing or repair work, providing a compliant anchor point without permanent modification to the structure.

Fall Arrest System Anchorage

Functions as the anchorage connector component in a complete personal fall arrest system, connecting to lanyards or self-retracting lifelines via the D-ring.

Compatible Materials

• Wooden roof beams and rafters
• Wood-frame roof structures (nail-fastened installation)

Product Documents

• Download Tech Sheet
• Download Manual (Anchor Solutions)
• Download Installation Instructions / Fastener Requirements

Frequently Asked Questions

Q: What standard does the A00150 Reusable Roof Anchor comply with?
A: The A00150 meets or exceeds ANSI Z359.18-2017 and satisfies OSHA requirements for use as an anchorage connector in personal fall arrest systems.

Q: What is the minimum breaking strength of this anchor?
A: The minimum breaking strength is 5,000 lbs.

Q: How is the anchor attached to the roof structure?
A: The anchor consists of two steel flaps, each with 16 holes, that are fitted on the two sides of a wooden beam and secured by nails inserted through the holes. Refer to the fastener requirements document for specific nail specifications.

Q: Can this anchor be used on structures other than wooden beams?
A: Based on the product design and installation method, the A00150 is specifically designed for use on wooden beams. Consult the product manual for approved installation substrates.

Q: Is this anchor reusable across multiple projects?
A: Yes. The A00150 is designed to be installed and removed for reuse on multiple roofing projects, provided it has not been subjected to a fall arrest event or shows no signs of damage or deformation.
