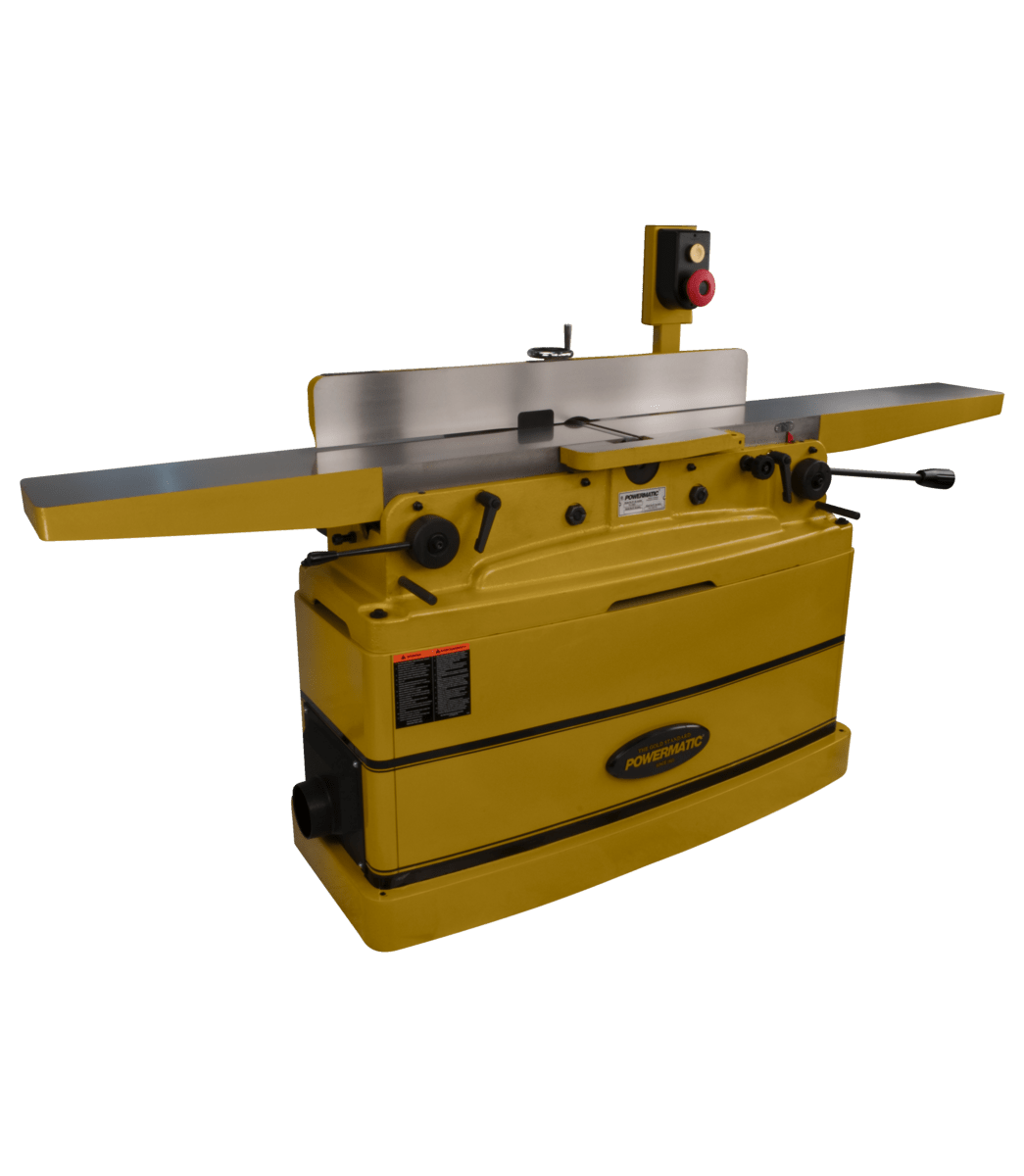

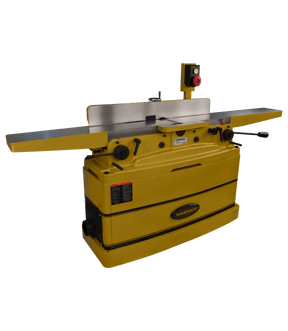

PJ882 Jointer, 2HP 1PH 230V
SKU# PM9-1610079
Couldn't load pickup availability
Safe & Secure Payments.
PJ882 Jointer, 2HP 1PH 230V
The 8" Parallelogram Jointer offers performance and value in a machine loaded with features.

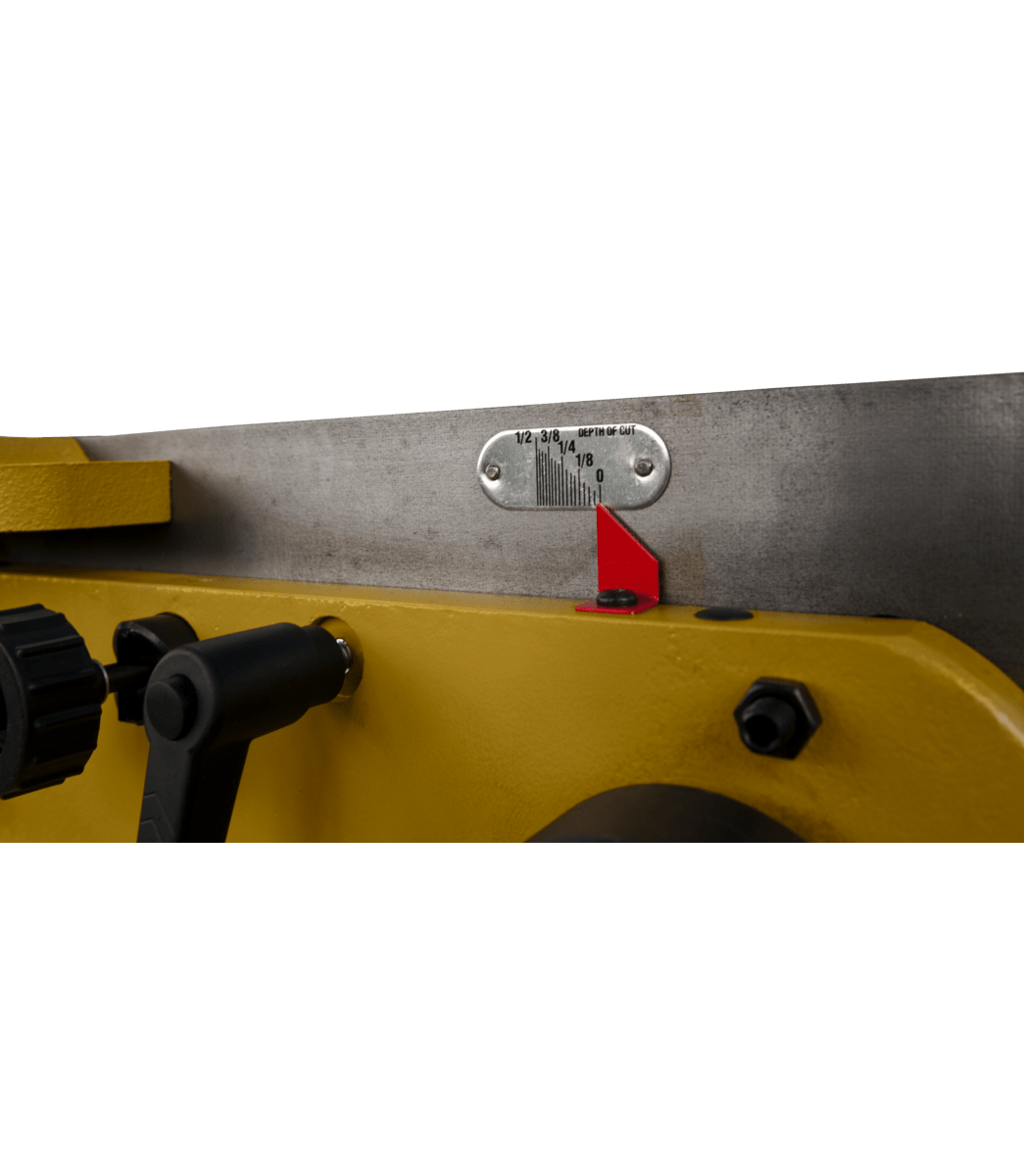

Each machine has an extra long 82" bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP motor is totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs.
Features

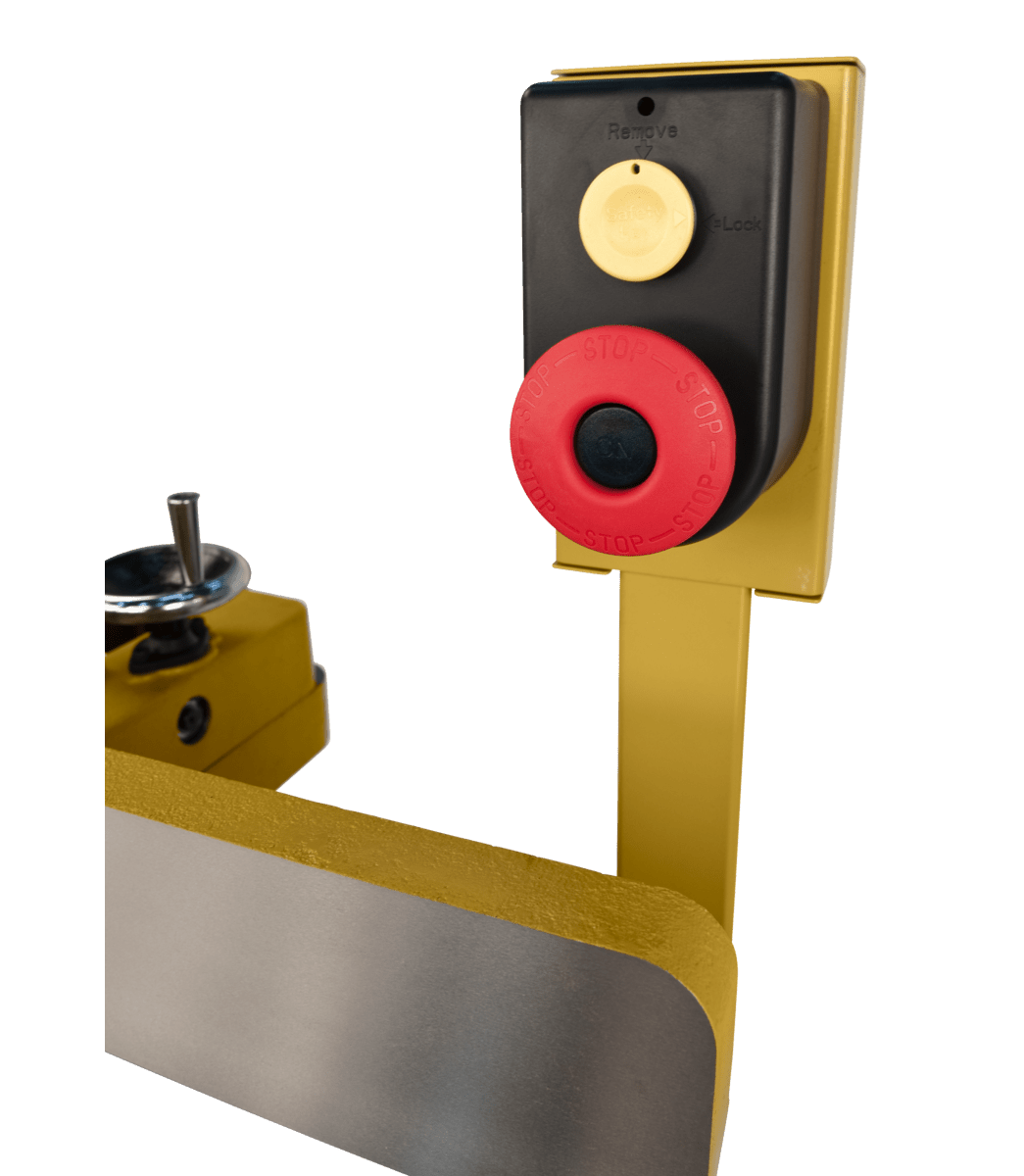

- High-mount switch for operator convenience

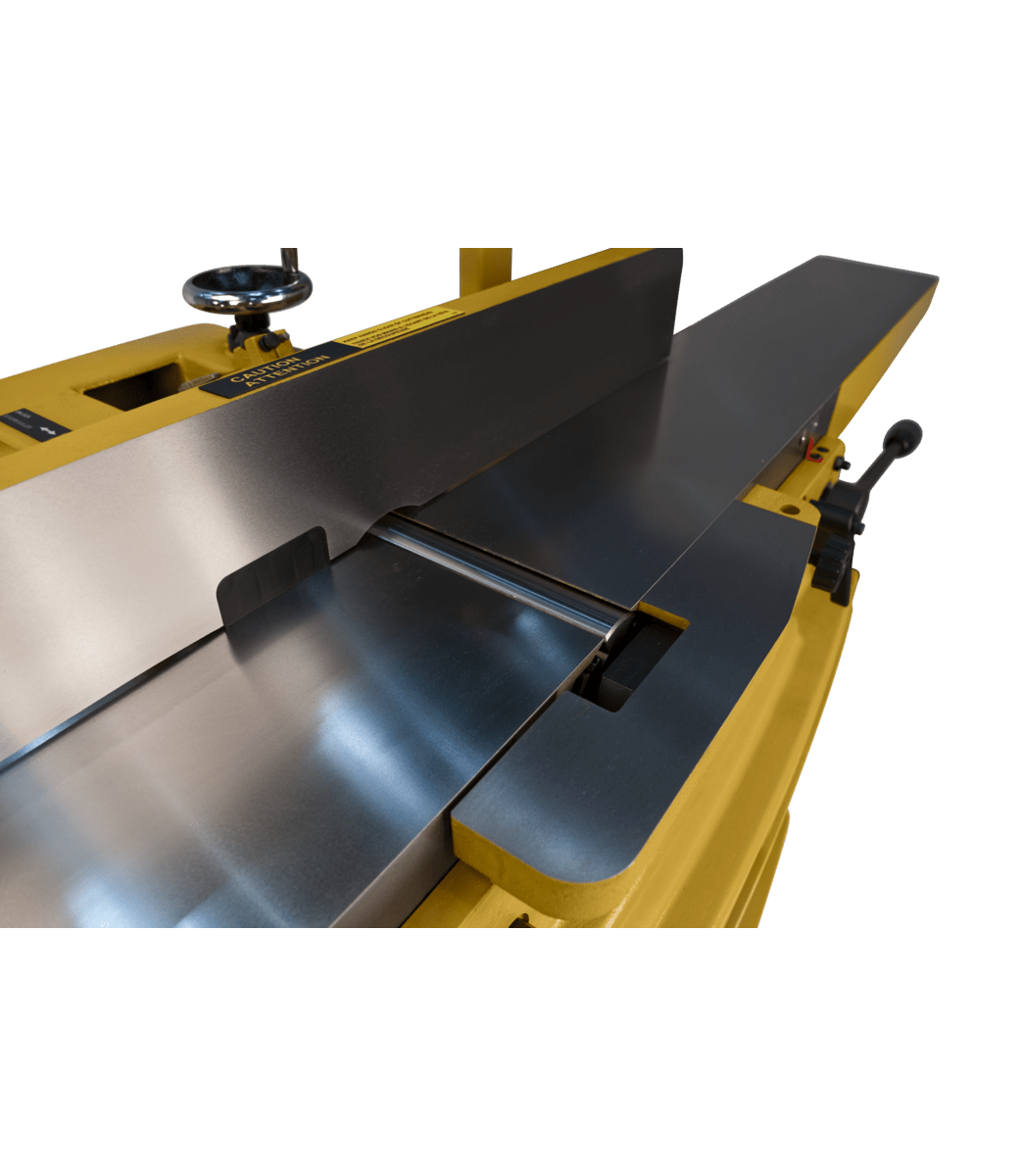

- Large 8" x 82" precision ground cast iron table surface for heavy-duty work
- Parallelogram design allows for easy and accurate adjustment of tables
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments

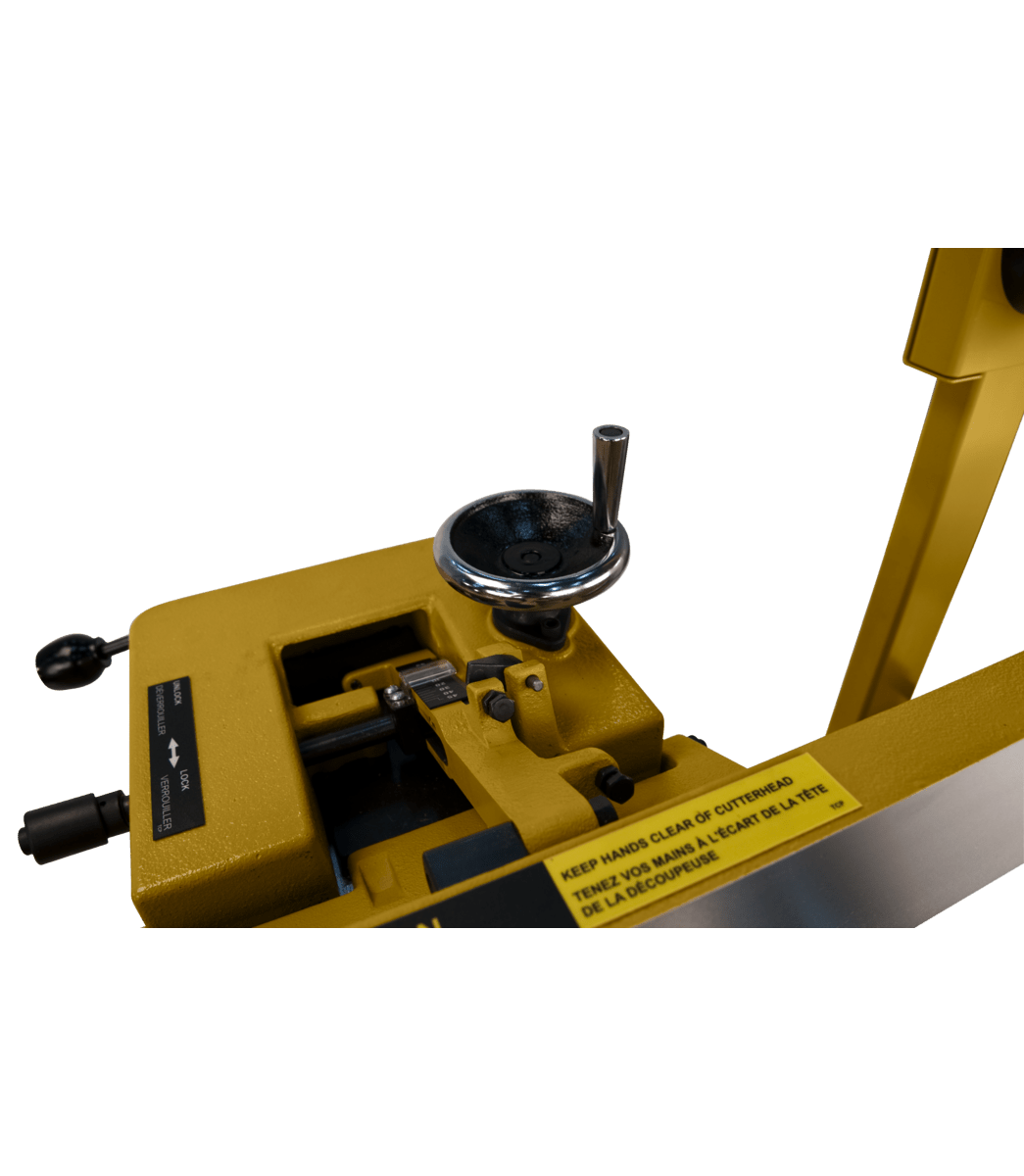

- Patented handwheel with worm gear system for precise fence tilting
- Straight knife cutterhead with 3 high speed steel knives create a clean cut
Specifications
| Stock Number | 1610079 |
|---|---|
| Cuts Per Minute | 21,000 |
| Cutterhead Diameter (In.) | 3-1/16 |
| Cutterhead Speed (RPM) | 7000.0000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Infeed Table Length (In.) | 44 |
| Motor Amps | 9 |
| Motor Phase | 1 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Number of Knives | 3 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Rabbeting Capacity (In.) | 1/2 |
| Recommended Circuit Size (Amps.) | 20 |
| Type of Cutterhead | Straight Knife |
