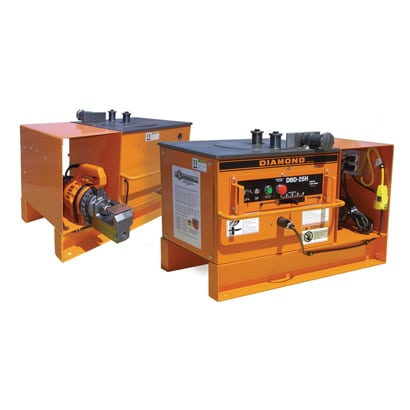

This is a combination of the very popular DC-25X rebar cutter and our new DBD-25H rebar bender together on a heavy-duty housing.

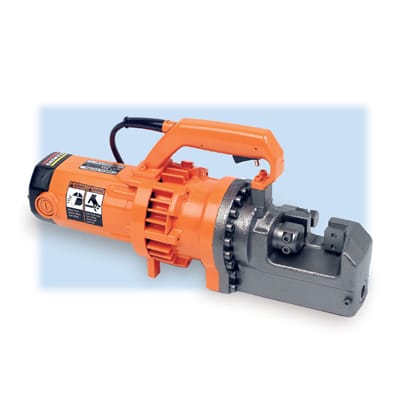

  • The DC-25X rebar cutter can be removed and used in a portable application or secured in the stationary position for use with a foot pedal switch (included).
  • A toggle switch allows you to go from bending to cutting and both are operated hands-free with a foot pedal.
  • The unit is shipped fully assembled and includes two steel cases for storage of  nine bending rollers, a foot pedal control switch, and a one-year parts and labor warranty.
PRODUCT LINKS

Specifications
Skid Mounted with DC-25X Rebar Cutter/

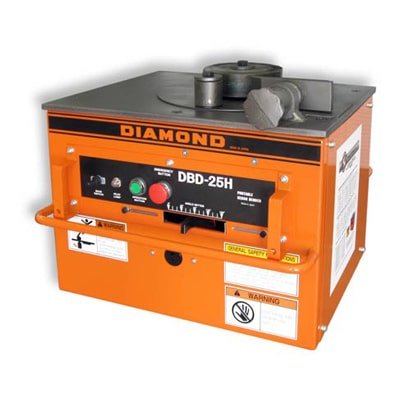

DBD-25H Rebar Bender
Rebar Capacity Grade 60 Up to #8 (1") rebar
Cutting Speed 3 seconds
Bending Speed 180 degree bend in 9 seconds
Power Supply Electric motor 115V, 50/60 Hz –12 amp Cutter, 15 amp
Weight (kg) 321 lbs. Total Weight, 49.6 lbs. Cutter, 210 lbs. Bender
Dimensions (mm) 32.75" L x 28" W x 22.50" H including lifting handles
ACI 318-05 The bender meetsand is compliant with all ACI 318-05 specifications
